Year |
2004 |
|---|---|
Make |
HEM |
Model |
V100 HLA -3 |
Description |
Horizontal Band Saw |
Reference # |
8076964 |
Price |
Activate Pricing |

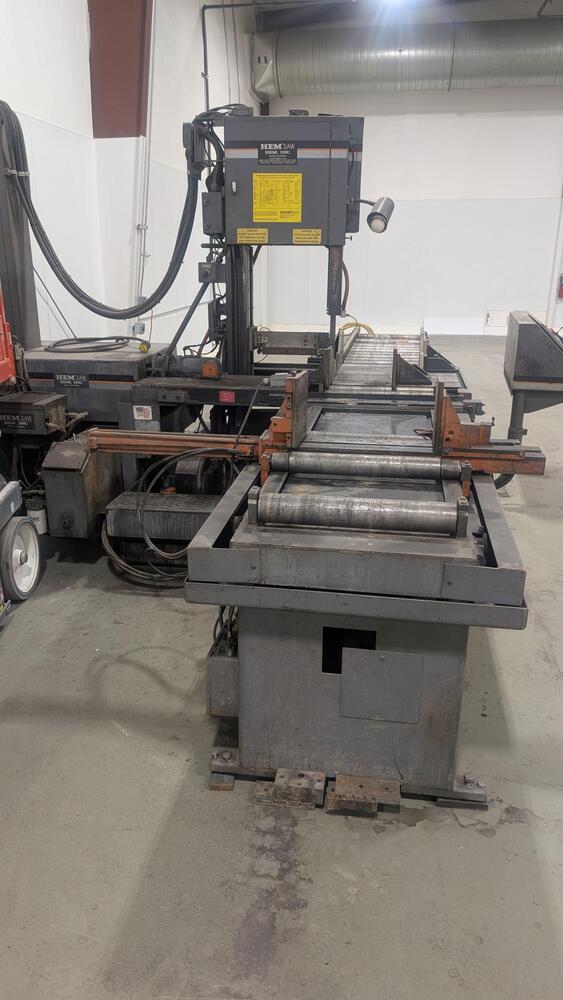

Used HEM V100 HLA-3 (2004) Vertical Band Saw for Sale. This tilting-head band saw cuts 18″ W x 18″ H at 90 degrees, with an 18″ throat and 22″ work height. It runs a 180″ x 2.25″ blade at variable speeds from 60 to 380 SFPM, with head tilt of +/- 45 degrees for angle cutting. The table area measures 24″ x 24″ at a 40″ table height, and cutting pressure is adjustable from 0 to 600 lbs at 100 PSI air. Equipped with an automatic feed system, clamping vises, HEM PLC control, tilting-head design and air powered blade tension. The machine can be seen under power for an inspection. See more listings in our used saws category, [Activate Pricing](#activate-pricing) or Request a Quote.
Specifications
| Capacity at 90 Degrees |
18" W x 18" H |
|---|---|
| Throat |
18" |
| Work Height |
22″ |
| Blade Length |
180" |
| Blade Width |
2.25" |
| Blade Speed (Variable) |
60 - 380 SFPM |
| Head Tilt |
+/- 45 Degrees |
| Table Area |
24" x 24" |
| Table Height |
40" |
| Cutting Pressure |
0 - 600 Lbs @ 100 PSI Air |
Features
|
Automatic Feed System |
Clamping Vises |
|
HEM PLC Control |
Tilting-Head Design |
|
Air Powered Blade Tension |
