Year |
2004 |
|---|---|
Make |
Charmilles |
Model |
ROBOFIL-240 CC |
Description |
EDM Wire |
Reference # |
8078188 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

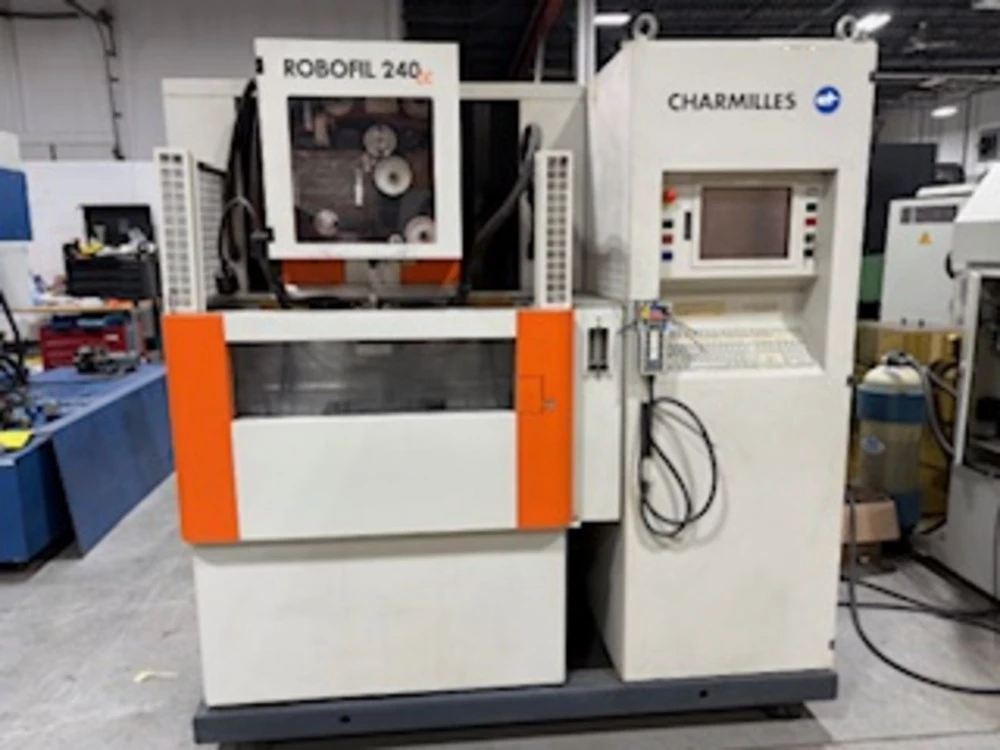

Used Charmilles ROBOFIL-240 CC (2004) CNC EDM for Sale. This pre-owned Charmilles CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Charmilles EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.77" |
|---|---|
| Y-Axis Travel |
8.66" |
| Z-Axis Travel |
8.66" |
| U/V Axis Travel |
13.77" x 8.66" |
| Table Dimensions |
26.77 x 17.72” |
| Taper Angle |
± 30o/8.66” |
| Wire Diameter |
004 to .012” |
| Maximum Work Piece Size |
39.37 x 21.65 x 8.66” |
| Maximum Work Piece Weight |
1653 Lbs |
| Machine Dimensions |
79.53 x 80.7 x 78.74” |
| Machine Weight |
5401 Lbs |
| Power Requirement |
400V/3 Phase/50-60Hz / 18amp / 12Kva |
Features
|
AC Clean-Cut (CC) Generator Data Input: Touch Screen/RS-232/Ethernet |
Collision Protection All Axes Voltage Transformer |
|

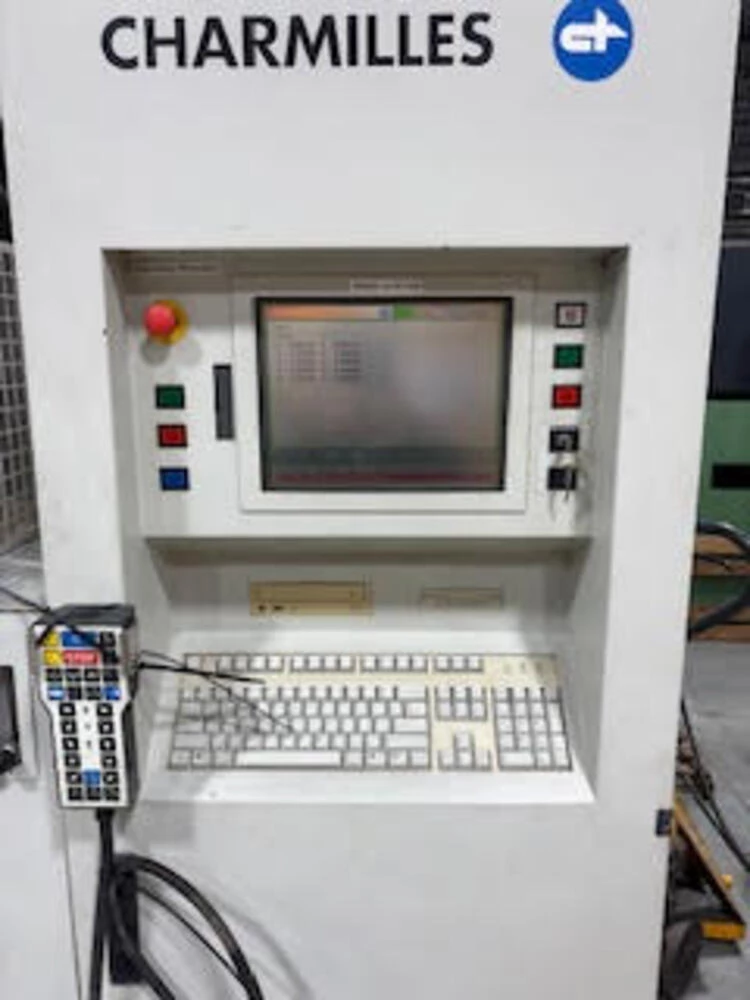

CT Millennium Control 3D Part Alignment System |

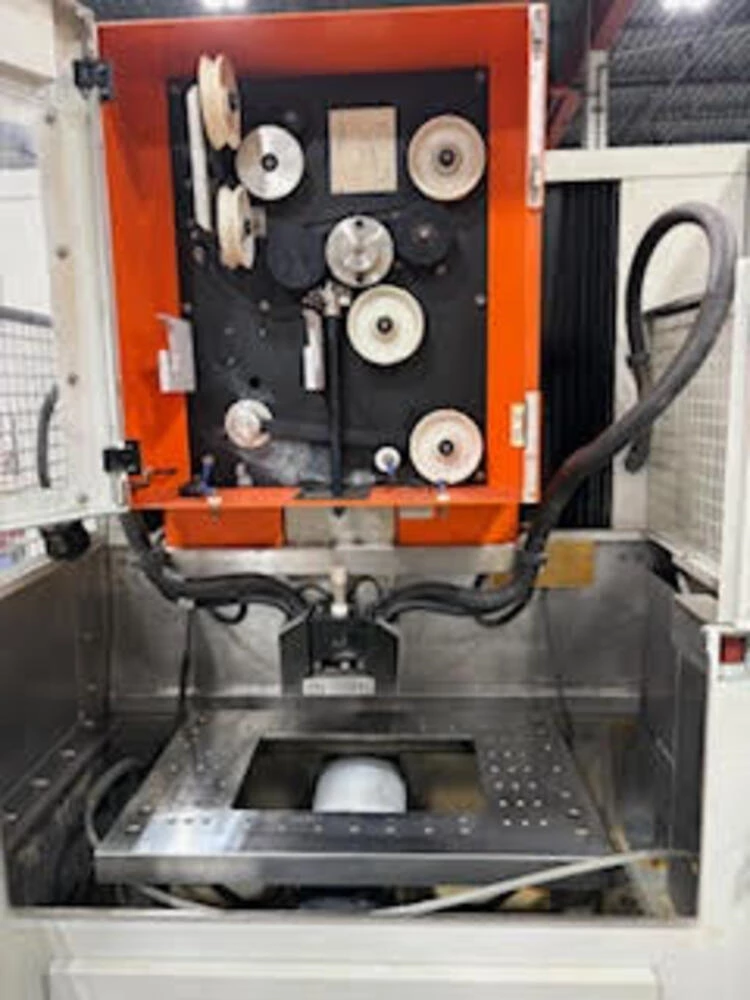

Glass Scales All Axes Automatic Wire Threader |
|

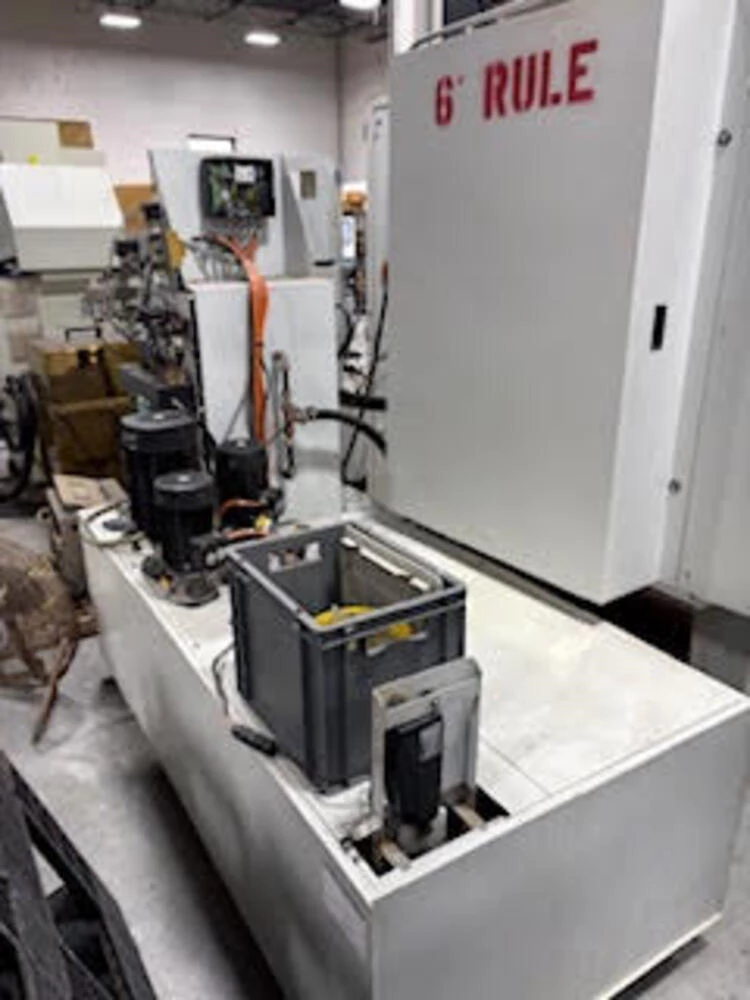

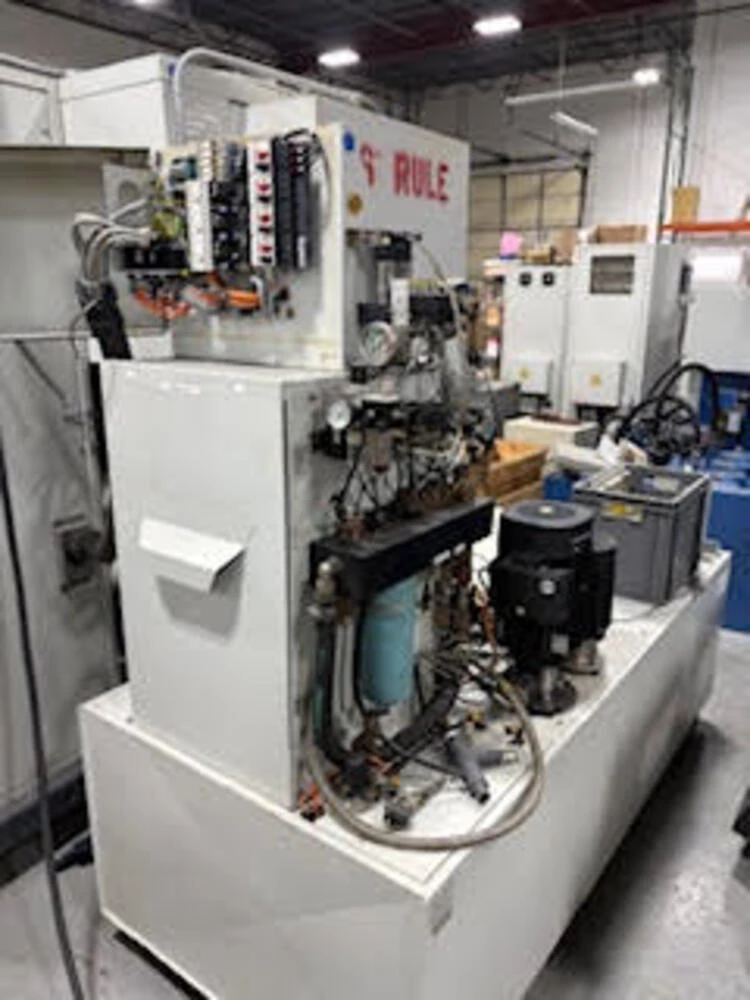

Dielectric Chiller |
