Year |
2003 |
|---|---|
Make |
Amada |
Model |
Vipros 2510 King |
Description |
22 Ton Turret Punch |
Reference # |
8077975 |
Price |
Activate Pricing |

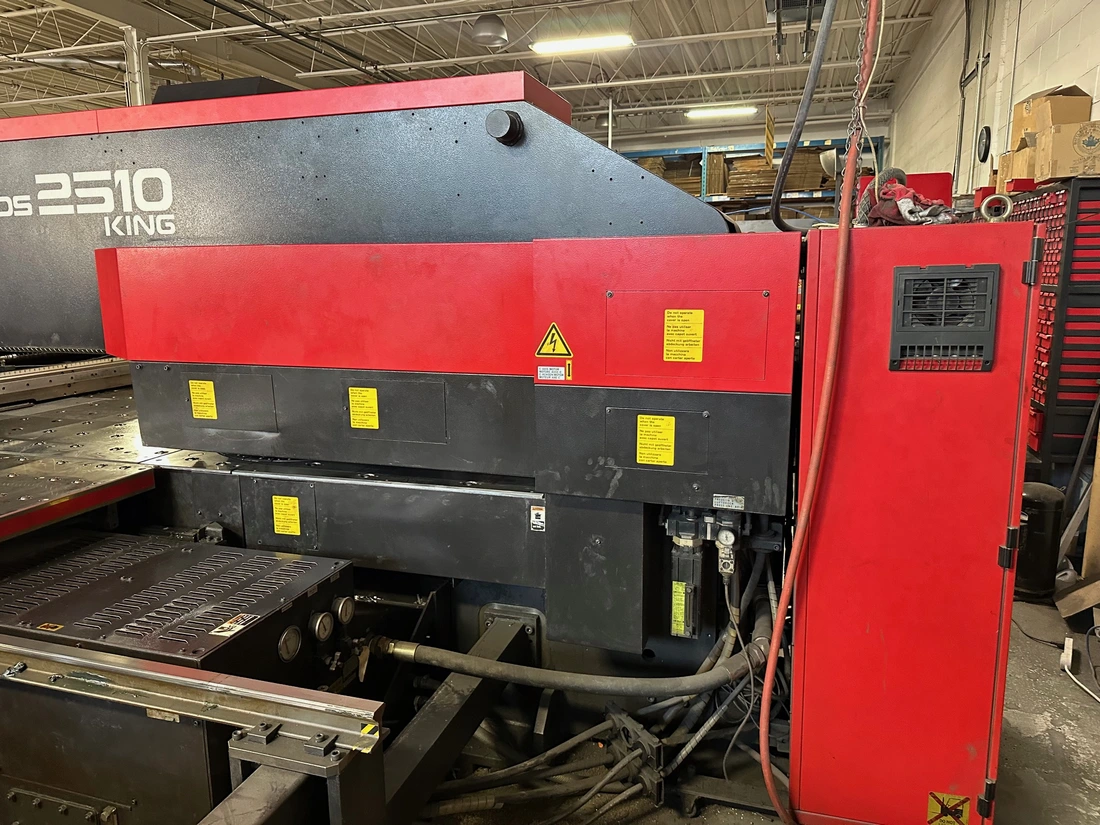

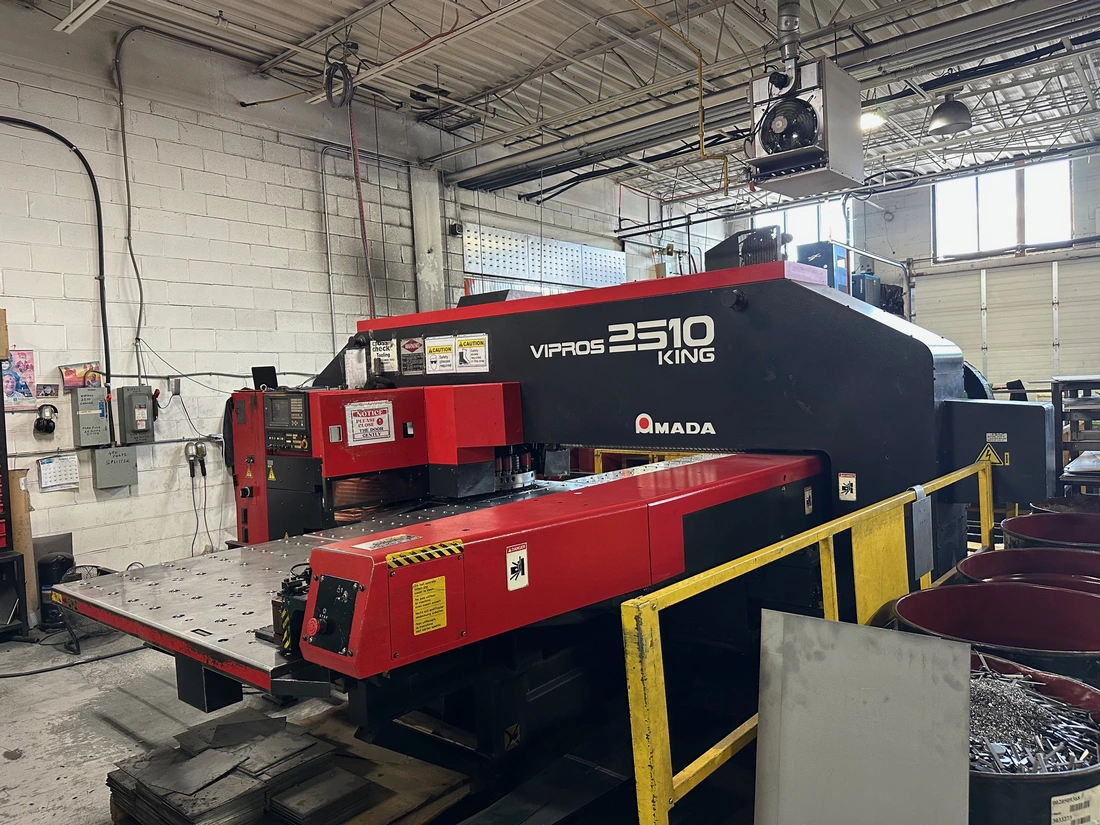

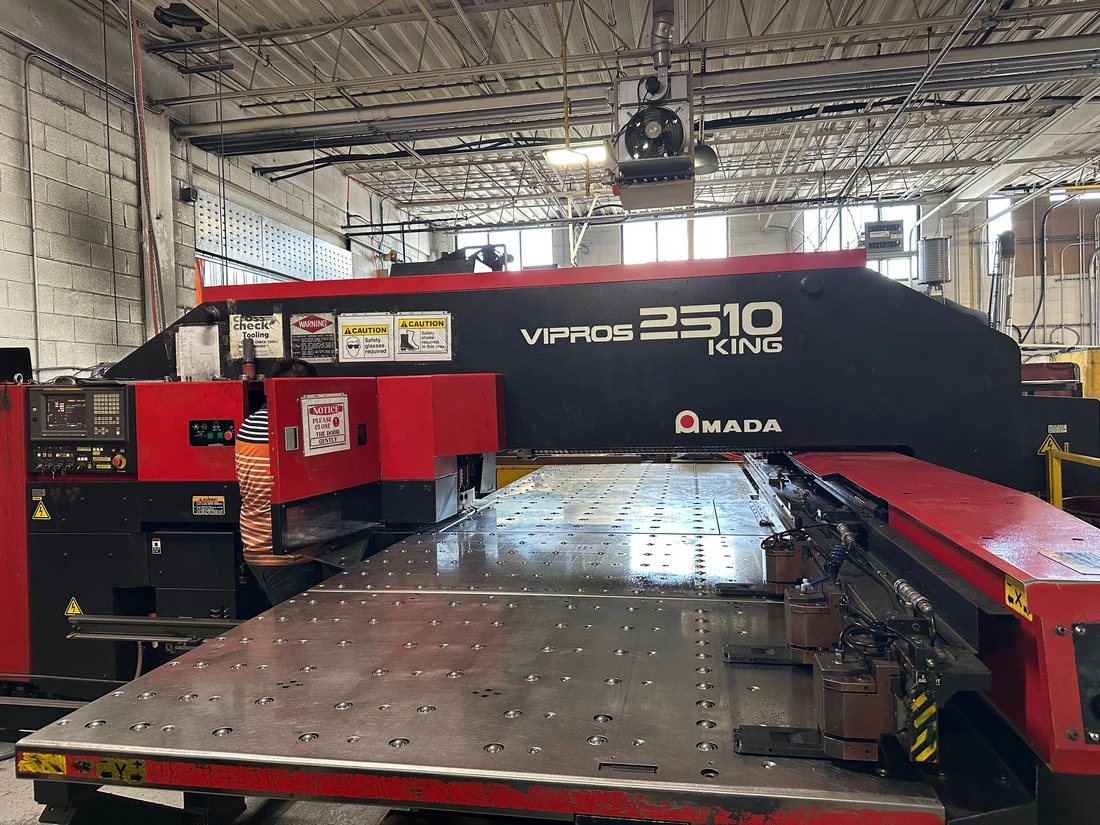

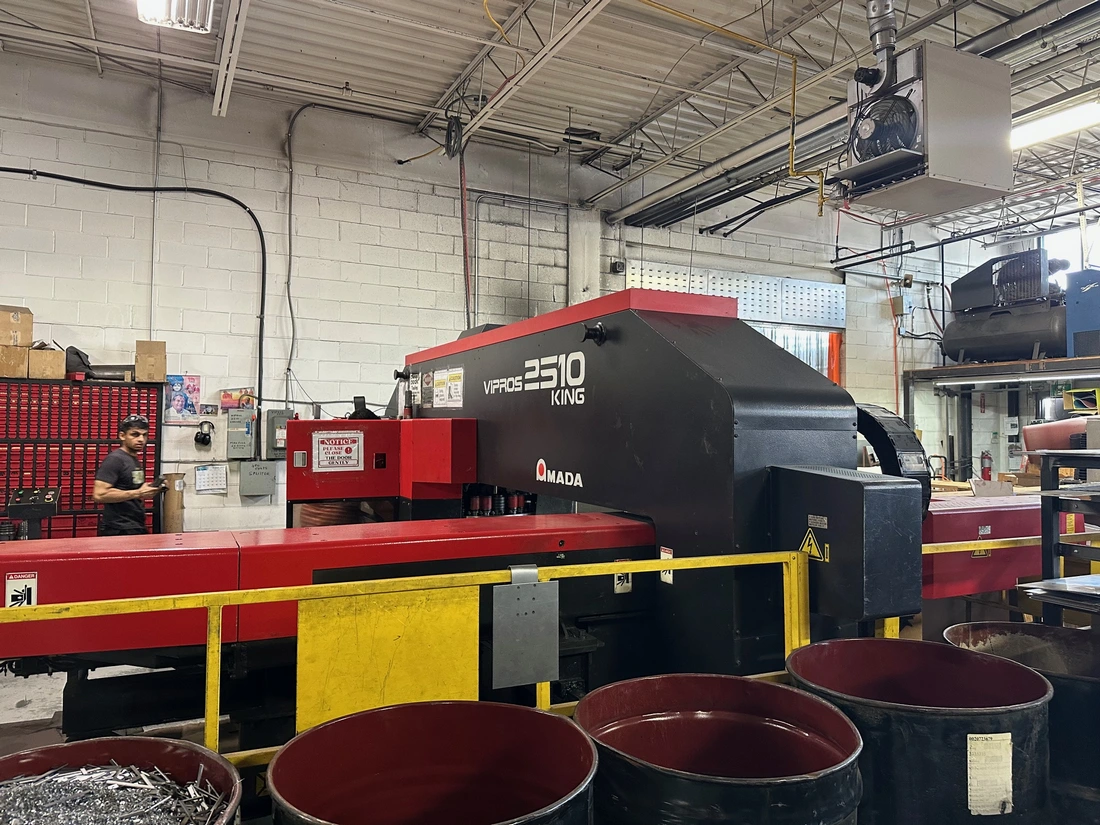

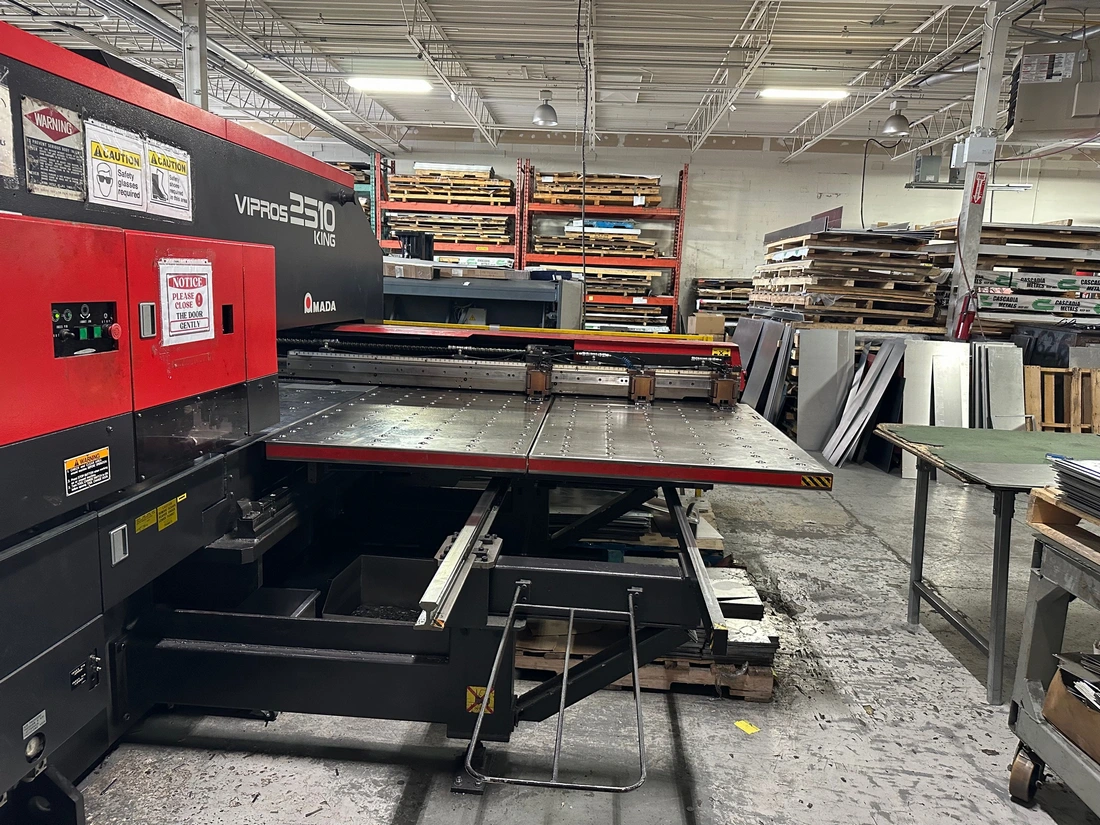

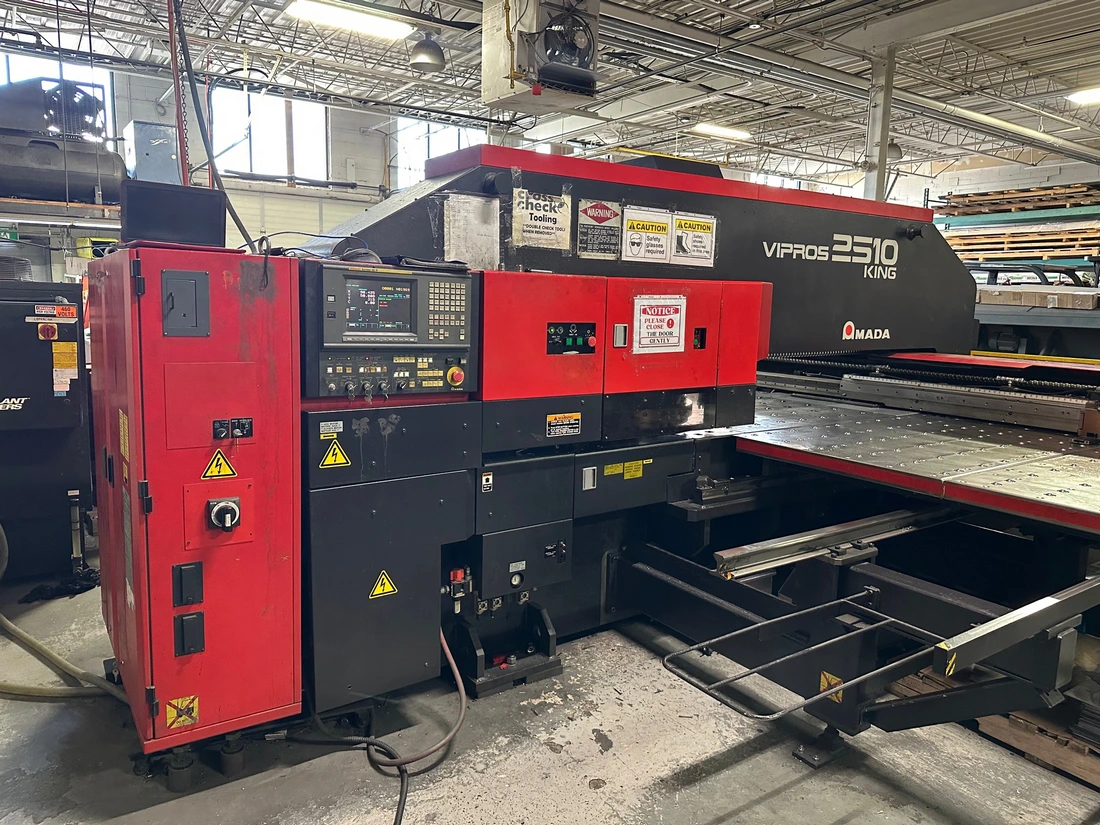

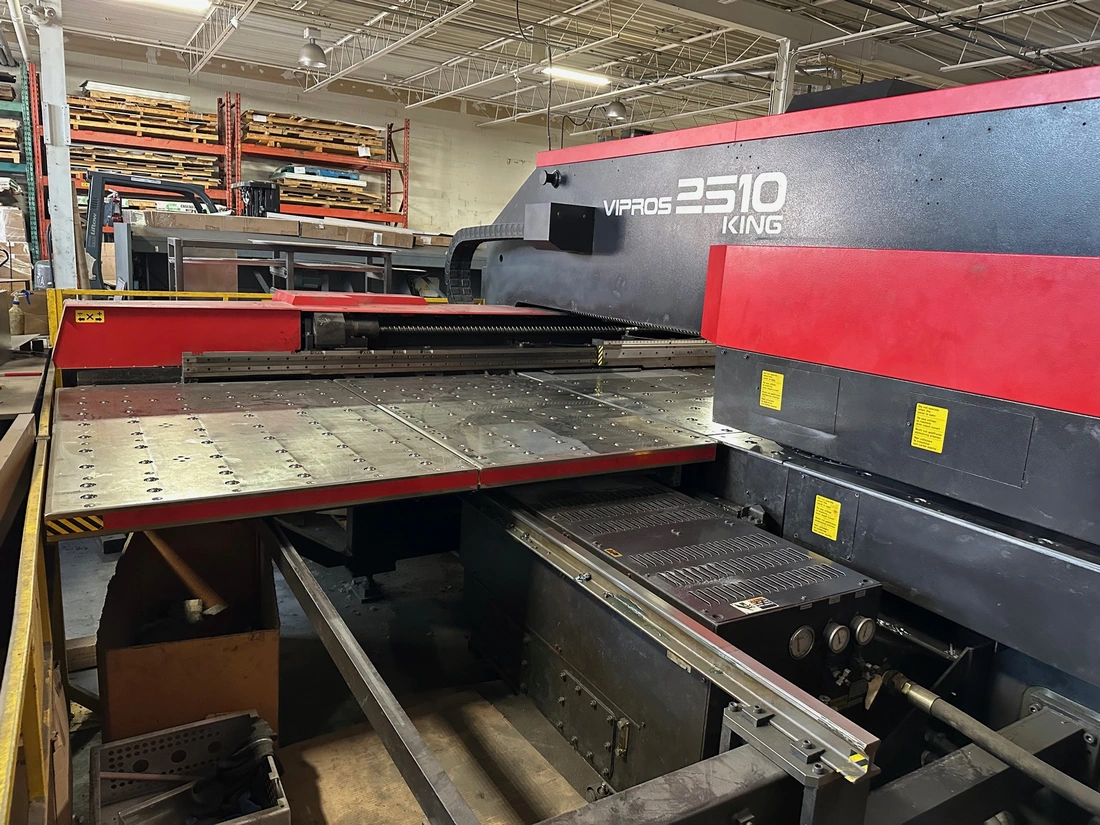

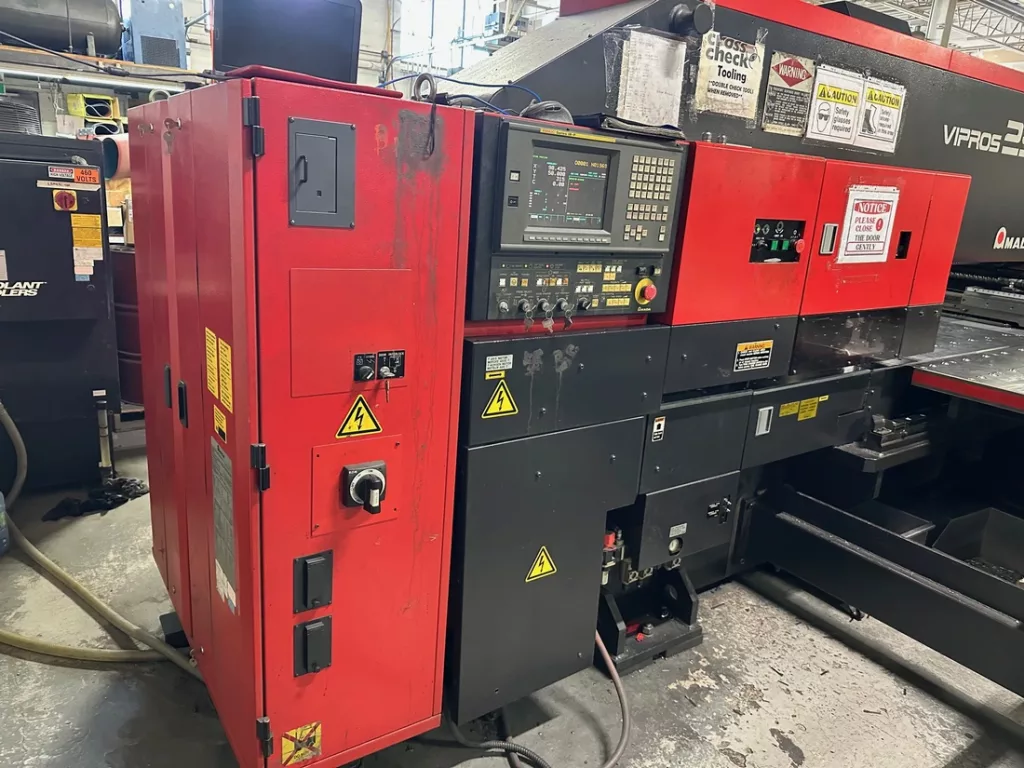

Used Amada Vipros 2510 King (2003) Turret Punch for Sale. This 22 ton press features a 31-station turret with 3 auto indexing stations, thick turret tooling style, and a Fanuc 18P control with PHNC. Travels measure 50″ in X and 98.4″ in Y with a 50″ throat depth, handling 4′ x 8′ sheet and a maximum sheet size of 50.0″ (Y) x 196.0″ (X) with auto-repositioning. Maximum sheet thickness is 0.135″ and maximum material weight is 110 lbs. Press stroke is 1.575″, maximum hole diameter 3.5″, and turret rotation speed 35 RPM. Linear table speeds reach 3,937 IPM (X) and 3,149 IPM (Y), with punching accuracy of 0.0027″ standard or 0.002″ in high accuracy mode, 0.0039″ positioning accuracy and 0.0006″ repeatability. Available to see under power for inspection. See more used turret punches and Amada machines, Activate Pricing, or Request a Quote. This machine is located in Canada.
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
4' |
| Sheet Length |
8' |
| Turret Stations |
31 With 3 Auto Indexing |
| X-Axis Travel |
50" |
| Y-Axis Travel |
98.4" |
| Throat Depth |
50" |
| Tooling Style |
Thick Turret |
| Control |
Fanuc 18P (with PHNC) |
| Press Stroke |
1.575" |
| Maximum Sheet Size |
50.0" (Y) x 196.0" (X) w/ Auto-Repo |
| Maximum Sheet Thickness |
0.135" |
| Maximum Material Weight |
110 lbs |
| Max. Linear Table Speed |
3,937 IPM (X), 3,149 IPM (Y) |
| Punching Accuracy |
0.0027″ (Standard), 0.002″ (High Accuracy Mode) |
| Positioning Accuracy |
0.0039" |
| Repeatability |
0.0006″ |
| Maximum Hole Diameter |
3.5″ |
| Turret Rotation Speed |
35 RPM |
