Year |
2002 |
|---|---|
Make |
Trumpf |
Model |
TrumaBend V170 |
Description |
187 Ton x 13.5' Hydraulic Press Brake |
Reference # |
8078054 |
Price |
Activate Pricing |

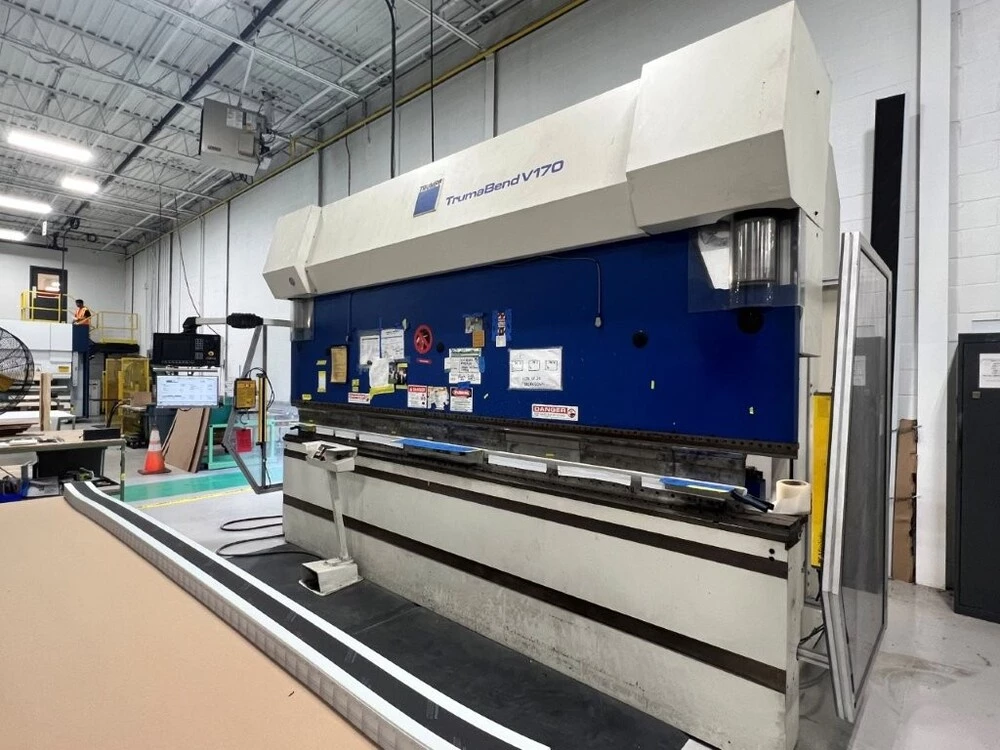

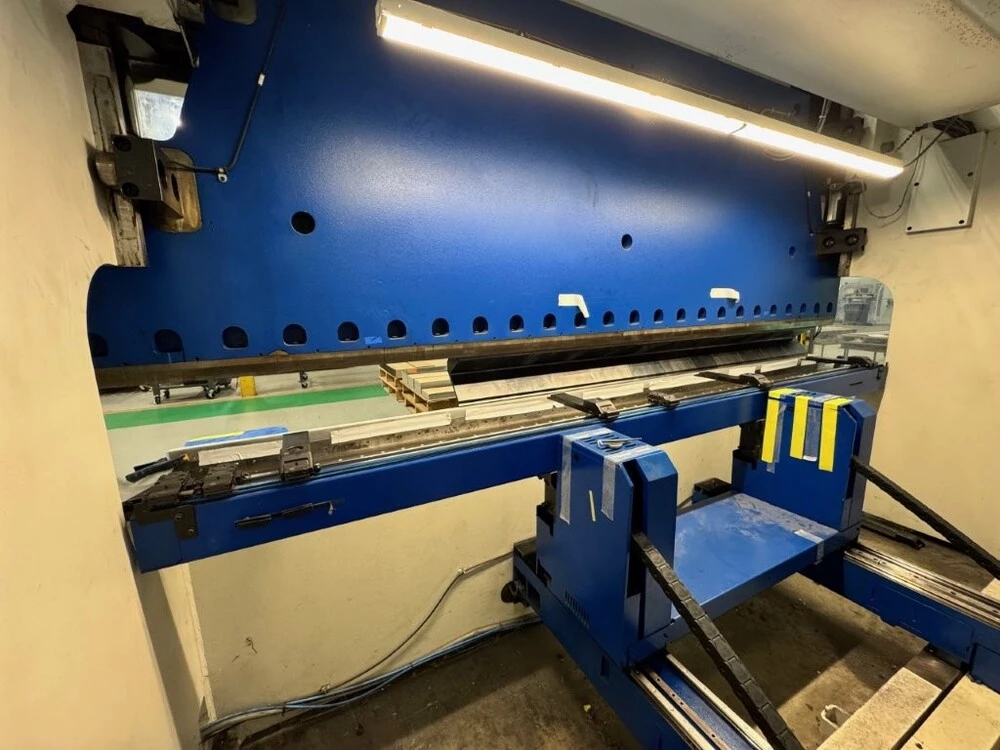

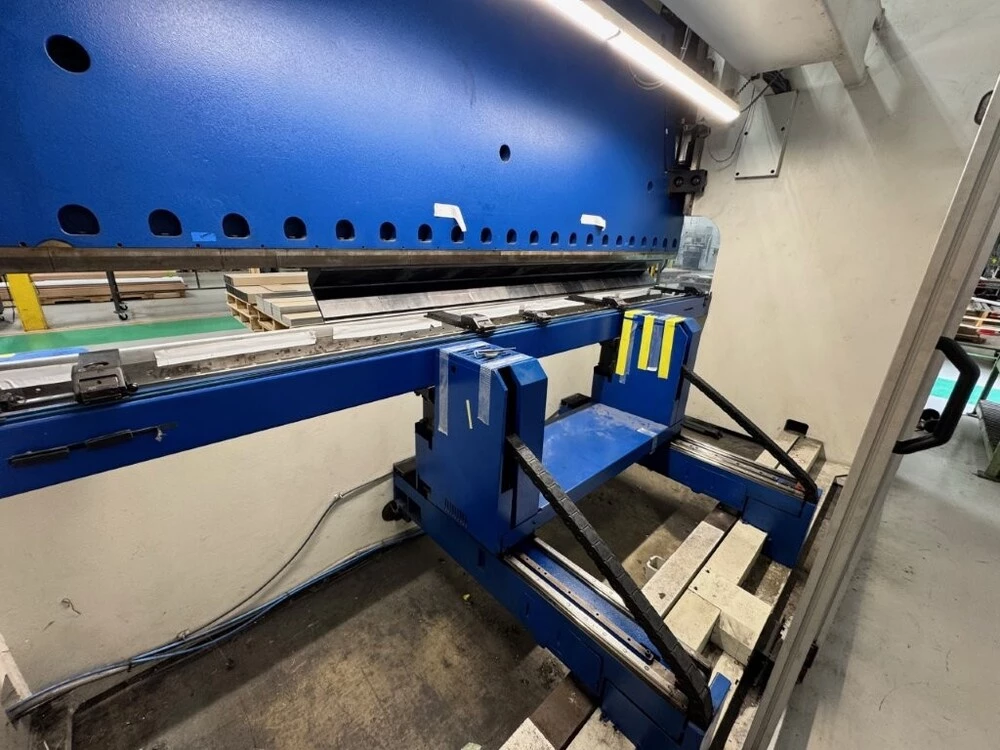

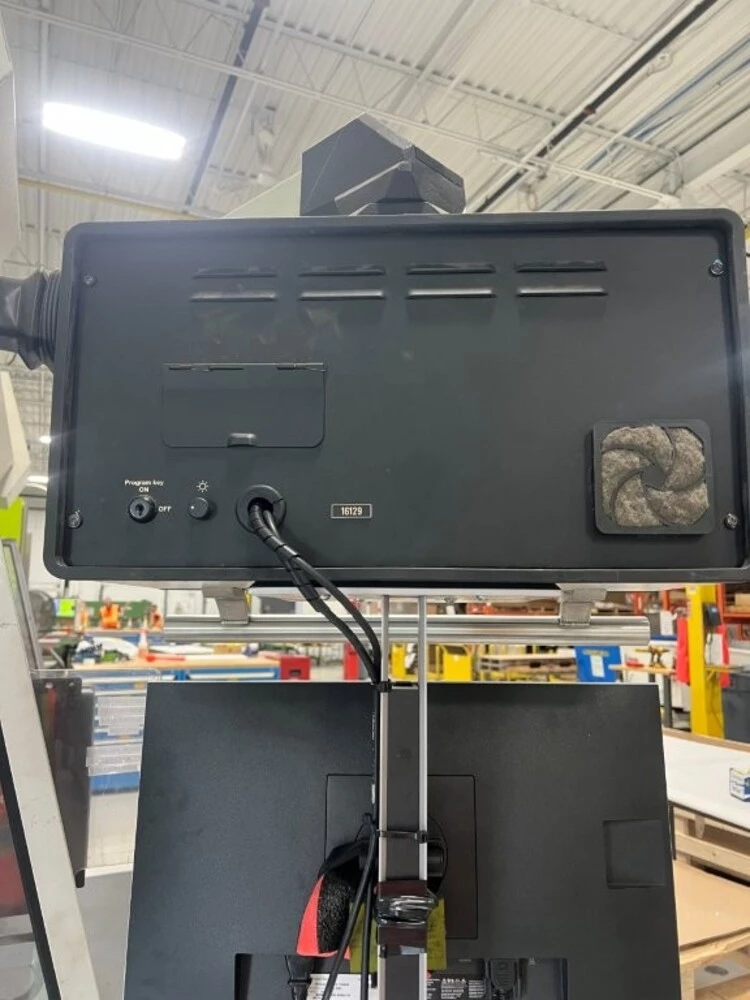

Used Trumpf TrumaBend V170 (2002) Press Brake for Sale. Rated at 187 ton with a 13.5′ bed and 145″ between housings, this machine runs a Delem DA-65 W control with a 5-axis backgauge (Y1/Y2/X/R/I hemming axis) and four backgauge fingers, with 24″ of gauge travel. Stroke is 14.3″, throat depth 16″, and open height 21″, with 41″ from the floor to the top of the bed. Speeds are 480 IPM advance, 26 IPM pressing and 320 IPM return, driven by a 28 HP motor on 460/3/60 power; a 575/3/60 transformer is included. Also equipped with hard crank crowning, mechanical upper and lower clamping for Trumpf / Wila tooling, foot pedal and palm button stand, rear and side guards, and STI light curtains. Overall dimensions are 180″ x 184″ x 119″. This press brake can be seen under power for an inspection. See more press brakes and other Trumpf machines, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
187 Ton |
|---|---|
| Overall Length of Bed |
13.5' |
| Control |

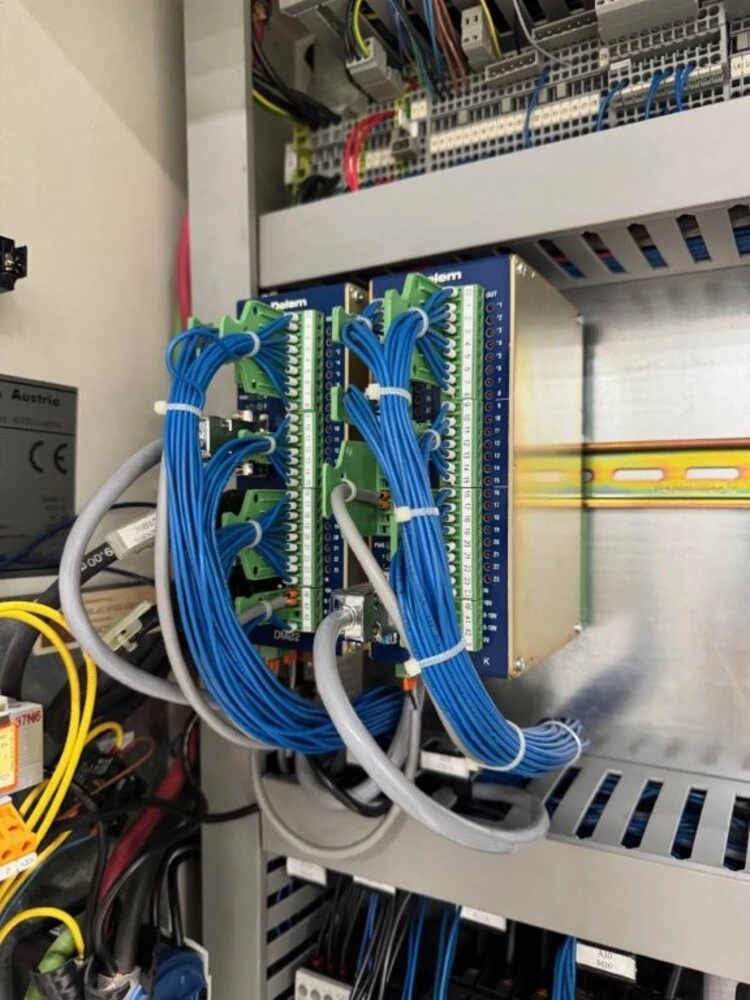

Delem DA-65 W |
| Back Gauge |
24" |
| Distance Between Housings |
145" |
| Stroke |
14.3" |
| Throat Depth |
16" |
| Open Height |
21" |
| Power Requirement |
460/3/60 |
| Advance Speed |
480 IPM |
| Pressing Speed |
26 IPM |
| Return Speed |
320 IPM |
| Distance Floor to Top of Bed |
41" |
| Dimensions |
180" x 184" x 119" |
Features
|
28 HP Motor |

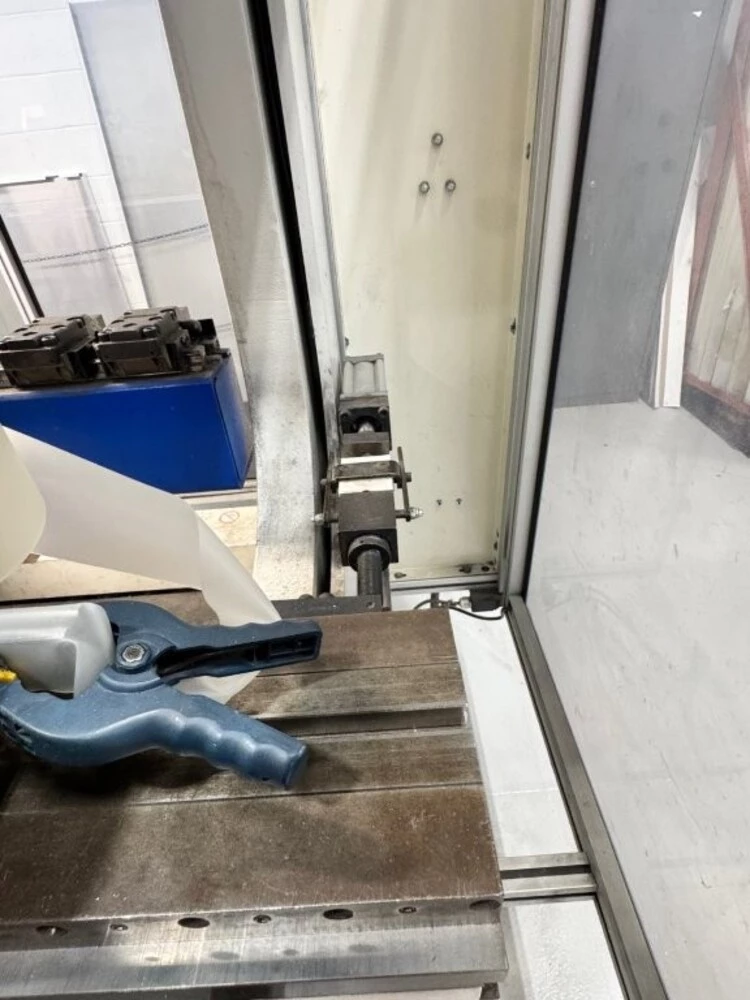

5-Axis Backgauge Y1/Y2/X/R/I (Hemming Axis) |
|
Foot Pedal & Palm Button Stand |
Four Backgauge Fingers |
|
Hard Crank Crowning |
Includes 575/3/60 Transformer |
|
Mechanical Upper/Lower Clamping for Trumpf / Wila Tooling |

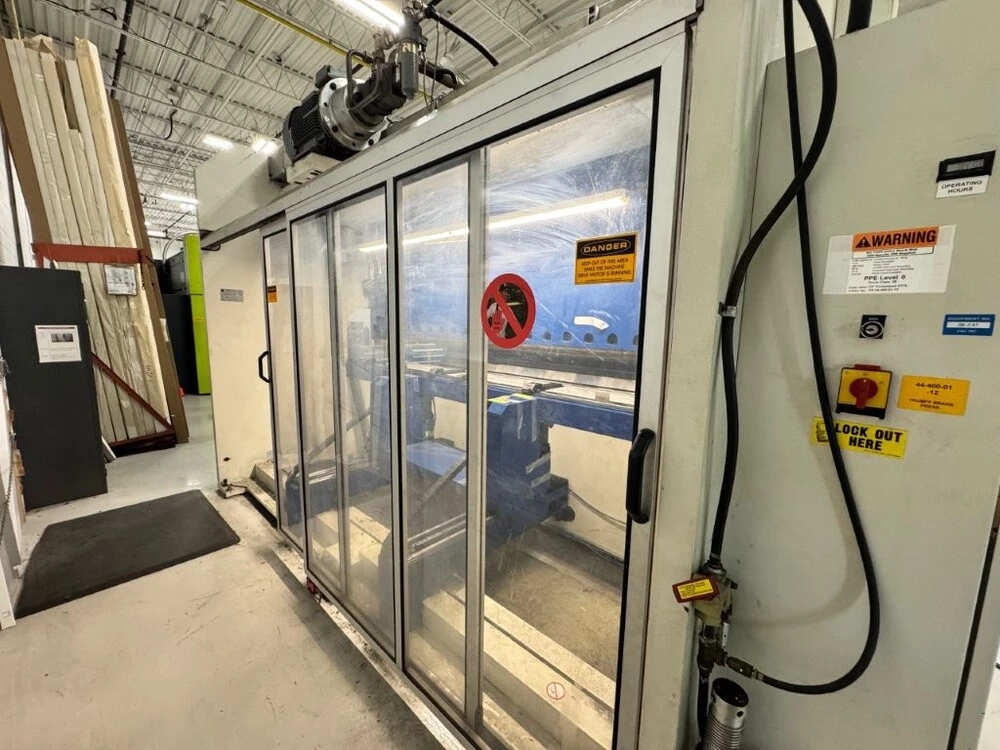

Rear and Side Guards |
|

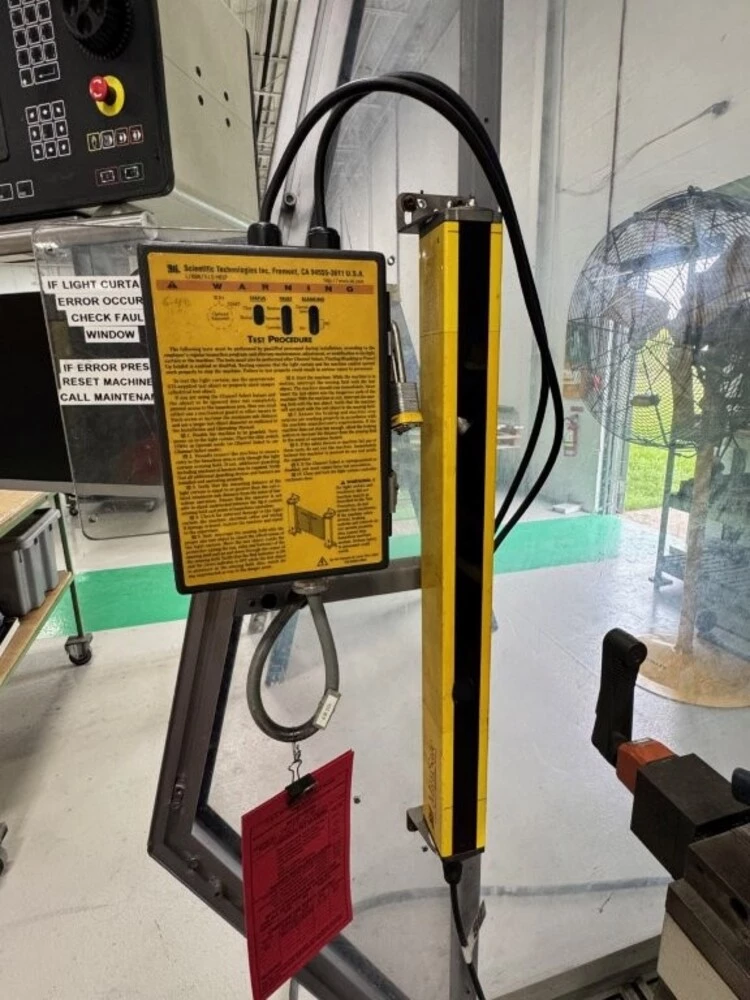

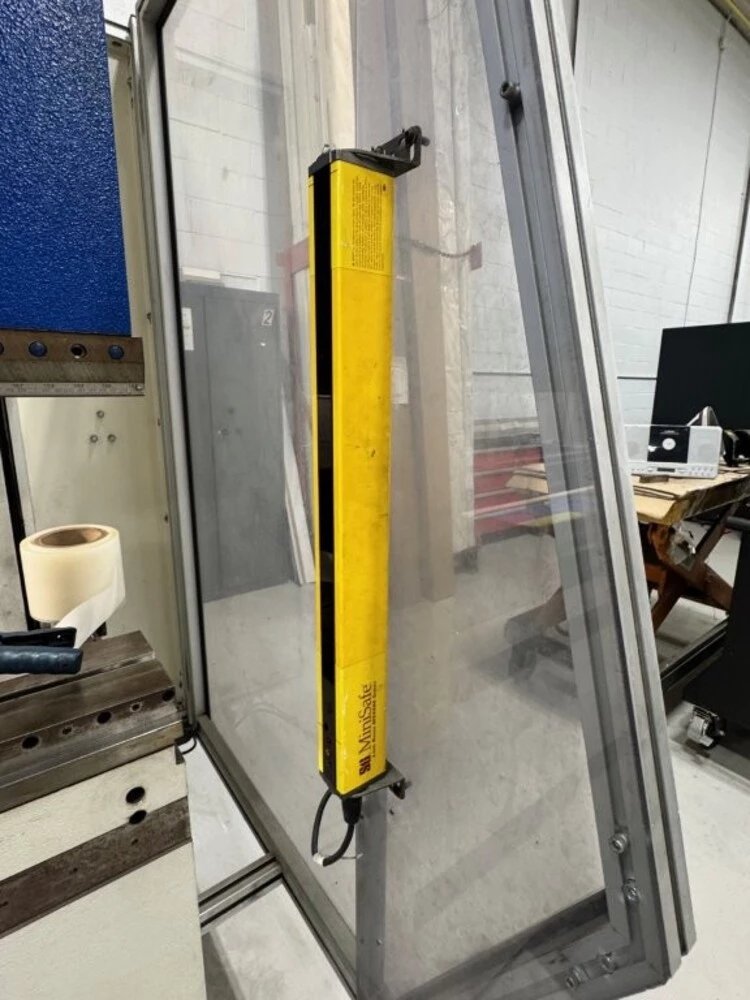

STI Light Curtains |
