Year |
2001 |
|---|---|
Make |
OMV |
Model |
D140-6P |
Description |
48" Wide PET Sheetline Extruder |
Reference # |
8078511 |
Price |
Activate Pricing |

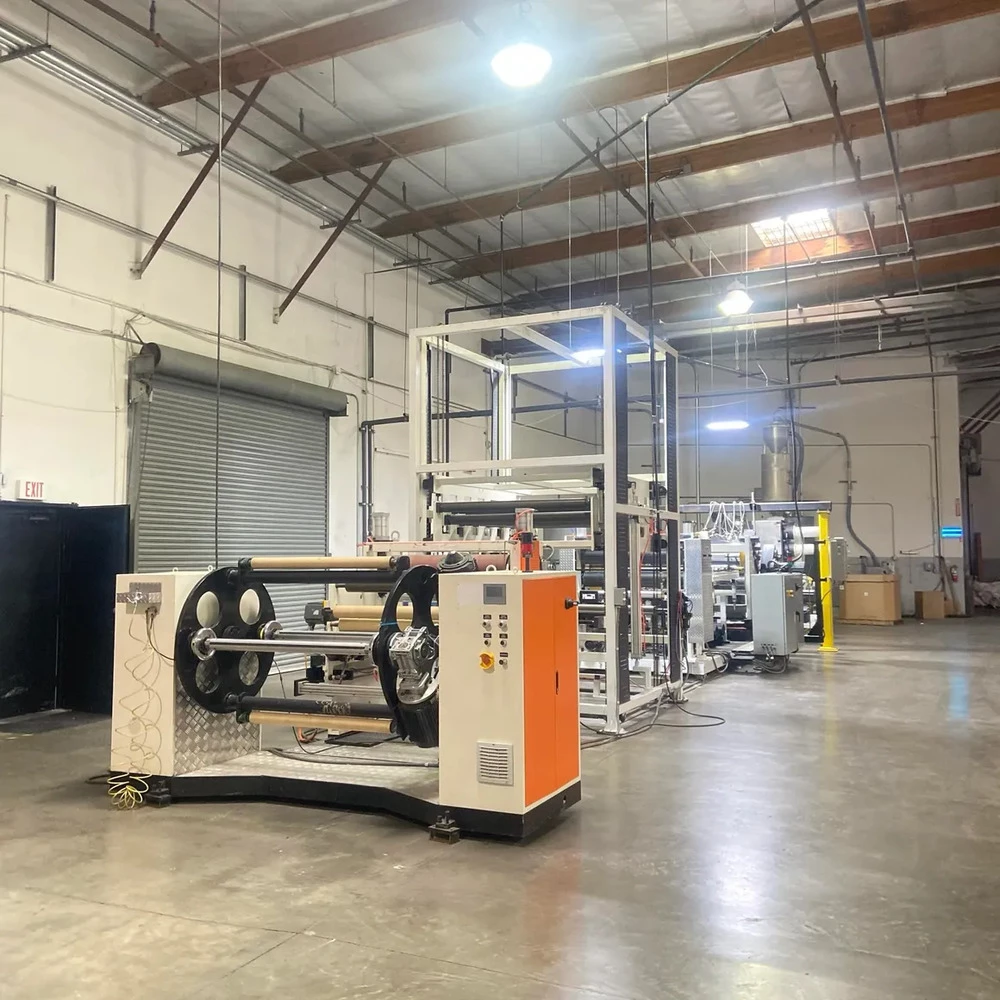

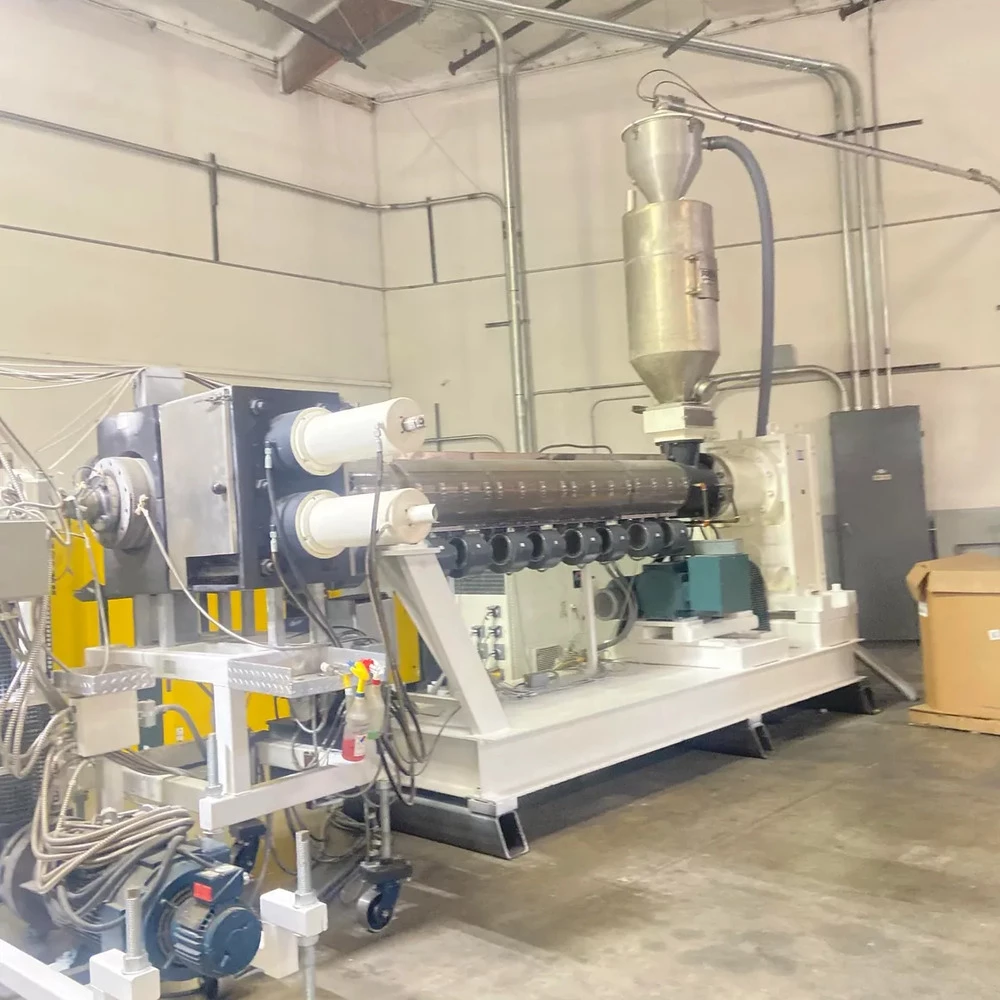

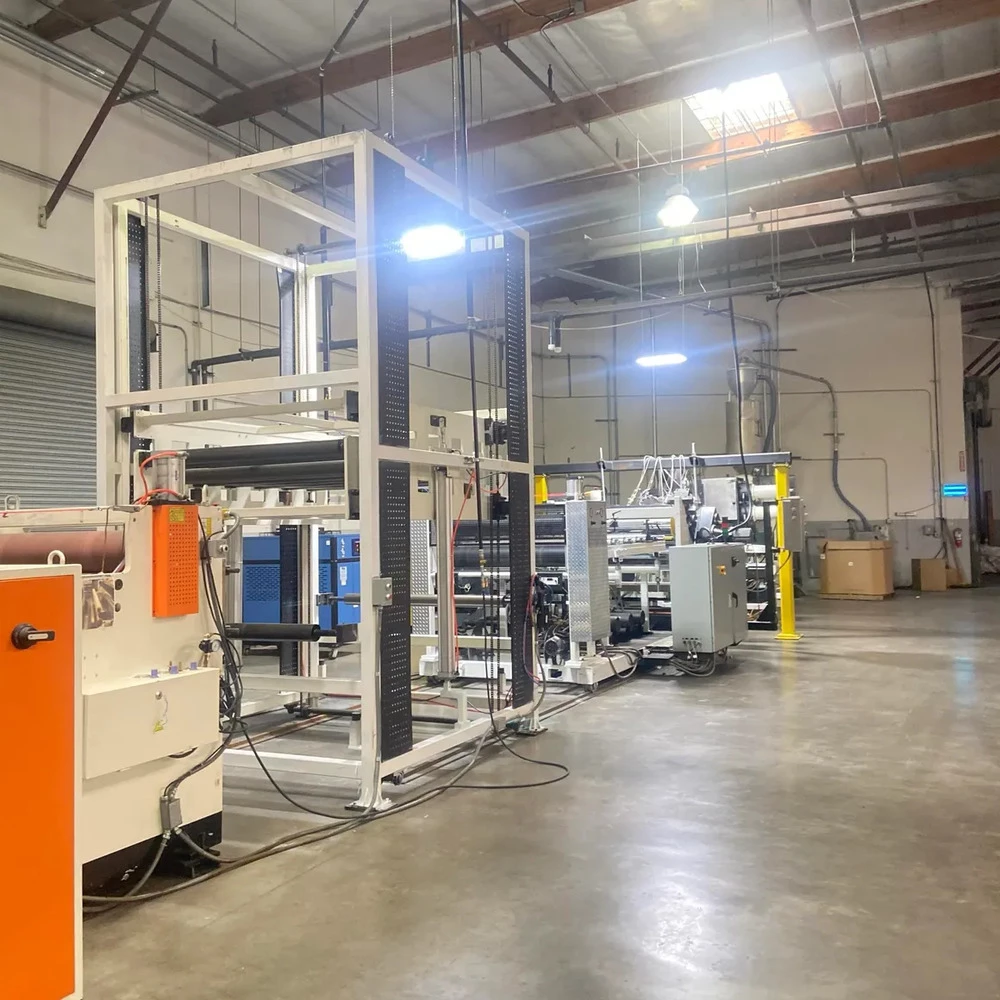

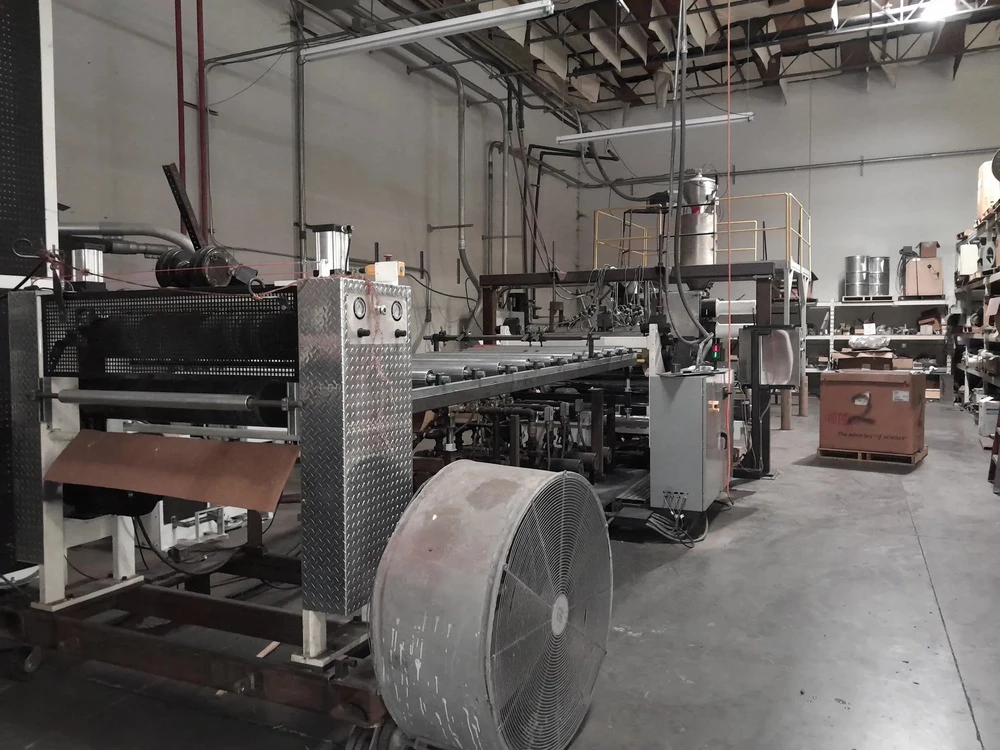

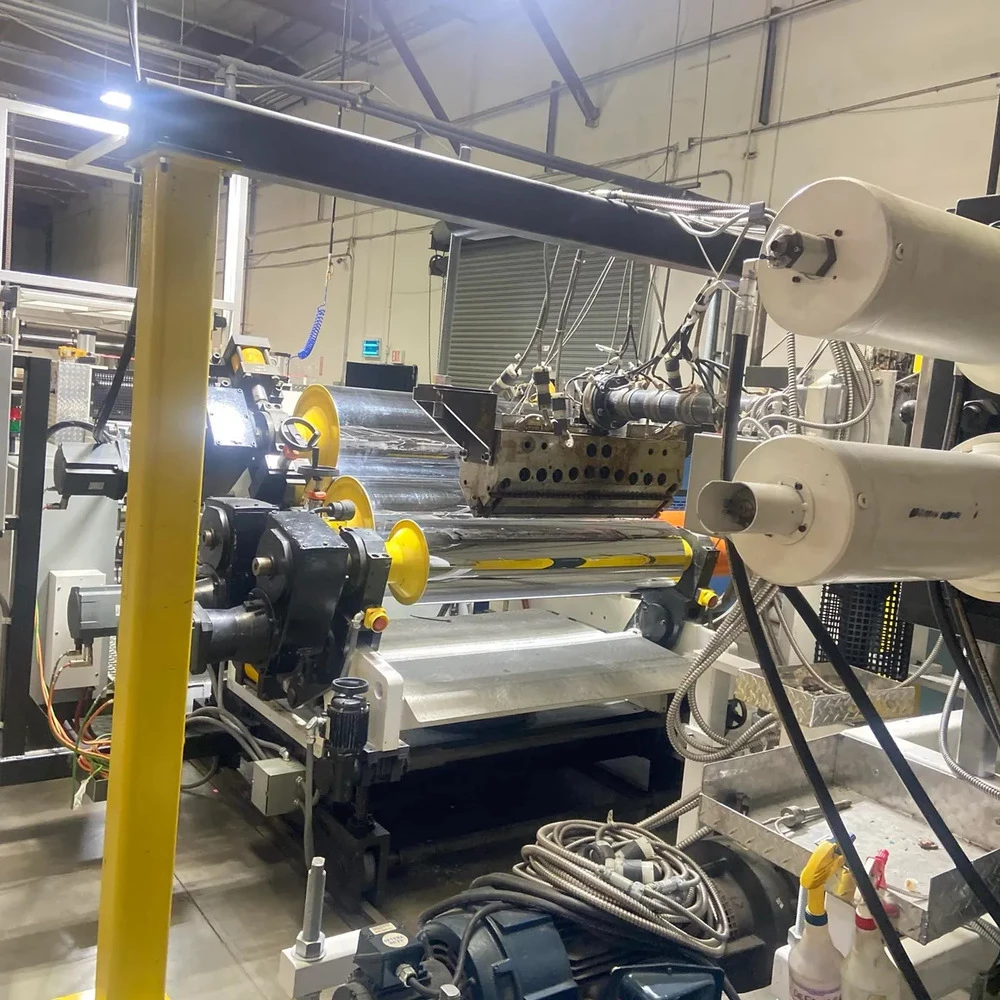

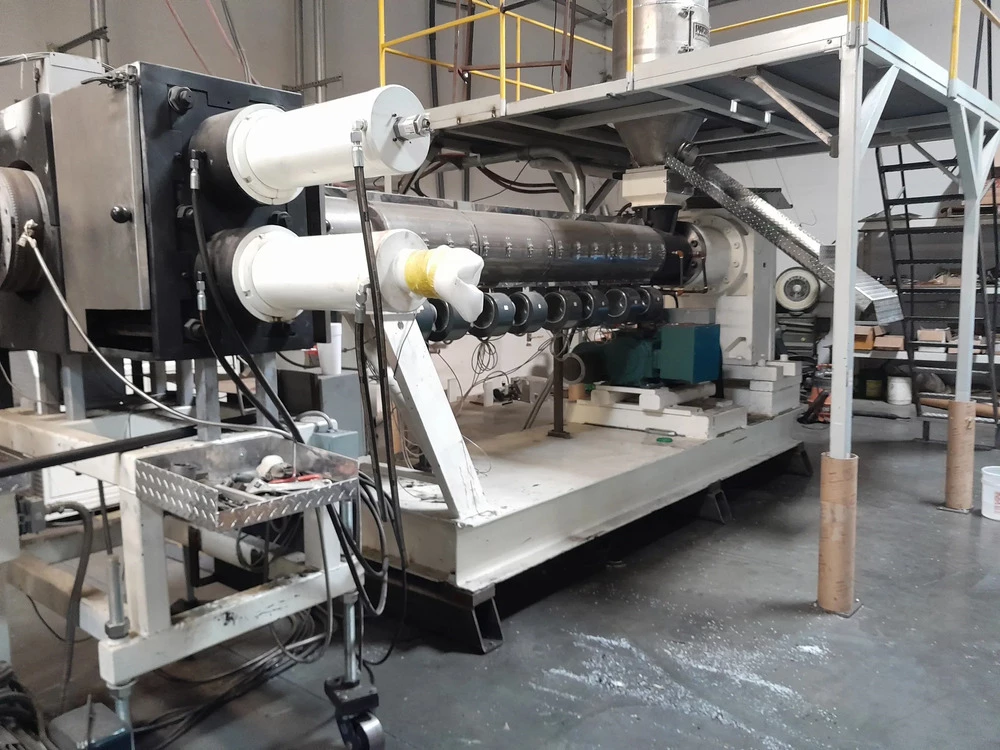

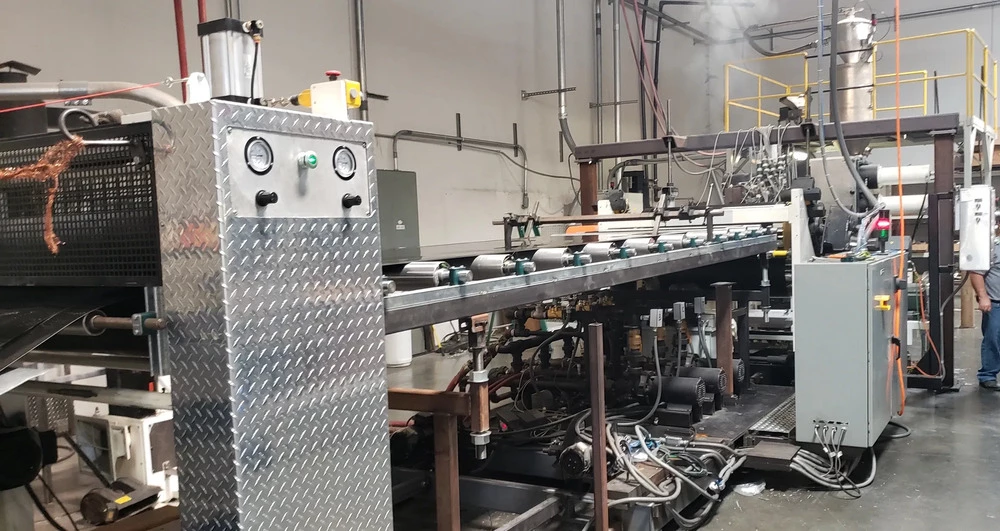

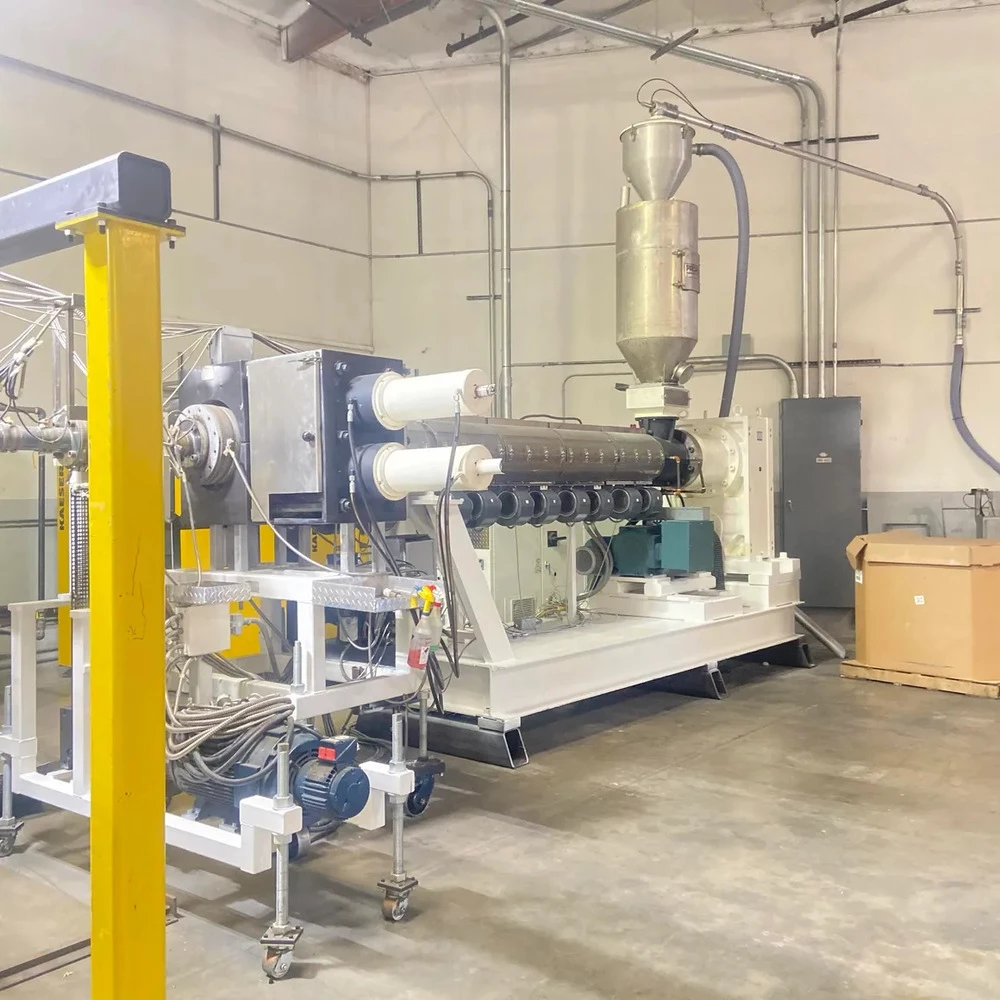

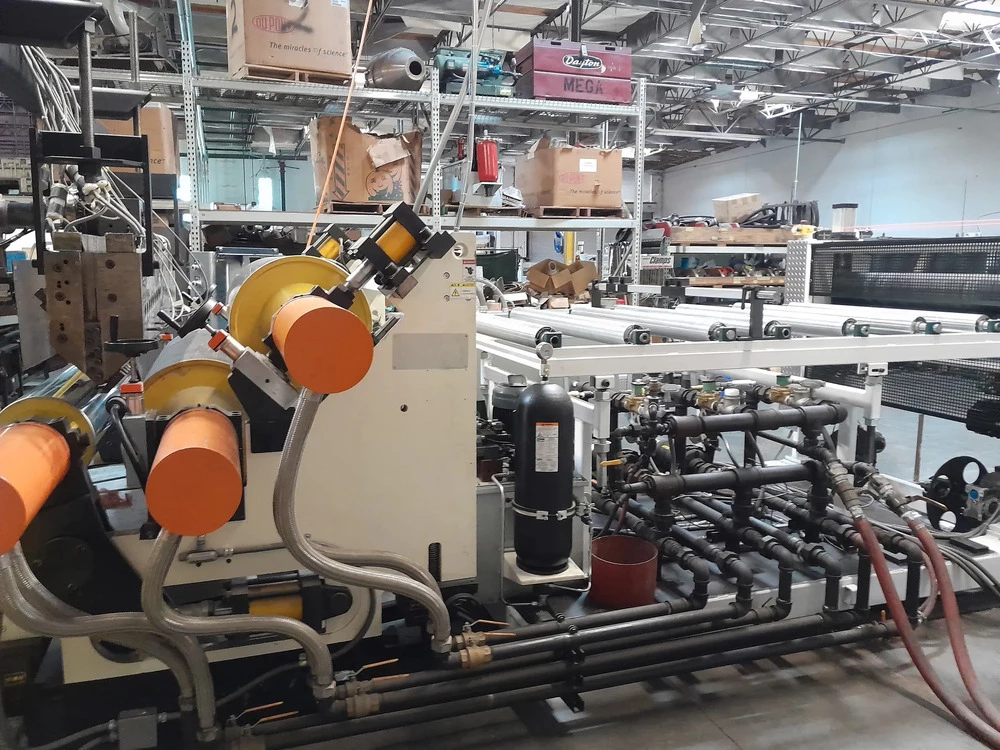

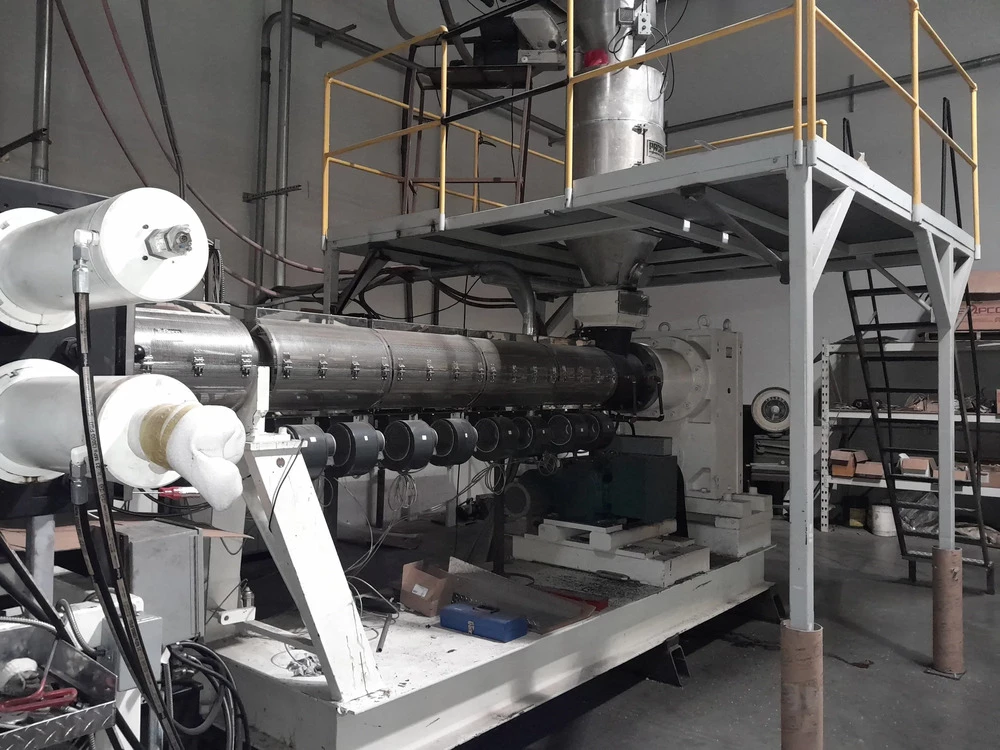

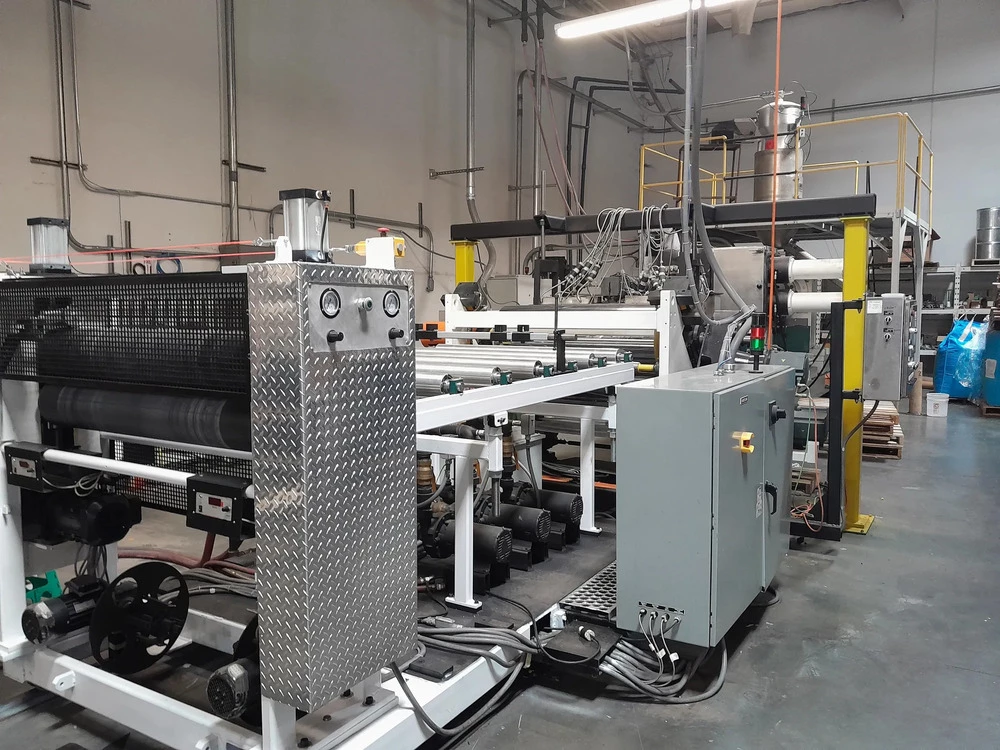

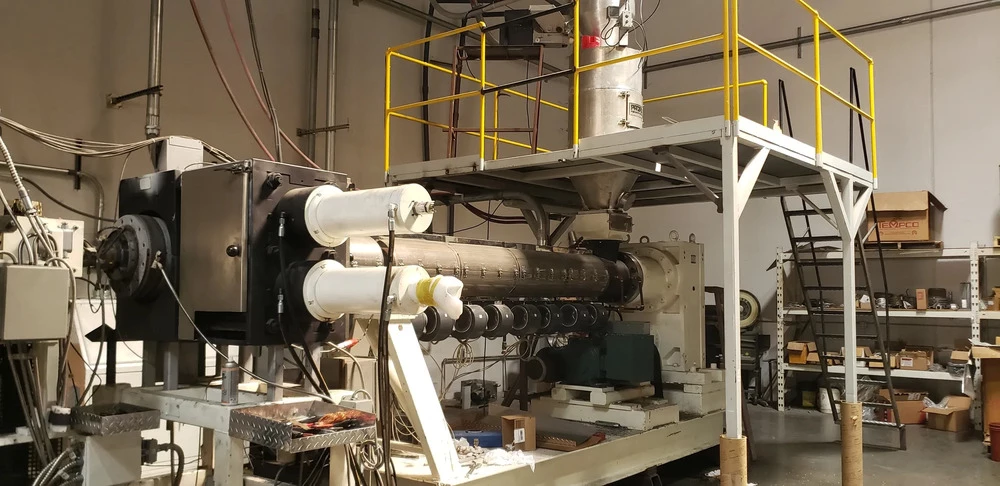

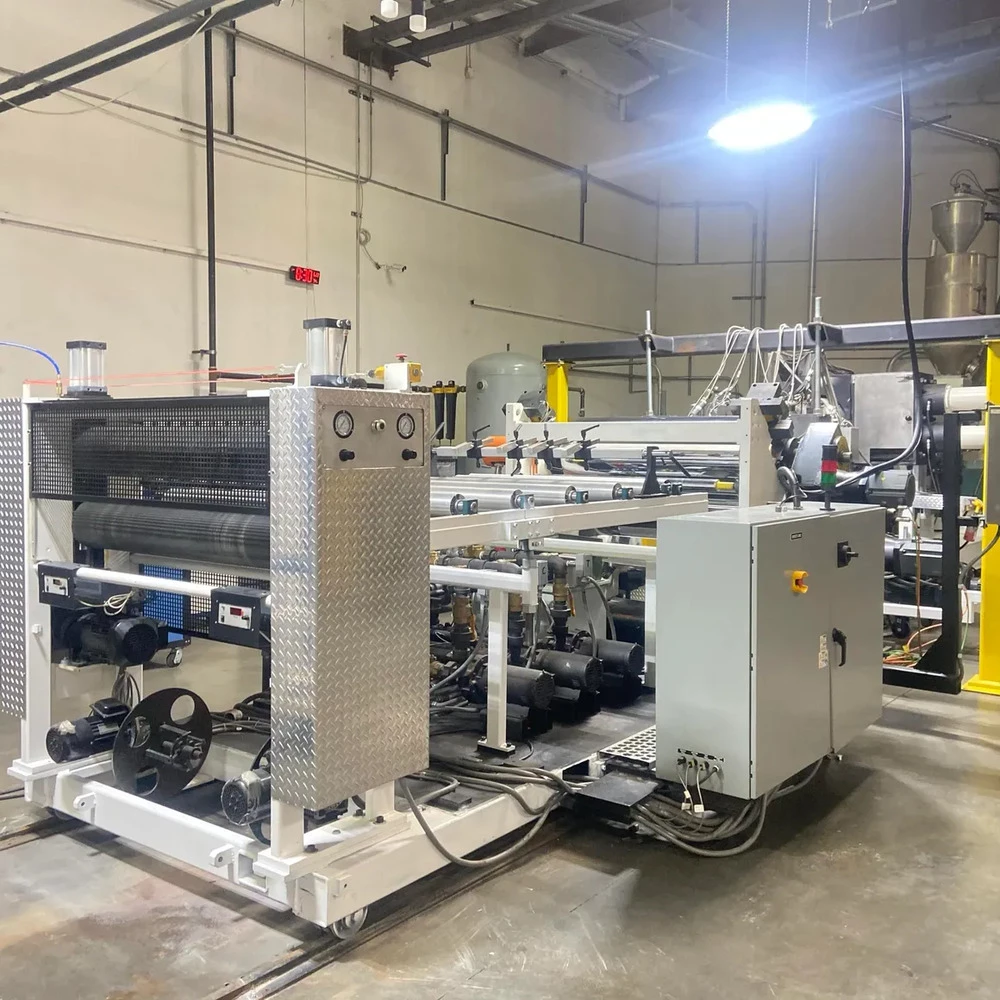

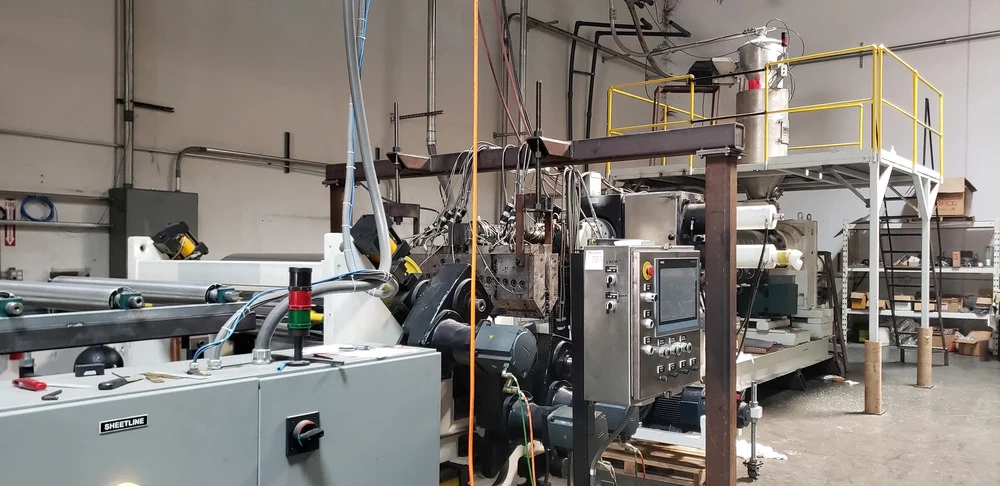

Used OMV D140-6P (2001) Extruder for Sale. This 48″ wide PET sheetline is built around a 6″ screw driven by a 350 HP motor, with (8) cooling zones, air cooling, and 16 HP cooling capacity. It runs on a 30 HP Yaskawa GA800 drive with an MSDP-30 gear pump on a 30 HP motor, and includes an 8″ dual roll screen changer and a reworked Johnson Plastics Machinery / Allied Dies flex lip style die. Materials include PET, polyethylene, polystyrole and HMWPE, at 12″ – 0.25″ thickness and approximately 2250/hr output. Three chill rolls measure (2) 51″ x 20″ and (1) 51″ x 12″, individually driven by 5 HP Marathon motors, with 8″ x 74″ draw rolls on a 3 HP AC motor, a 16″ conveyor with 4″ diameter idlers, (3) 5 HP water pumps, winder, Siemens touch screen controls and 460v power. Available for inspection under power. See more used plastic extruders, [Activate Pricing](#activate-pricing), or Request a Quote.
Specifications
| Screw Size |
6" |
|---|---|
| Air Cooled |
Yes |
| Number of Cooling Zones |
(8) Cooling Zones |
| Horsepower |
350 HP Motor |
| Screen Changer Size |
8" Dual Roll |
| Die Mfg |
Johnson Plastics Machinery / Allied Dies (Reworked) Flex Lip Style |
| Types of Material |
PET / Polyethylene / Polystyrole / HMWPE |
| Min/Max Thickness |
12" - 0.25" |
| Production Output |
Approx 2250/hr |
| Drive |
30 HP Yaskawa GA800 |
| Gear Pump |
30 HP Motor MSDP-30 |
| Cooling Capacity |
16 HP |
| Voltage |
460v |
| Number of Chill Rolls |
3 |
| Roll Size |
(2) 51" x 20" / (1) 51" x 12" |
| Roll Motor |
Individually Driven Rolls 5 HP Marathon Motors |

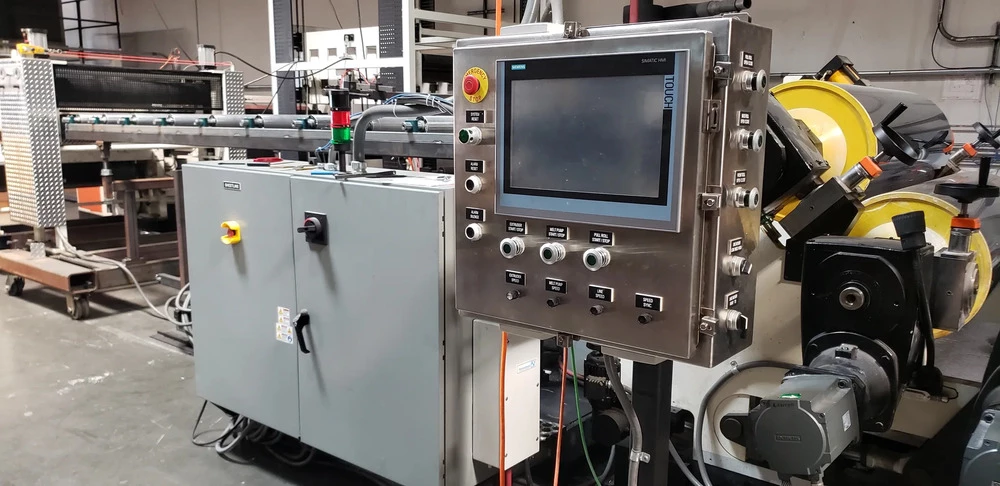

| Control |

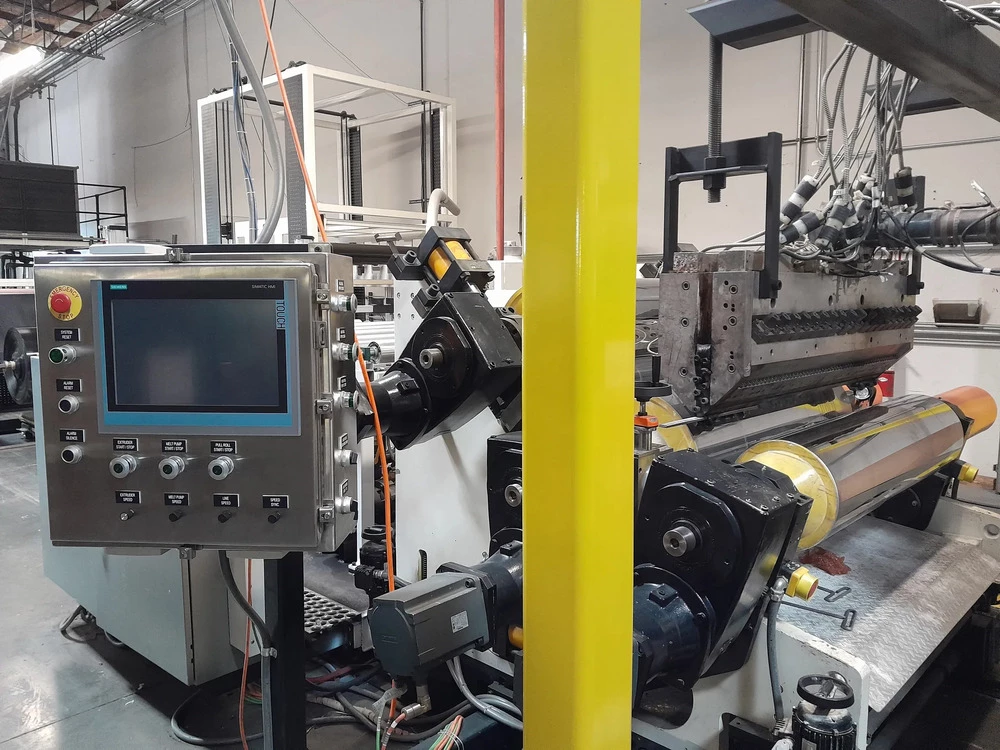

Siemens Touch Screen Controls |
| Conveyor Size |

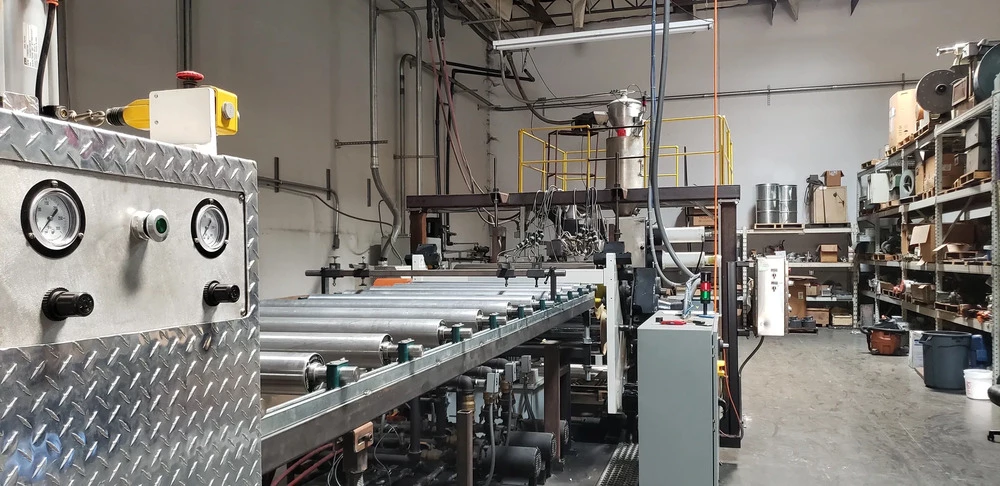

16" with 4" Diameter Idlers |
| Draw Rolls Size |
8" x 74" |
| Draw Rolls Motor |
3 HP AC Motor |
| Water Pumps |
(3) 5 HP |
Features
|
48" Wide PET Sheetline |

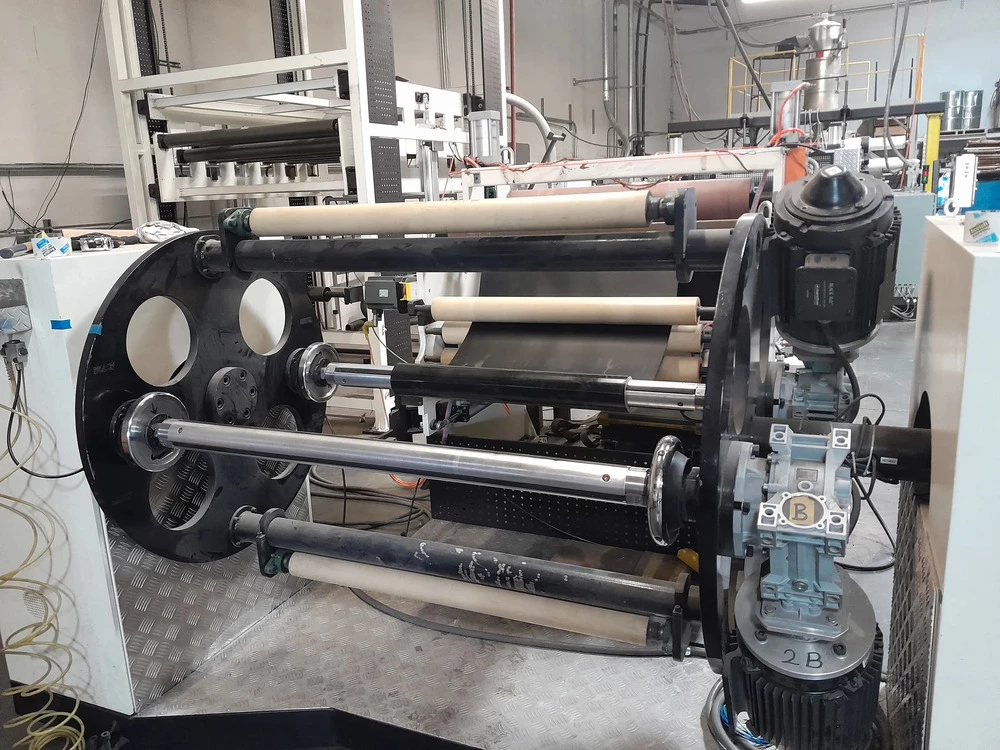

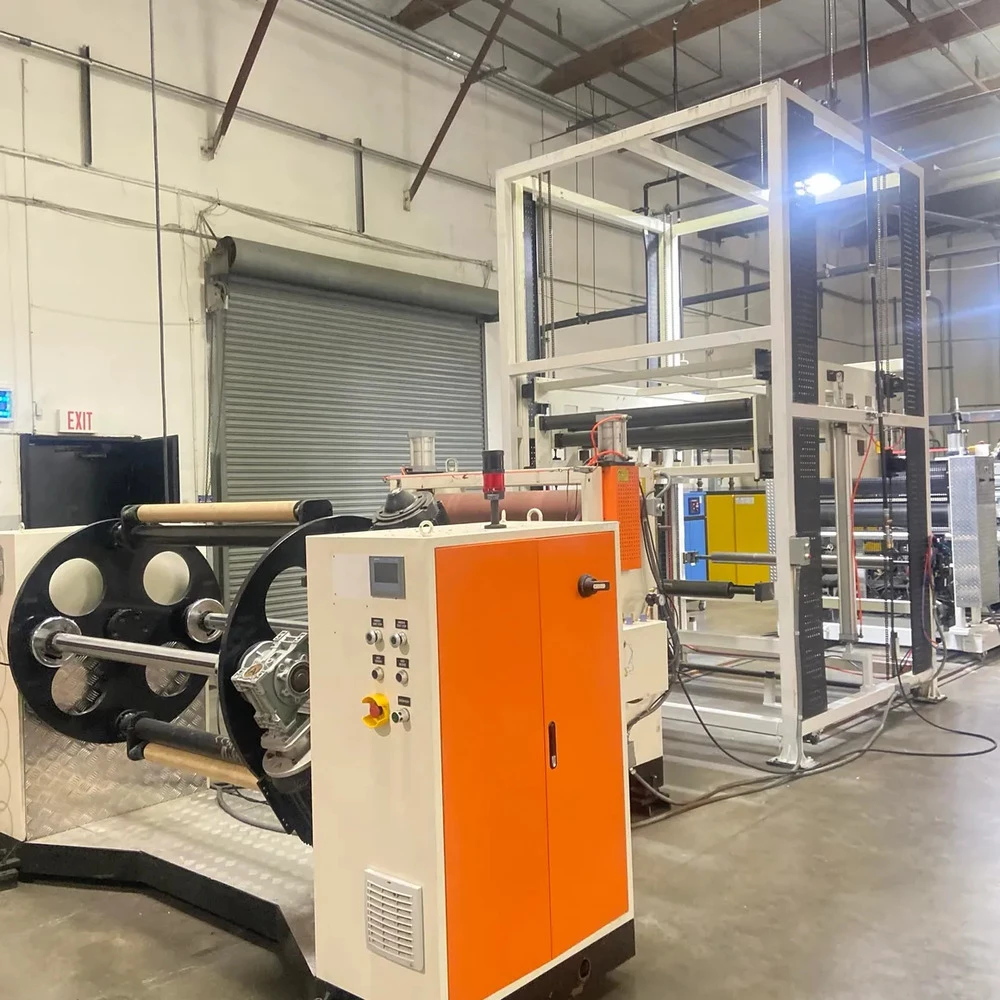

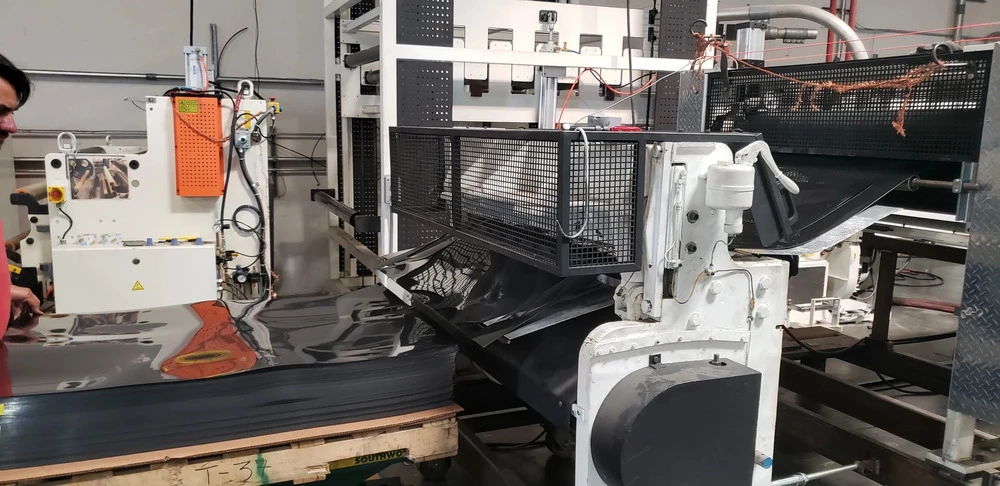

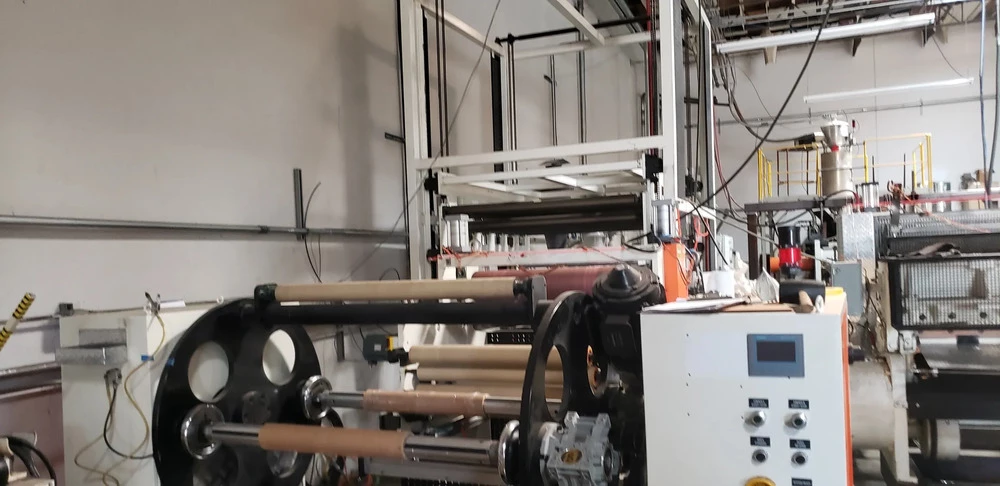

Winder |
