Year |
2000 |
|---|---|
Make |
Trumpf |
Model |

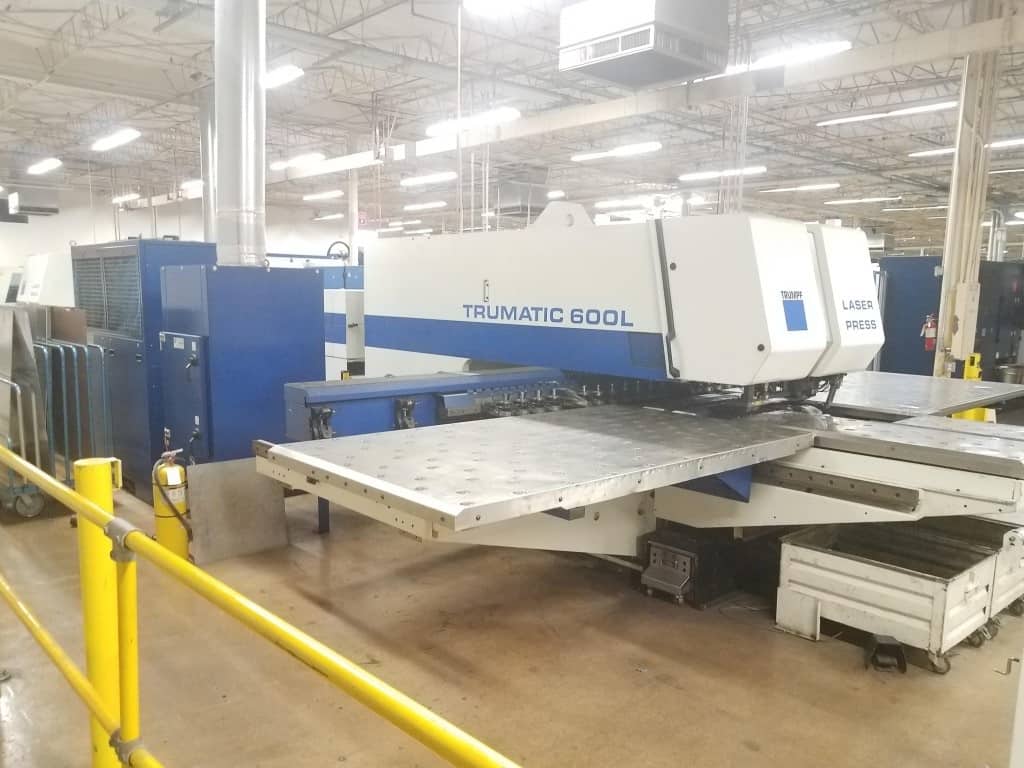

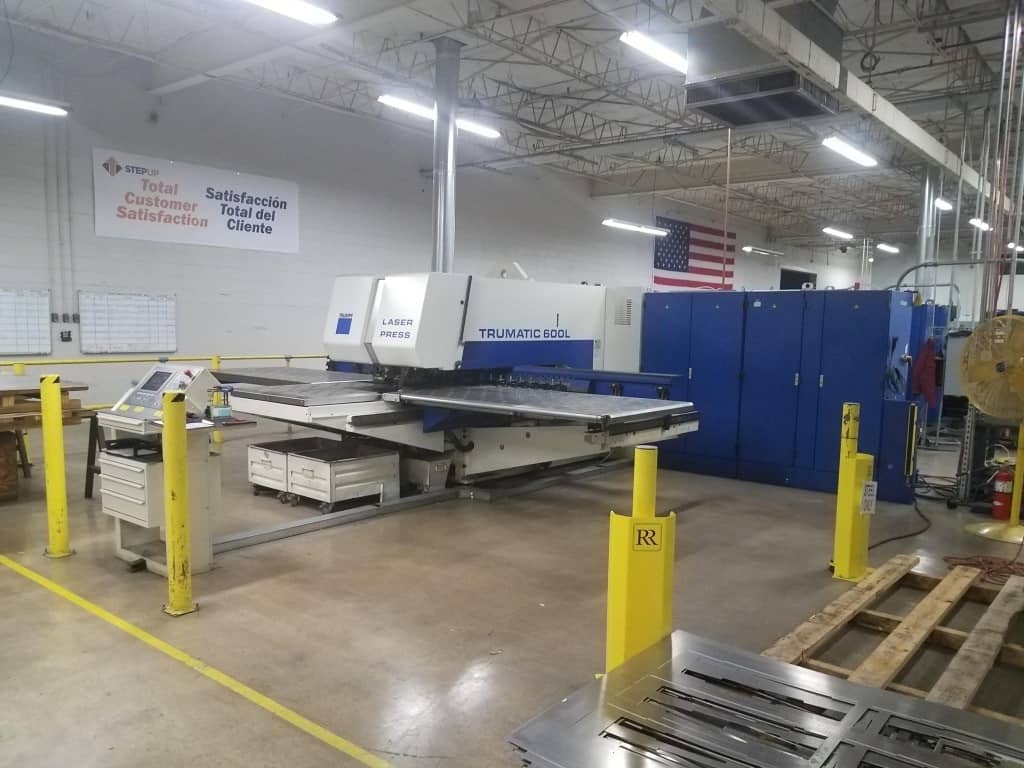

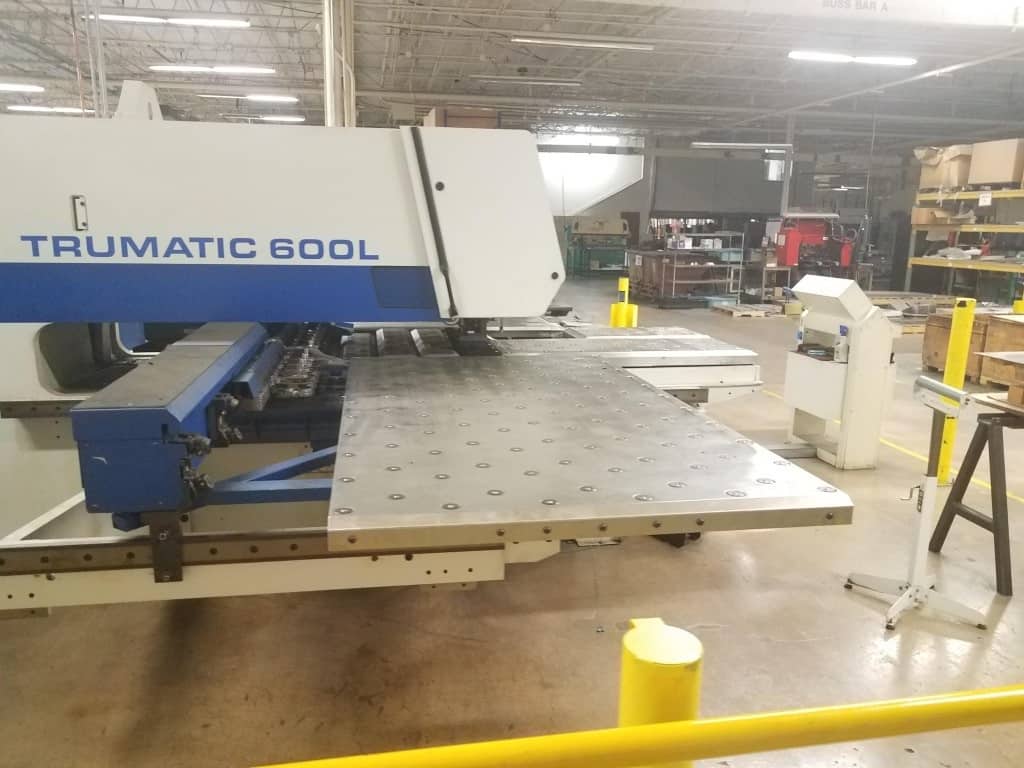

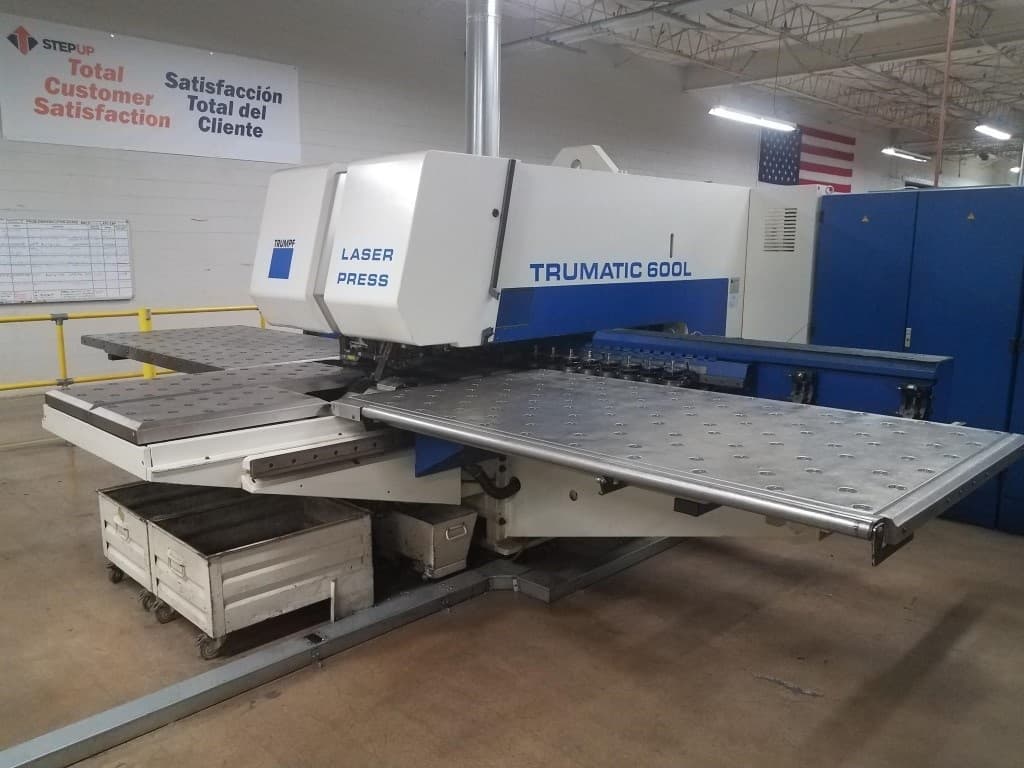

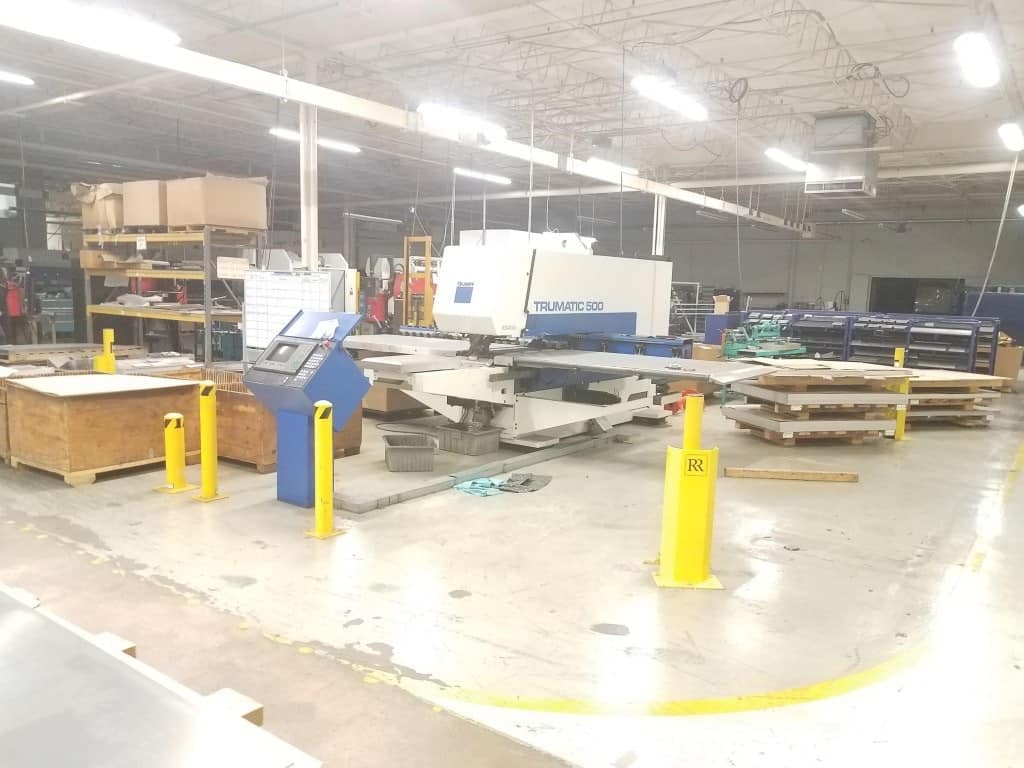

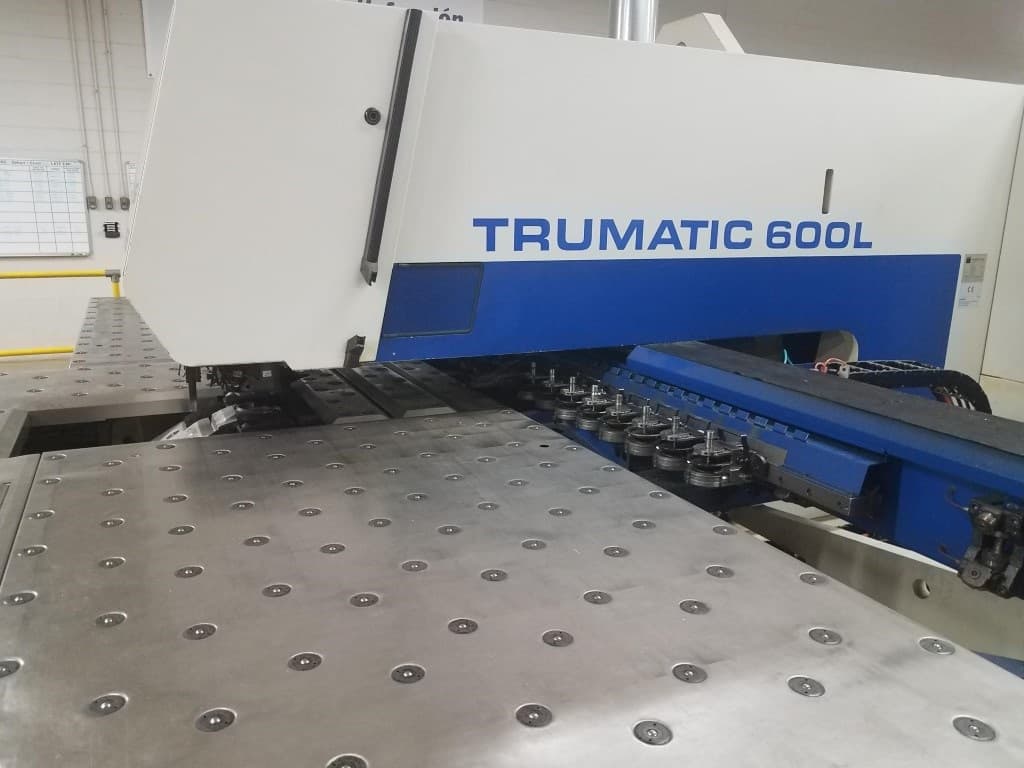

Trumatic 600L |
Description |

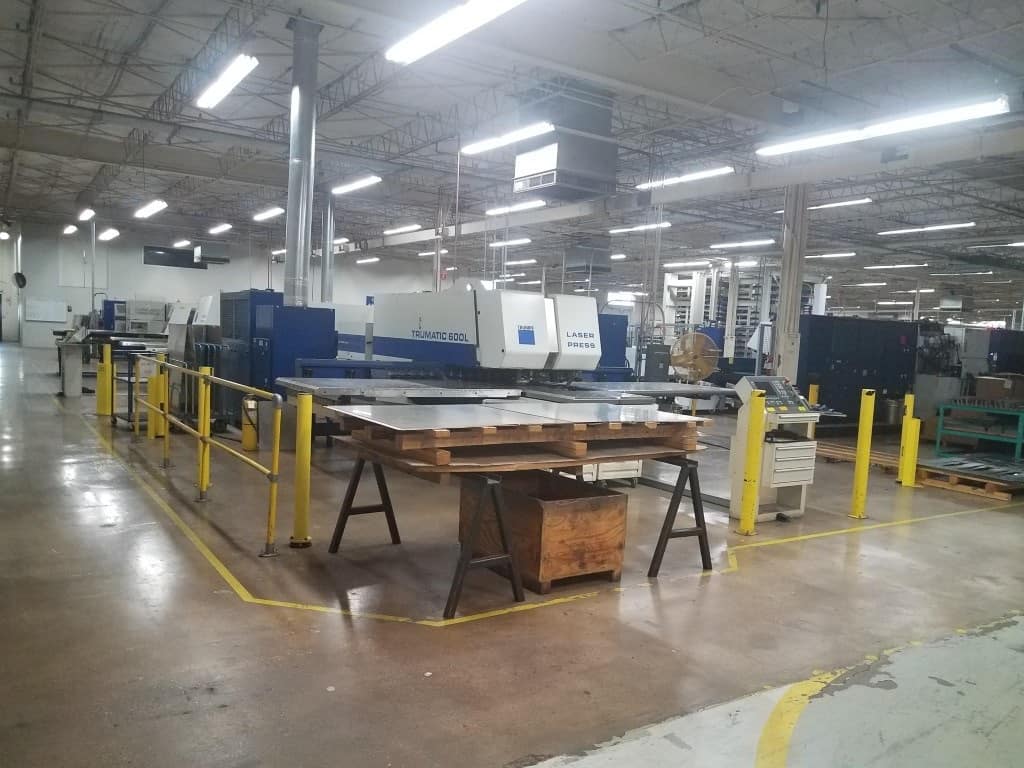

25 Ton 2400 Watt Turret Punch/Laser Combo |
Reference # |
8068321 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
25 Ton |
|---|---|
| Sheet Width |
5' |
| Sheet Length |
10' |
| Table Width |
5' |
| Table Length |
10' |
| Turret Stations |
19 Stations |
| X-Axis Travel |
100" |
| Y-Axis Travel |
50" |
| Power Requirement |
460/3/60 |
| Max Wattage |
2,400 |
| Max Sheet Thickness |
.25" |
| Max Punch Diameter |
3" |
| Max Workpiece Weight |
507 Lbs. |
| Max Strokes Per Minute (On 1" Moves) |
400 Hpm |
| Max Positioning Speed (Simultaneous) |
4300 Ipm |
| Approx Shipping Weight |
50,000 Lbs. |
Features
|
Programmable C-Axis Tool Rotation (360 Degree) |
Programmable Hydraulic Rotary Ram |
|
19 Tool Stations |
Mounted on X-Axis Rail |
|

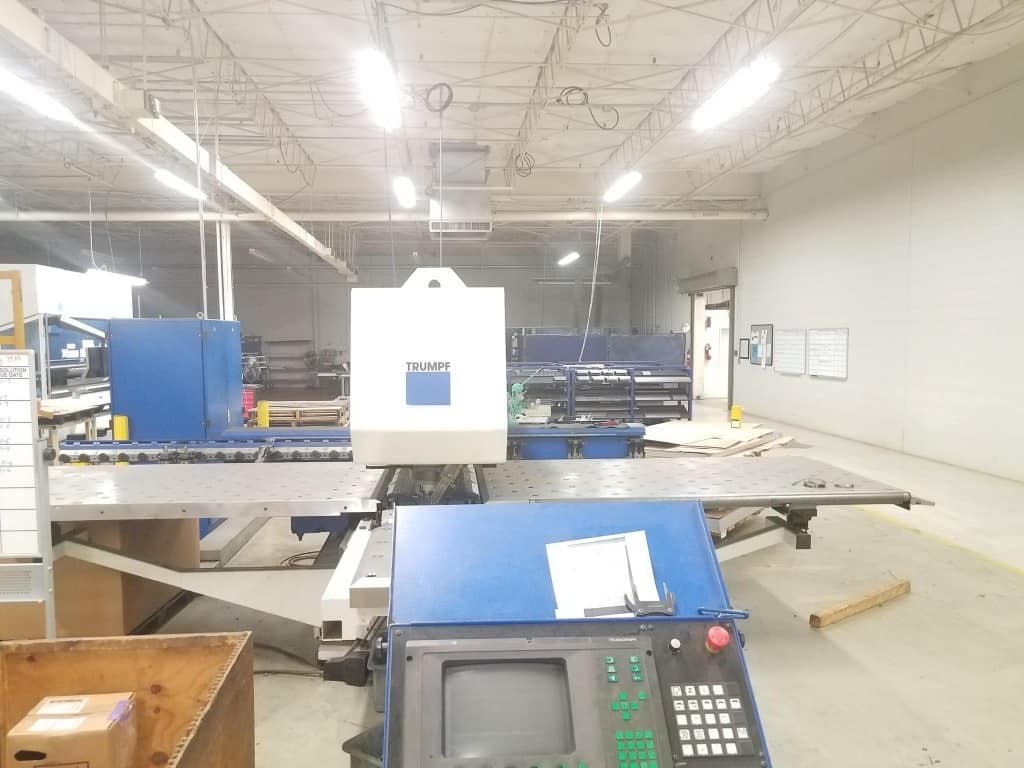

Siemens Sinumerik 840D CNC Control |

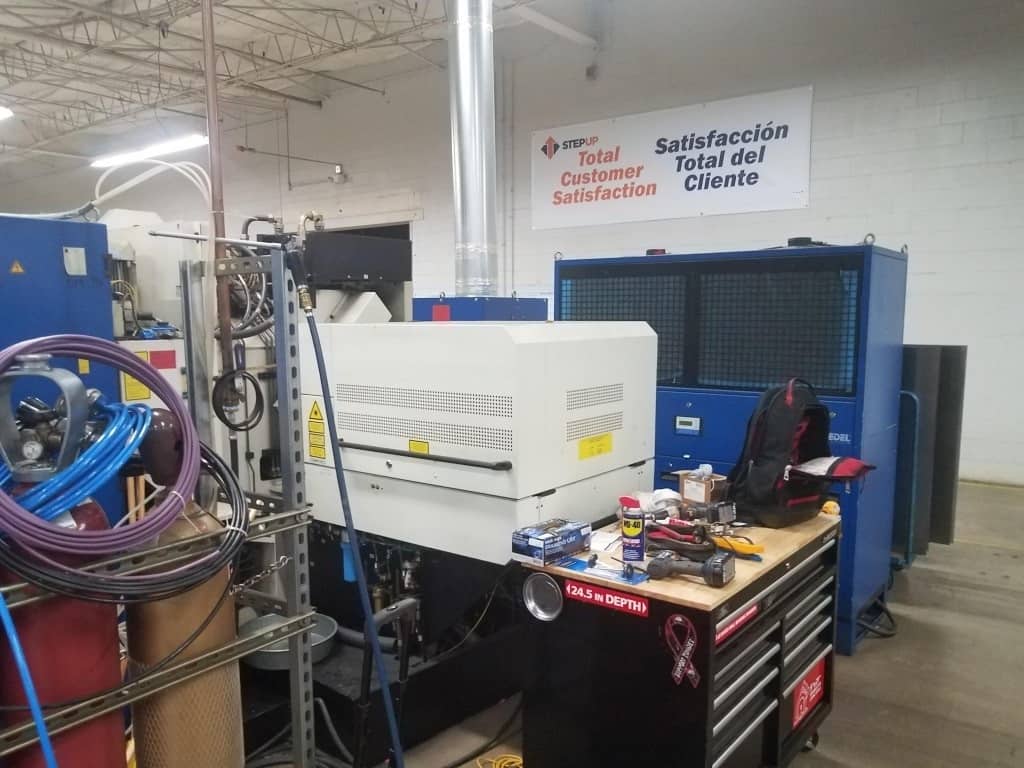

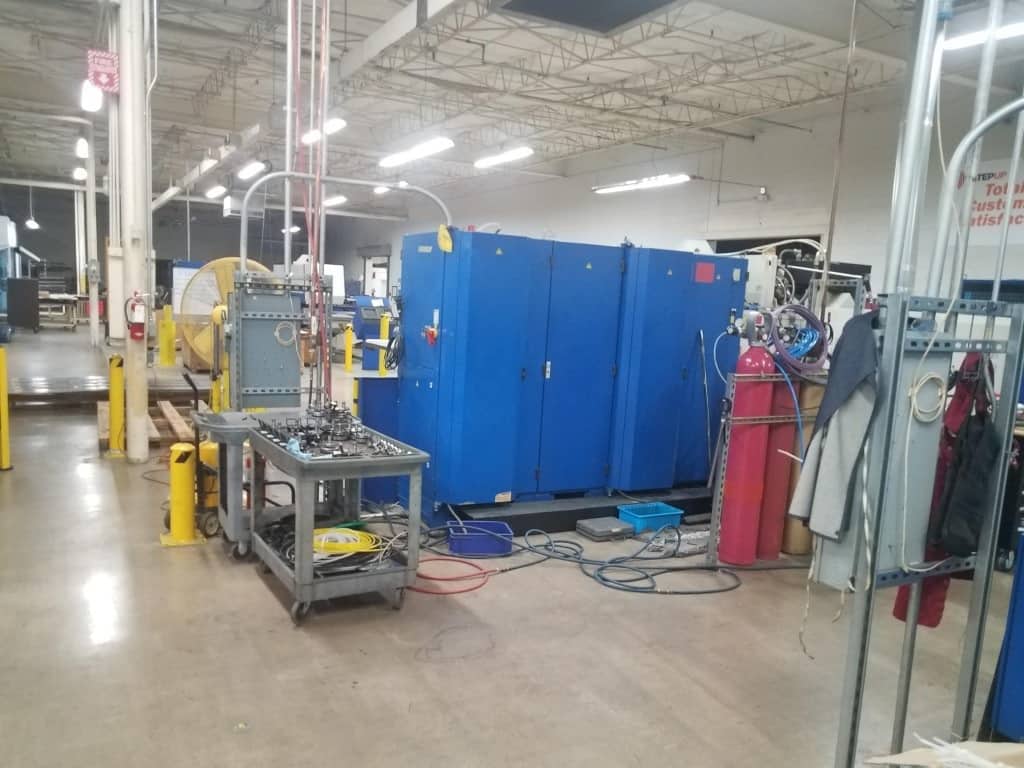

TLF 2400 Watt Resonator |
|
Hydraulic Driven Punch Head |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
