Year |
2000 |
|---|---|
Make |
Finn-Power |
Model |
F6-25-SB |
Description |

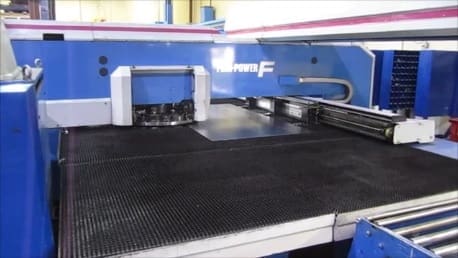

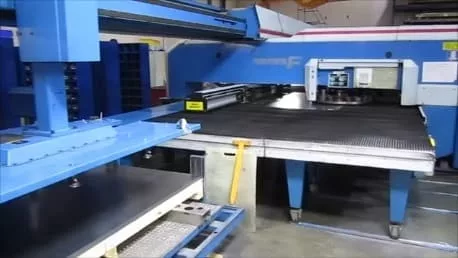

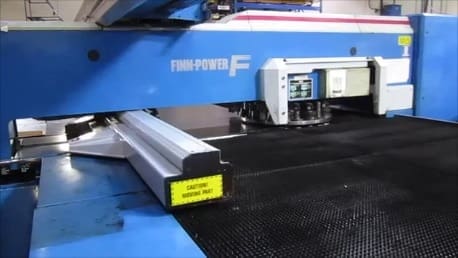

33 Ton Turret Punch |
Reference # |
7793946 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
33 Ton |
|---|---|
| Sheet Width |
5.1' |
| Sheet Length |
10.2' |

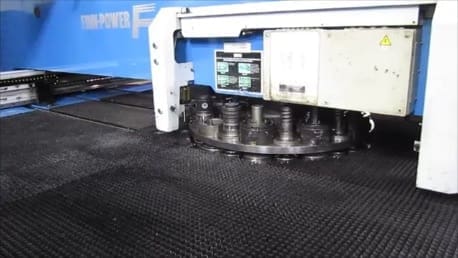

| Turret Stations |
20 |
| Tooling Style |
Thick |
| X-Axis Travel |
101" |
| Y-Axis Travel |
61" |
| Axis Speed (X-Axis), Max |
80m/min |
| Axis Speed (Y-Axis), Max |
60m/min |
| Traversing Speed, Max |
100m/min |
| 1 mm Between Holes |
900 1/min |
| 25 mm Between Holes |
400 1/min |
| 250 mm Between Holes |
140 1/min |
| Max Punch Diameter |
89 mm |

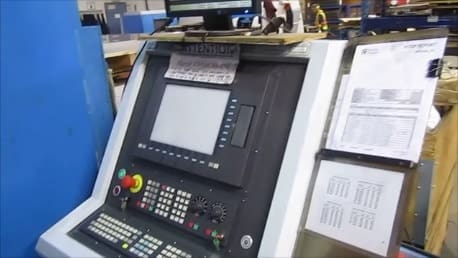

| Control |
Siemens CNC |
Features
|
Auto Index 5 at 3.5" & 3 at 2.25" |
Auto Sheet Re-Positioning |
|
Brush Table |
Hydraulic Punch Stroke |
*
