Year |
2000 |
|---|---|
Make |
Amada |
Model |
Vipros 2510 King |
Description |
22 Ton Turret Punch |
Reference # |
8070418 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

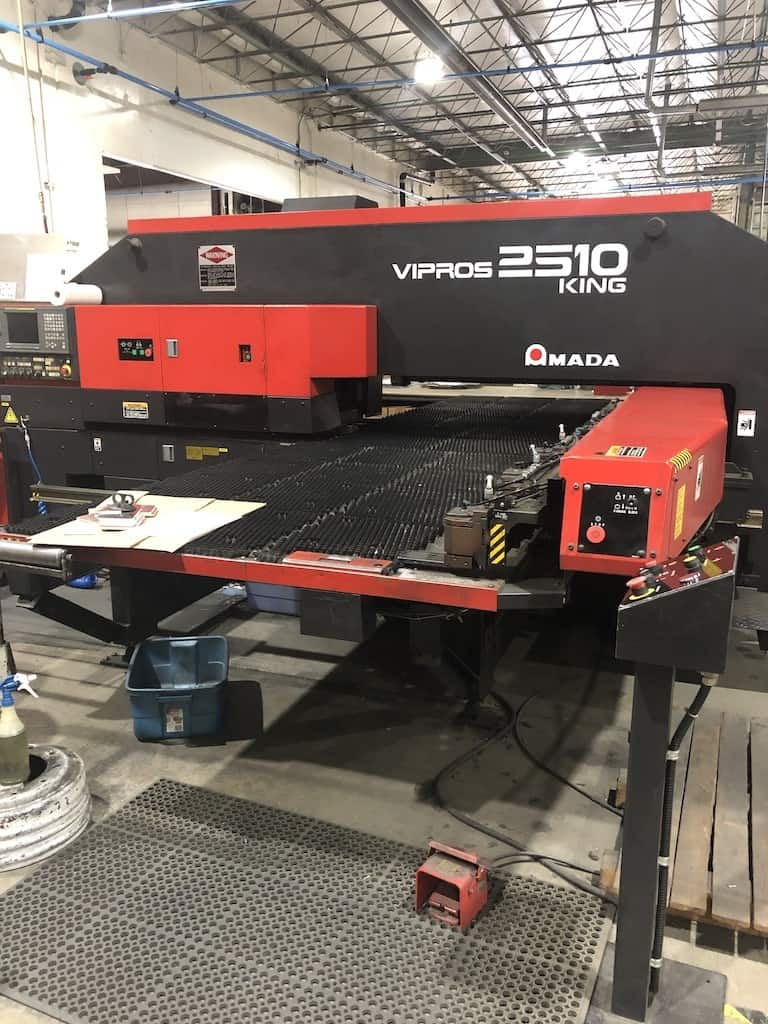

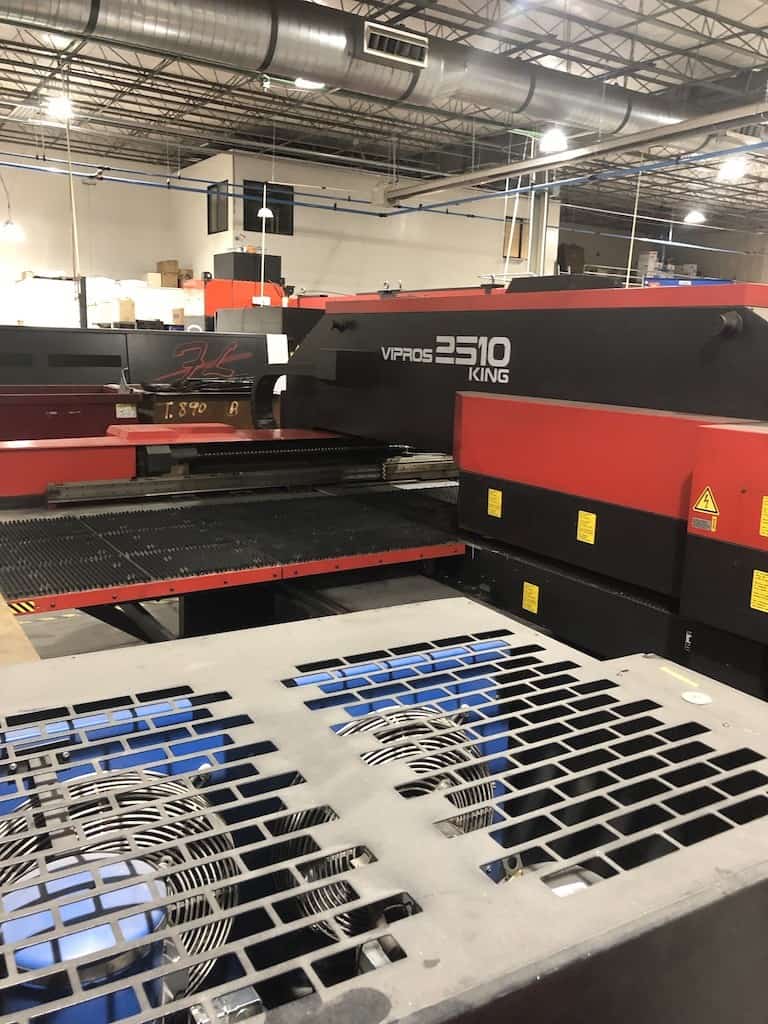

Amada Vipros 2510 King
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
4' |
| Sheet Length |
8' |

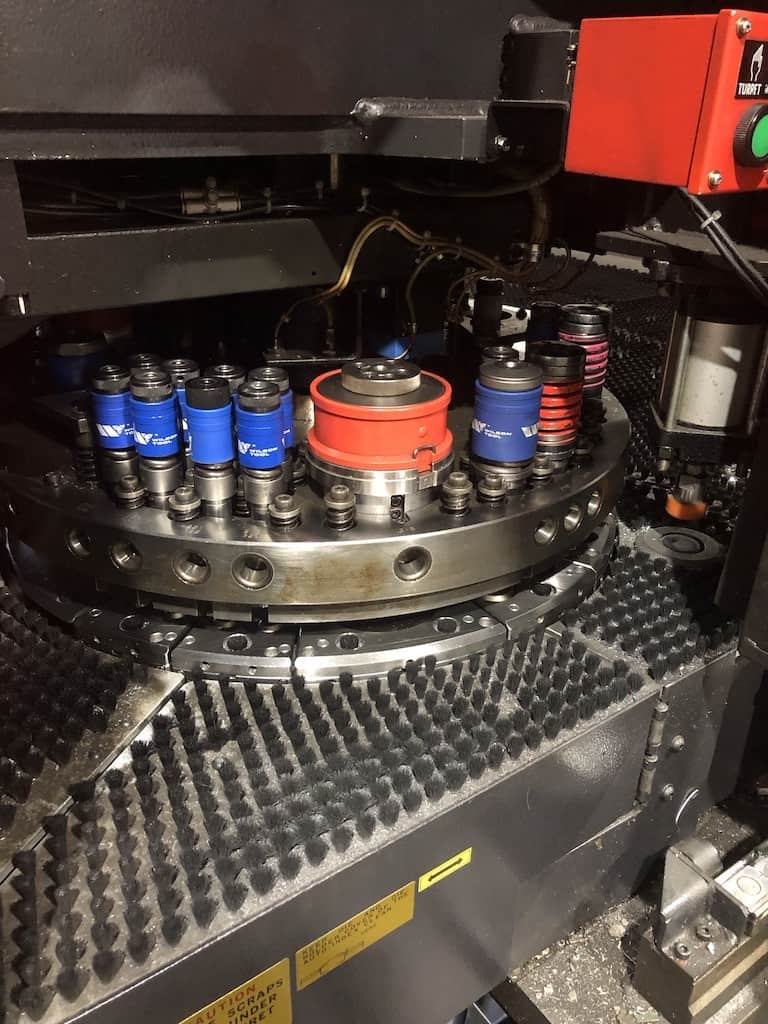

| Turret Stations |
31 With 3 Auto Indexing |
| X-Axis Travel |
50" |
| Y-Axis Travel |
98.4" |
| Throat Depth |
50" |
| Tooling Style |
Thick Turret |
| Control |

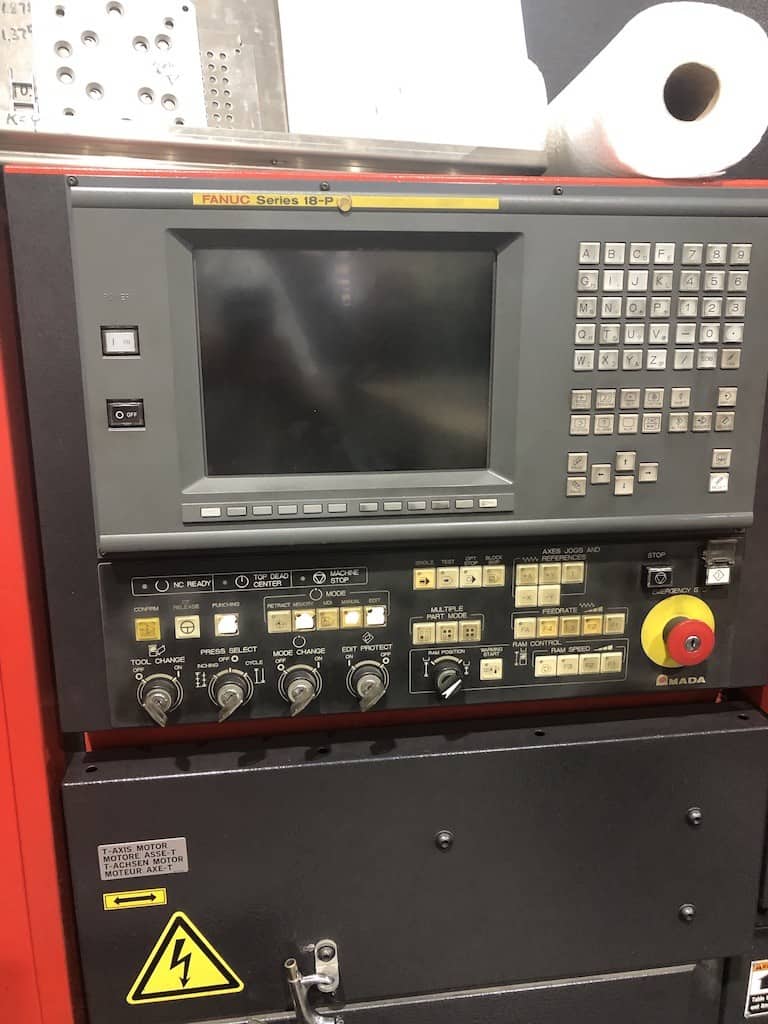

Fanuc 18P (with PHNC) |
| Press Stroke |
1.575" |
| Maximum Sheet Size |
50.0" (Y) x 196.0" (X) w/ Auto-Repo |
| Maximum Sheet Thickness |
0.135" |
| Maximum Material Weight |
110 lbs |
| Max. Linear Table Speed |
3,937 IPM (X), 3,149 IPM (Y) |
| Punching Accuracy |
0.0027″ (Standard), 0.002″ (High Accuracy Mode) |
| Positioning Accuracy |
0.0039" |
| Repeatability |
0.0006″ |
| Maximum Hole Diameter |
3.5″ |
| Turret Rotation Speed |
35 RPM |
