Year |
1999 |
|---|---|
Make |
Cincinnati Milacron |
Model |
E75 D1.5 |
Description |
Extruder |
Reference # |
8077896 |
Price |
Activate Pricing |

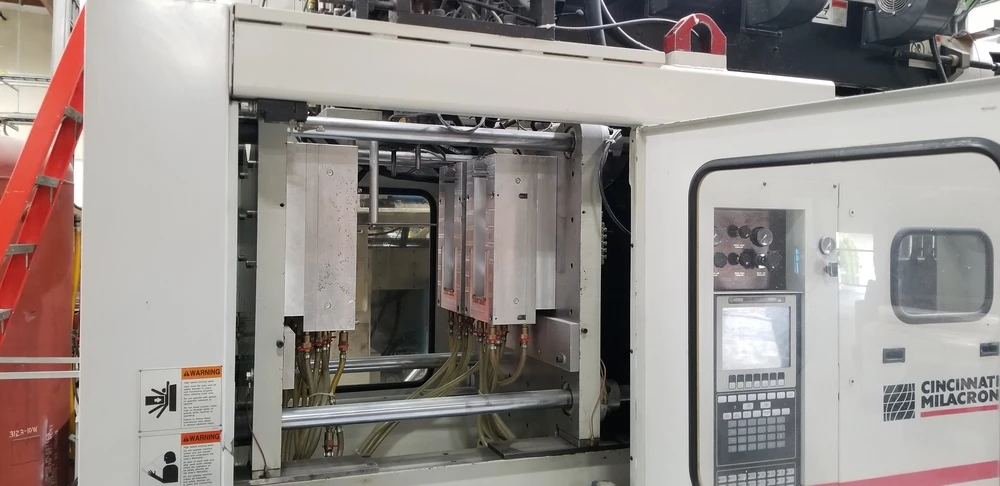

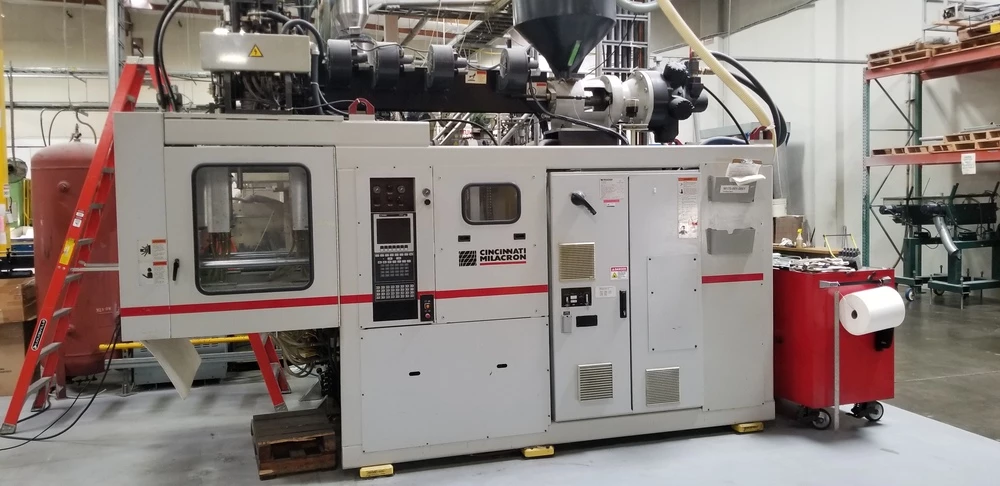

Used Cincinnati Milacron E75 D1.5 (1999) Blow Molder for Sale. This continuous extrusion machine is configured with 2 heads, a head shot size capacity of 1.4 lbs per head, 12″ center line distance, and a max die diameter of 5.0″, with 2 head zones per head. Clamp tonnage is 50 tons, with max closed/open daylight of 20″/40″ and a clear platen of 26″ x 39″. The 3.0″ screw runs a 24:1 L/D ratio, driven by a 75 HP motor. Power requirement is 460v – 3 – 60 hz at a 90 amp rating. Material ran was HDPE. Equipped with very low hours and decommissioned 24 months ago (Dec. 2023). Available for inspection under power. See more used blow molding machines or other Cincinnati Milacron equipment, then Activate Pricing or Request a Quote.
Specifications
| Number of Heads |
2 |
|---|---|
| Head Shot Size Capacity |
1.4 Lbs Per Head |
| Center Line distance |
12" |
| Max Die Diameter |
5.0" |
| Number of Head Zones (Per Head) |
2 |
| Max Closed/Open Daylight (in) |
20"/40" |
| Clamp Tonnage |
50 Tons |
| Clear Platen |
26" x 39" |
| Screw Size |
3.0" |
| L/D Ratio |
24:1 |
| Motor Horspower |
75 HP |
| Material Ran |
HDPE |
| Power Requirement |
460v - 3 - 60 hz (Amp Rating 90) |
Features
|
Very Low Hours and Docommissioned 24 Mos Ago (Dec. 2023) |
