Year

1998

Make

Graham

Model

40SP4884

Description

Single 40lb Accumulator Head Blow Molder

Reference #

8071882

Price

NOW $95,000

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

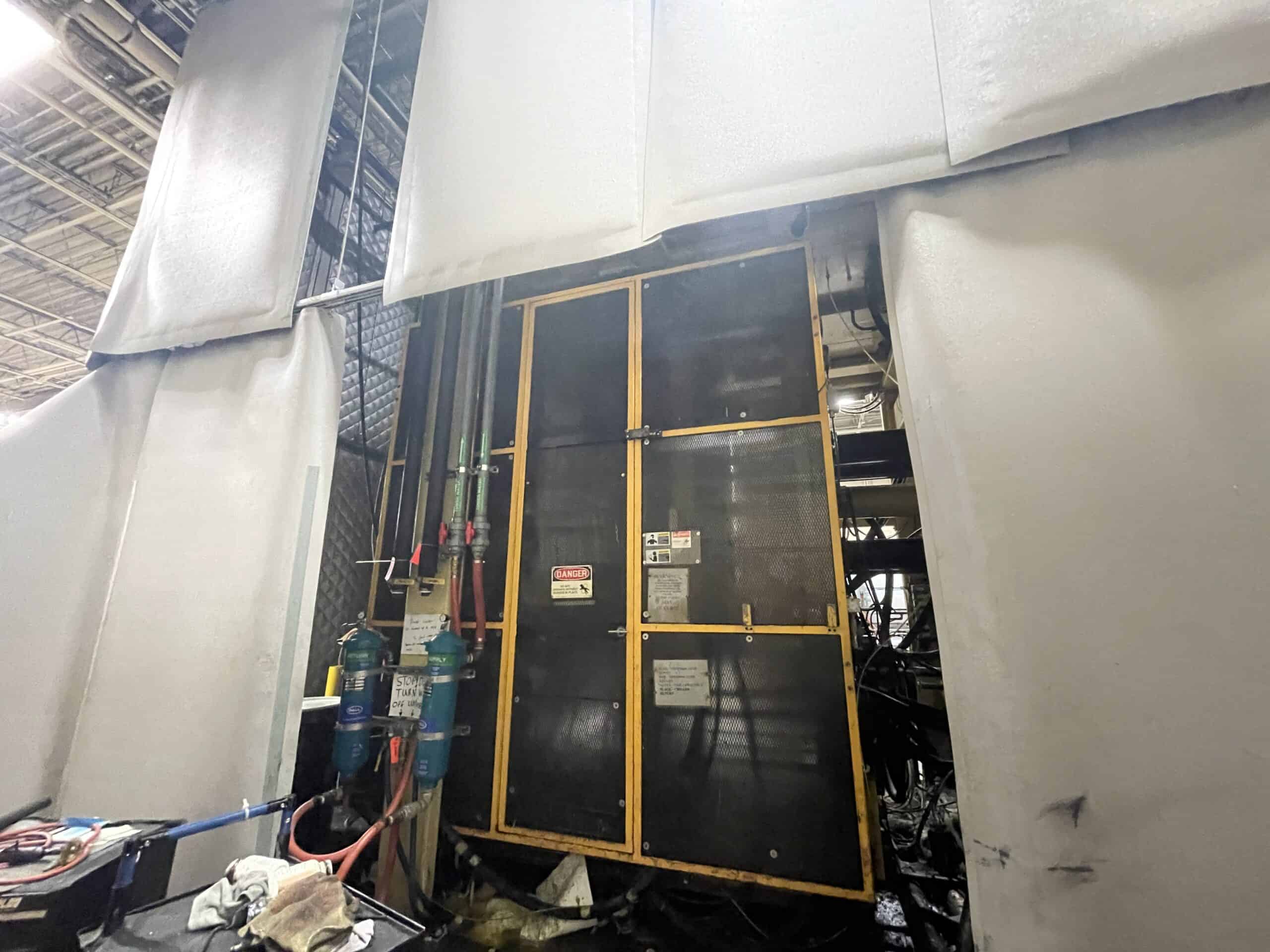

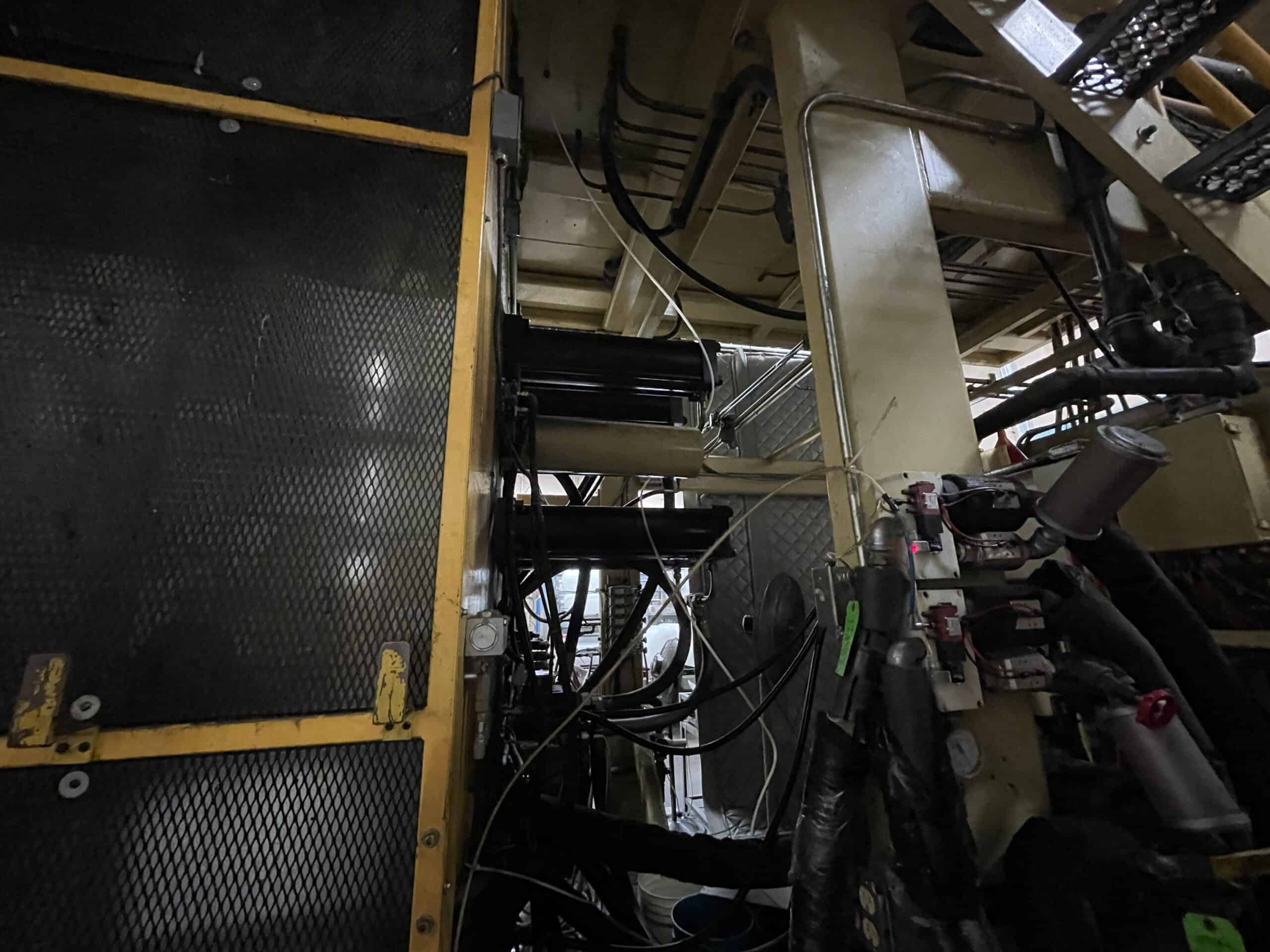

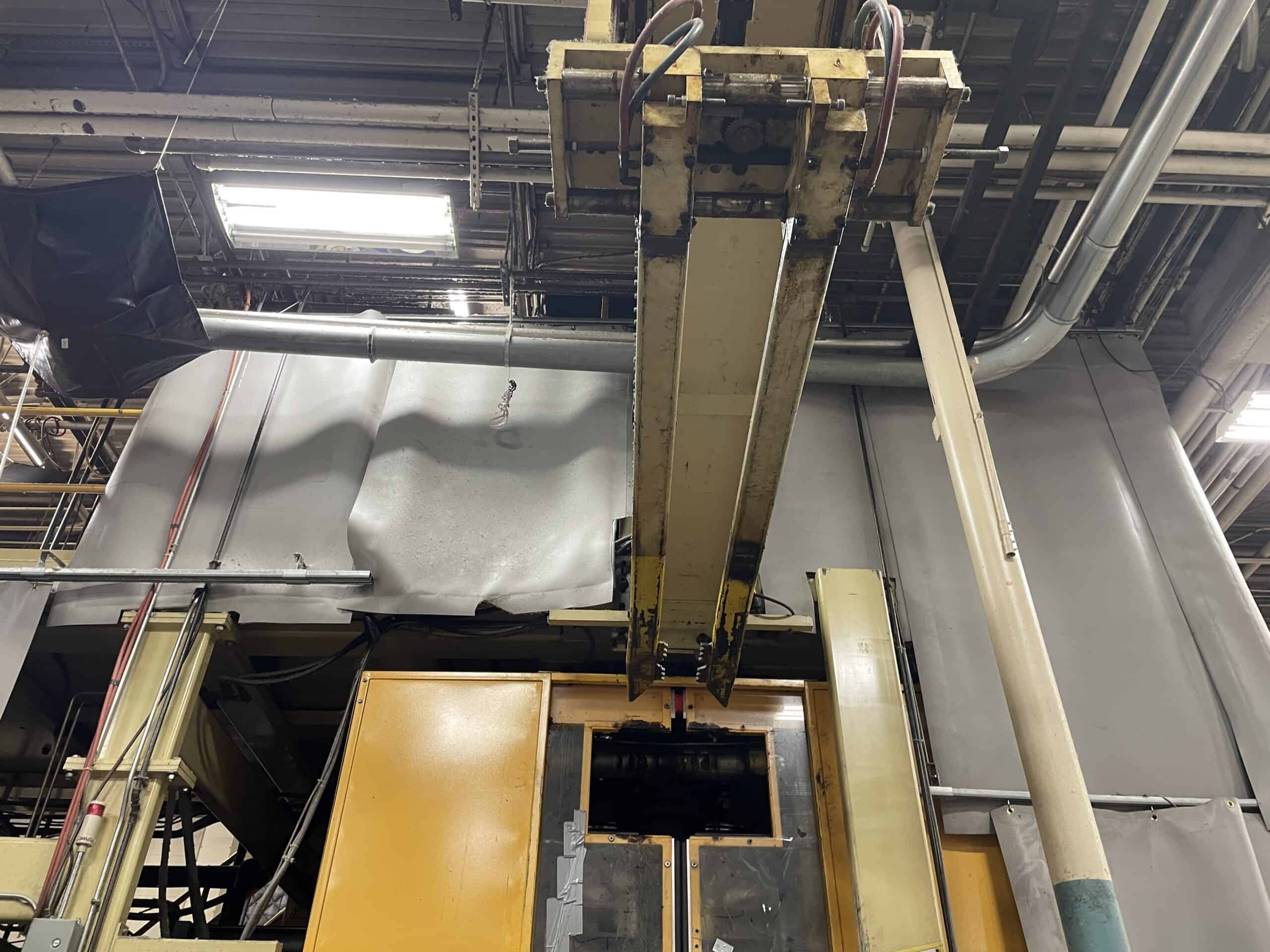

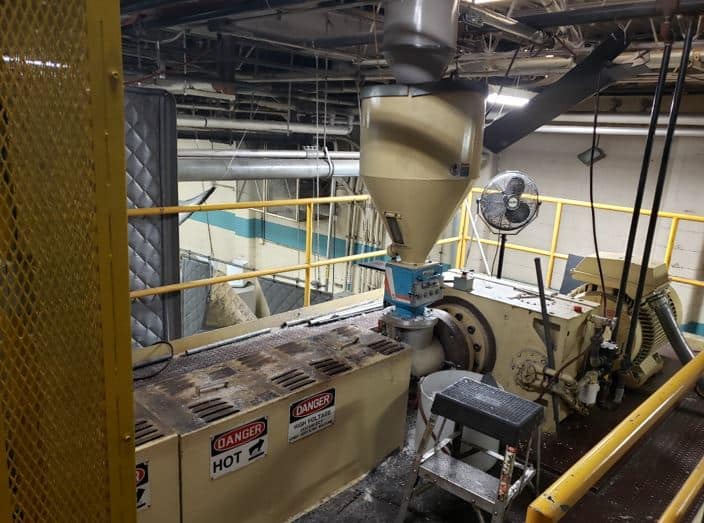

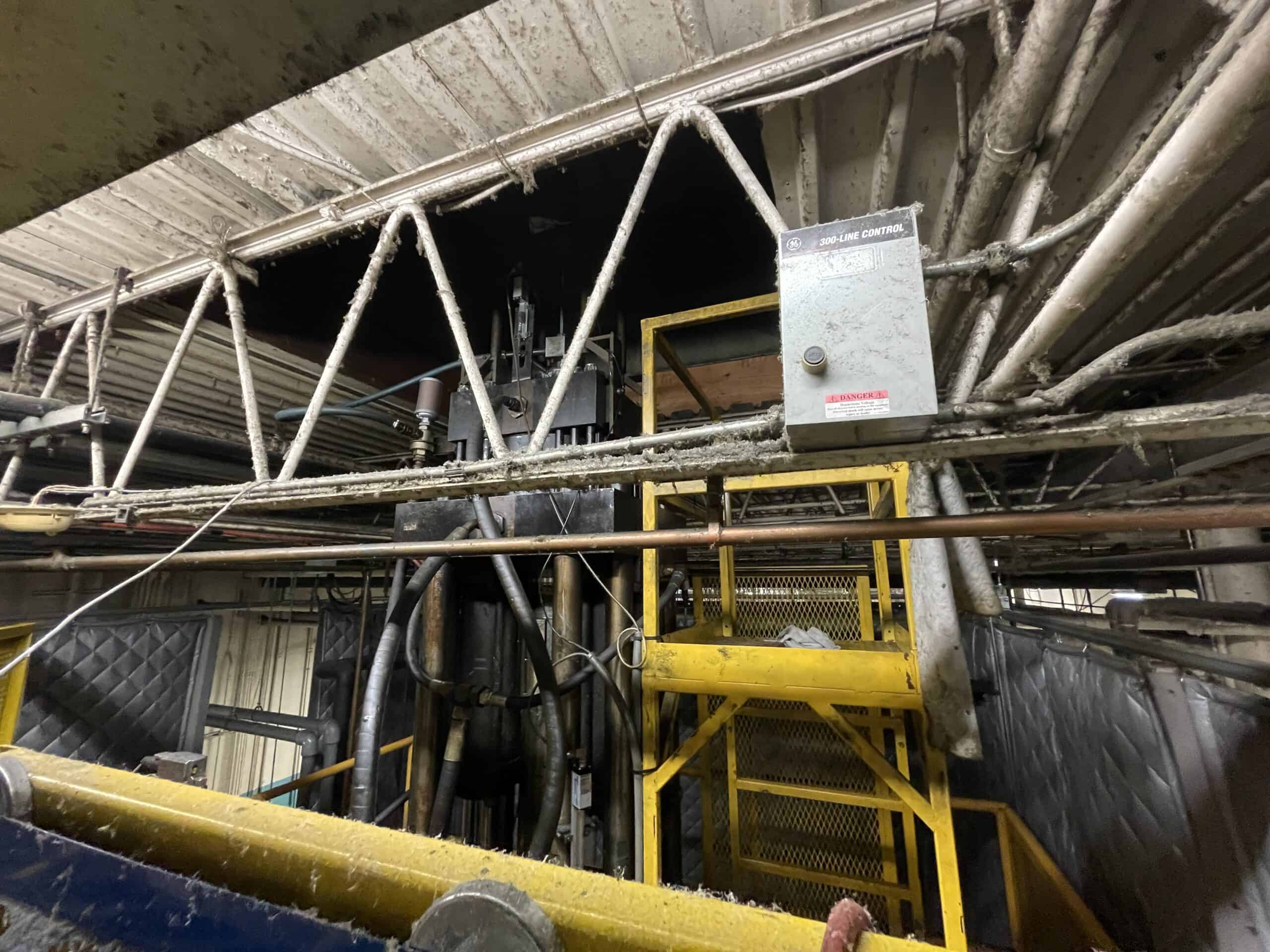

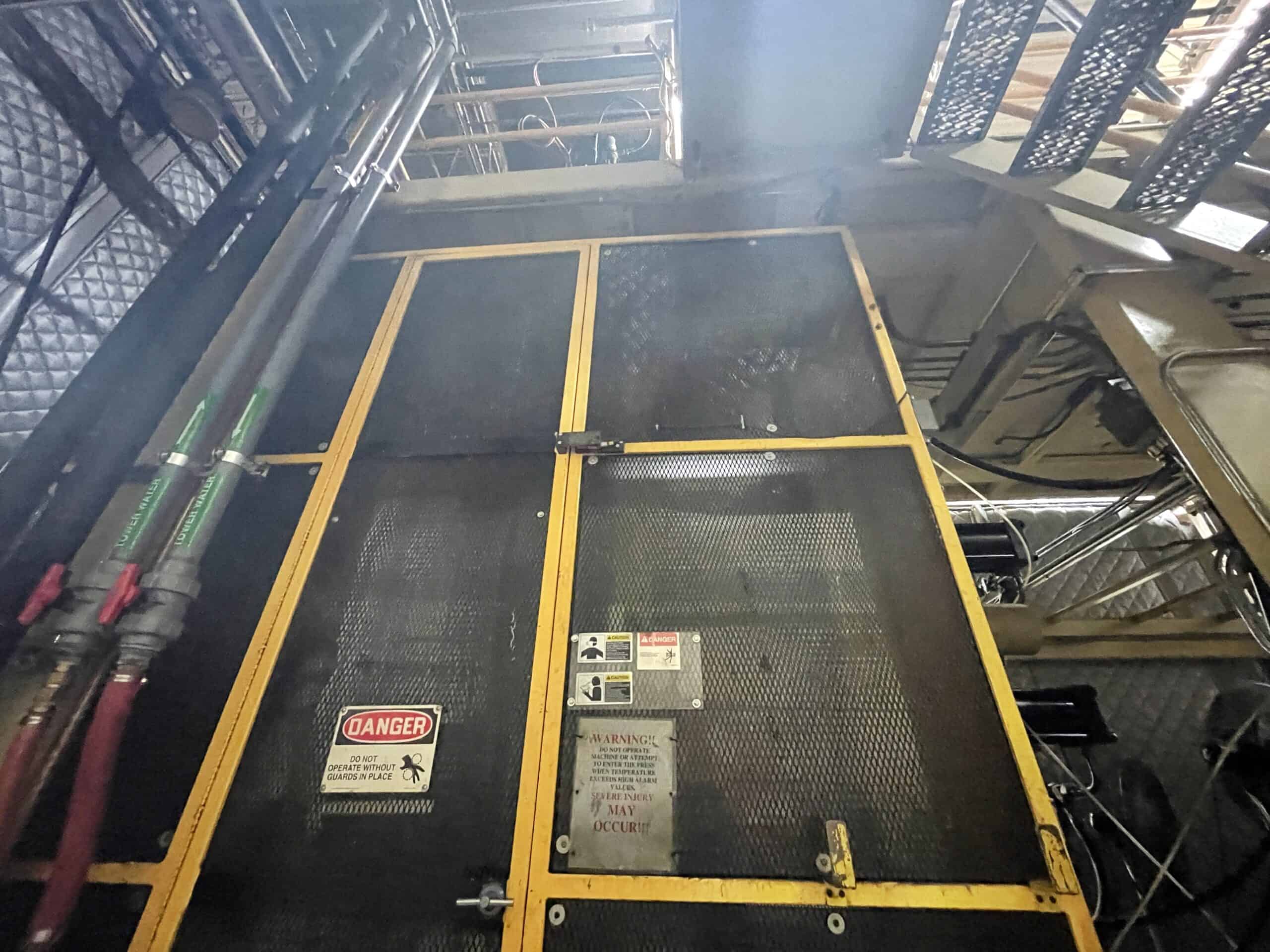

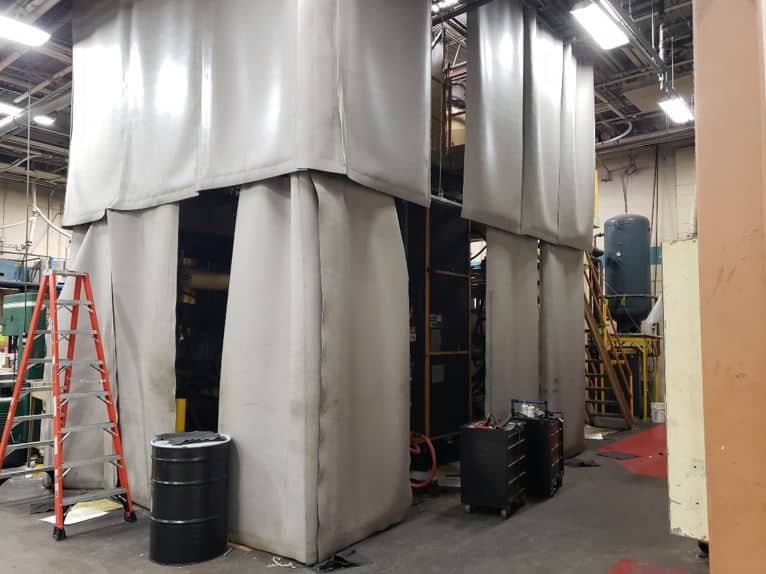

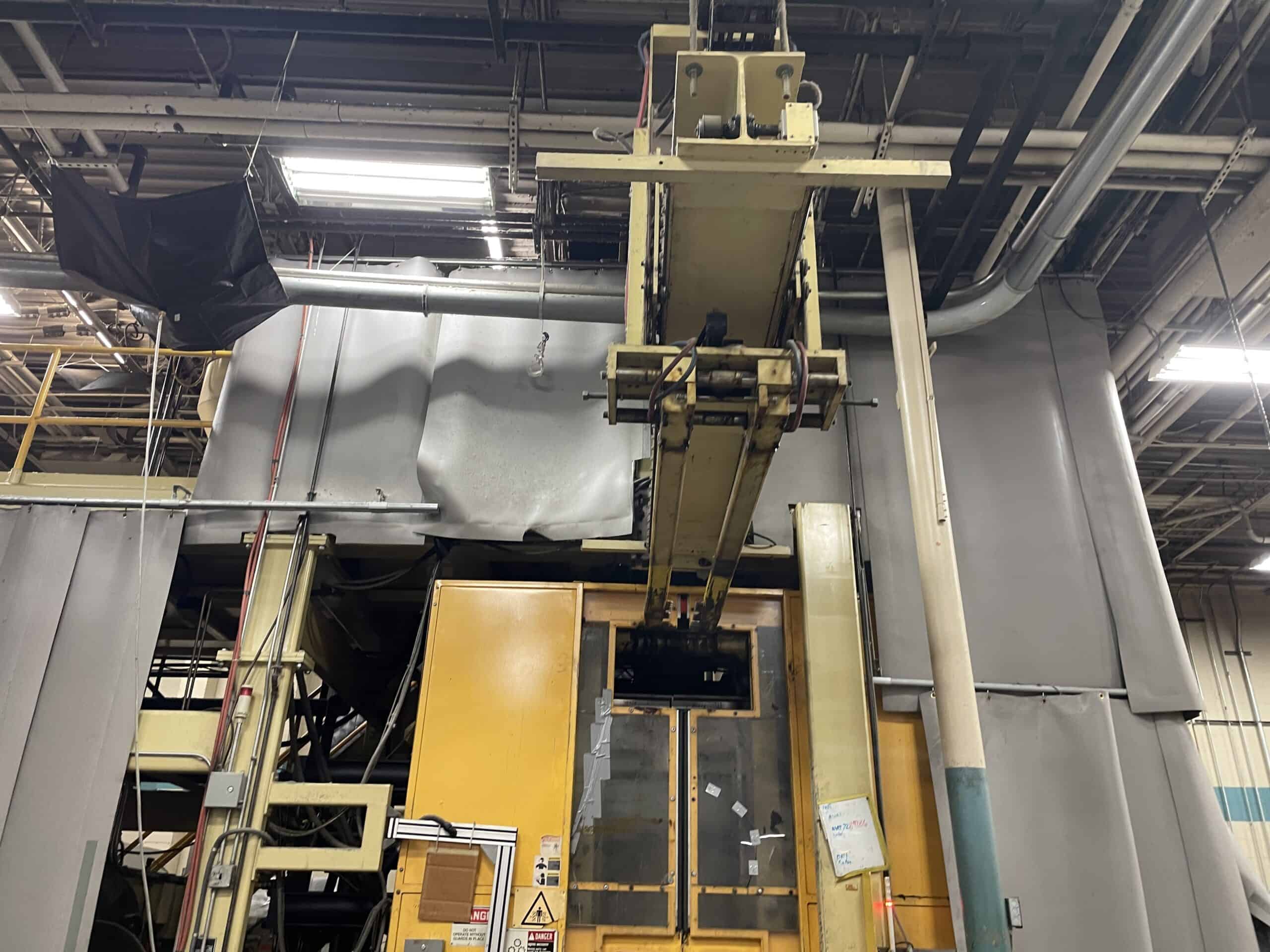

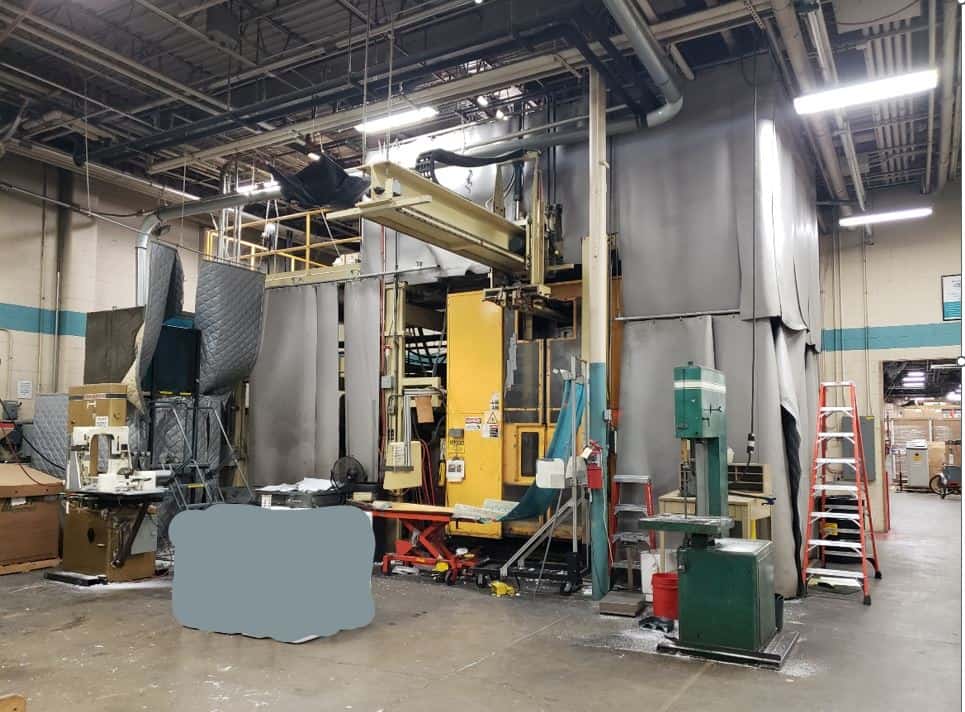

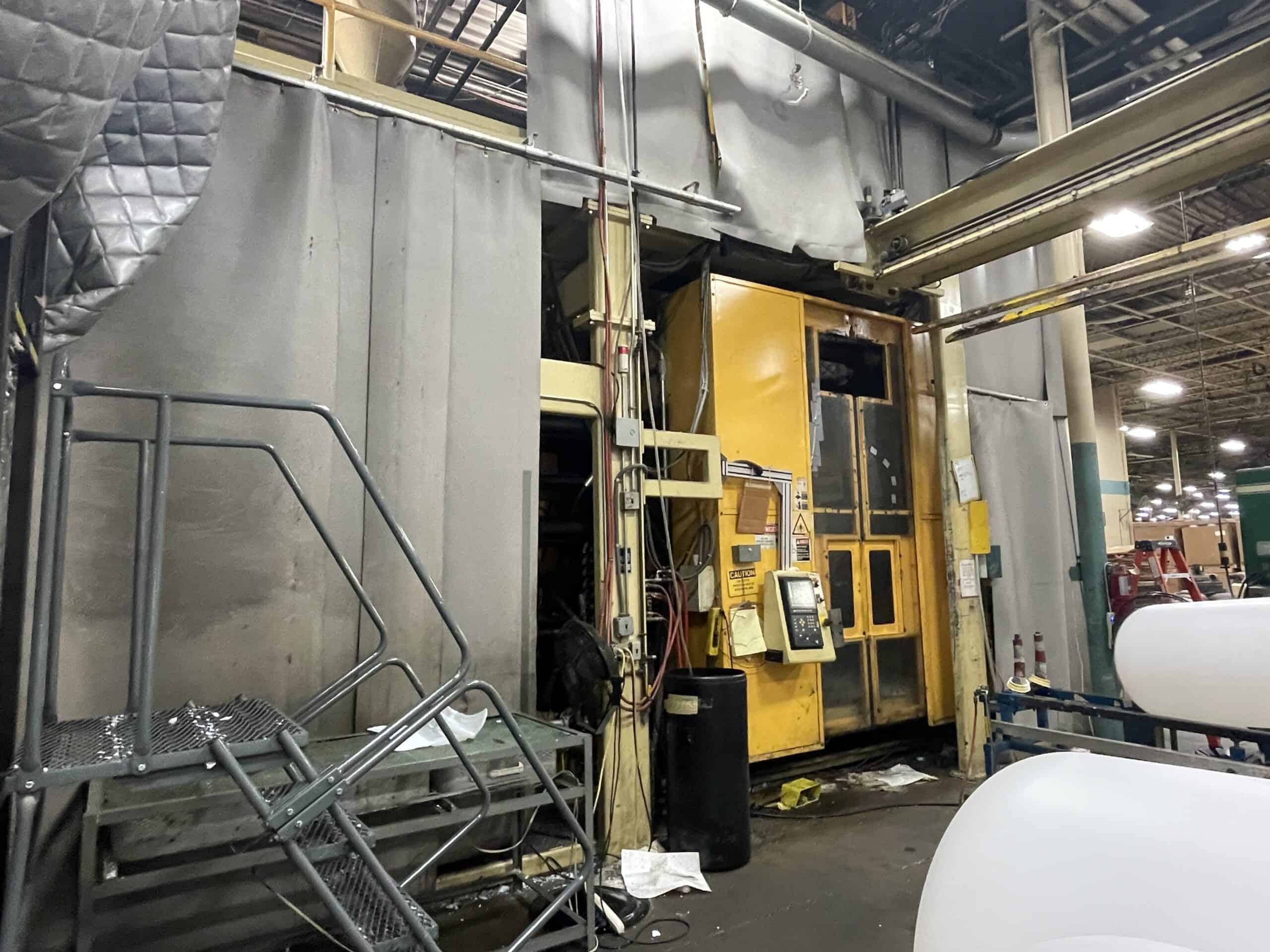

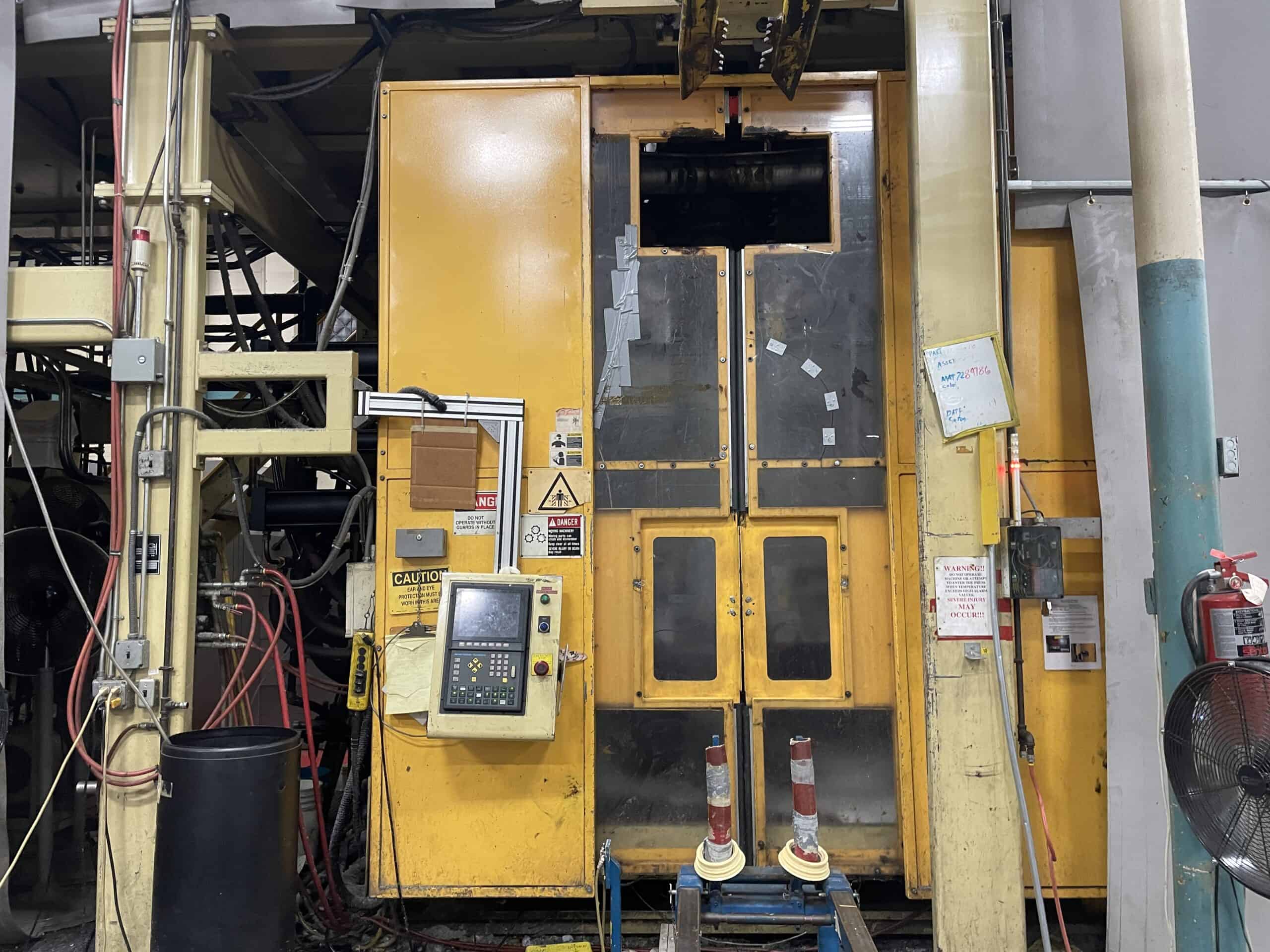

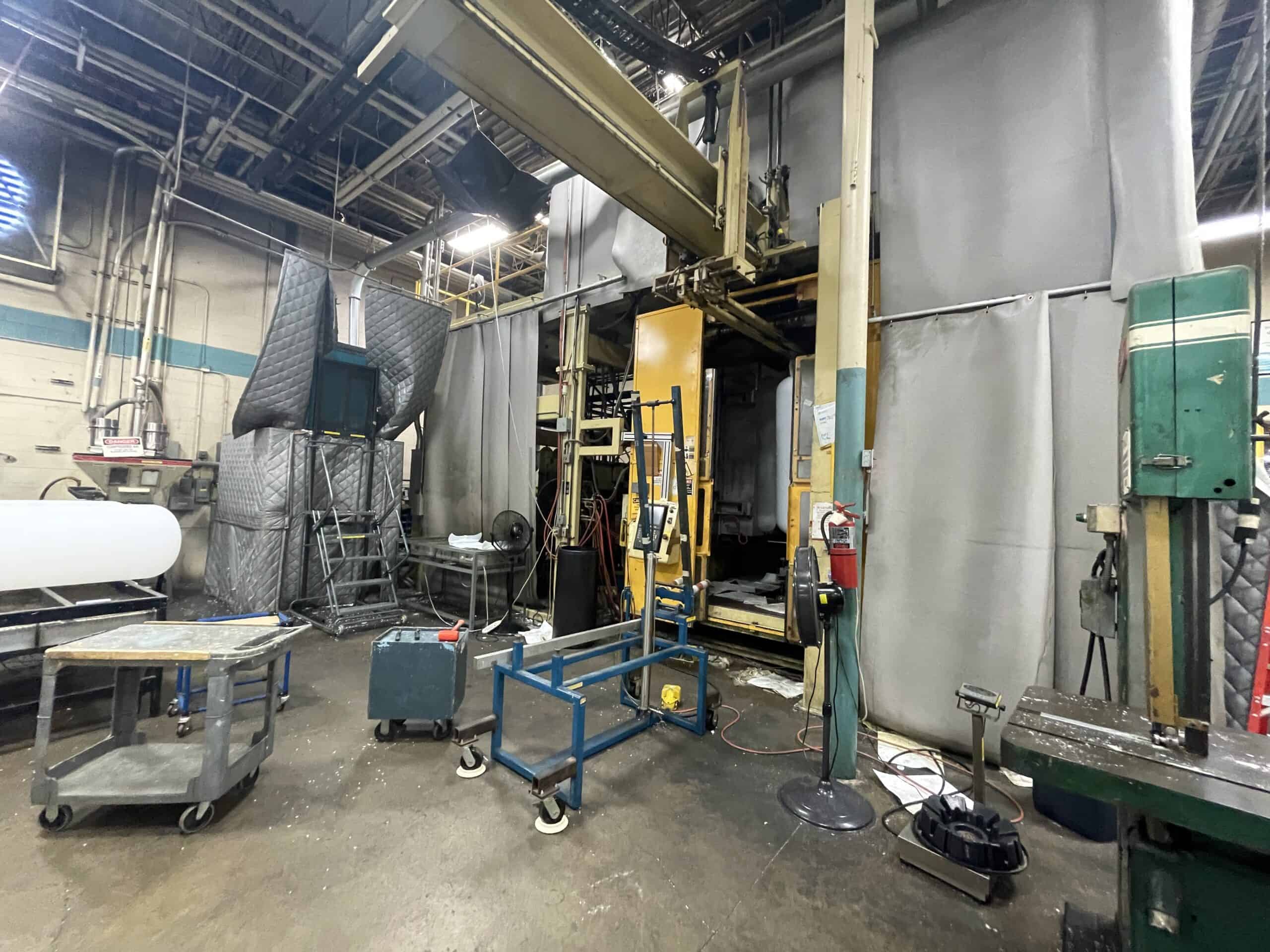

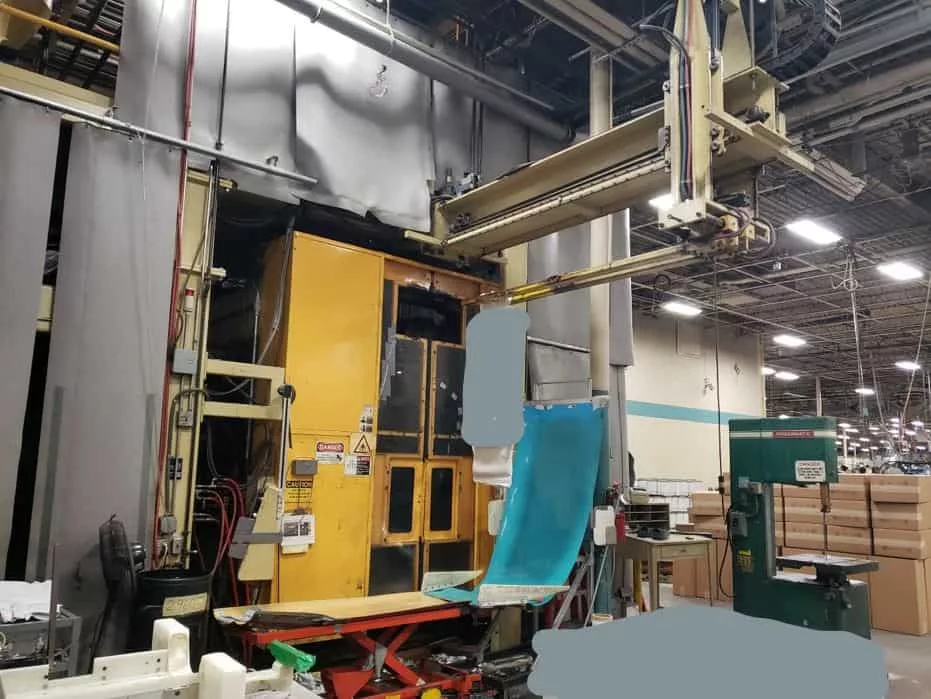

Used Graham 40SP4884 (1998) Blow Molder for Sale.  This pre-owned Graham blow molding machine is located in Minnesota.  If you have any questions regarding this Graham Blow Molder, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Number of Heads

(1) Single

Head Shot Size Capacity

40 lbs.

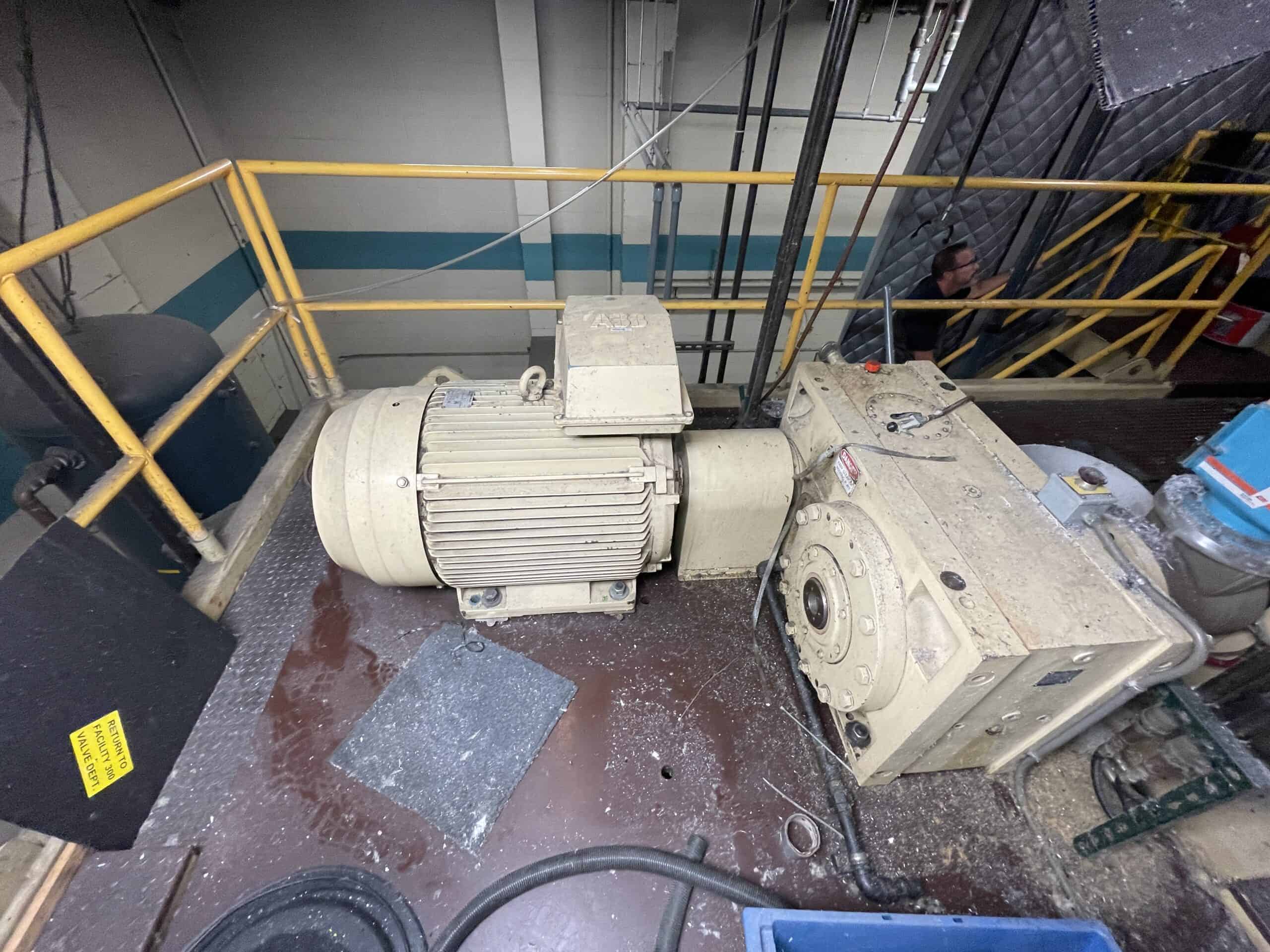

Horsepower

200

Head Tooling Size (Min & Max)

5" to 18"

Minimum Shot Height

16"

Platen Size

74" x 84"

Daylight Opening (Max)

72"

Clamp Tonnage

190

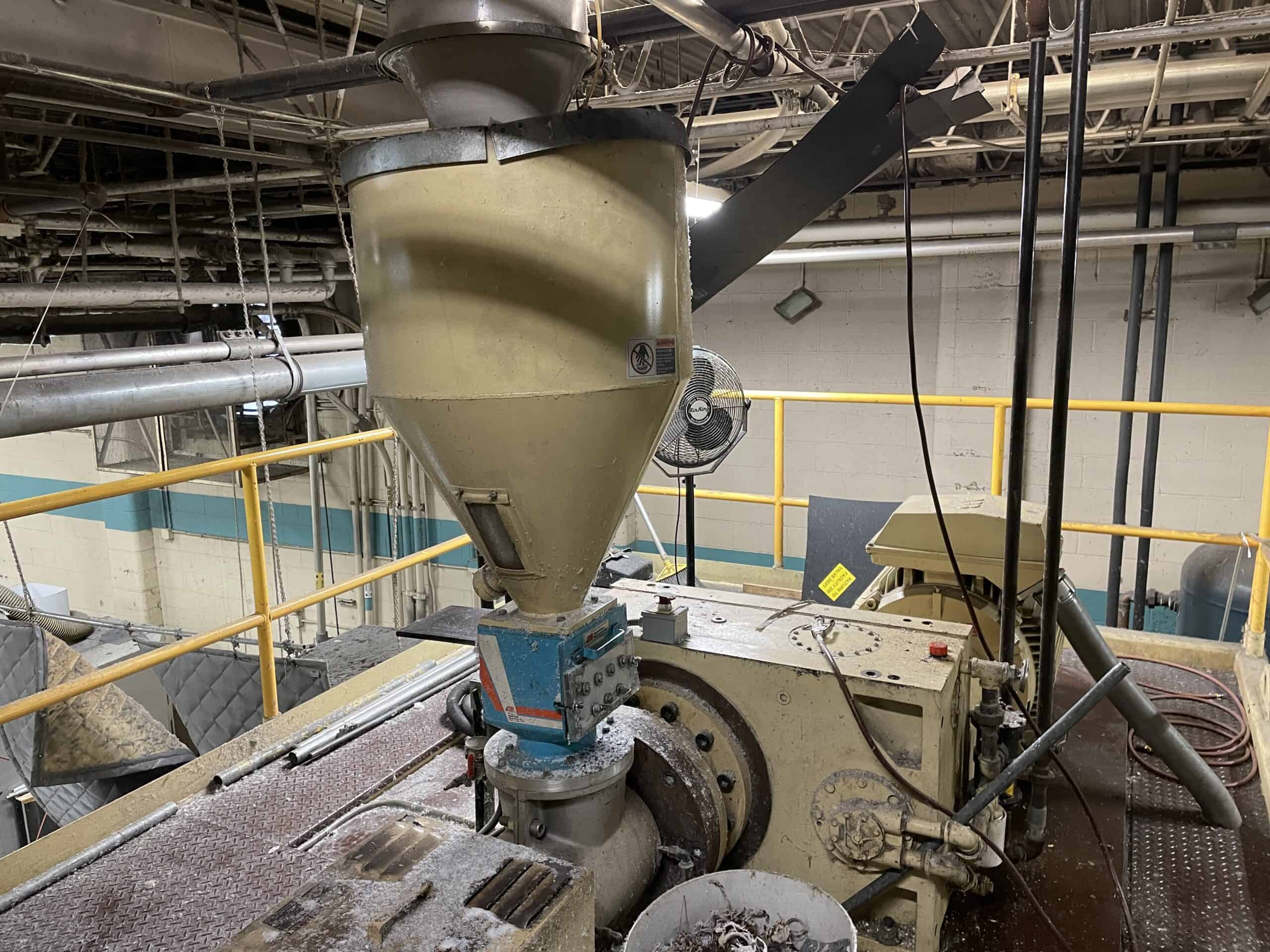

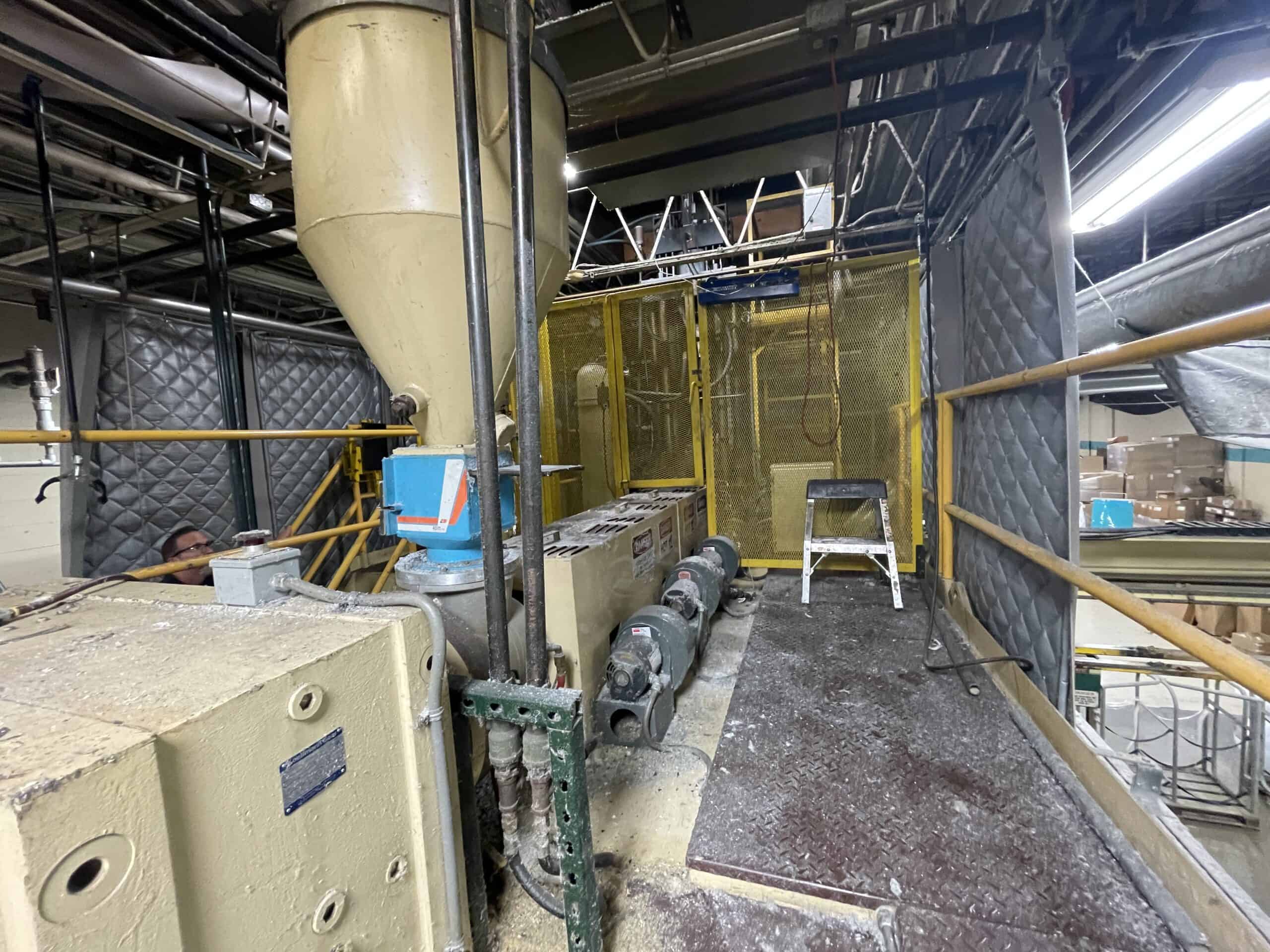

Number of Extruders

(1) One

Screw Size

4.5"

L/D Ratio

26:1

Cooled

Air Cooled Barrel

Barrel Material

Xaloy

Type of Screw

Barrier Type

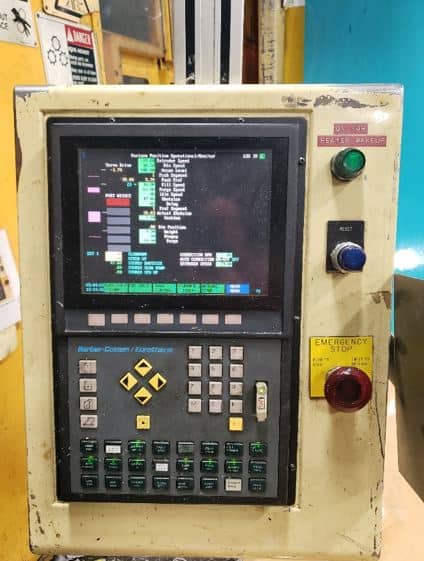

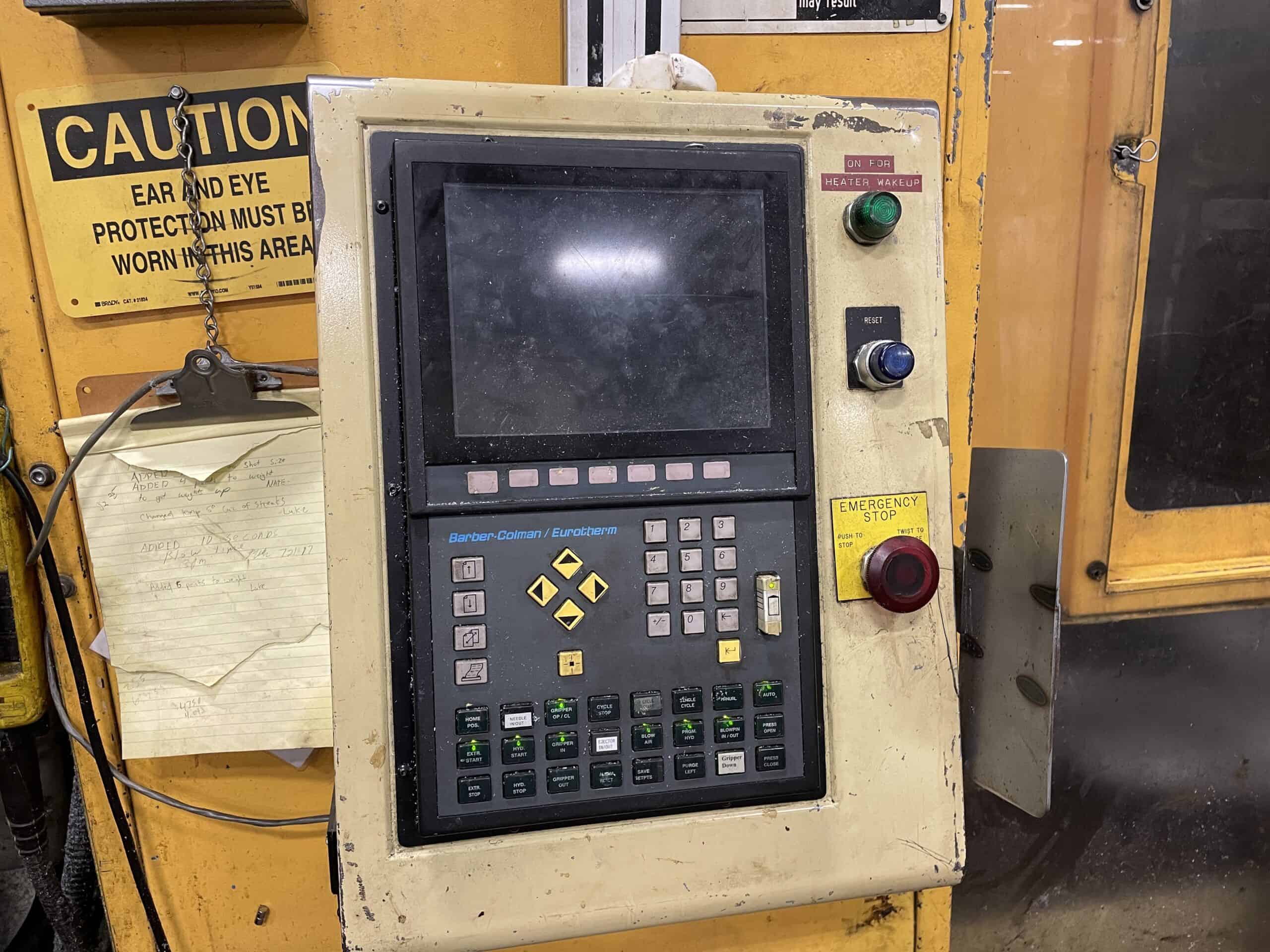

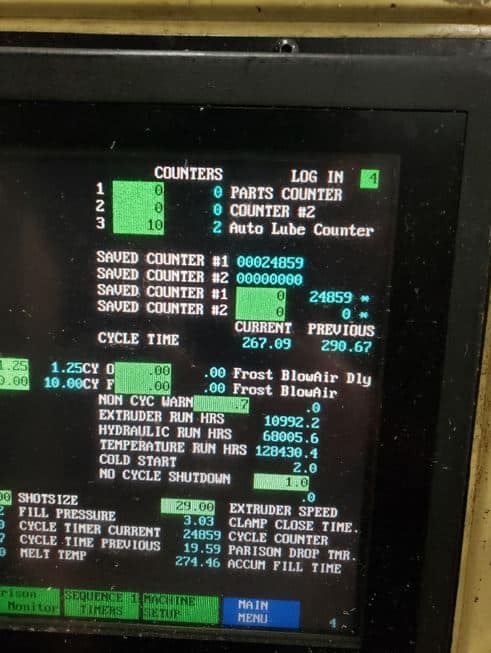

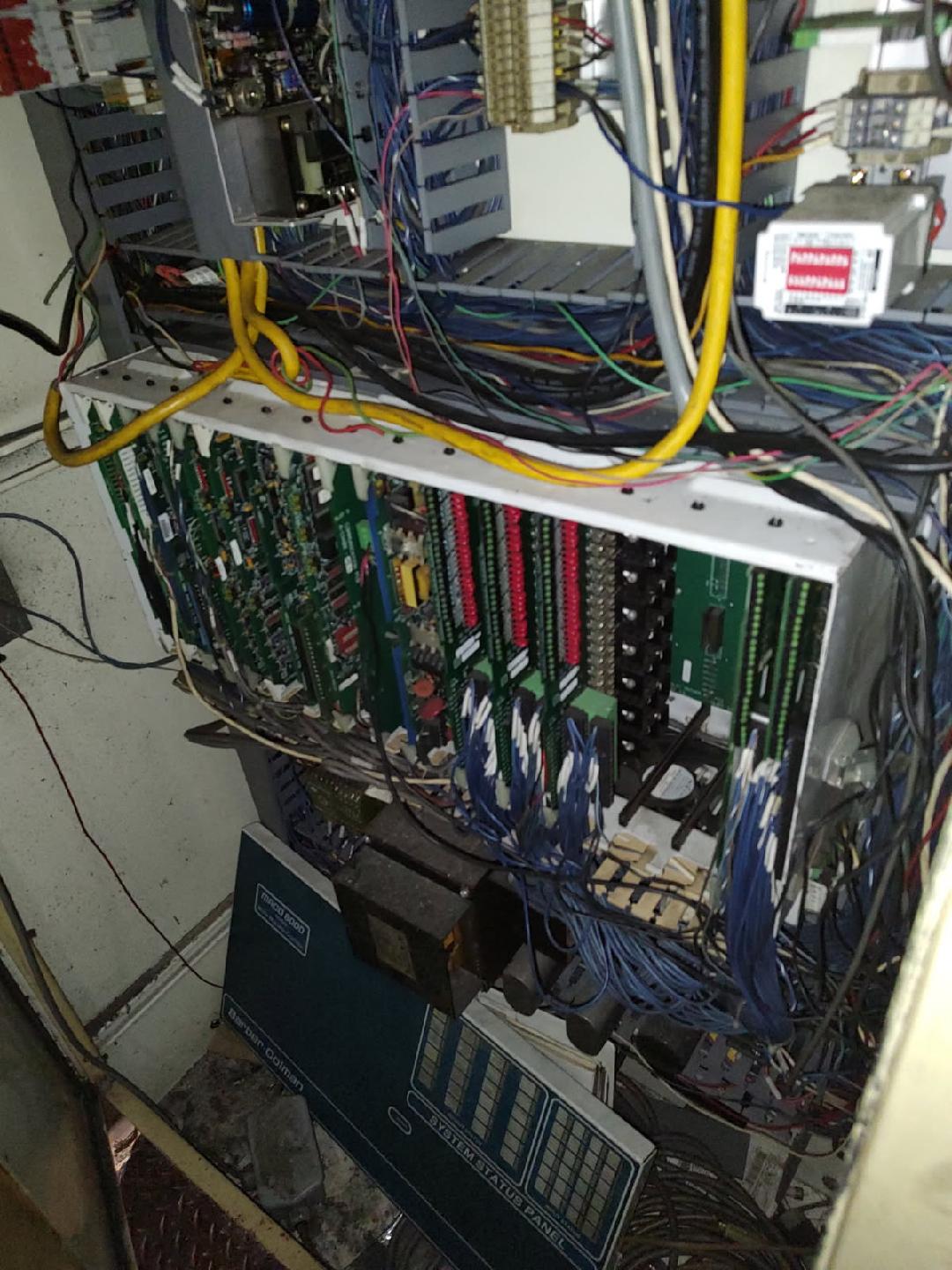

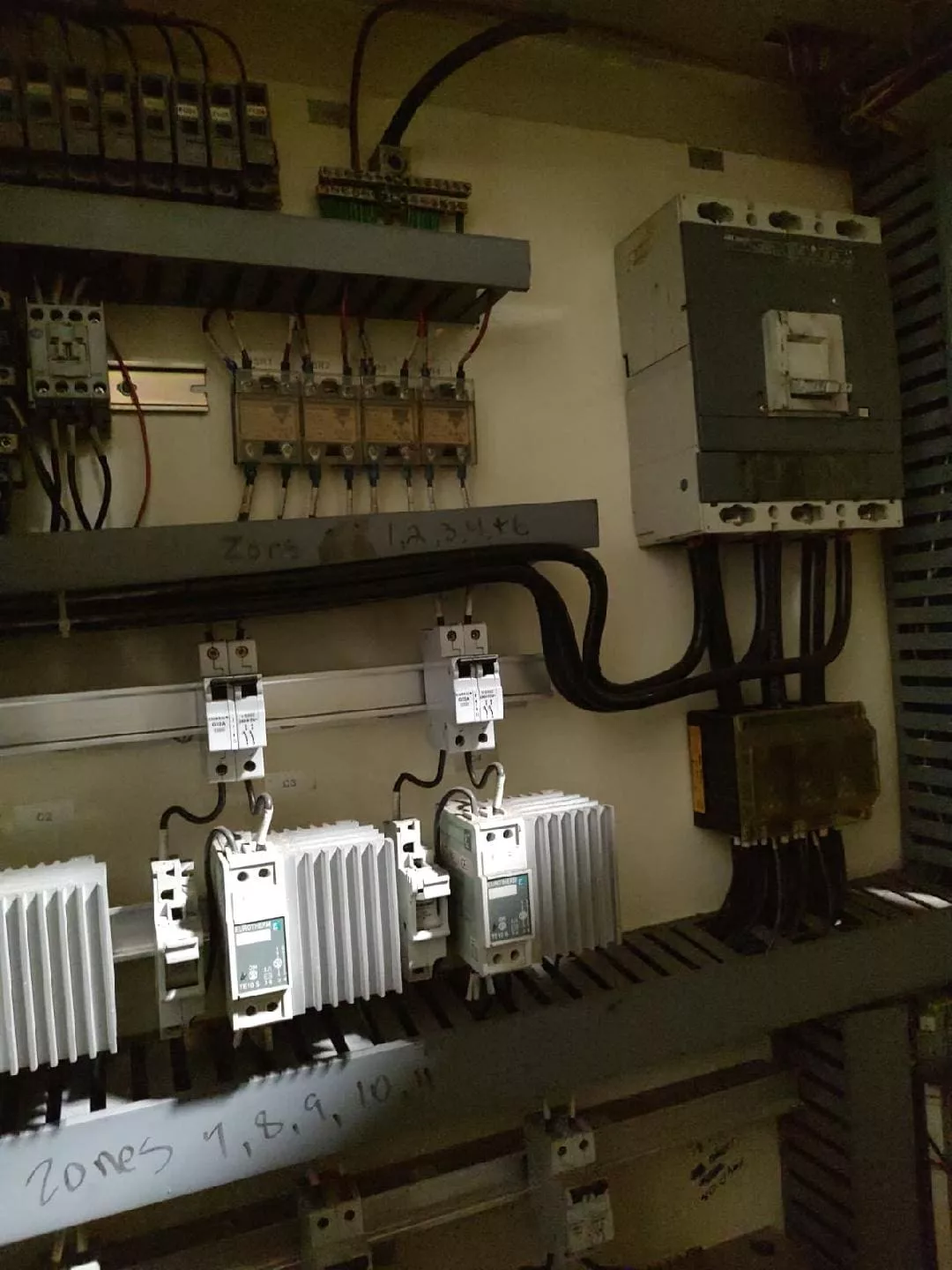

Control

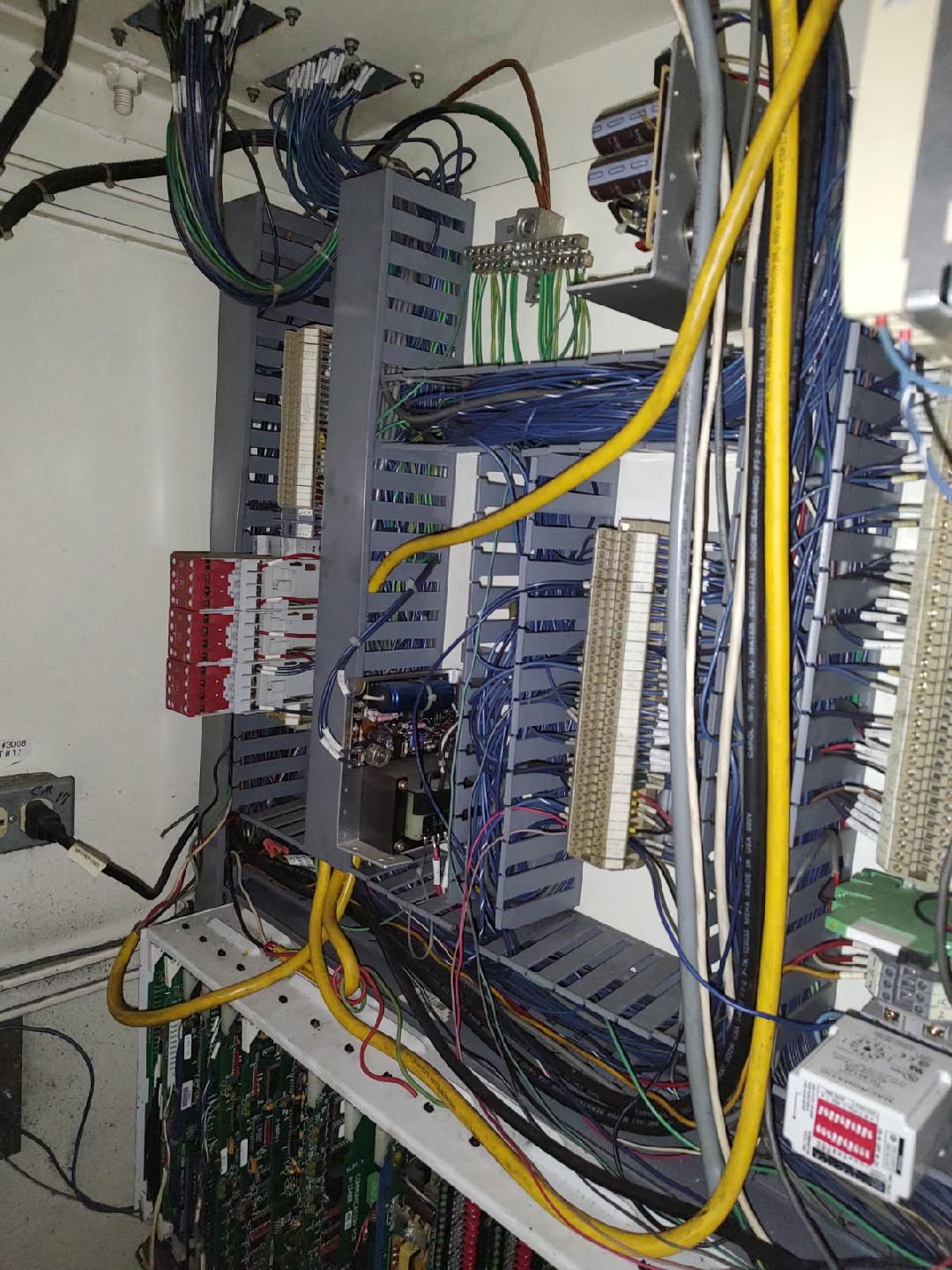

Beckhoff (Added 2010)

The Following Was Completed in 2010

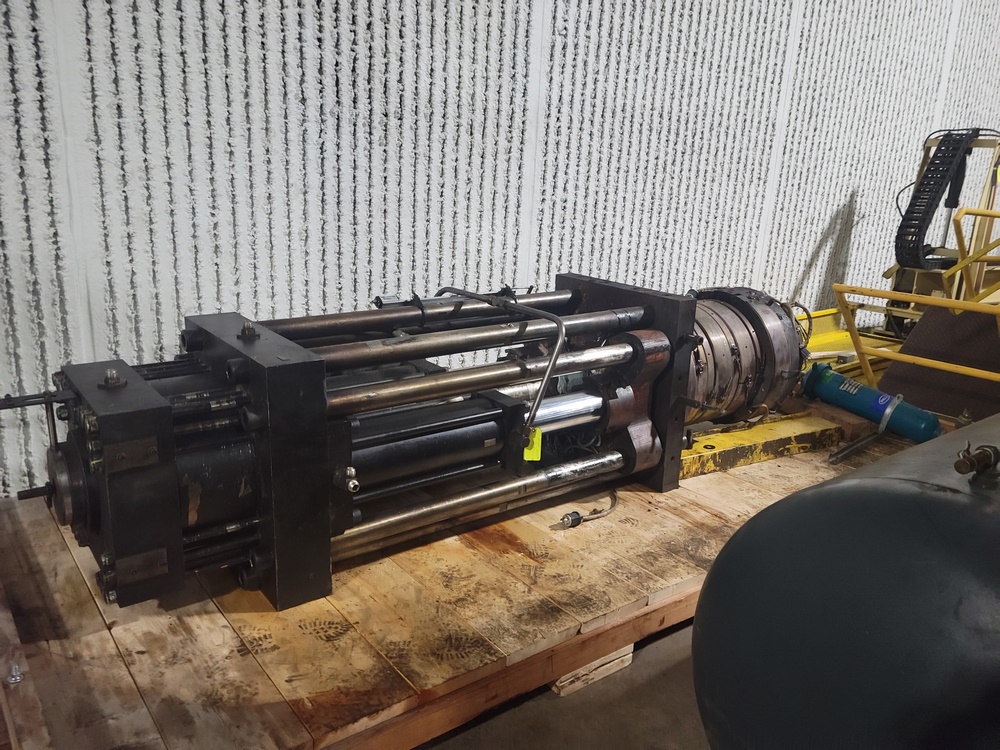

Machine refurbished, Head Rblt., Beckhoff Controller added (Controller added to machine, but was not rewired)

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
