Year |
1998 |
|---|---|
Make |
Current |
Model |
CT-500F |
Description |
EDM Hole Popper |
Reference # |
8071626 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

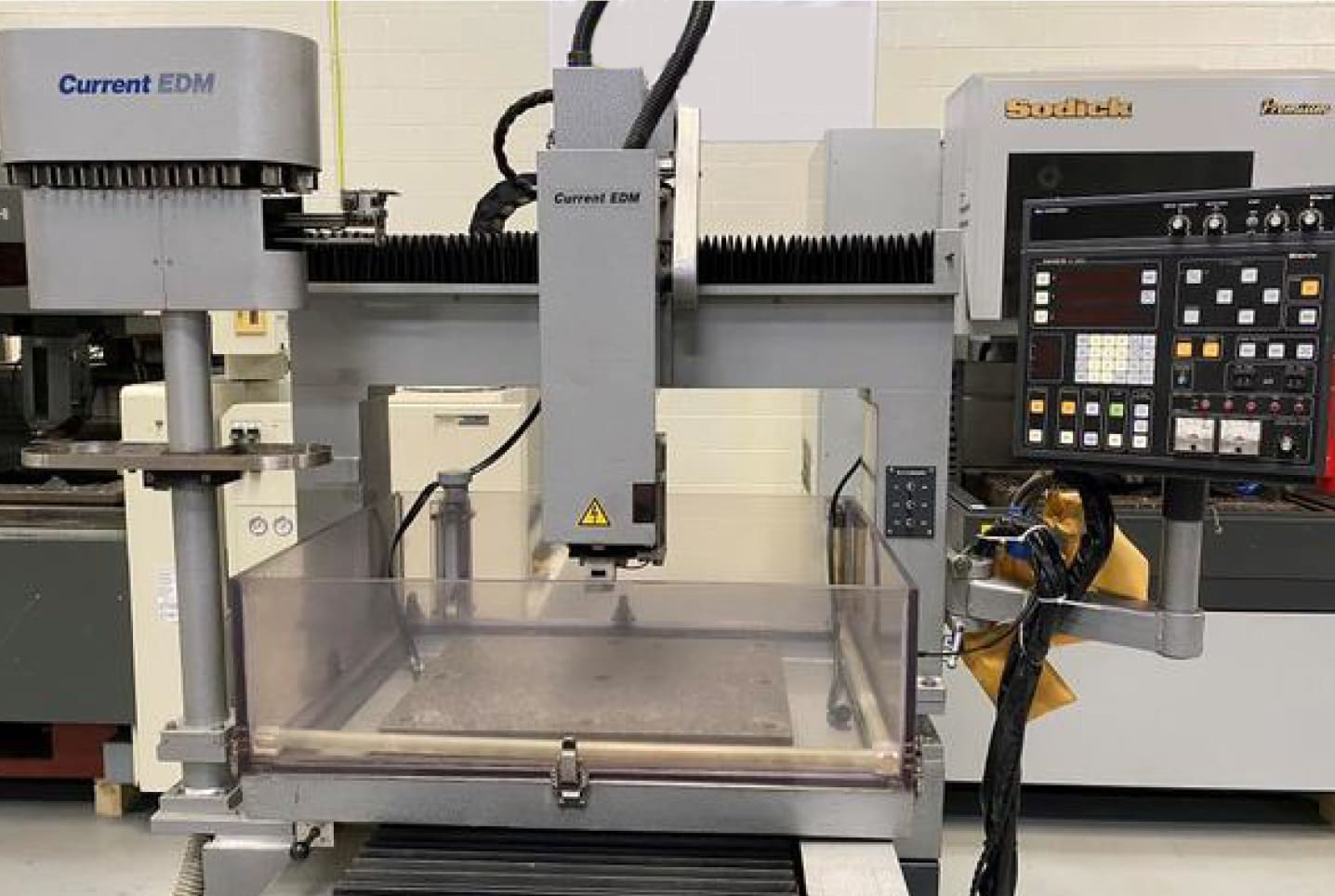

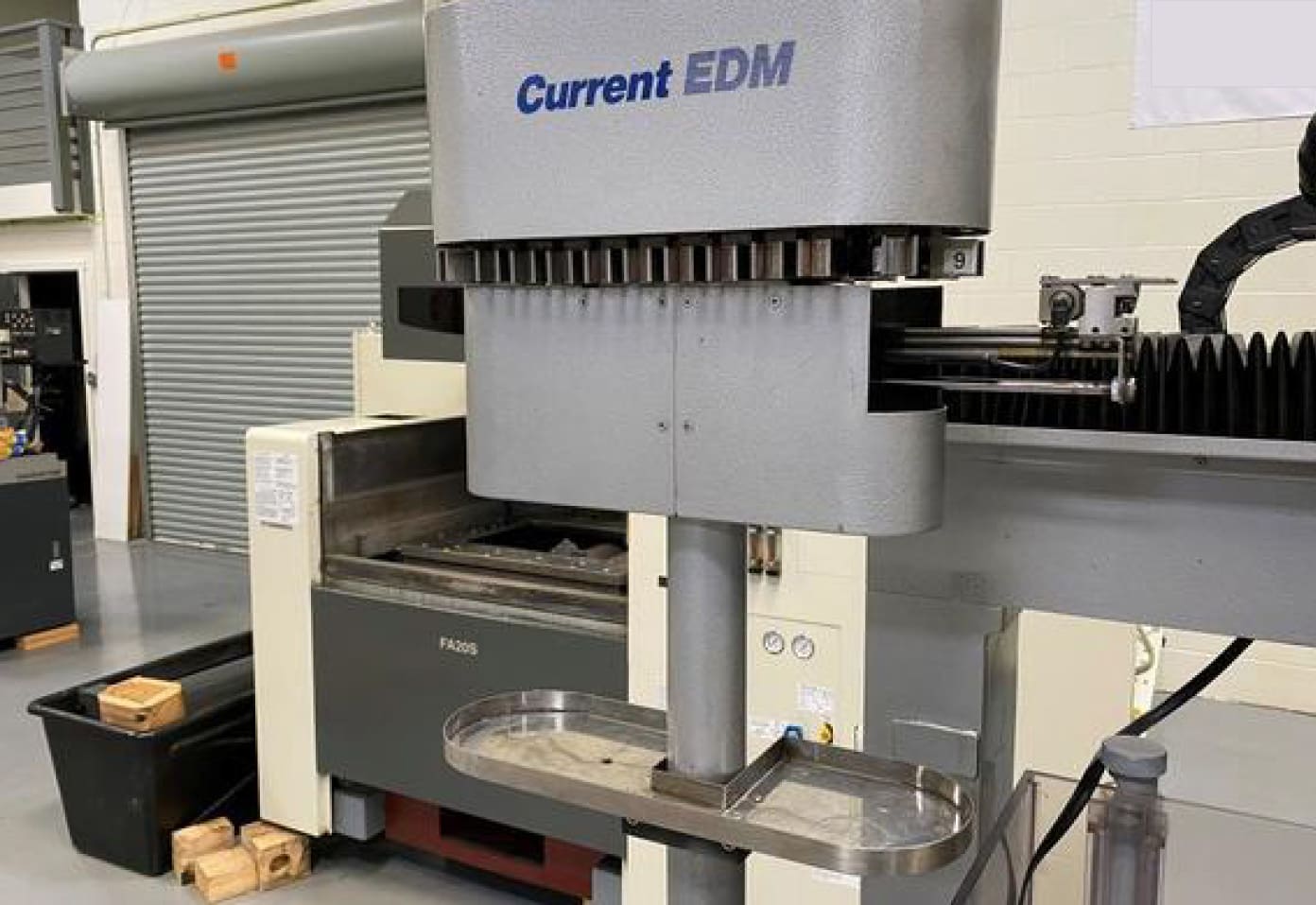

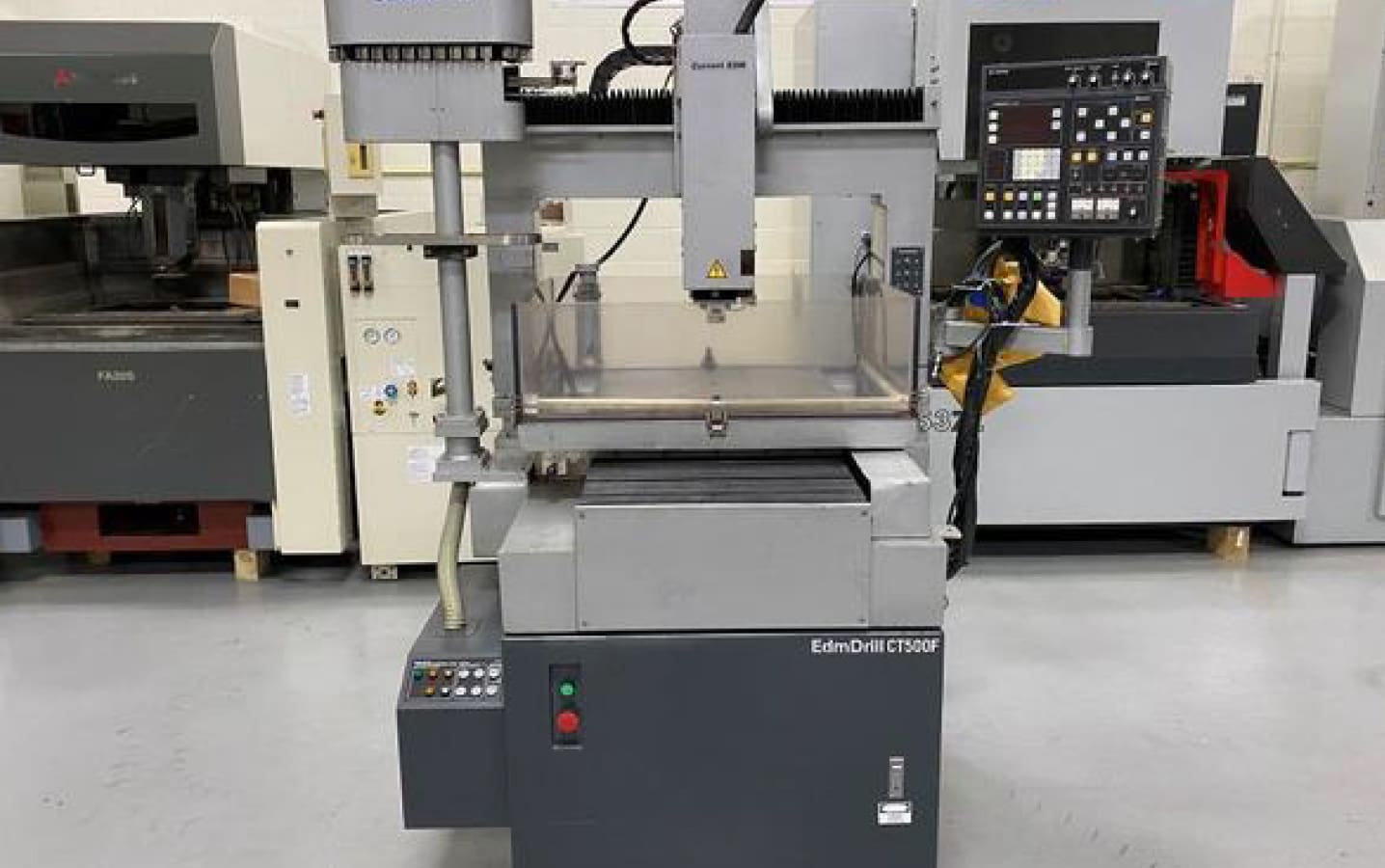

Used Current CT-500F (1998) CNC EDM for Sale. This pre-owned Current CNC EDM hole popper is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Current EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
21.6" |
|---|---|
| Y-Axis Travel |
15.7" |
| Z-Axis Travel |
16" |
| Control |
Current CNC |
| Tool Changer |
24 AEC |
| Power Source |
57 AMP |
| Guide Axis Travel |
10.5" |
| Table Dimension Width |
15.7" |
| Table Load Capacity |
682 Lbs |
| Min./Max. Hole Diameter |
0.004" - 0.256" |
| Power Requirement |
200-230/3/60 |
| Machine Dimensions |
75" x 79" |
| Machine Weight |
2,000 Lbs |
| Note |
Optional Filtration System Available |
Features
|
Current SRJ III Option Power Supply |
FE02 Power Supply |
|
Submerged Tank |
Automatic Electrode Changer |
|

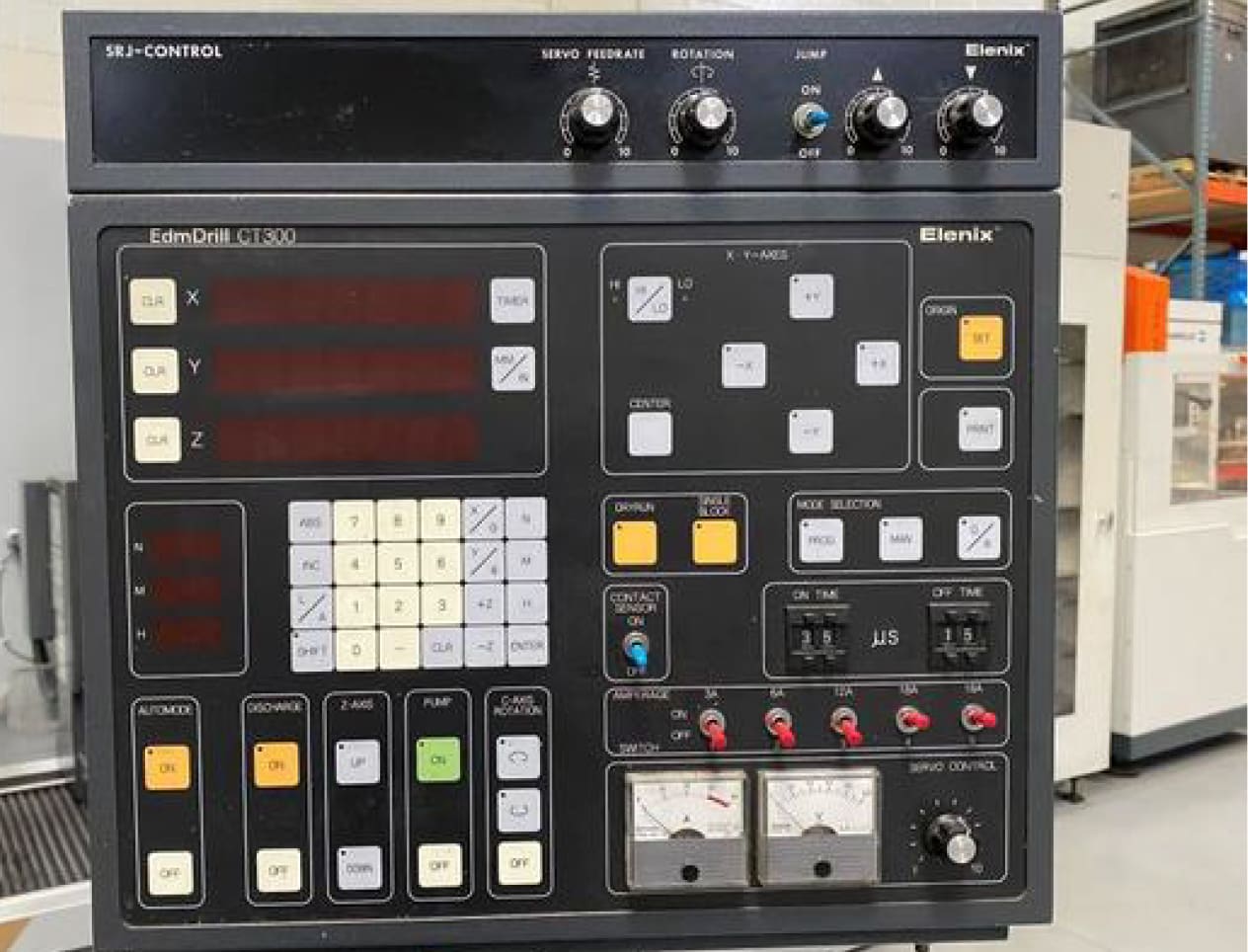

Current 5-Axis CNC Control with Hand Pendant |
GE Style Cap Box |
|
Glass Scale Feedback (Motors) |

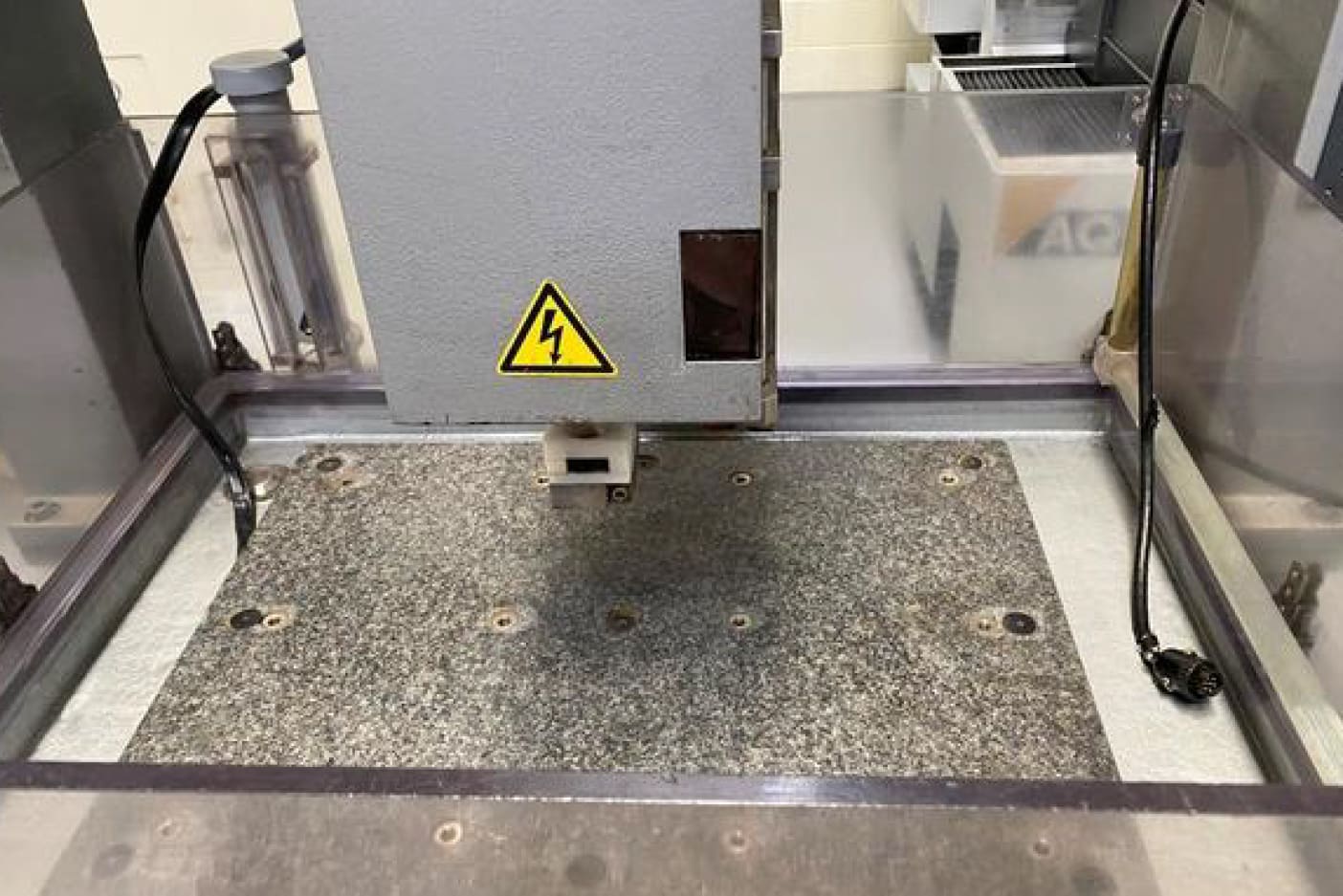

Granite Work Table with Steel Threaded Inserts |
