Year |
1997 |
|---|---|
Make |
Mitsubishi |
Model |
EX8 |
Description |
EDM Sinker |
Reference # |
8074868 |
Price |
$7,988 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

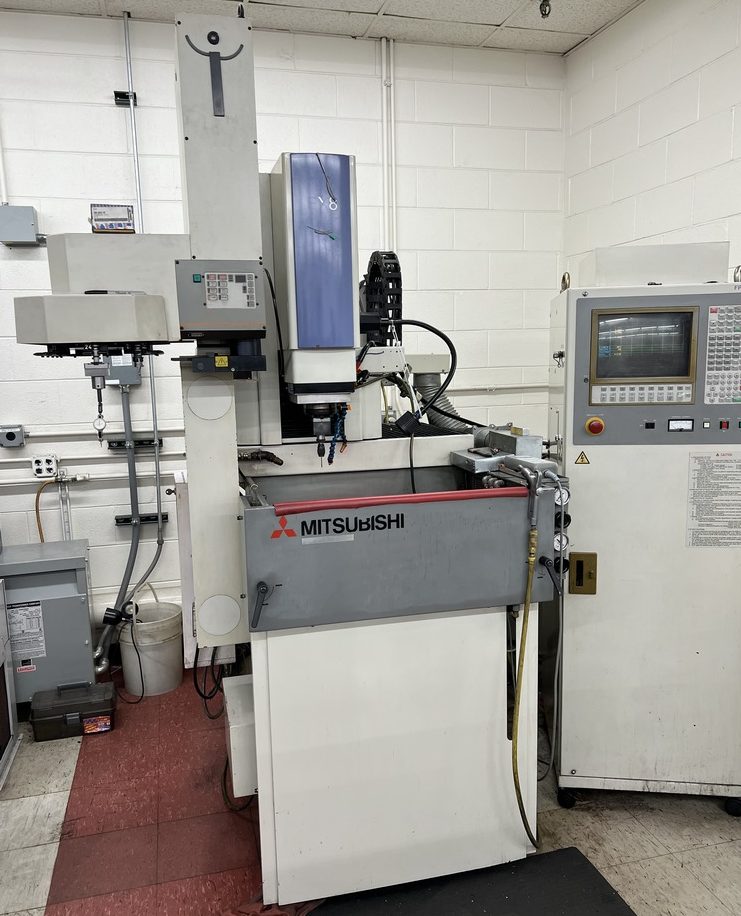

Used Mitsubishi EX8 (1997) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker is located in Illinois and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
11.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
9.8" |
| Control |
Mitsubishi |
| Tool Changer |
16 Position |
| Power Source |
60 Amps / 80 Peak Amps |
| C-Axis |
.001 Degree |
| Chuck |
3R |
| Power Requirement |
200-220/3/60 |
| Table to Platen Distance |
7.87" - 17.72" |
| Max Workpiece Weight |
1,200 Lbs |
| Machine Weight |
3,000 Lbs |
| Machine Dimensions |
37.8" x 57.09" x 78.35" (W x D x H) |
Features
|
50 Gal Oil Reservoir |
Rapid Fill / Drain Manual |
|
Temperature Control Type Fan Chiller |
Positioning Detector Optical Rotary Encoder |
|
Program Support Function ESPER |
Chiller |
|
Rotary Scales |
CPU/Type 64 Bit/PC |
|
Direct Drive Motor Coupling Type |
Filtering Method Paper Cartridge (1pc) |
|
Fire Extinguisher |
Graphic Display 10.4” TFT Color LCD |
|
Intelligent AC Servo Drive Motor |
Machine Structure Fixed Table / Traveling Column |
|
Machining Function Fuzzy Pro II Plus |
Work Tank Access Up / Down Style Front Door |
