Year |
1997 |
|---|---|
Make |
Cincinnati |
Model |
175AFMII10 |
Description |
175 Ton x 14' Hydraulic Press Brake |
Reference # |
8078200 |
Price |
Activate Pricing |

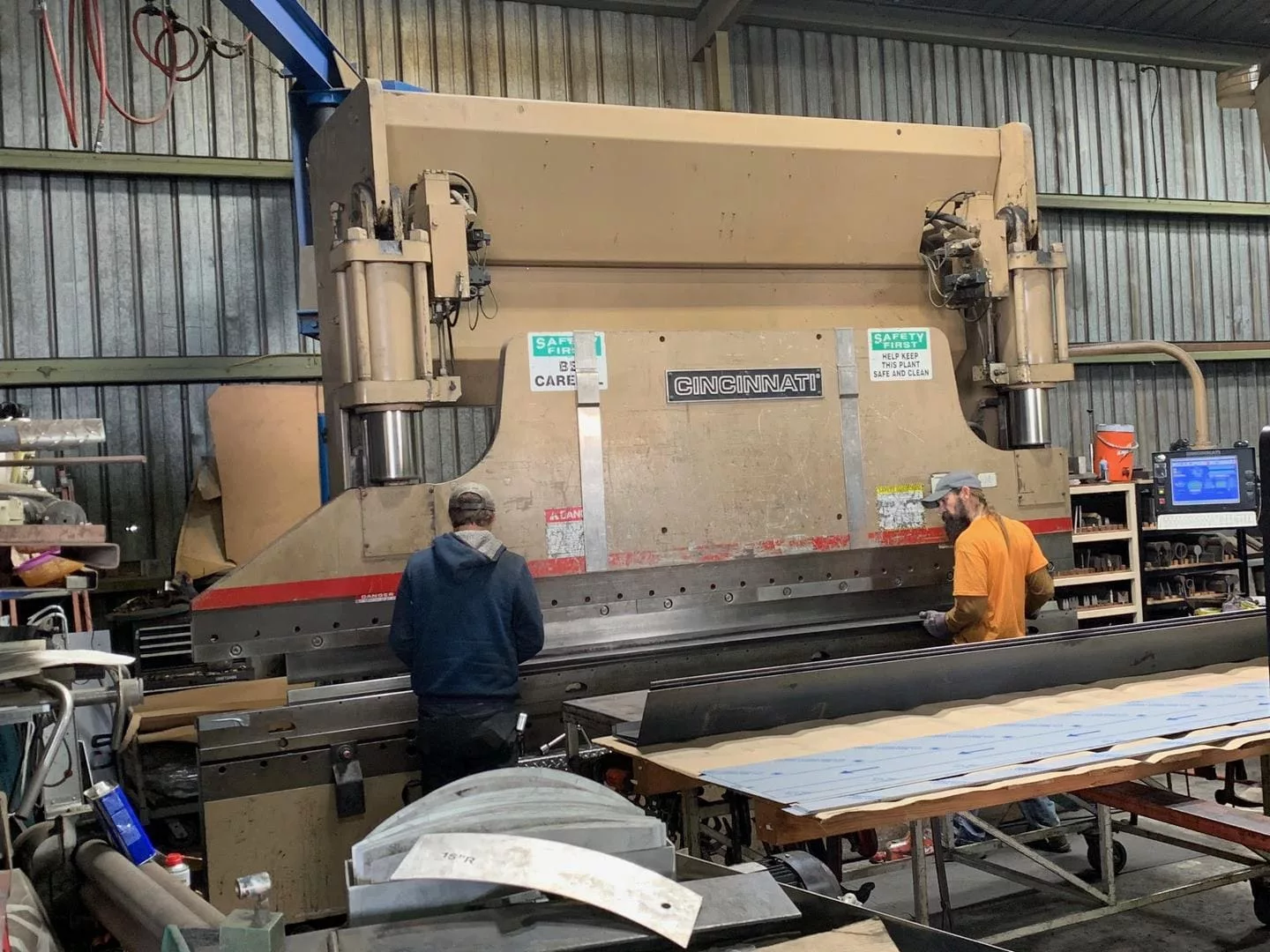

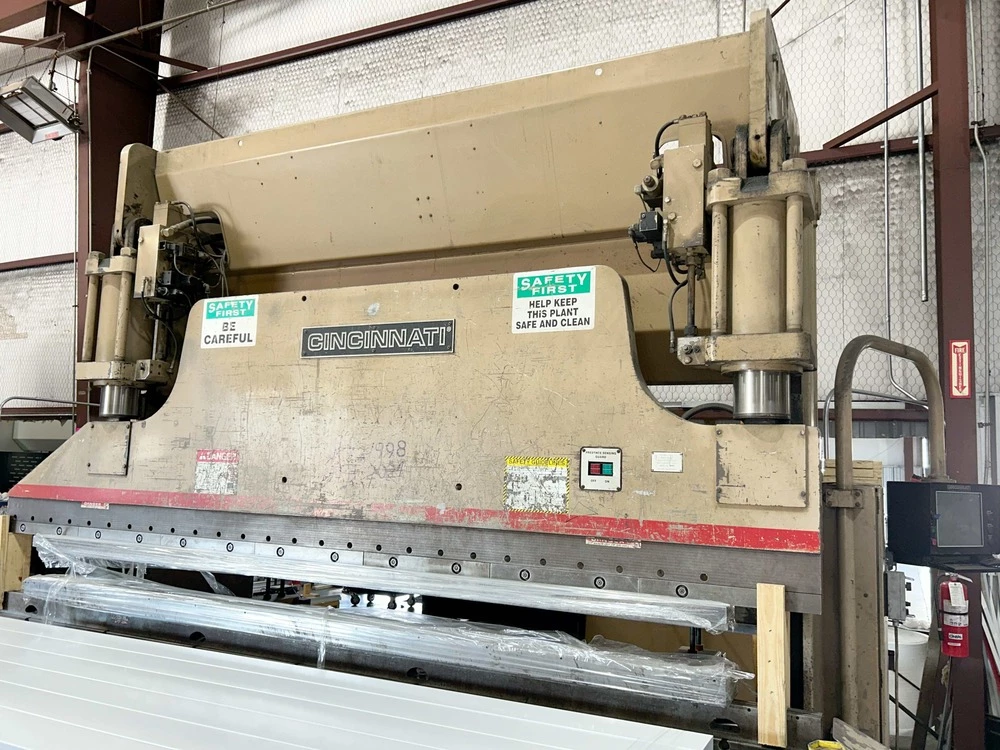

Used Cincinnati 175AFMII10 (1997) Press Brake for Sale. This 175 ton machine has a 14′ overall bed length, 126″ between housings, 7″ closed height and an optional 16″ stroke (6″ additional). It runs a PC based CNC control with a heavy duty CNC backgage, 24″ X-axis and 8″ manual R-axis, plus Autocrown. Ram speeds include a 260 IPM high approach and variable forming from 1 to 65 EPM, with variable return of 1 to 290 IPM. Air bend rating is 3/8″ x 6′-3″ mild steel over a 3″ vee die. Driven by a 25 HP continuous duty motor and variable displacement pump on 480/3/60. See more press brakes or other Cincinnati equipment. Available for inspection under power. Activate Pricing or Request a Quote.
Specifications
| Capacity |
175 Ton |
|---|---|
| Overall Length of Bed |
14' |
| Control |

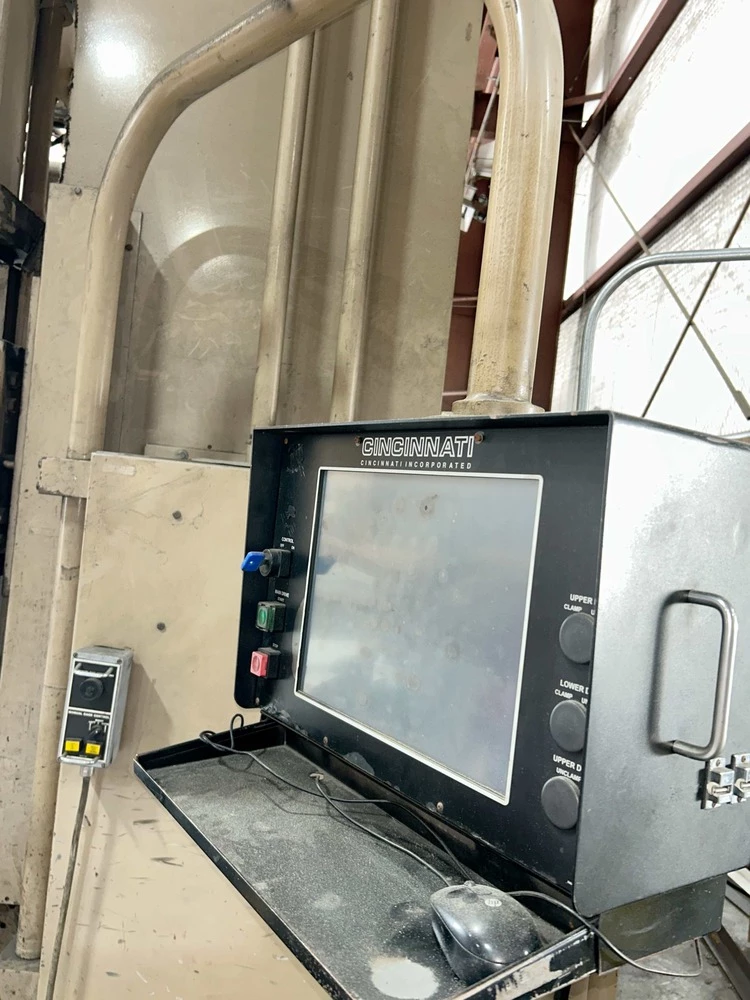

PC Based CNC Control |
| Distance Between Housings |
126" |
| Closed Height |
7" |
| Optional Stroke |
16" (6" Additional) |
| Variable Return |
1 - 290 IPM |
| Ram Speeds |
High Approach 260 IPM, Var. Forming 1 To 65 EPM |
| Air Bend |
3/8" X 6'-3" Mild Steel Over 3" Vee Die |
| Flat Top Filler Block |
5.0" Wide X 4.5" High & 14 Ft. Long |

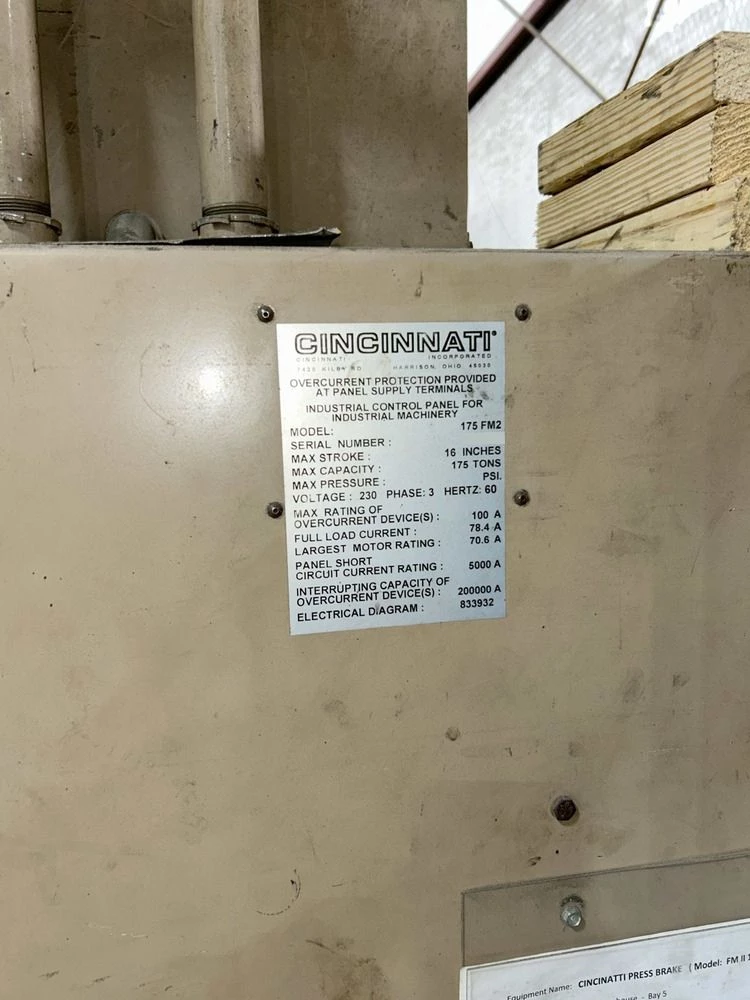

| Power Requirement |
480/3/60 |
Features
|
24" X-Axis (Standard) |
24” Bed & Ram Extensions on Left End |
|
25 HP Continuous Duty Motor Ano Variable Displacement Pump |
8" Manual R-Axis (Standard) |
|
Autocrown |
Bed & Ram Machined & Drilled For 7-3/4" Angle Brackets |
|
Bed Machined With Cross "C" Slots Full Length Die Slot Top |
Heavy Duty CNC Backgage |
|
Pedestal Mounting of PalmButton Station |
Standard 3-Position Footswitch |
|
Thermostatically Controlled Oil Reservoir Heater |
Air Cooled Heat Exchanger |
