Year |
2017 |
|---|---|
Make |
Adira |
Model |
PA16040 |
Description |
180 Ton x 13' Hydraulic Press Brake |
Reference # |
8073593 |
Price |
Activate Pricing |

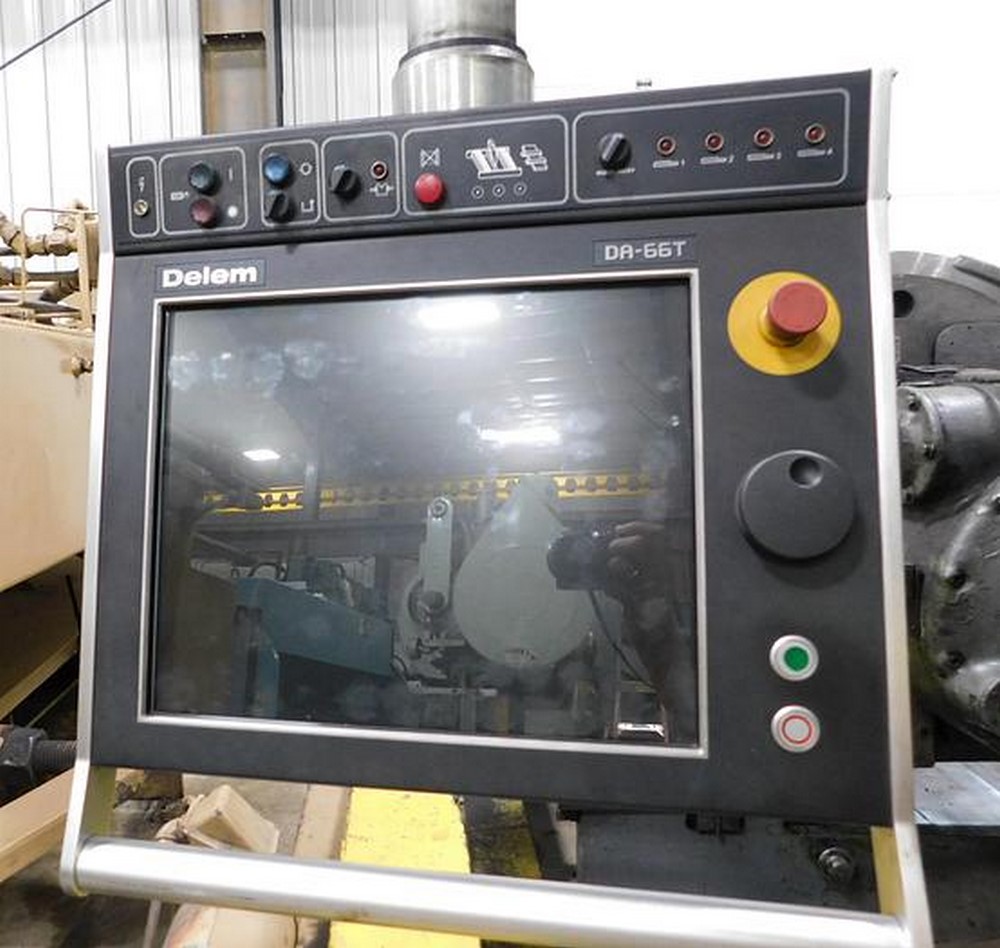

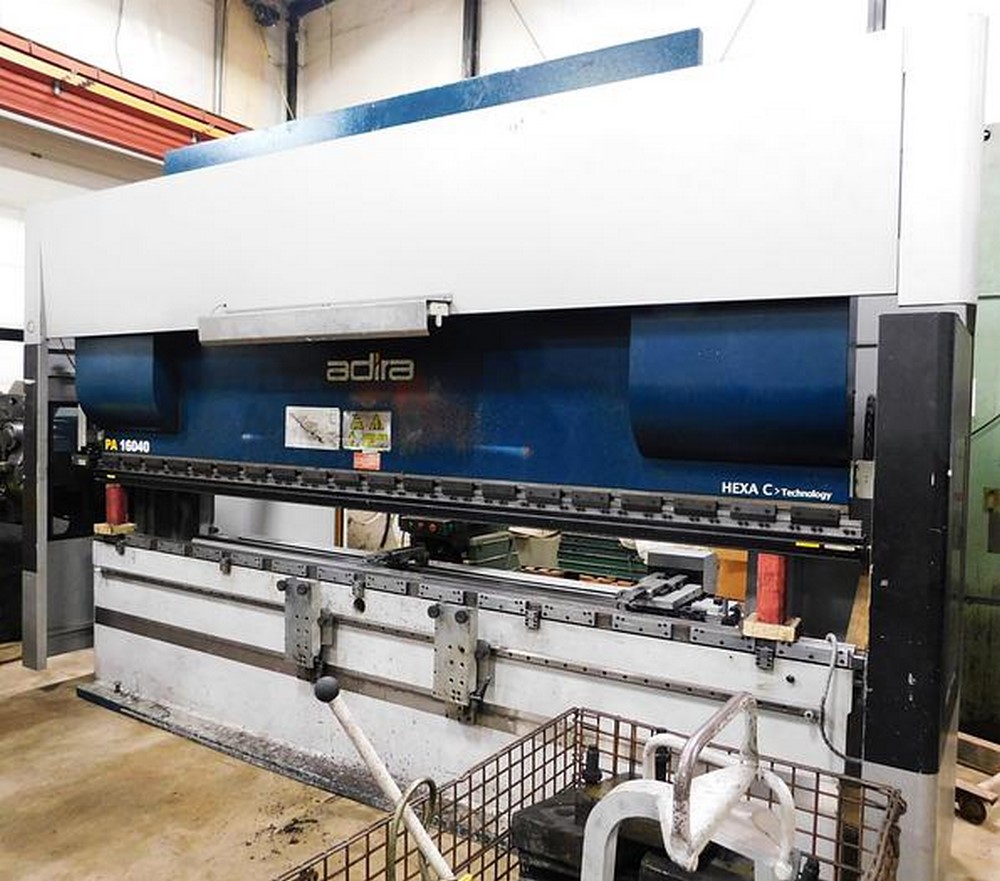

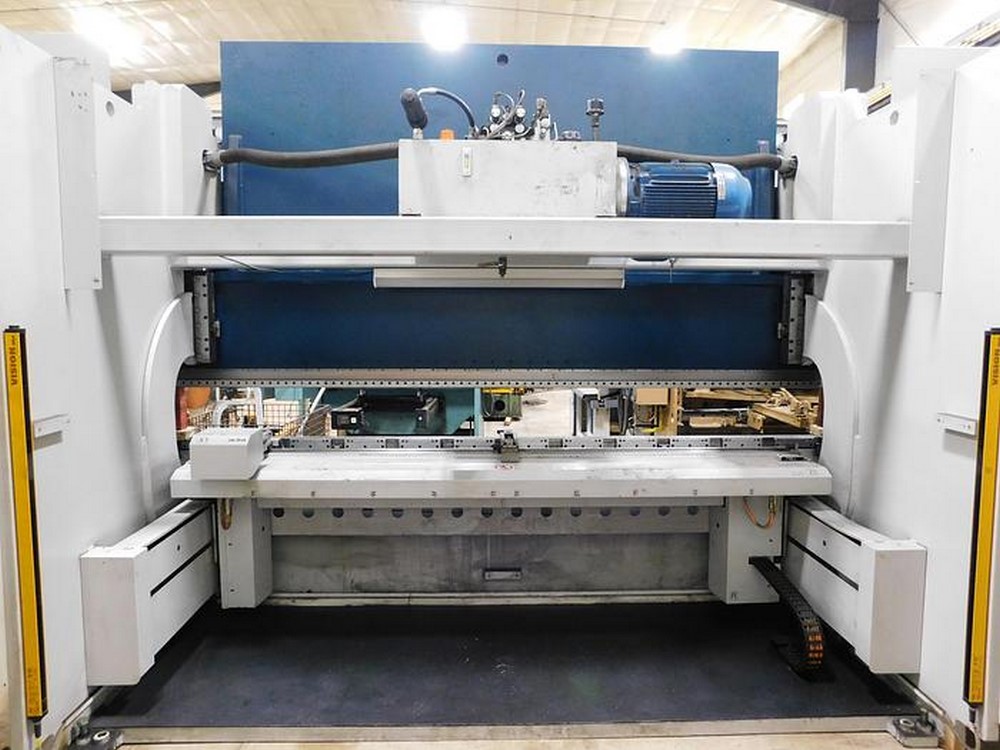

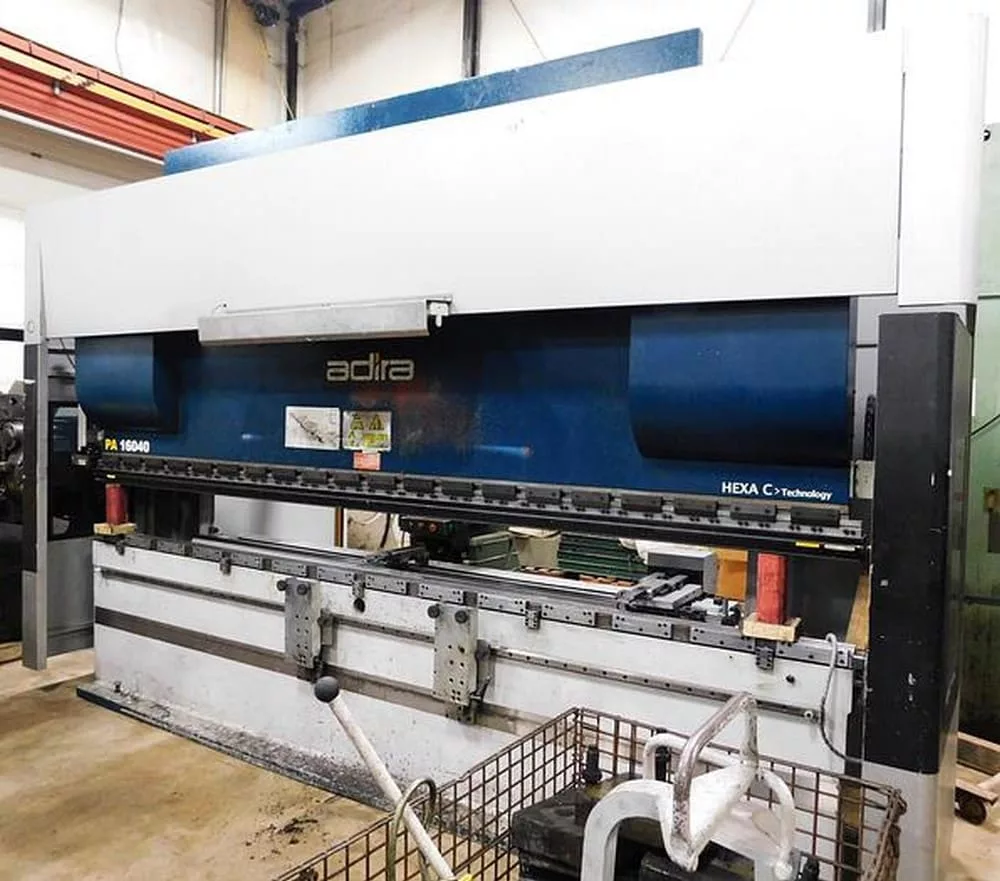

Used Adira PA16040 (2017) Press Brake for Sale. This CNC hydraulic press brake offers 180 ton capacity with a 13′ bed length, 124″ between housings, 16″ throat depth, 10″ stroke and 20″ open height. Control is a Delem 66T with a 5 axis back gauge: X axis 24″/1900 IPM, R axis 8″/470 IPM, Z1/Z2 3.5-108″/2800 IPM and X1 4″/240 IPM. Approach and return speeds are 354 IPM with a bend speed of 23 IPM. Driven by a 22 HP, 480V, 3 PH motor. Equipped with crowning, laser safe guarding, Green Drive System, (2) front arm supports, rear guarding and hydraulic clamping. Dimensions are 183″ x 72″ x 115″ at 25,000 lbs. Can be seen under power for an inspection. See more used press brakes, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
180 Ton |
|---|---|
| Overall Length of Bed |
13' |
| Control |
Delem 66T |
| Back Gauge |
5 Axis |
| Distance Between Housings |
124" |
| Stroke |
10" |
| Throat Depth |
16" |
| Open Height |
20" |
| Approach Speed |
354 IPM |
| Bend Speed |
23 IPM |
| Return Speed |
354 IPM |
| X Axis Stroke/Speed |
24/1900 IPM |
| R Axis Stroke/Speed |
8/470 IPM |
| Z1/Z2 A X B Stroke/Speed |
3.5-108/2800 IPM |
| X1 Stroke/Speed |
4/240 IPM |
| Motor |
22 HP, 480V, 3 PH |
| Dimensions |
183" x 72" x 115" |
| Machine Weight |
25,000 lbs |
Features
|
Crowning Laser Safe Guarding |
Green Drive System |
|
(2) Front Arm Supports |
Rear Guarding |
|
Hydraulic Clamping |
