Year |
1996 |
|---|---|
Make |
Summit |
Model |
SmartCut 24-4x80 |
Description |
CNC Lathe |
Reference # |
8077077 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

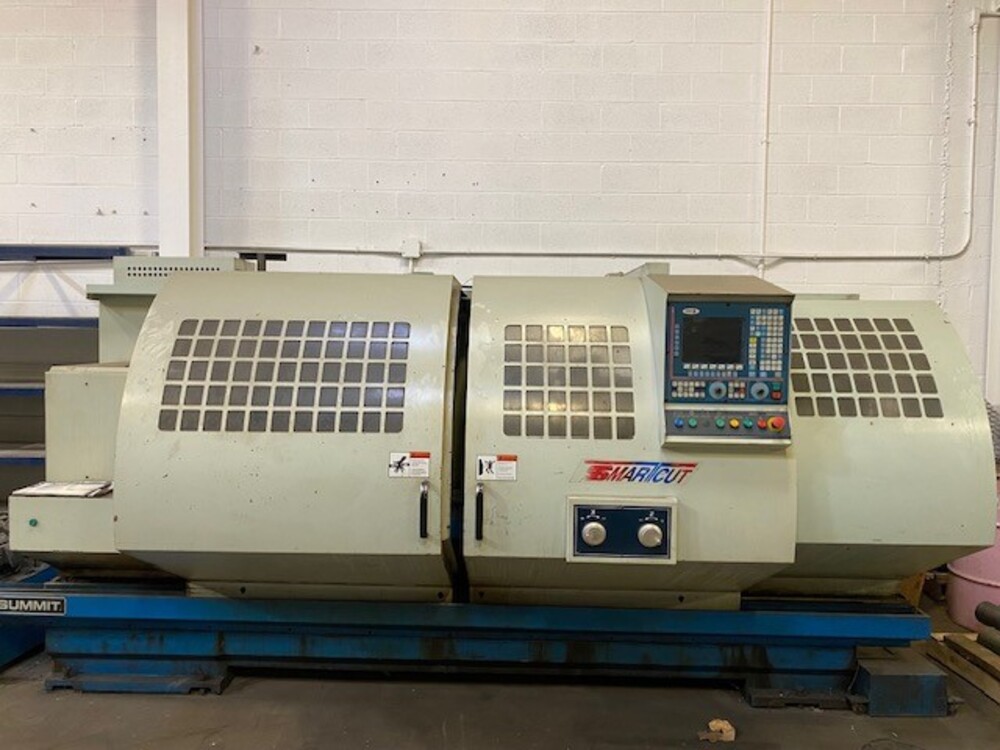

Used Summit SmartCut 24-4×80 (1996) CNC Lathe for Sale. This pre-owned Summit CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Summit Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
4" |
| Swing |
24" |
| Turning Diameter |
24" |
| Spindle Speed |
1,500 RPM |

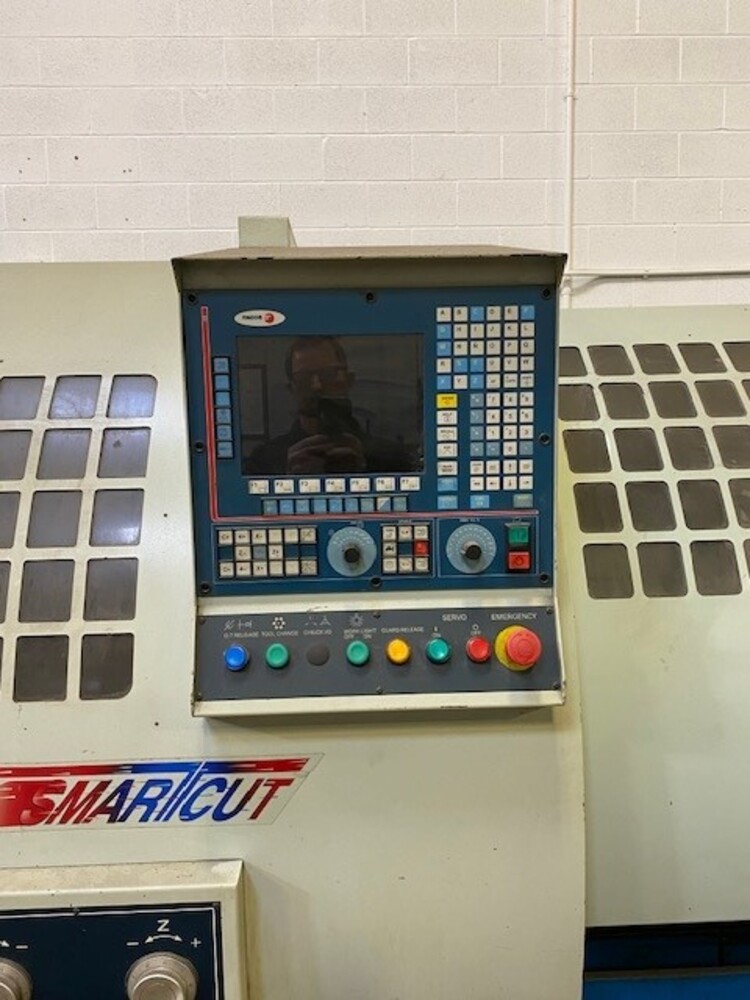

| Control |
Fagor 8055TC |
| Distance Between Centers |
80" |
| Swing Over Cross Slide |
16" |
| Swing Over Gap |
31" |
| Length of Gap |
15.3" |
| Longitudinal Travel (Z Axis) |
78.875″ |
| Z Axis Feed |
0 – 400 IPM |
| X Axis Feed |
0 – 250 IPM |
| Ballscrew Diameter Z/X-Axis |
2" / 1" |
| Positioning Accuracy |
±0.0004″ |
| Repeatability Accuracy |
±0.0002 |
| Tailstock Barrel Travel |
8.8″ |
| Barrel Diameter |
3″ |
| Auto Cycles |
Turning, Facing, Threading, Etc. |
| Bed Width x Depth |
17.7″x 16″ |
Features
|
Constant Surface Speed |
D1-11 Spindle Nose |
|
DRO/Jog/Manual/CNC Modes |
Electronic Handwheel |
|
G-Code Programming |
Hardened/Ground Bedways And Ballscrews |
|
Laser-Calibrated Ballscrew Compensation |
MT #7 Center Taper |
