Year |
1996 |
|---|---|
Make |
Cincinnati |
Model |
CBII x 6 |
Description |
90 Ton x 8' Hydraulic Press Brake |
Reference # |
8075599 |
Price |
Activate Pricing |

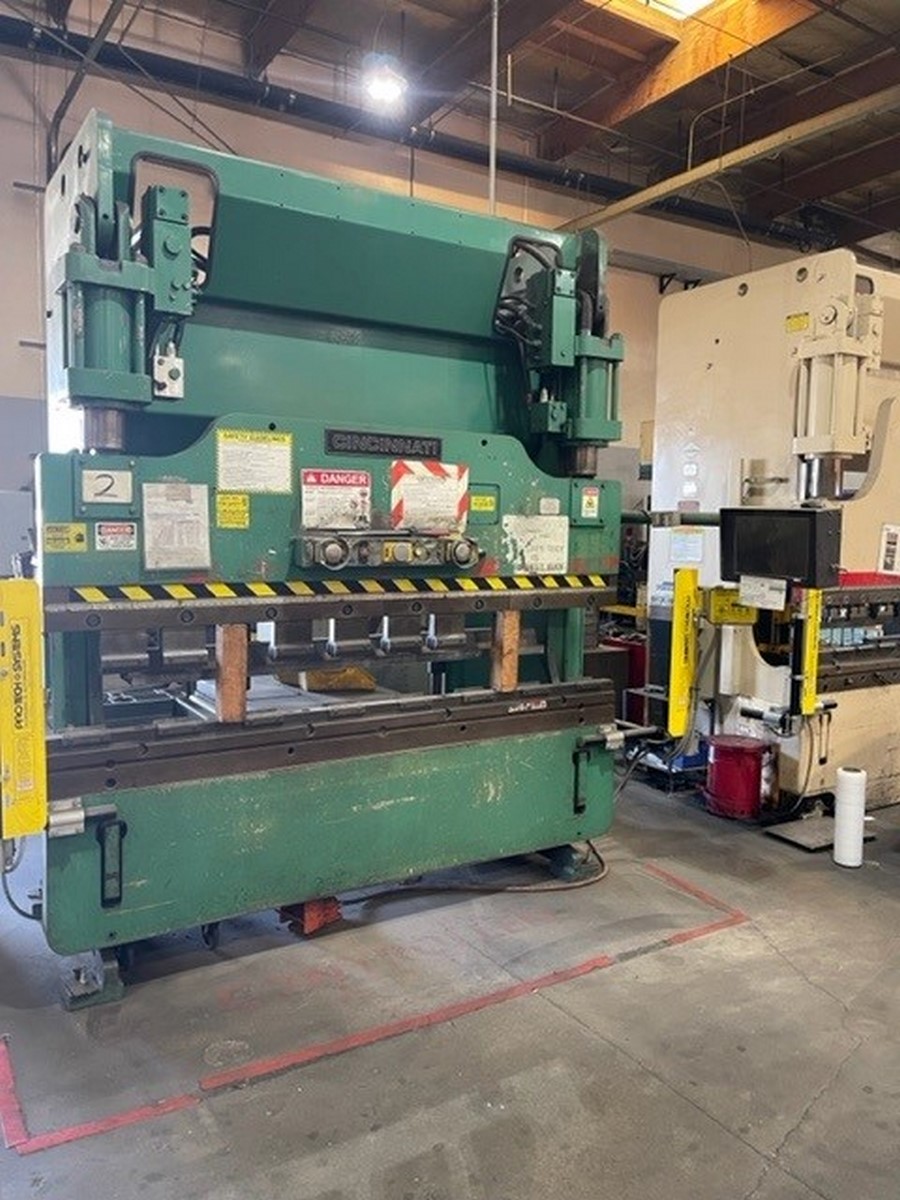

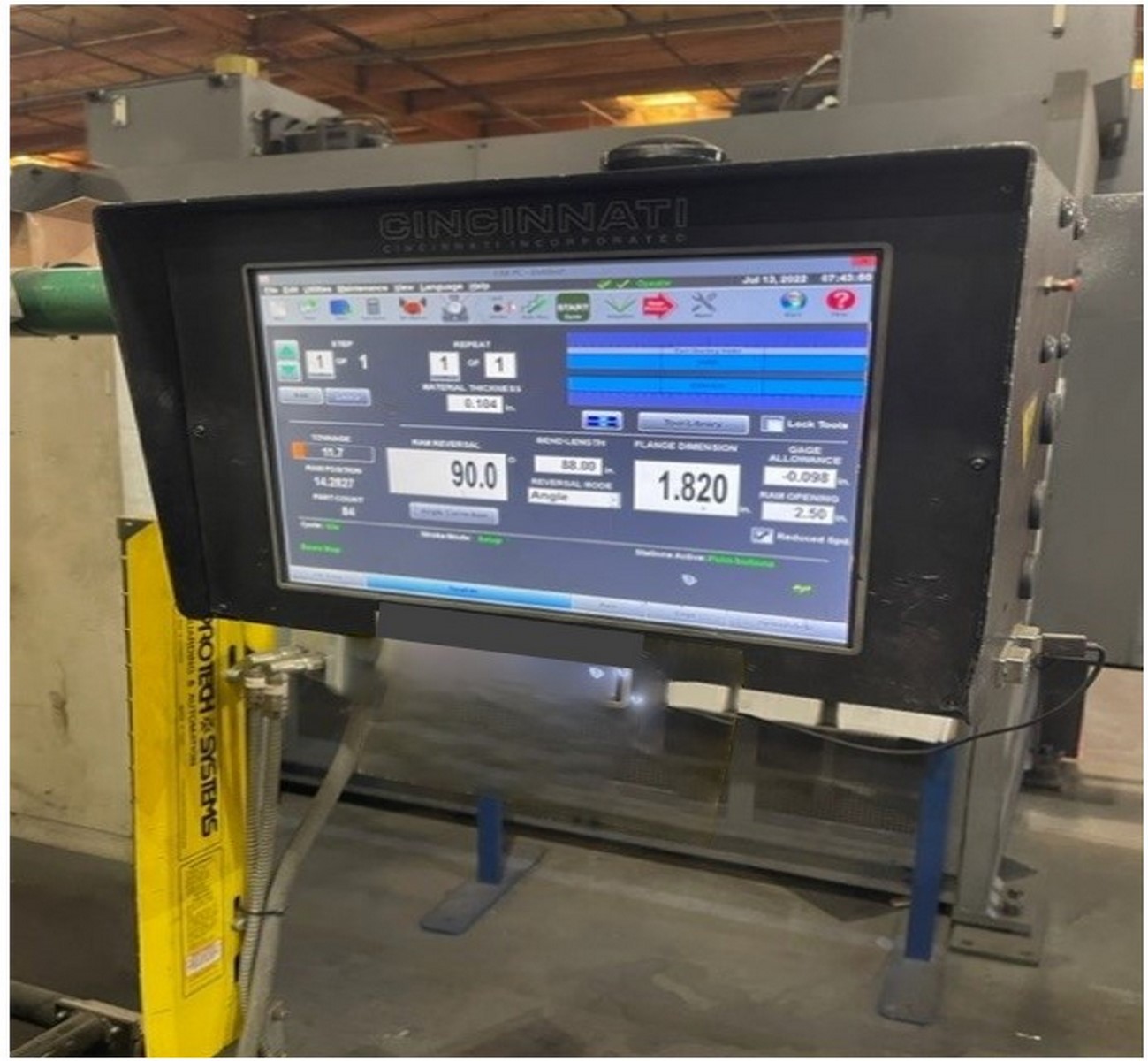

Used Cincinnati CBII x 6 (1996) Press Brake for Sale. This 90 ton hydraulic press brake has an 8′ overall bed length, 78″ between housings, 7″ throat depth, 8″ stroke and 15″ open height. Speeds run 150 IPM approach, 21 – 71 IPM pressing and 136 IPM return, driven by a 15 HP motor. Control is Cincinnati, with updated Cincinnati controls installed in 2018 including a touch screen, electric foot pedal and dual palm control on the ram. Overall dimensions are 102″ x 48″ x 118″ and the machine weighs 15,000 lbs. It can be seen under power for an inspection. See more used press brakes or other equipment from Cincinnati Incorporated. Activate Pricing to view the figure, or Request a Quote and we will follow up.
Specifications
| Capacity |
90 Ton |
|---|---|
| Overall Length of Bed |
8' |
| Control |
Cincinnati |
| Distance Between Housings |
78" |
| Stroke |
8" |
| Throat Depth |
7" |
| Open Height |
15" |
| Approach Speed |
150 IPM |
| Pressing Speed |
21 - 71 IPM |
| Return Speed |
136 IPM |
| Motor |
15 HP |
| Dimensions |
102" x 48" x 118" |
| Weight |
15,000 Lbs |
Features
|
Updated Cincinnati Controls (2018) Touch Screen |
Electric Foot Pedal |
|
Dual Palm Control On Ram |
