Year |
1995 |
|---|---|
Make |
Amada |
Model |
RG-80 |
Description |

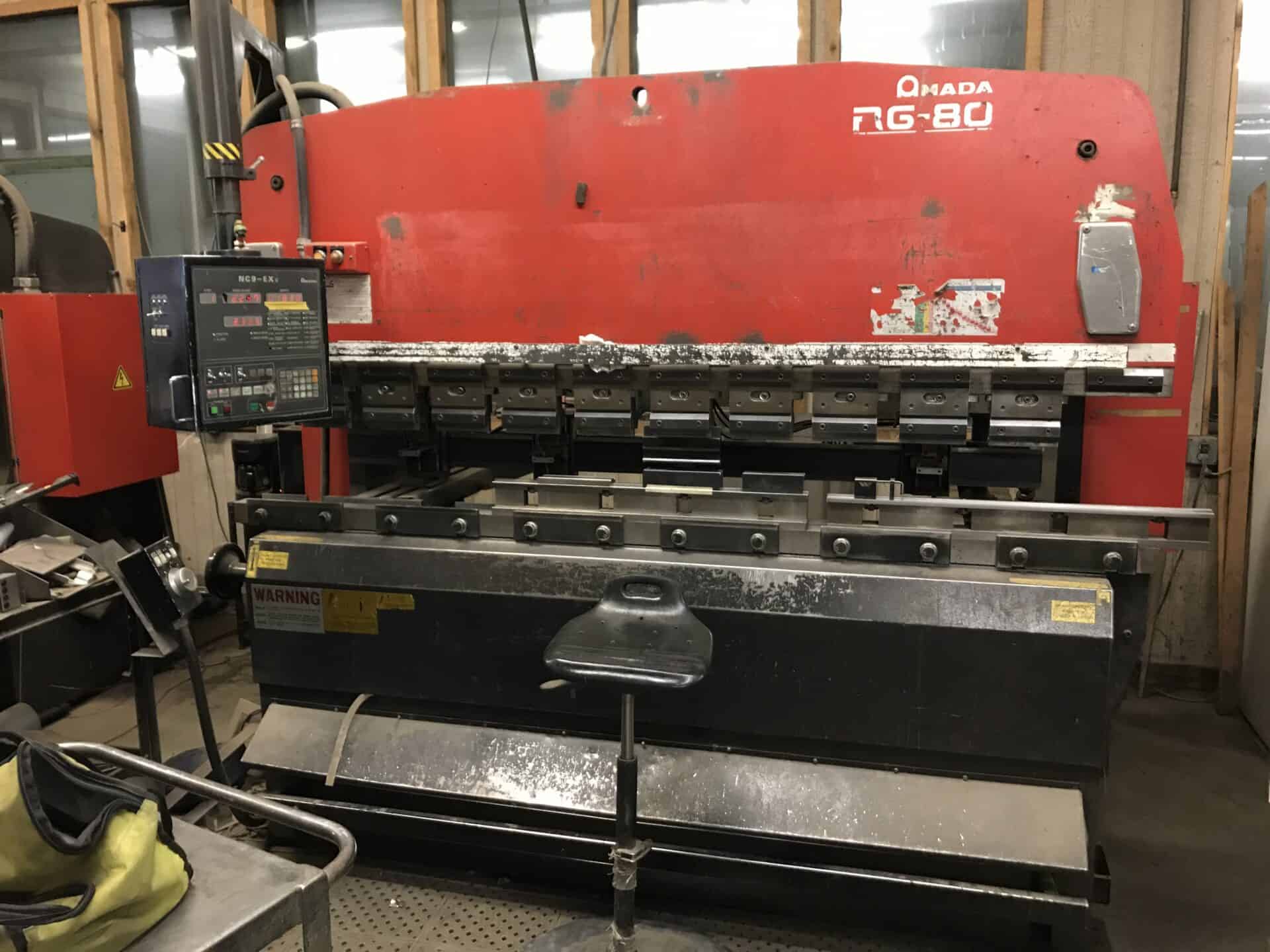

80 Ton x 8' Hydraulic Press Brake |
Reference # |
8070357 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
80 Ton |
|---|---|
| Overall Length of Bed |
8' |

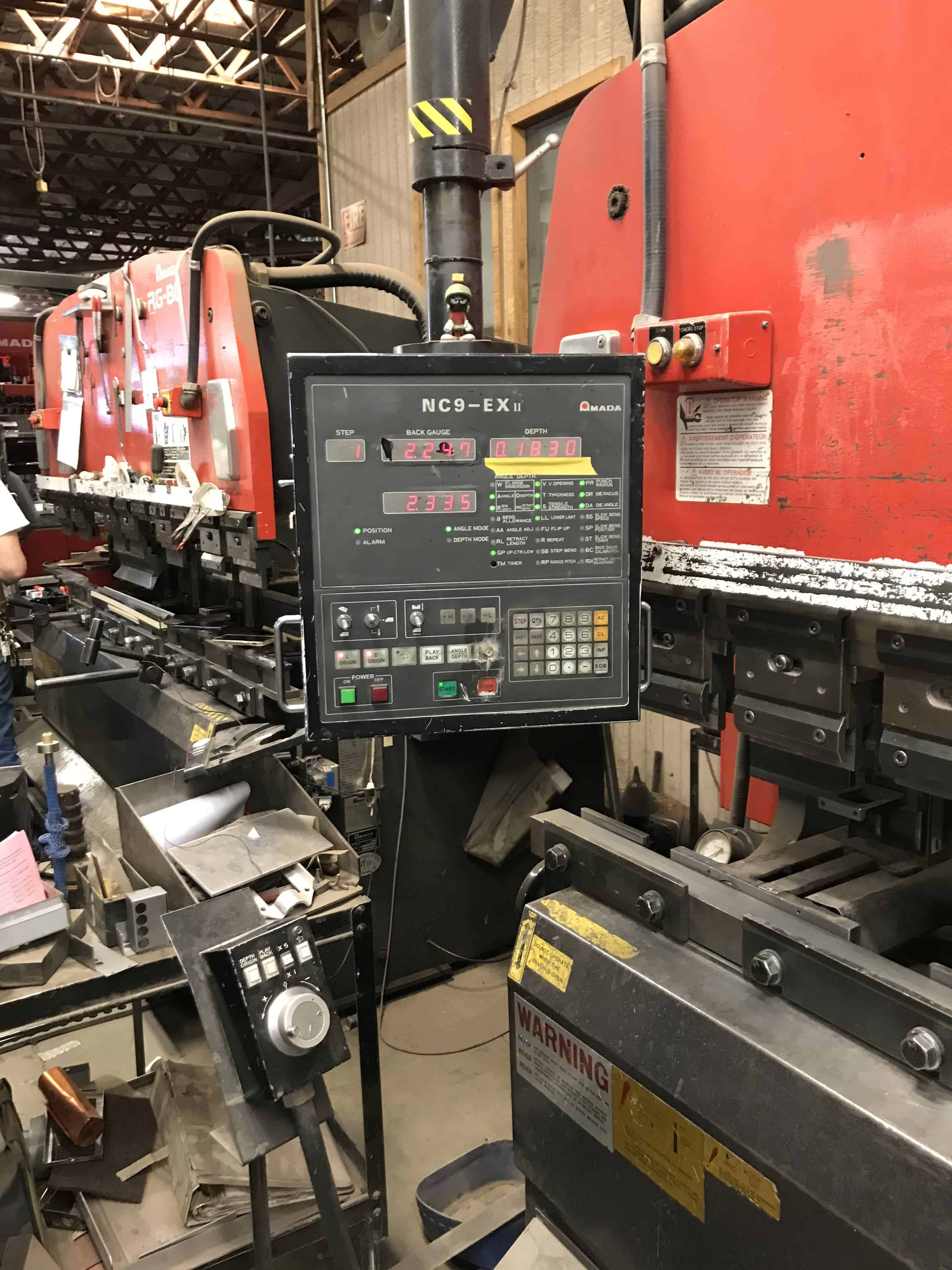

| Control |
Amada NC9EX-II |
| Distance Between Housings |
86" |
| Stroke |
3.94" |
| Throat Depth |
15.76" |
| Open Height |
14.57" |
| Power Requirement |
220/3/60 |
| Back Gauge |
3 Axis |
| Back Gauge Travel |
19.6" |
| Approach Speed |
106" Per Minute |
| Forming Speed |
19" Per Minute |
| Return Speed |
122" Per Minute |
| Main Motor |
7.5 HP |
| Overall Dimensions |
98" x 60" x 81" High |
| Weight |
11000 lbs |
Features
|
Pneumatic Fingers |
Pressure Gauge |
|
RS-232 Port |
Foot Treadle |
