Year |
1993 |
|---|---|
Make |
Kautex |
Model |
KEB-10.01-S90/22 |
Description |
Blow Molder |
Reference # |
8078118 |
Price |
Activate Pricing |

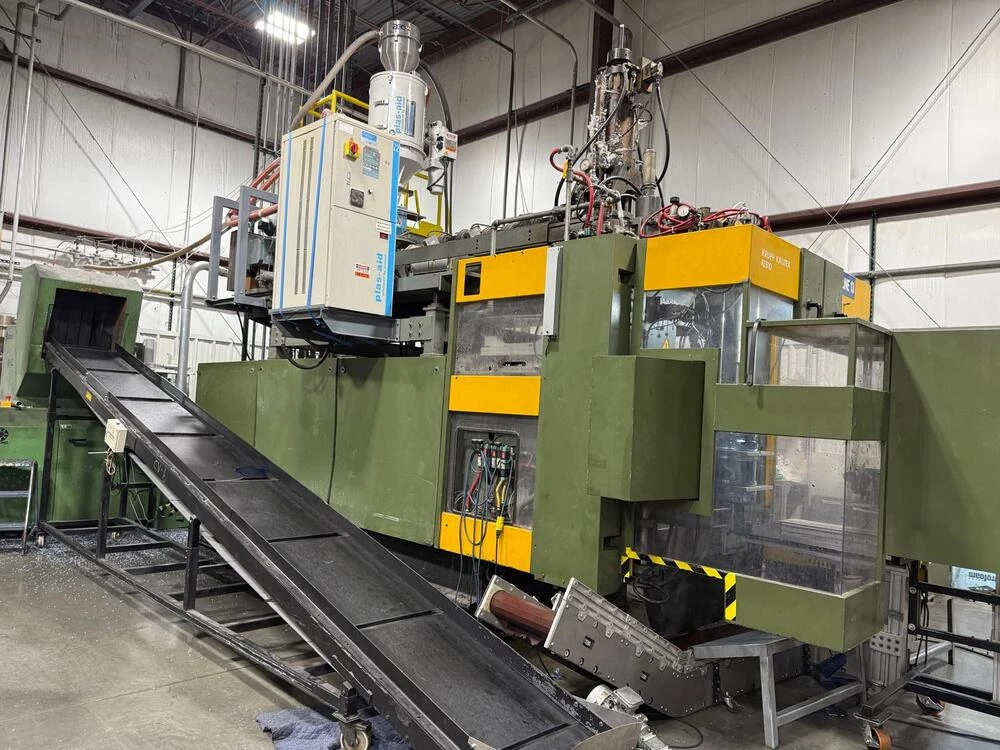

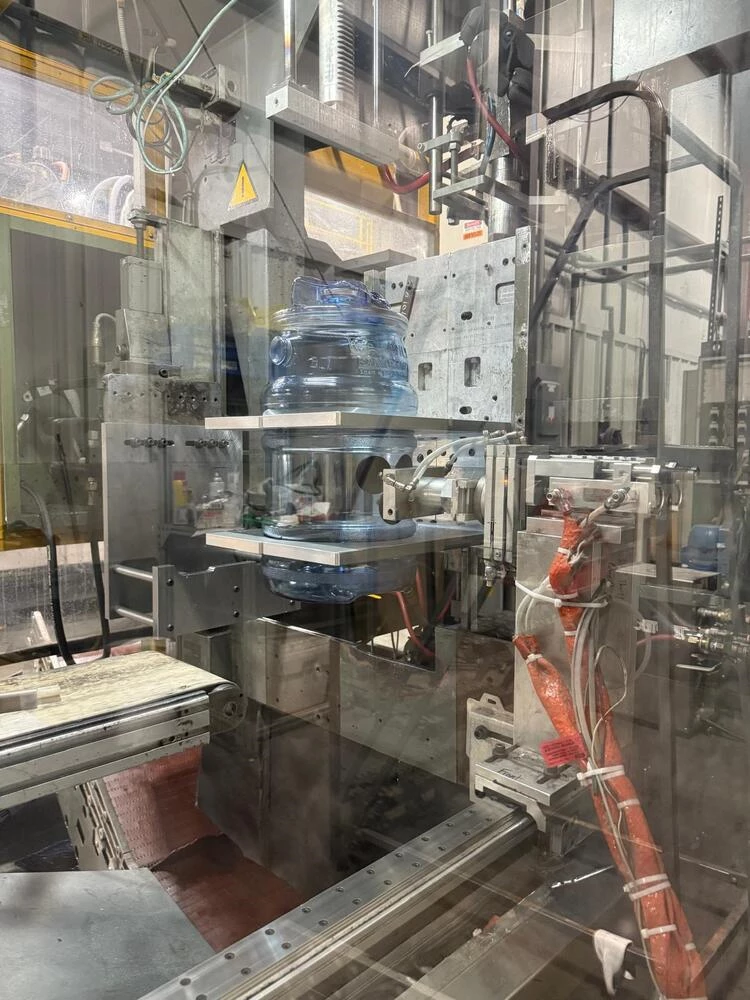

Used Kautex KEB-10.01-S90/22 (1993) Blow Molder for Sale. This continuous extrusion machine carries a 90 mm extruder screw with a smooth feed section and a 25:1 L/D ratio, rated at 17 tons of clamp tonnage. Platen size is 17.375″ x 17.375″ (441.3 x 441.3 mm), with a shut height of 12.59″ x 24.4″ (320 x 620 mm), 480 mm swing, and a maximum tool size of 200/160 mm. Controls are Barber Coleman/Eurotherm, and power requirement is 220V, 3 Ph, 60 Hz. The machine was used to produce 5-gallon polycarbonate bottles with handle. It can be seen under power for an inspection. See more equipment in our used blow molding machines category, use Activate Pricing, or Request a Quote for details.
Specifications
| Max Tool Size |
200/160 (mm) |
|---|---|
| Platen Size |
17.375" x 17.375" (441.3 x 441.3 mm) |
| Shut Height |
12.59" x 24.4" (320 x 620 mm) |
| Swing |
480 mm |
| Clamp Tonnage |
17 Ton |
| Extruder Screw Size |
90 mm |
| Feed Section Type |
Smooth |
| L/D Ratio |
25:1 |

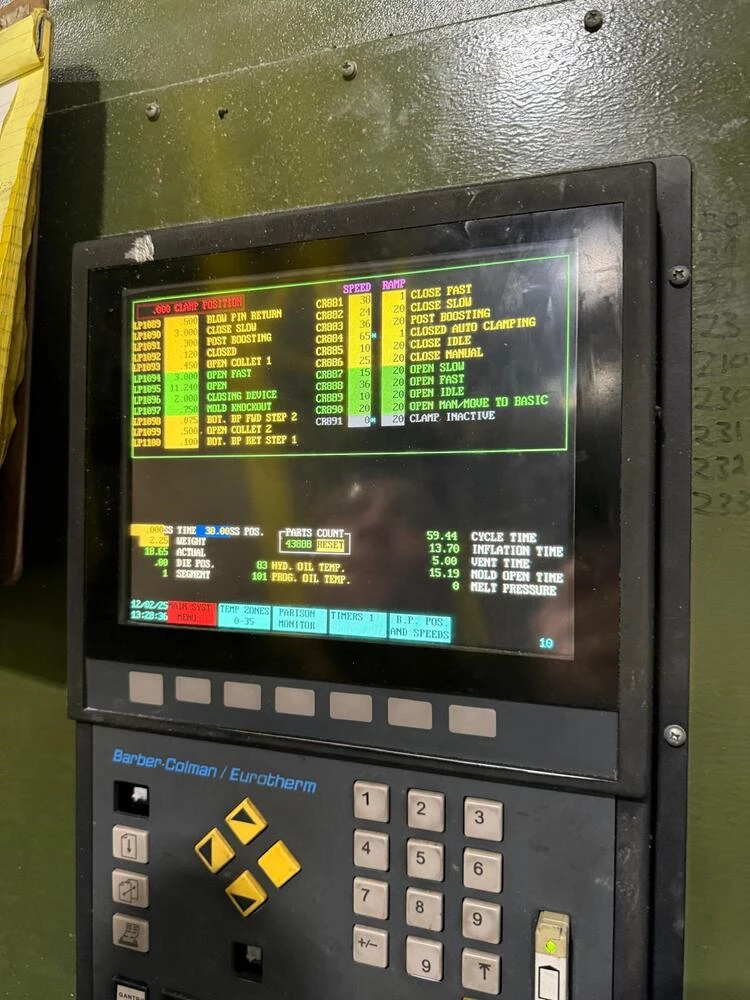

| Control |
Barber Coleman/Eurotherm |
| Power Requirement |
220V - 3 Ph - 60 Hz |
| The Type of Product Being Produced |
5 - Gallon Poly Carbonate Bottles with Handle |
