Year |
1993 |
|---|---|
Make |
Amada |
Model |
RG-50 |
Description |
55 Ton x 6.8′ Hydraulic Press Brake |
Reference # |
8079055 |
Price |
Activate Pricing |

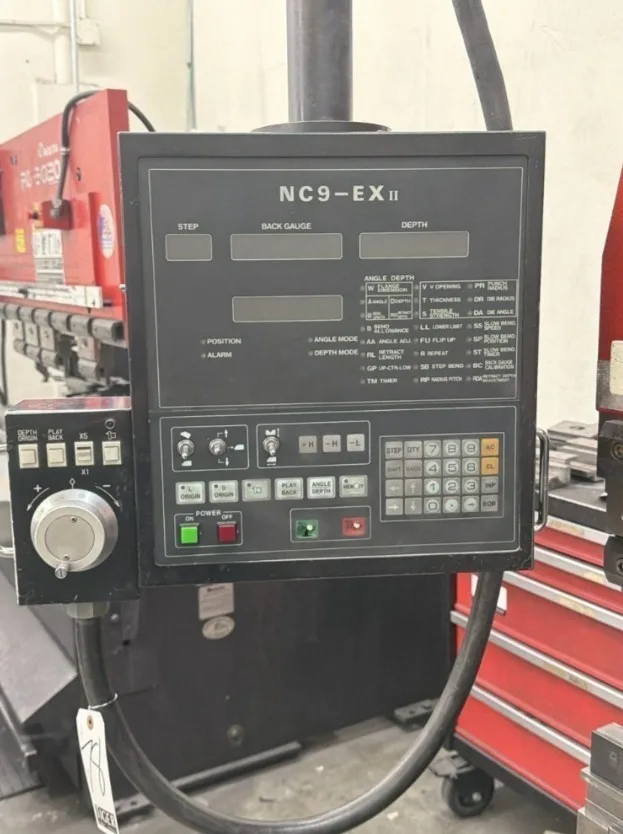

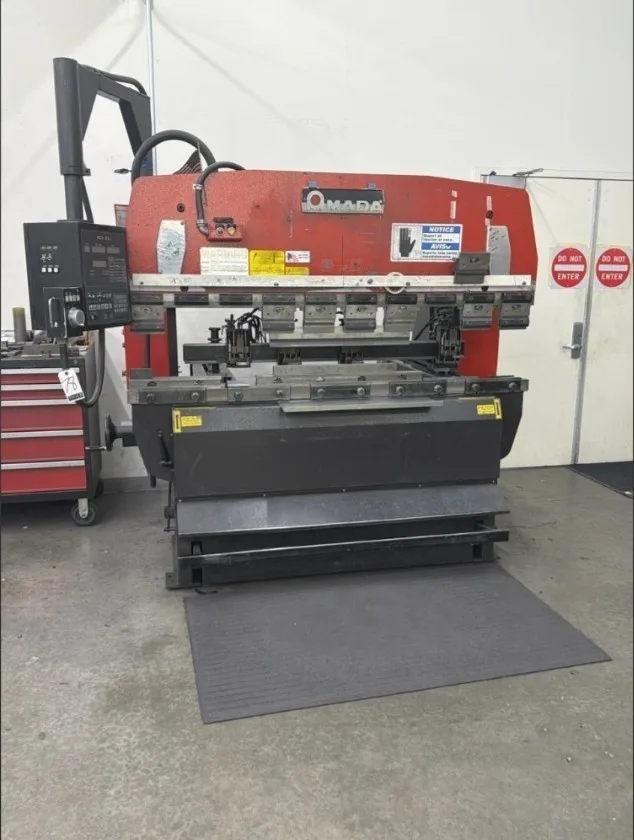

Used Amada RG-50 (1993) Press Brake for Sale. This 55 ton hydraulic press brake has a 6.8′ overall bed length with 59.84″ between housings and a 15.75″ throat. Stroke is 3.9″, with an open height of 14.57″ and a closed height of 10.67″. The machine runs a 7 HP main motor and is fitted with the NC-9EXII control. It is equipped with 4 finger assemblies, a remote handwheel, a foot treadle, and miscellaneous punch holders. Overall dimensions are 80″ x 55″ x 75.5″H, with a machine weight of 6,600 lbs. The RG-50 can be seen under power for an inspection. It is listed alongside our other used press brakes and used Amada machines. Activate Pricing or use the Inquire Now button for details.
Specifications
| Capacity |
55 Ton |
|---|---|
| Overall Length of Bed |
6.8' |
| Distance Between Housings |
59.84" |
| Stroke |
3.9" |
| Open Height |
14.57" |
| Closed Height |
10.67" |
| Throat |
15.75 |
| Main Motor |
7 HP |
| Control |
NC-9EXII |
| Dimensions |
80" x 55" x 75.5"H |
| Machine Weight |
6600 lbs |
Features
|
Remote Handwheel |
4 Finger Assemblies |
|
Foot Treadle |
Misc. Punch Holders |
