Year |
2018 |
|---|---|
Make |
Adira |
Model |
BB5020 |
Description |
56 Ton x 6.58' Electric Press Brake |
Reference # |
8073592 |
Price |
Activate Pricing |

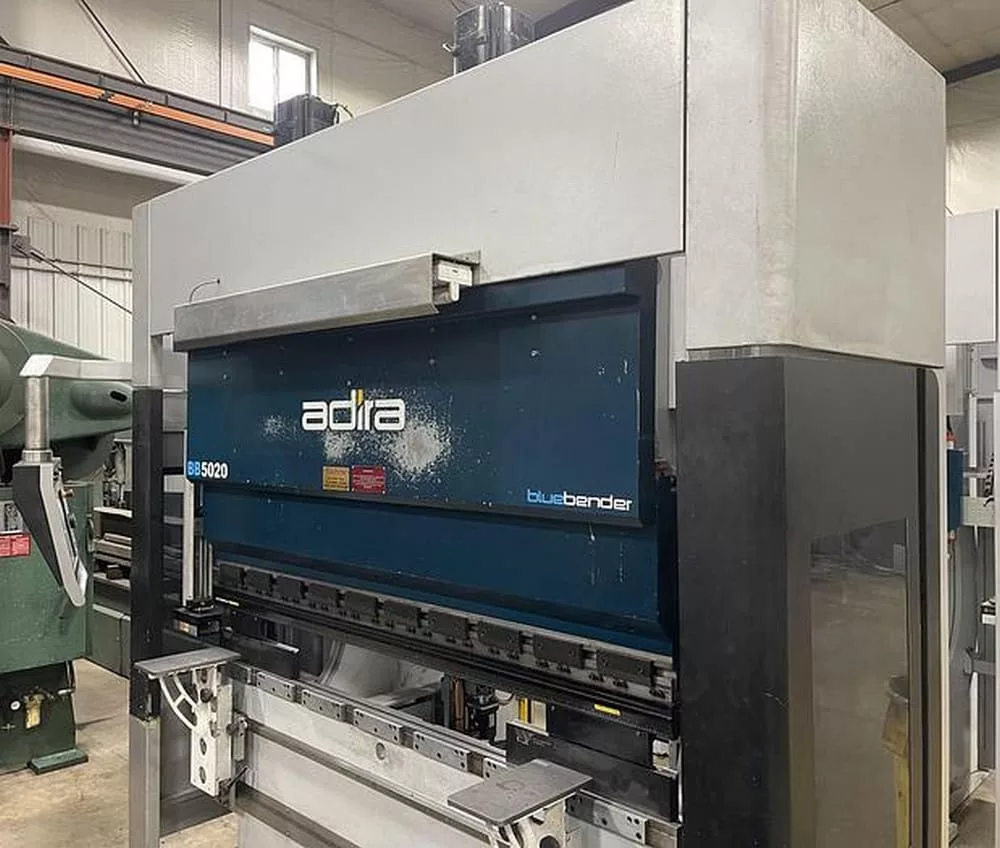

Used Adira BB5020 (2018) Press Brake for Sale. This 56 ton press brake has a 6.58′ overall bed length, 61″ between housings, 15.7″ throat depth, 9.8″ stroke and 19.6″ open height, running on a Delem 66T control. Axis travels include a 24.6″ X-axis at 945 IPM, 7.8 R-axis at 120 IPM, 49″ Z1/Z2 at 1,900 IPM and X prime at +/- 3.9″ at 236 IPM. Approach and return speeds are 330 IPM with a 24 IPM working speed. Power is two 10 HP motors on 480v/3PH, with machine dimensions of 120″ x 75″ x 115″. Equipped with hydraulic upper clamping (American), Laser Safe Iris Black Laser, two front arm supports and a 5-axis backgauge. The machine can be seen under power for an inspection. See more used press brakes, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
56 Ton |
|---|---|
| Overall Length of Bed |
6.58' |

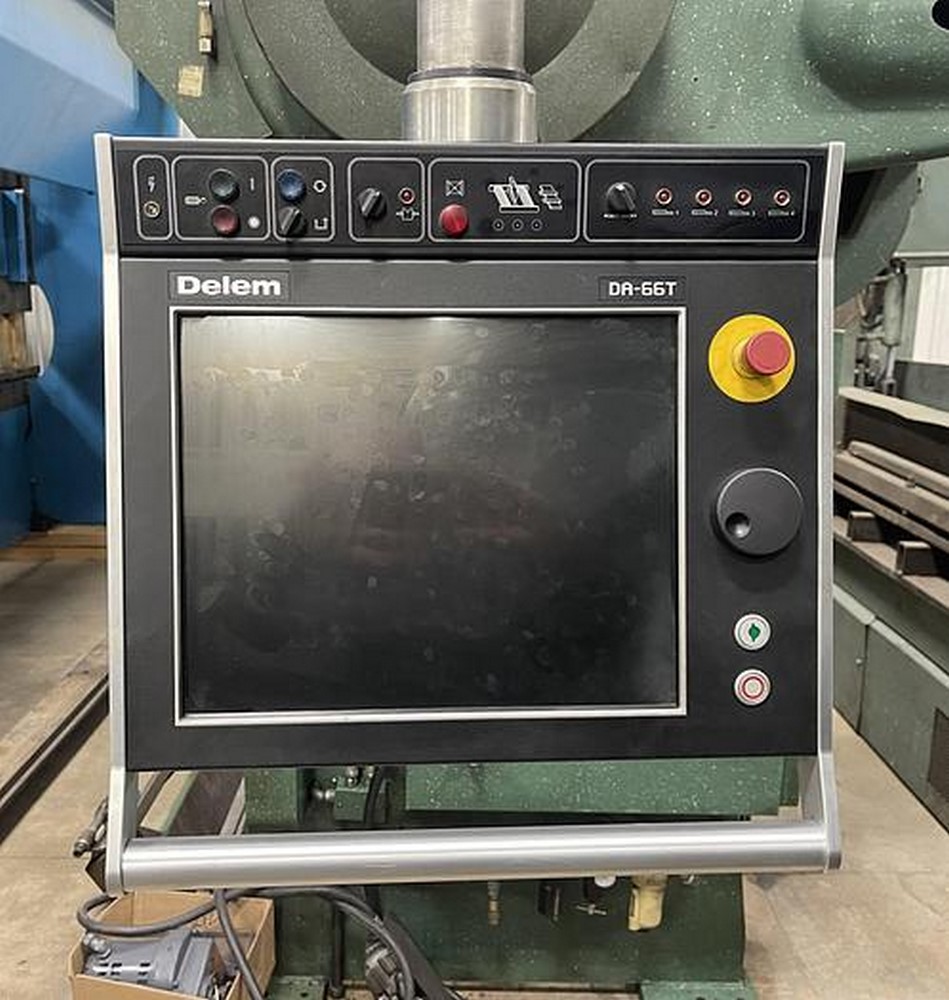

| Control |
Delem 66T |
| Distance Between Housings |
61" |
| Stroke |
9.8" |
| Throat Depth |
15.7" |
| Open Height |
19.6" |
| X-Axis Speed |
945 IPM |
| X-Axis Stroke |
24.6" |
| R-Axis Speed |
120 IPM |
| R-Axis Stroke |
7.8 |
| Z1/Z2-Axis Speed |
1,900 IPM |
| Z1/Z2-Axis Stroke |
49" |
| X Prime Axis Speed |
236 IPM |
| X Prime Axis Stroke |
+/- 3.9" |
| Approach Speed |
330 IPM |
| Working Speed |
24 IPM |
| Return Speed |
330 IPM |

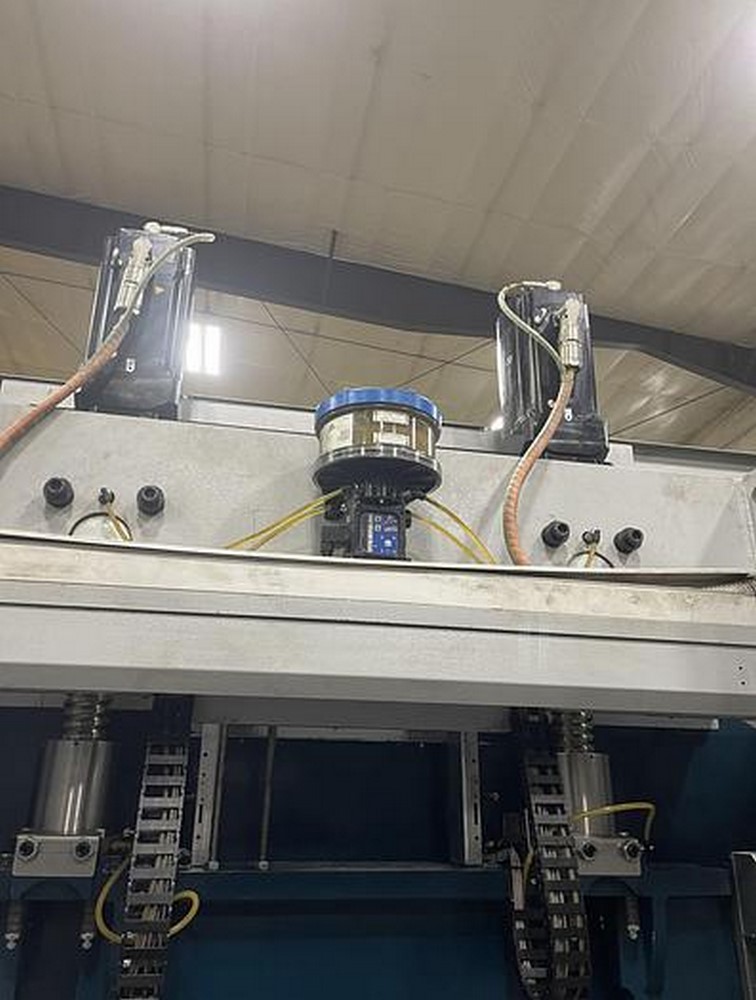

| Motor Power |
2 @ 10 HP |
| Power Requirement |
480v/3PH |
| Dimensions |
120" x 75" x 115" |
Features
|
Hydraulic Upper Clamping (American) |

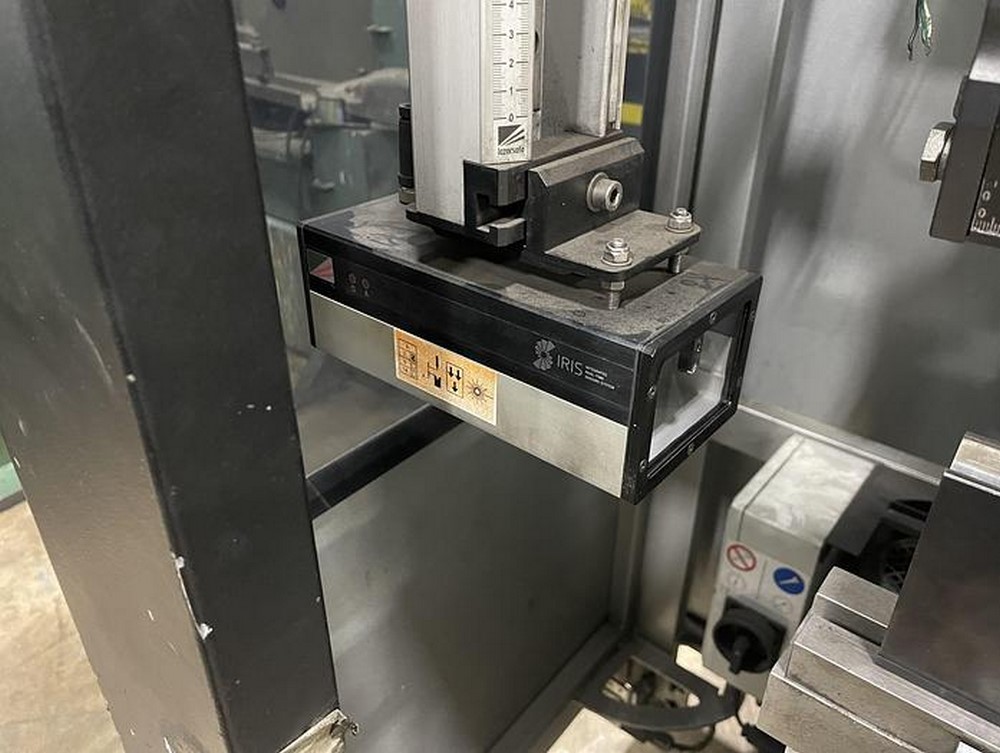

Laser Safe Iris Black Laser |
|

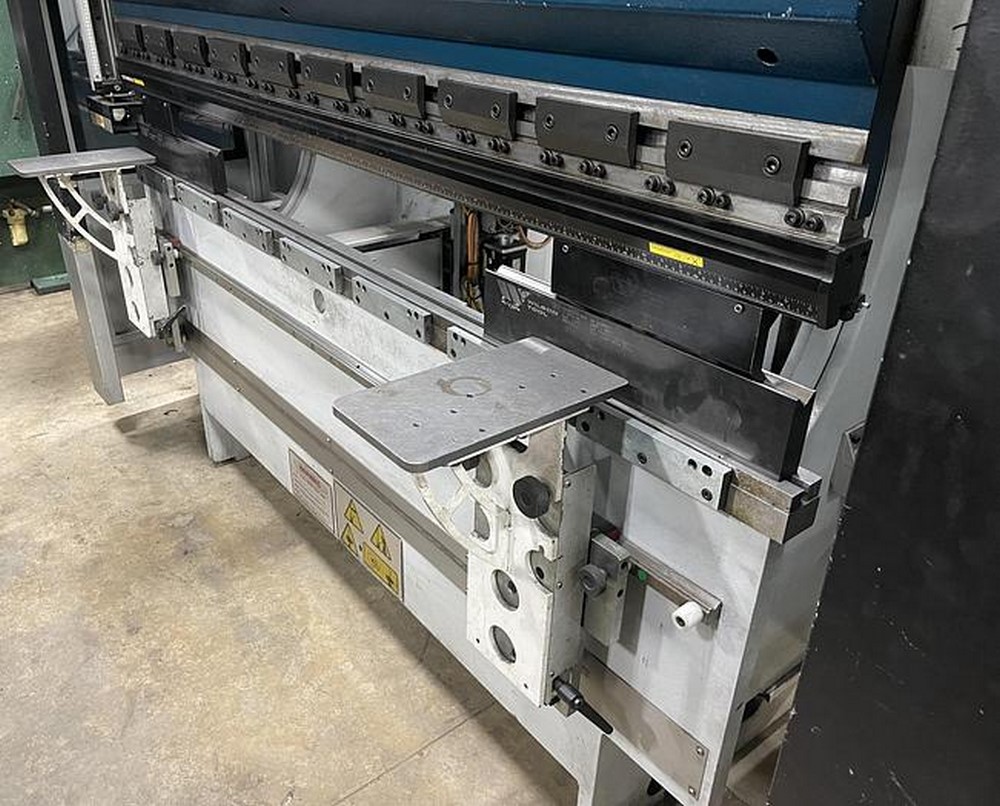

(2) Front Arm Supports |

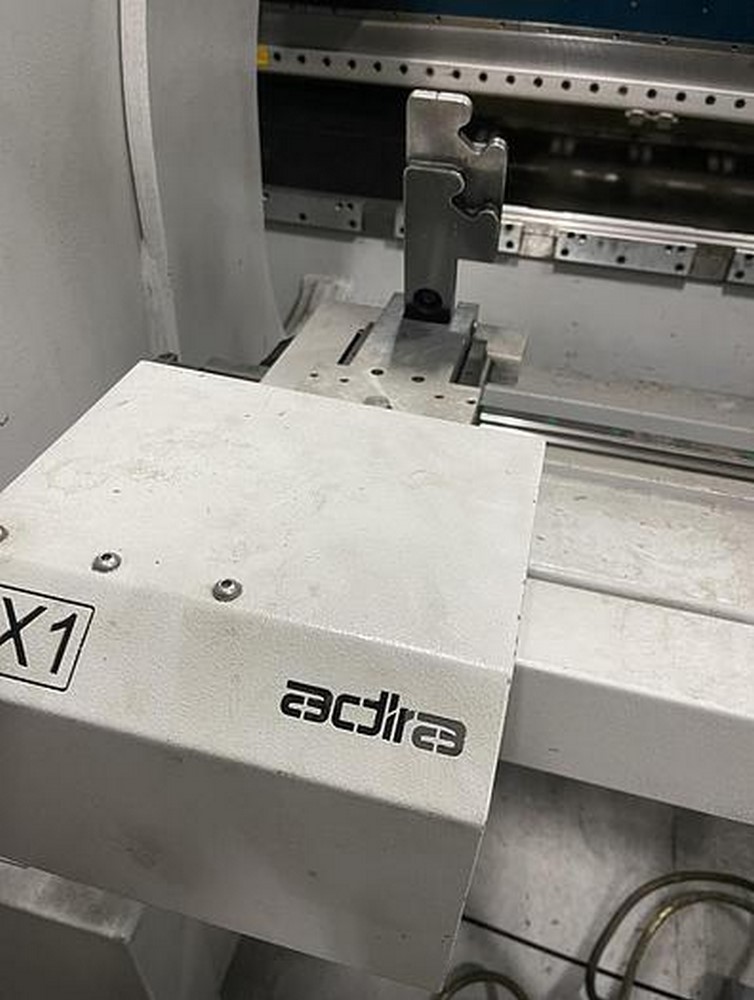

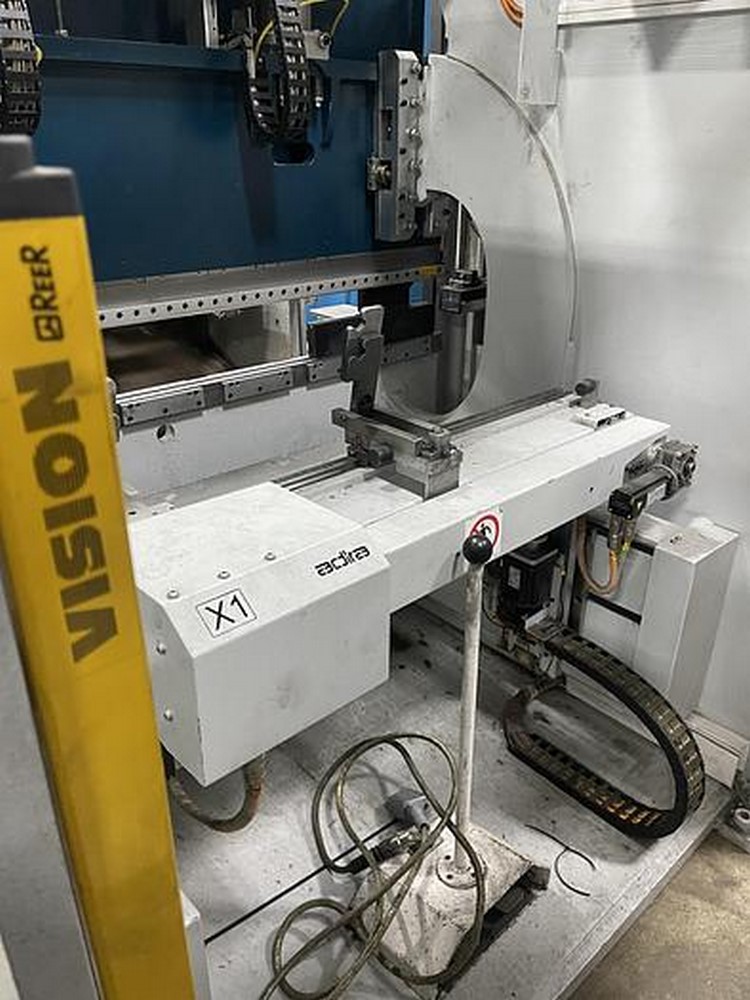

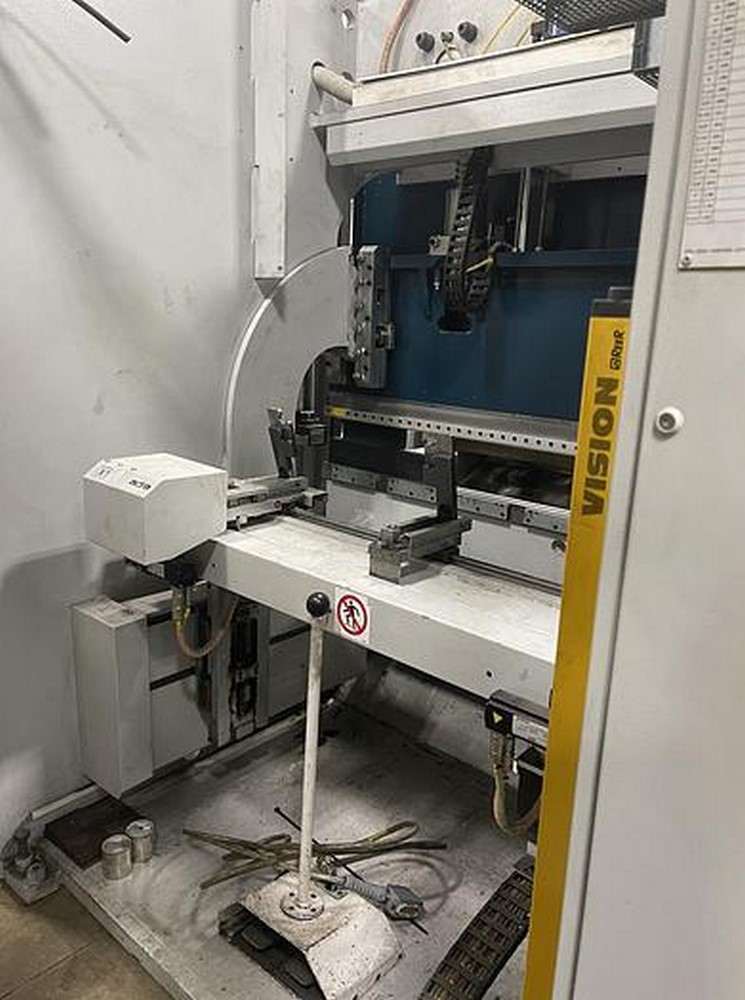

5-Axis Backgauge |
