Year |
1987 |
|---|---|
Make |
Kautex |
Model |
KB 150/14PR-S100 02 |
Description |
Blow Molder |
Reference # |
8077370 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

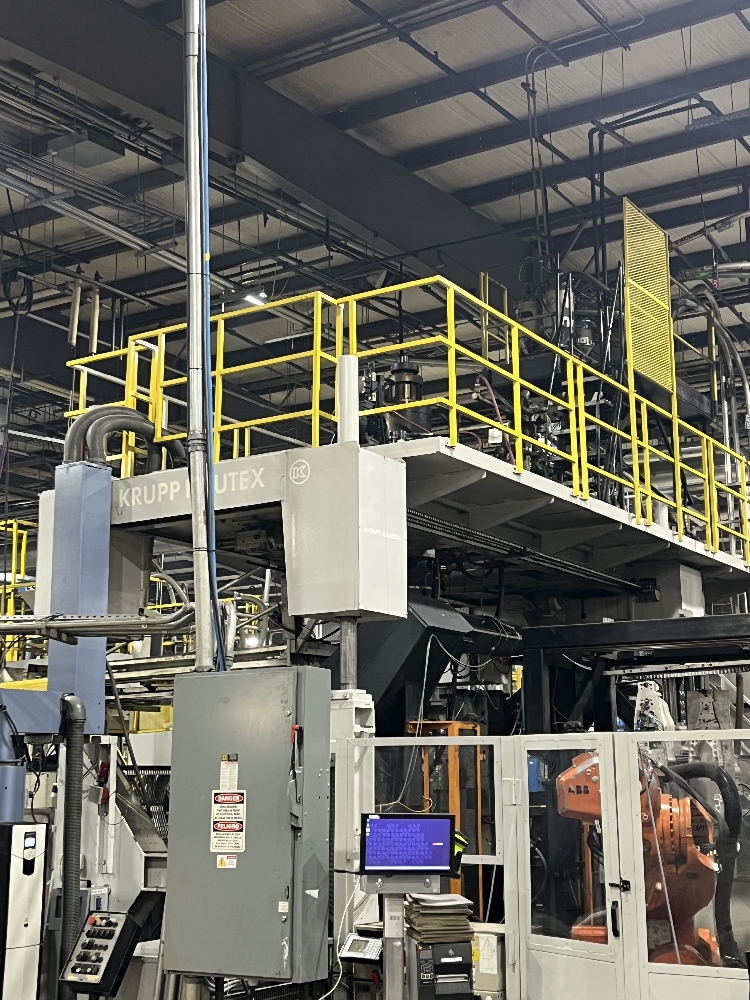

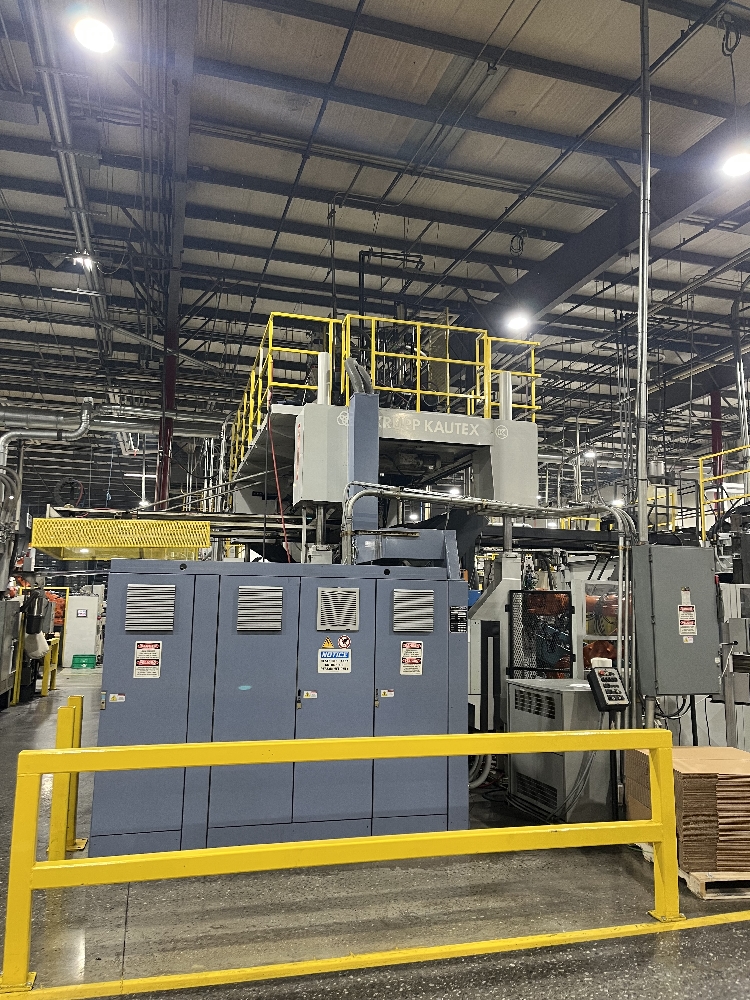

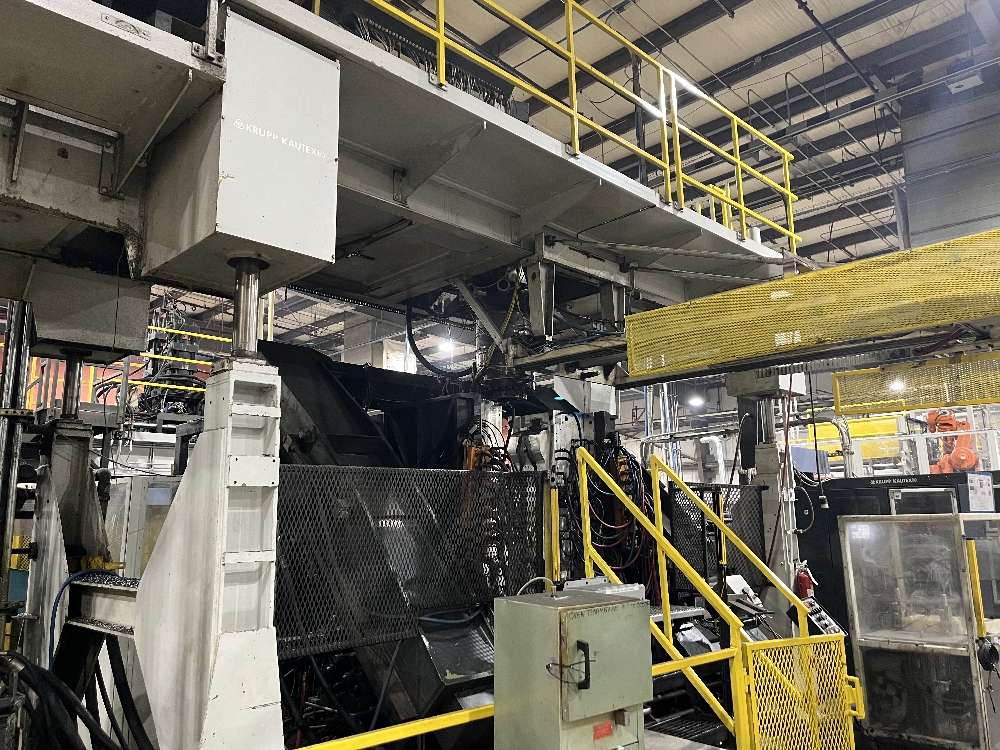

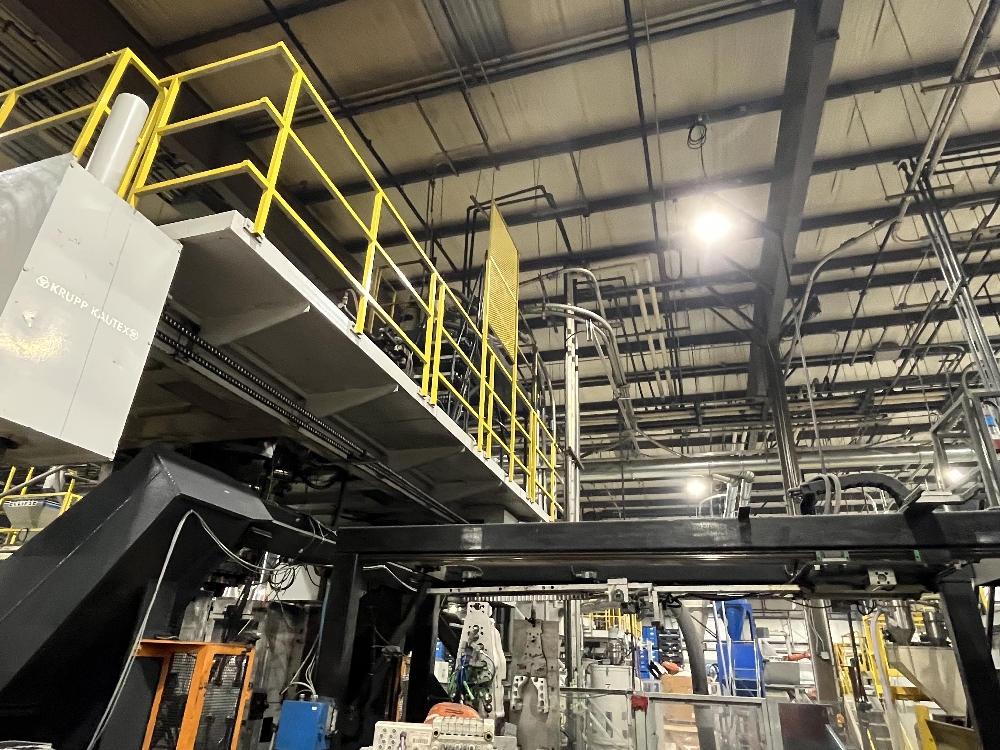

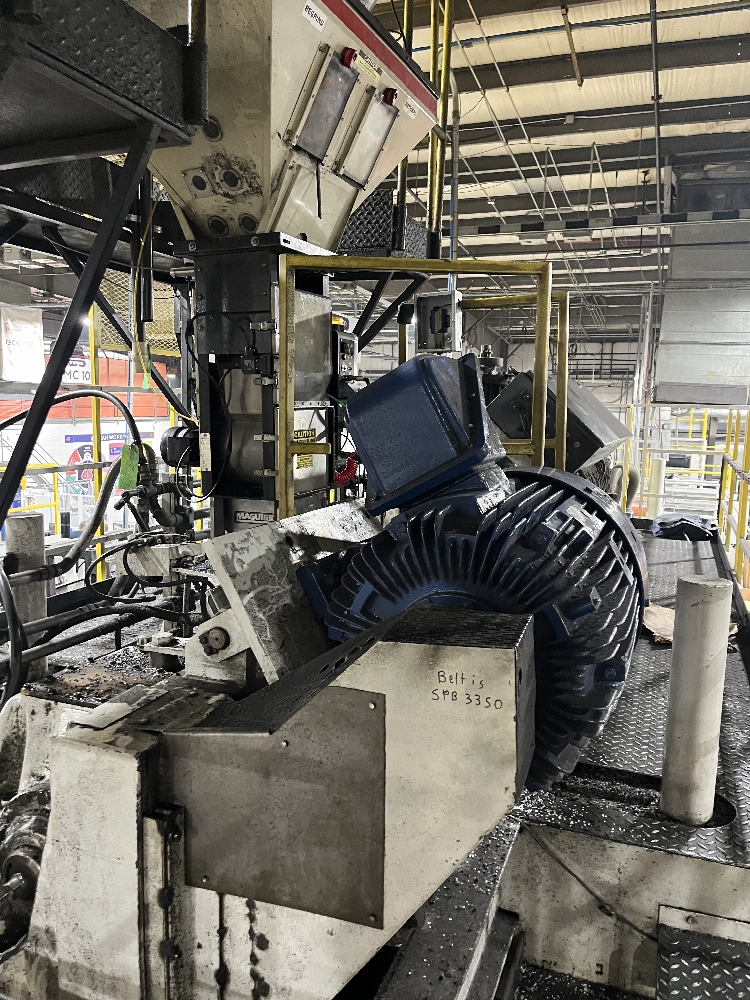

Used Kautex KB 150/14PR-S100 02 (1987) Blow Molder for Sale. This single head machine runs head tooling from 3.93″ to 11.81″ with a 20 lb shot size. Clamp specifications include 75 tons of tonnage, a 43″ W x 55″ H platen measuring 1.96″ thick, and daylight from 31.49″ to 62.99″. The S100/20D extruder runs a 20:1 ratio through a Kollmann gearbox with 125 HP. Controls have been upgraded to a Beckoff PLC, and the proportional valves are upgraded Rexroth units. Power requirement is 380v, with a 480v transformer included. Several sizes of head tooling are included. Base dimensions are 137.79″ W x 322.83″ L x 212″ H. The machine is under power and can be seen running for an inspection. See more used blow molding machines, Activate Pricing, or Request a Quote.
Specifications
| Number of Heads |
Single Head |
|---|---|

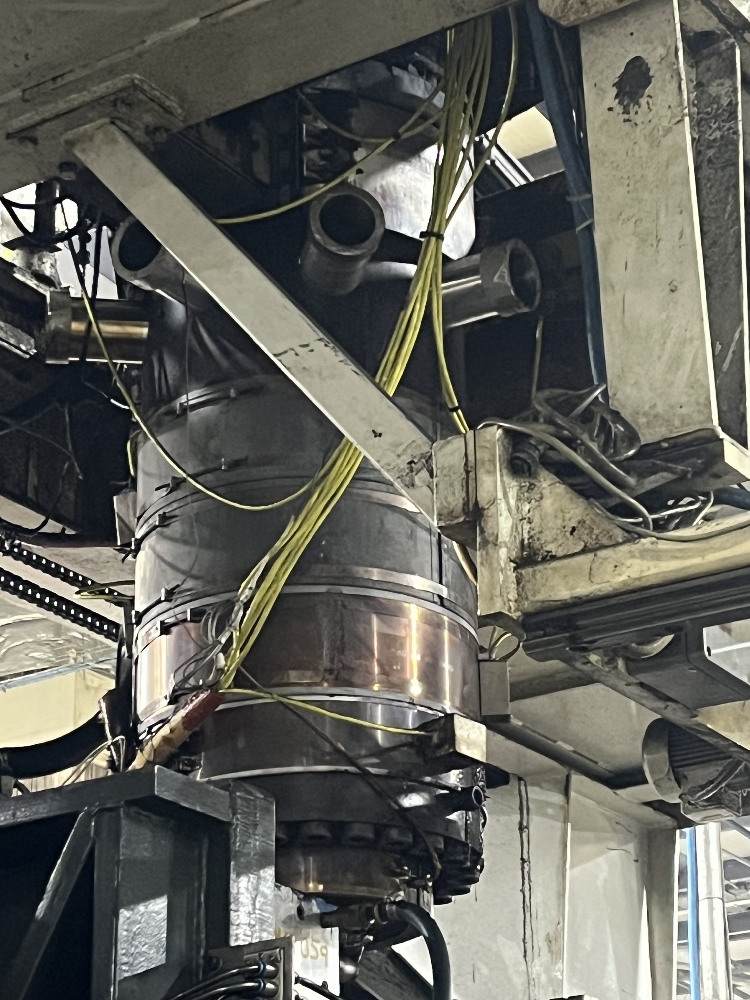

| Head Tooling |
3.93" - 11.81" |
| Shot Size |
20 lbs |

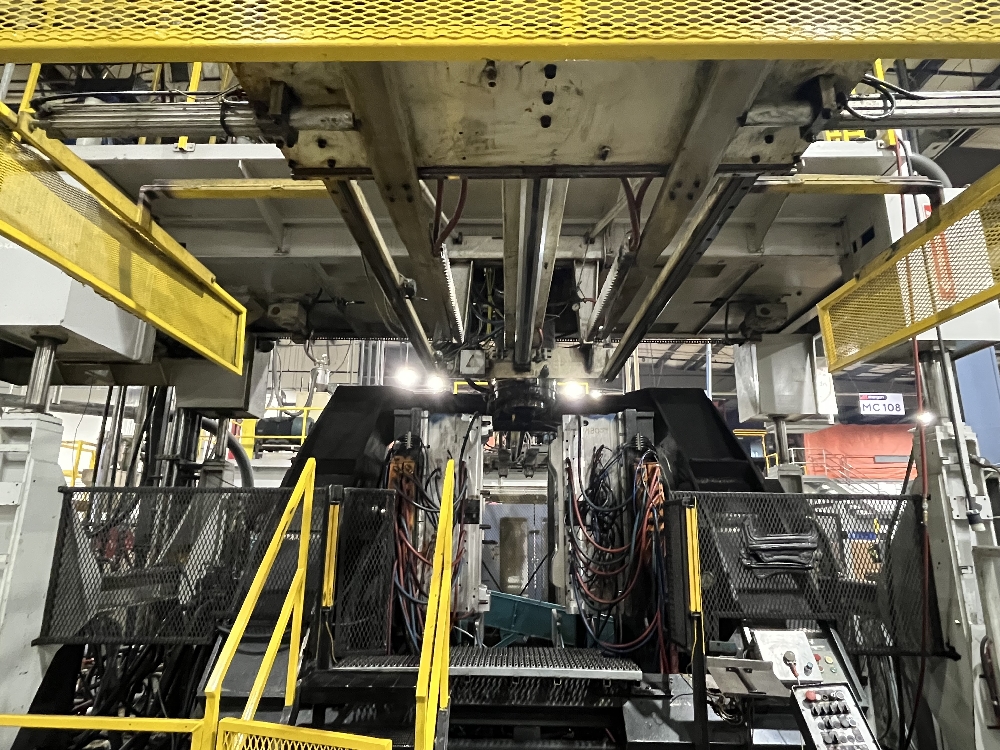

| Platen Size |
43" W x 55" H |
| Clamp Tonnage |
75 Tons |
| Daylight (Min./Max.) |
31.49" x 62.99" |
| Platen Thickness |
1.96" |
| Extruder |
S100/20D |
| Extruder Ratio |
20:1 |

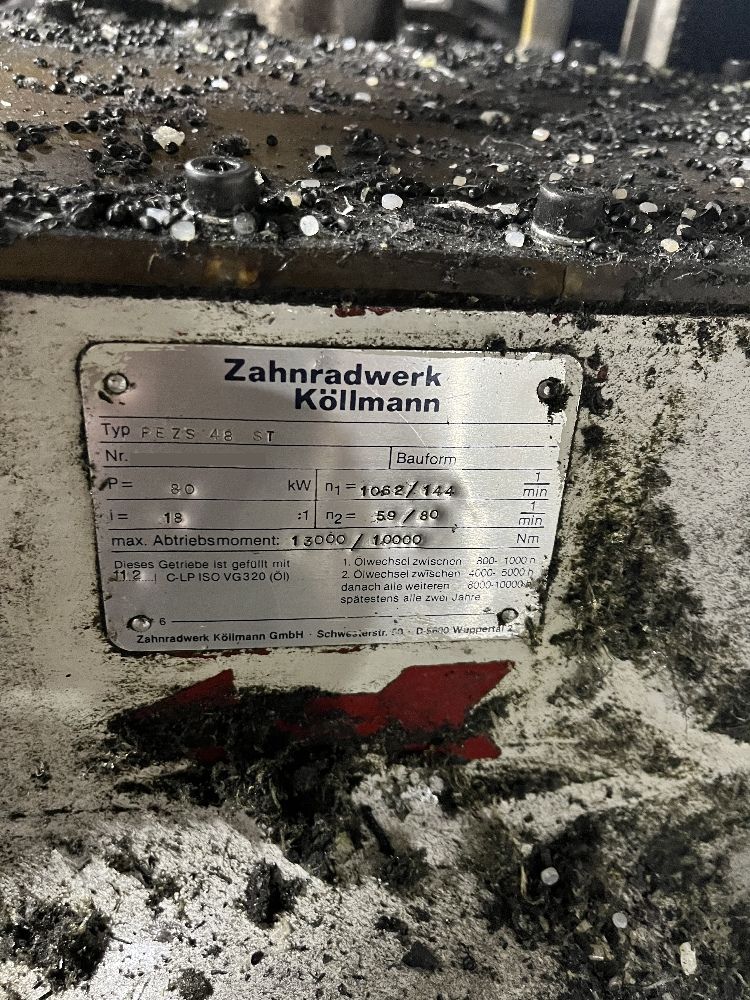

| Gearbox |
Kollmann |

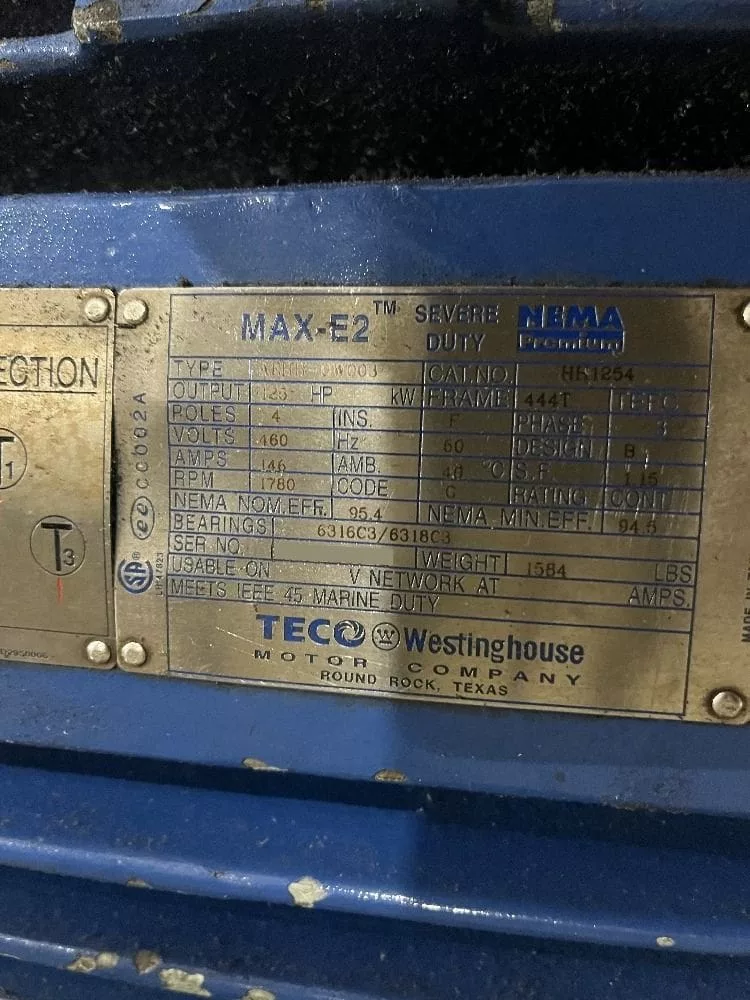

| Horsepower |
125 HP |

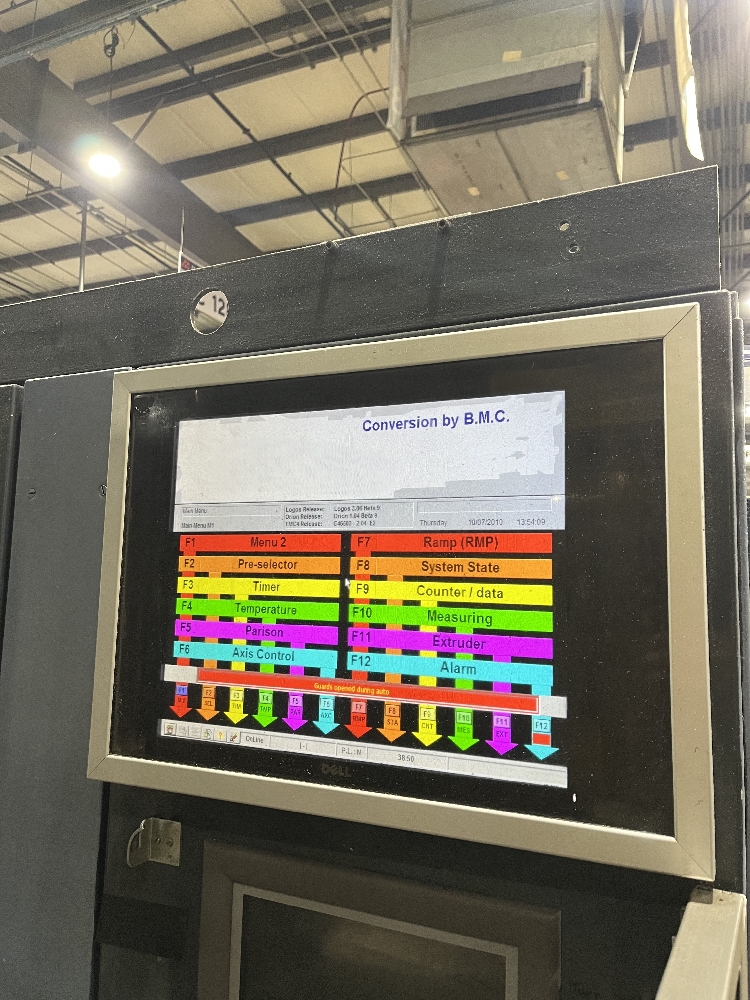

| Control |
Beckoff PLC Controller (Upgraded) |
| Power Requirement |
380v (480v Transformer Included) |
| Base Width |
137.79" |
| Base Length |
322.83" |
| Base Height |
212" |
Features
|
Several Sizes of Head Tooling Included |
Updgrated Proportional Values (Rexroth) |
|
Transformer Included |
Under Power |
