Year |
1984 |
|---|---|
Make |
Cincinnati |
Model |
230ASx8 |
Description |
230 Ton x 10' Hydraulic Press Brake |
Reference # |
8073598 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

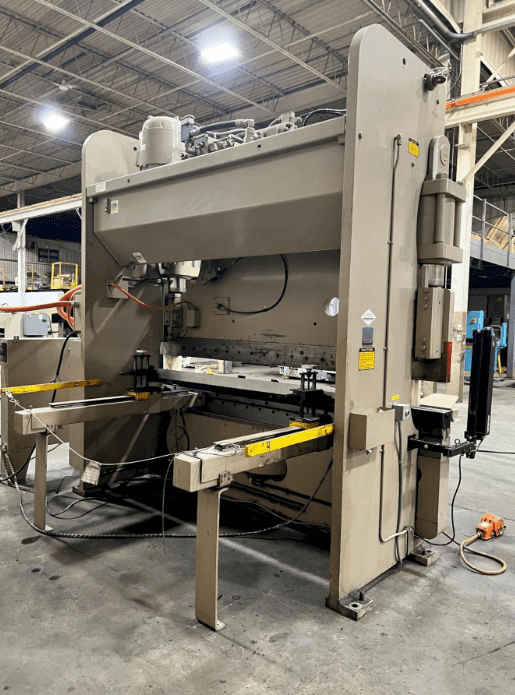

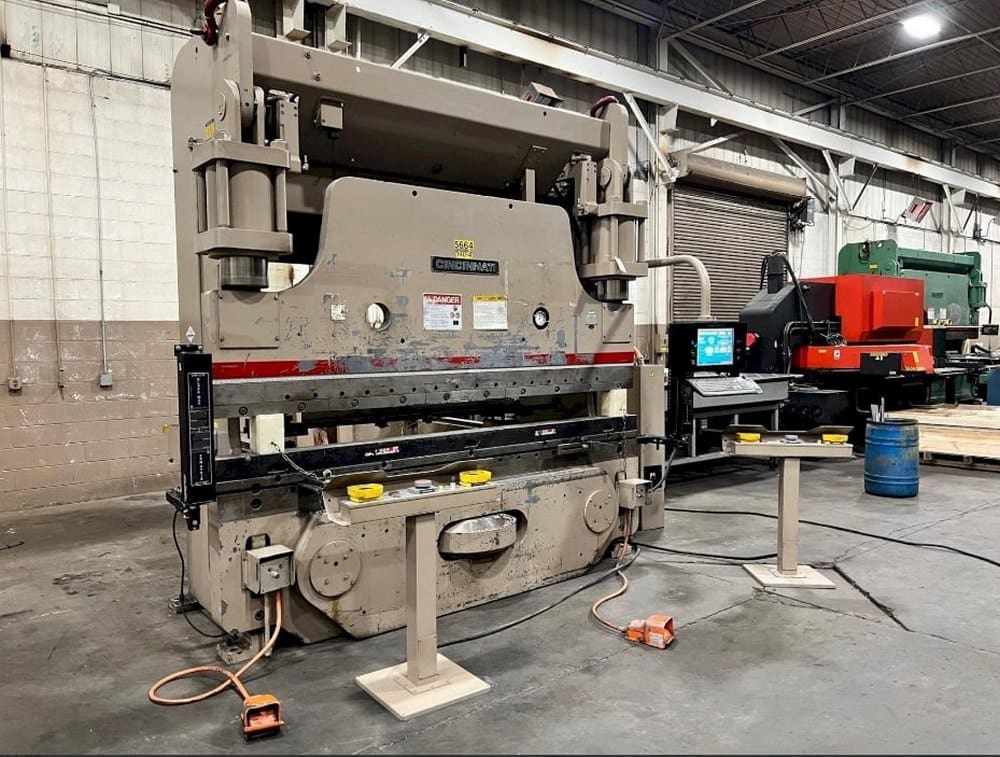

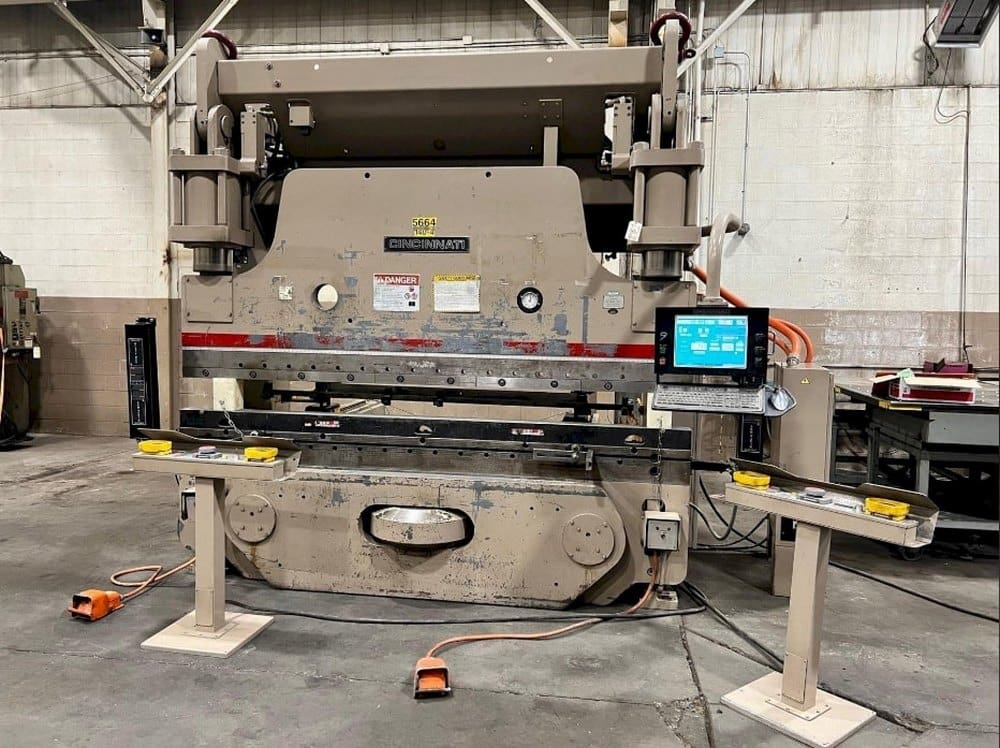

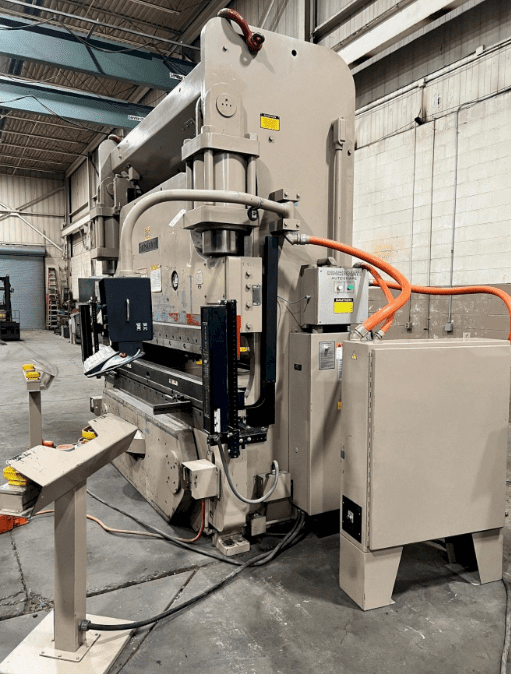

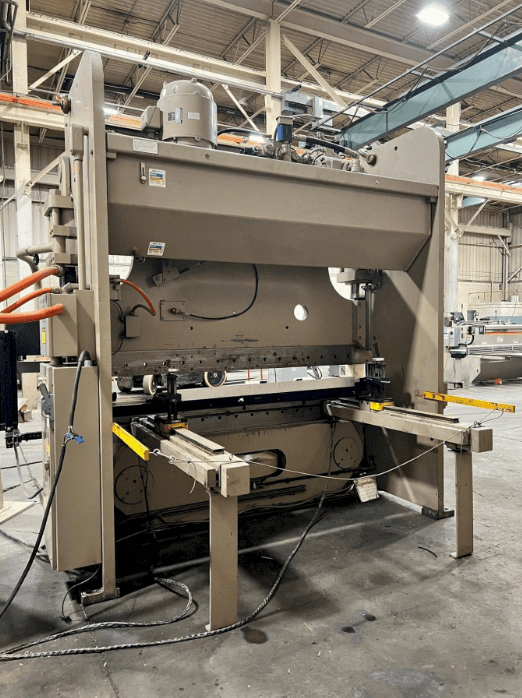

Used Cincinnati 230ASx8 (1984) CNC Press Brake for Sale. This pre-owned Cincinnati CNC press brake is located in The United States. If you have any questions regarding this Cincinnati Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
230 Ton |
|---|---|
| Overall Length of Bed |
10' |
| Control |
Cincinnati CNC |
| Distance Between Housings |
102.5" |
| Stroke |
10" |
| Throat Depth |
10" |
| Open Height |
17" |
| Closed Height |
7" |
| Power Requirement |
220/440/3ph |
| Approximate Dimensions |
103" x 127" with Backgauge |
| Approximate Weight |
25,000 Lbs |
Features
|
(2) Portable Foot Pedals |
(2) Portable Palm Stations |
|
(4) Backgauge Fingers |
40" Independent Travel Backgauge with Manual R-Axis |
|
Automatic Hydraulic CNC Crowning in Bed |

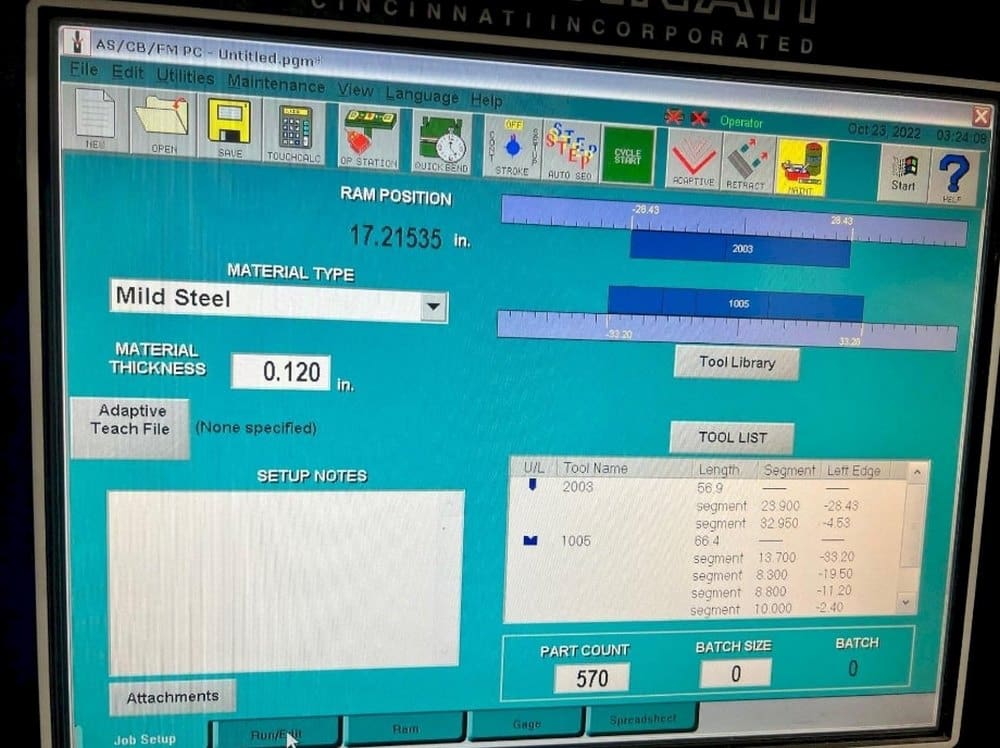

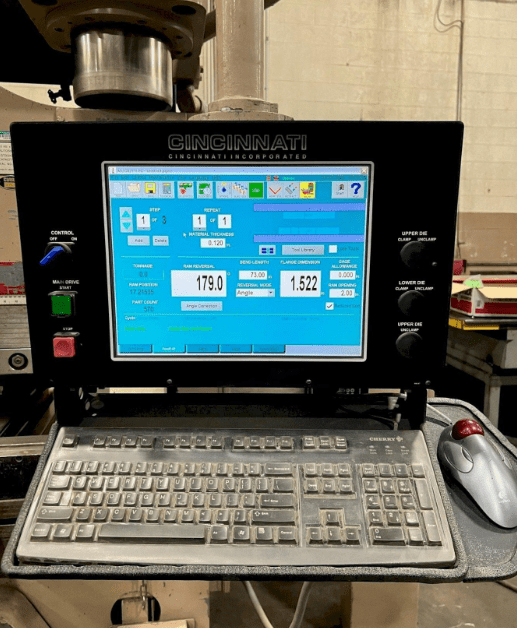

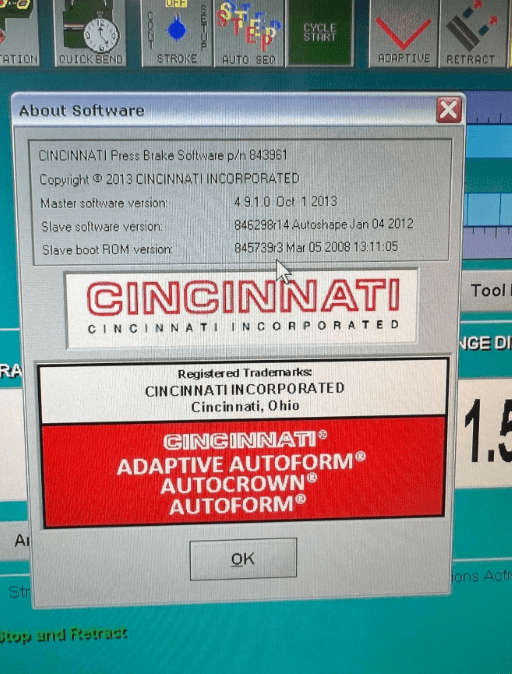

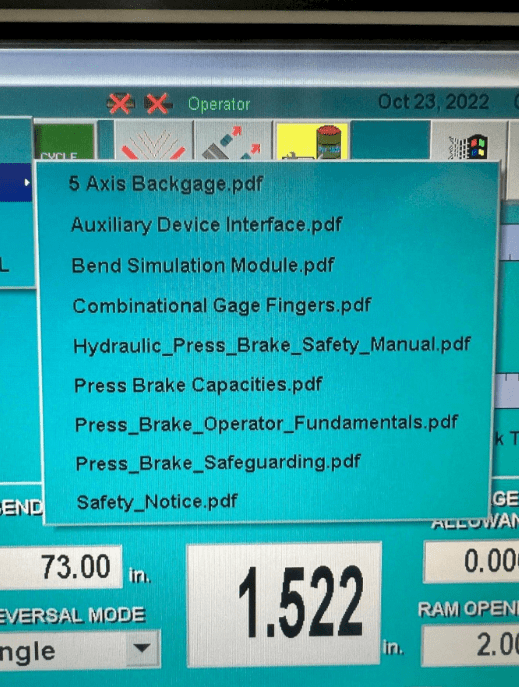

Cincinnati 4-Axis Autoshape Touch Screen CNC Control (Retrofitted in 2014) with Adaptive Autoform Bend Software and Tooling Library |
|
Stroke Speed Control |
(2) Front Support Arms |
|
Link Lite Black Max Light Curtains |
Sectionalized Ram Clamps |
|
Power Ram Tilt |
Tonnage Control |
|
Full Length Die Holder |
