Year |
1984 |
|---|---|
Make |
Amada |
Model |
Pega 344 |
Description |
30 Ton Turret Punch |
Reference # |
8075078 |
Price |
Activate Pricing |

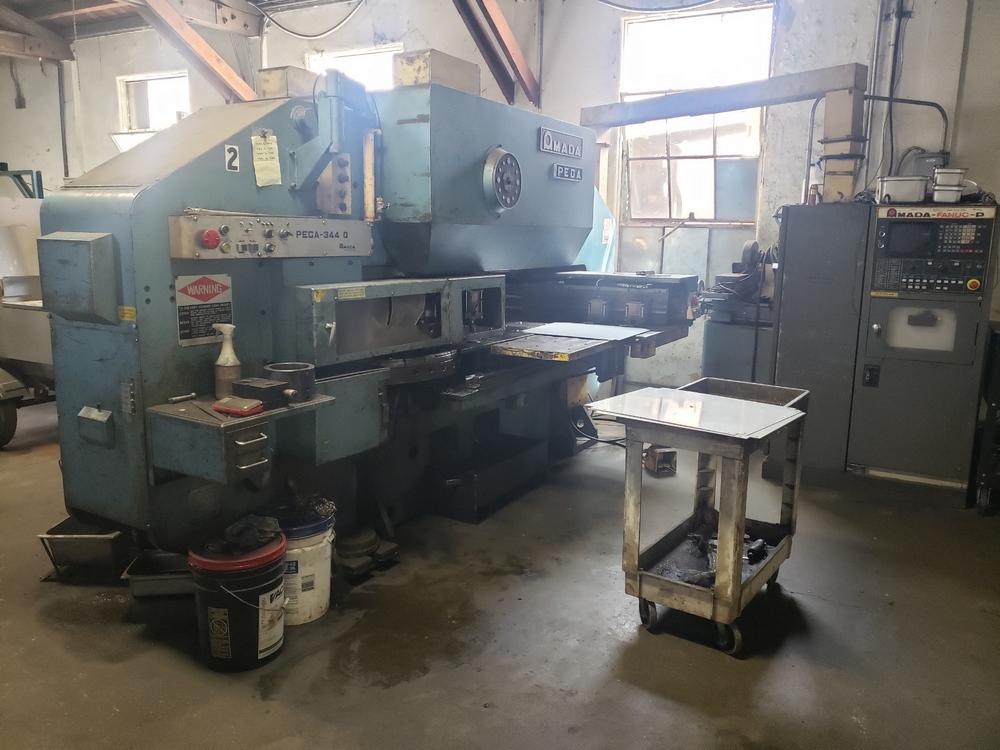

Used Amada Pega 344 (1984) Turret Punch for Sale. This CNC turret punch is rated at 30 ton capacity and handles a maximum sheet size of 40″ x 80″ with repositioning. X-axis travel is 40″ and Y-axis travel is 40″, with 56 turret stations available and a Fanuc CNC control. The machine is equipped with a ball transfer table. It can be seen under power for an inspection, so you can review the control and axis movement before committing. See our other used turret punches or browse additional Amada machines currently in stock. Use Activate Pricing to view the figure on this listing, then Request a Quote and we will follow up with freight and rigging details.
Specifications
| Capacity |
30 Ton |
|---|---|
| Maximum Sheet Size with Repositioning |
40" x 80" |
| X-Axis Travel |
40" |
| Y-Axis Travel |
40" |
| Turret Stations |
56 |
| Control |
Fanuc CNC |
Features
|
Ball Transfer Table |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
