Year |
1981 |
|---|---|
Make |
Mattison |
Model |
13x20 |
Description |
Horizontal Surface Grinder |
Reference # |
8072021 |
Price |
$49,995 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

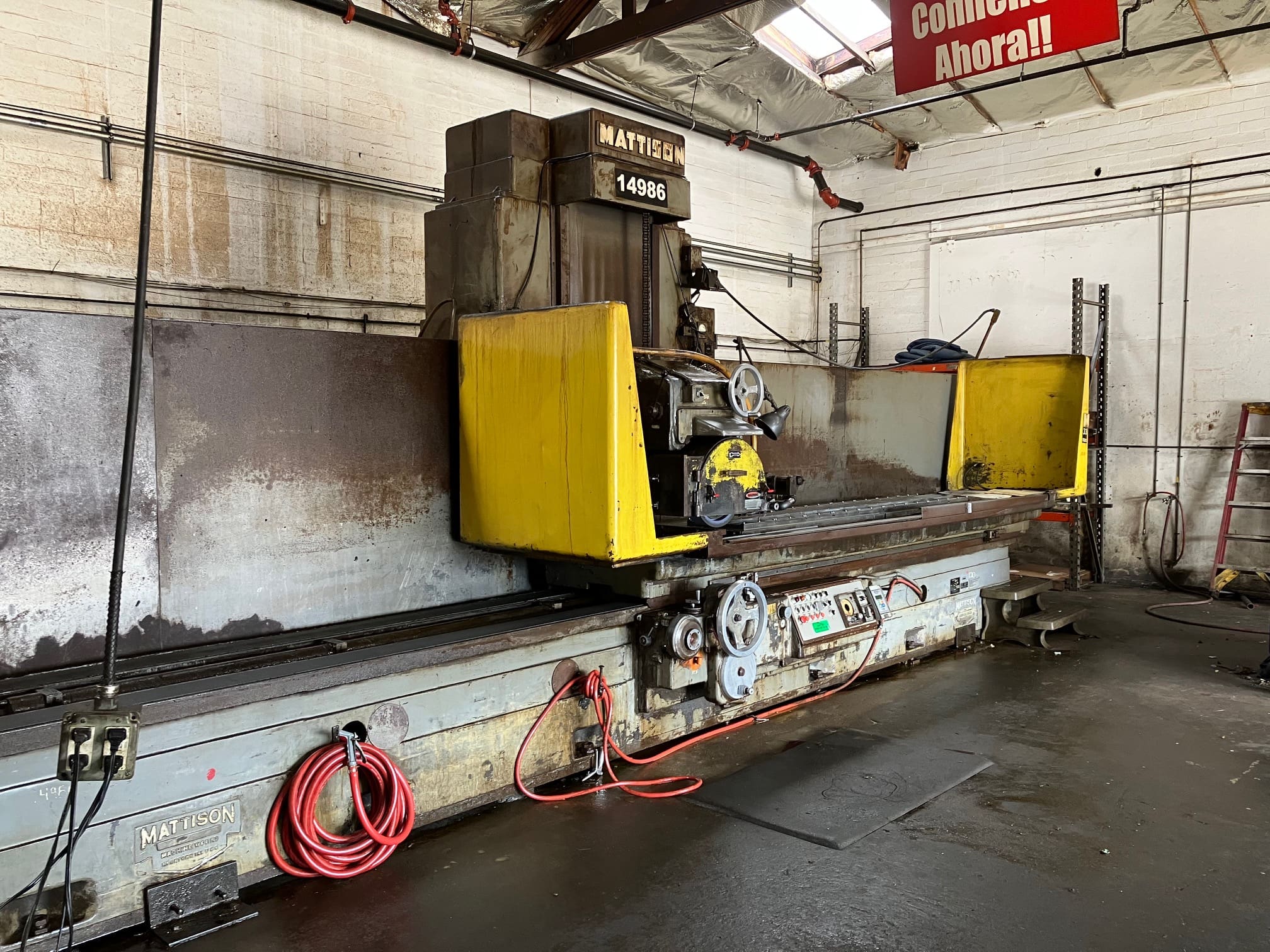

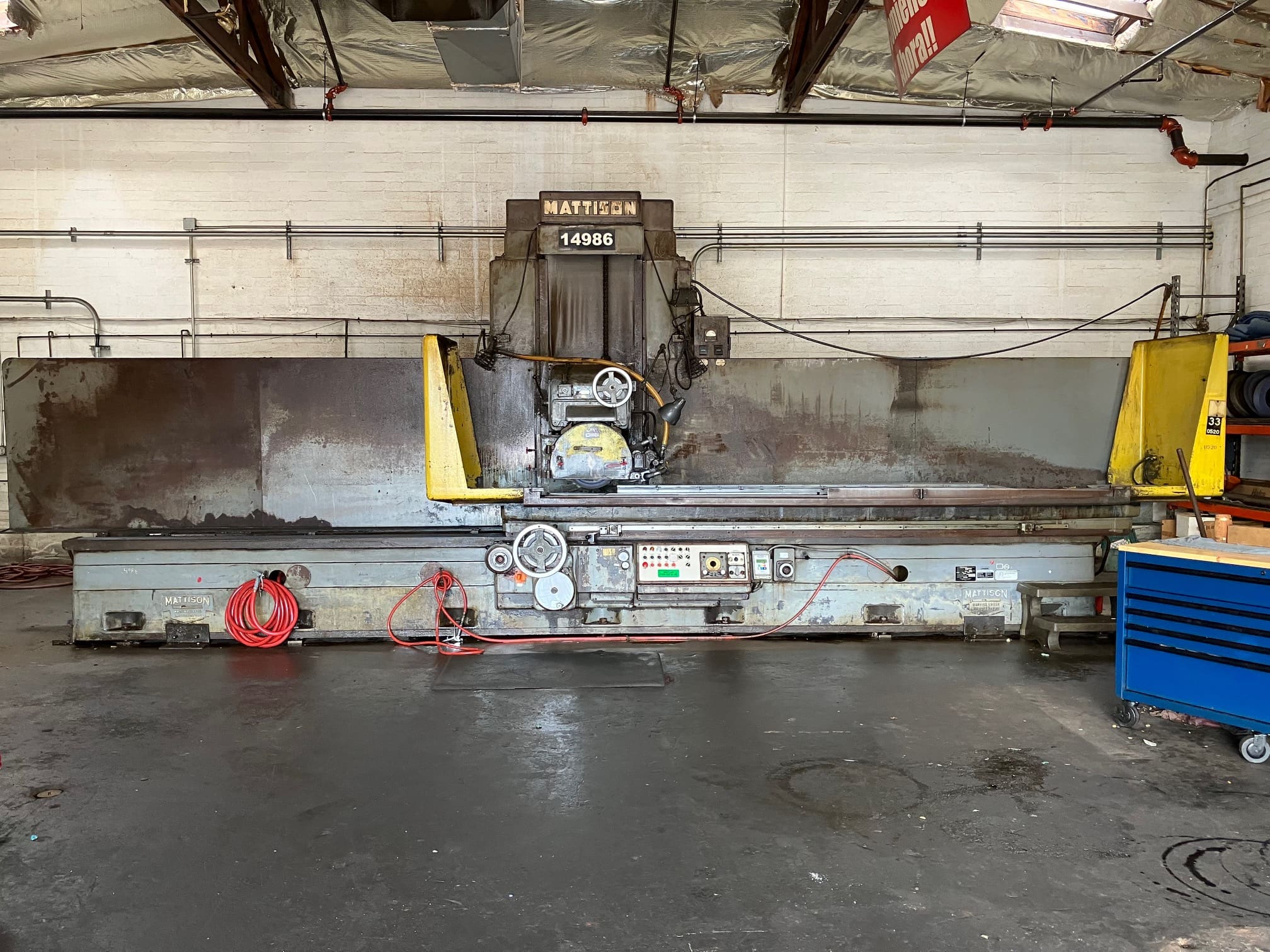

Used Mattison 30×120 (1981) Surface Grinder for Sale. This pre-owned Mattison CNC surface grinder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mattison Surface Grinder, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Working Surface |
30" x 120" |
|---|---|
| Max Grinding Width Capacity |
36" |
| Max Grinding Length Capacity |
124" |
| Height Under Grinding Wheel |
30" |
| Grinding Wheel Diameter |
20" |
| Grinding Wheel Width |
6" |
| Spindle Wheel Bore Diameter |
12" |
| Table Longitudinal Feeds |
0 - 100 FPM |
| Table Cross In-Feeds |
0 - 6 IPR |
| Spindle Speed |
1,150 RPM |
| Grinding Wheel Spindle Motor |
30 HP |
| Hydraulic System |
10 HP 440V |
| Power Requirement |
220-440/3/60 |
| Overall Dimensions (LxD) |
30' x 10' |
| Overall Height |
10' |
| Approx. Weight |
45,000 Lbs |
Have a Mattison 13x20 to sell?
This Mattison 13x20 has sold. KD Machinery buys the Mattison 13x20 and other used CNC machines outright. Tell us what you have and how to reach you; the make and model are enough to start.
