Make |
Gould & Eberhardt |
|---|---|
Model |
36HS |
Description |
Vertical Gear Hobber |
Reference # |
8074834 |
Price |
Activate Pricing |

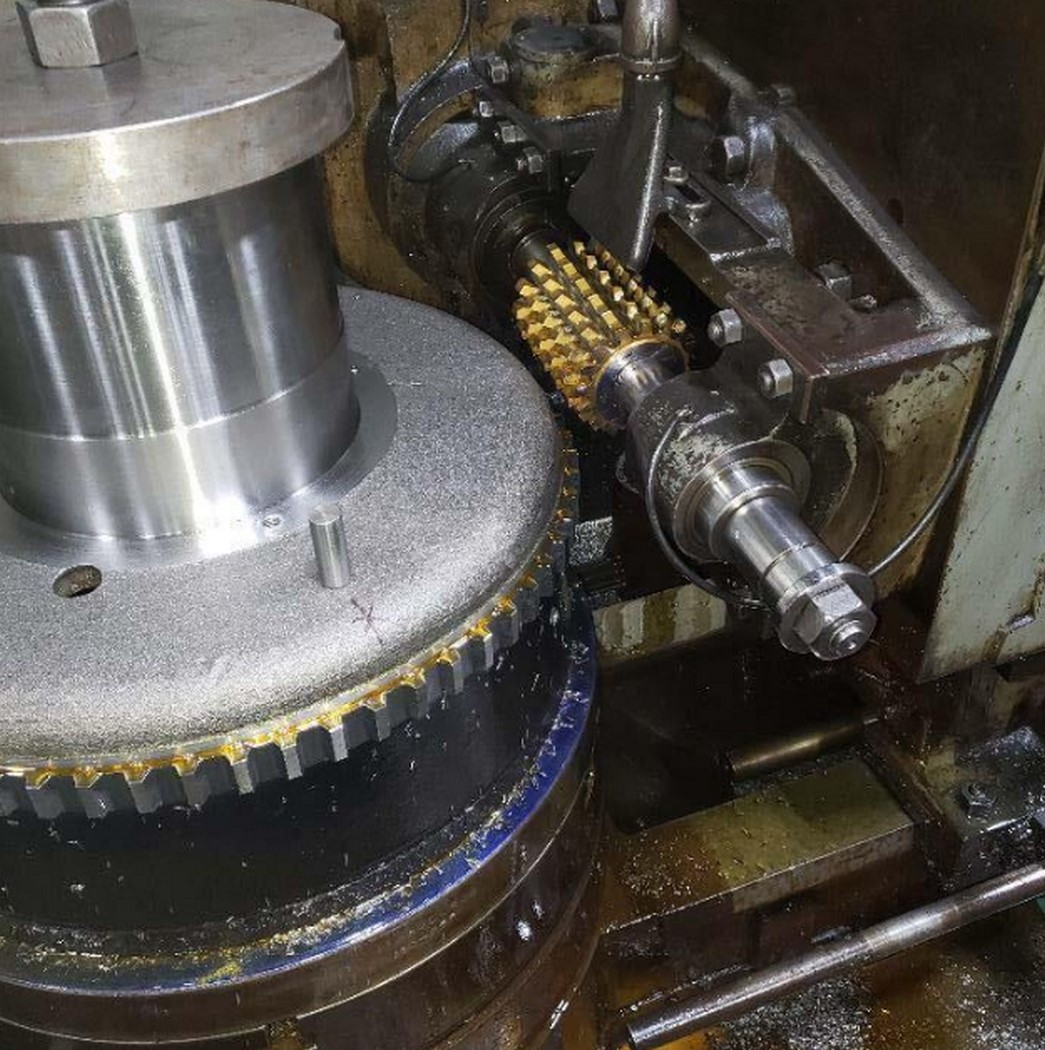

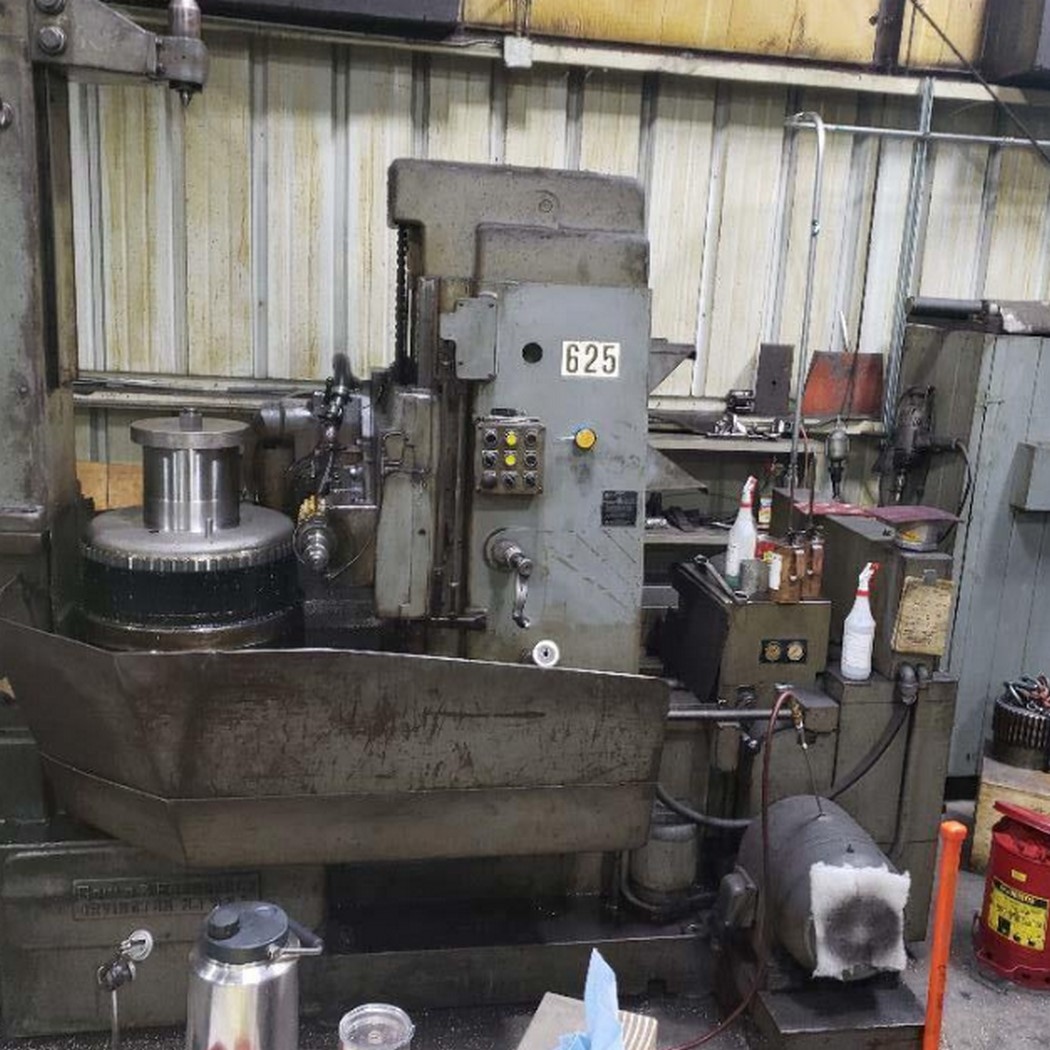

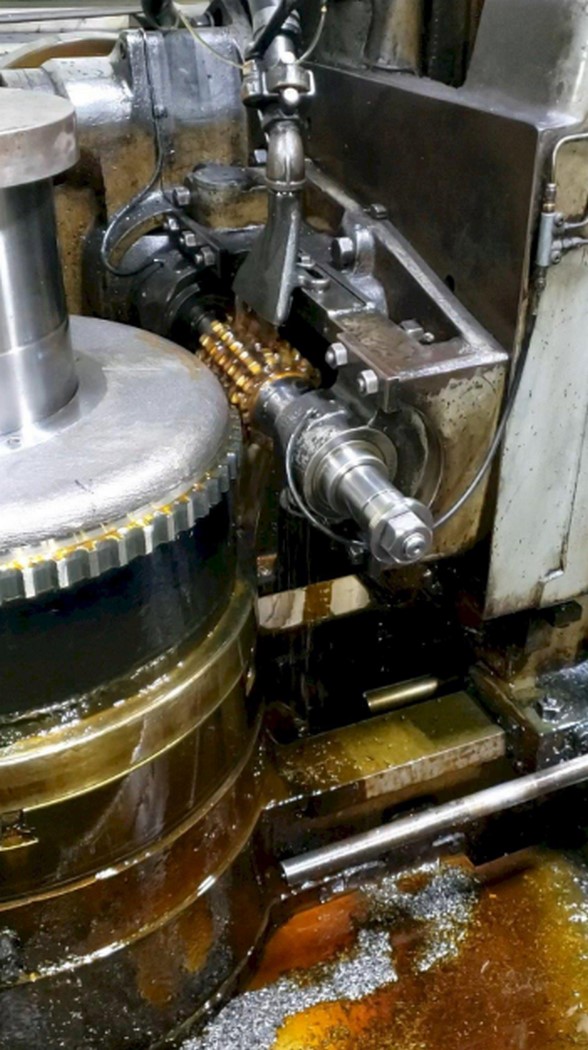

Used Gould & Eberhardt 36HS for Sale. This machine handles a maximum workpiece diameter of 36″ and a maximum diametric pitch of 2.5DP, with a maximum hob diameter of 6″. Axial travel is 15″ and the table diameter is 20″. Equipped with change gears, conventional control, single thread index, coolant system, and tailstock. It is available for inspection and can be seen running under power before purchase, so you can verify operation and condition for yourself. Additional used gear machinery is also available. Use Activate Pricing to view current pricing on this listing, or Request a Quote and one of our representatives will follow up with details and freight options. This machine is located in Michigan.
Specifications
| Max Workpiece Diameter |
36" |
|---|---|
| Max Diametric Pitch |
2.5DP |
| Max Hob Diameter |
6" |
| Axial Travel |
15" |
| Table Diameter |
20" |
Features
|
Tailstock |
Change Gears |
|
Conventional Control |

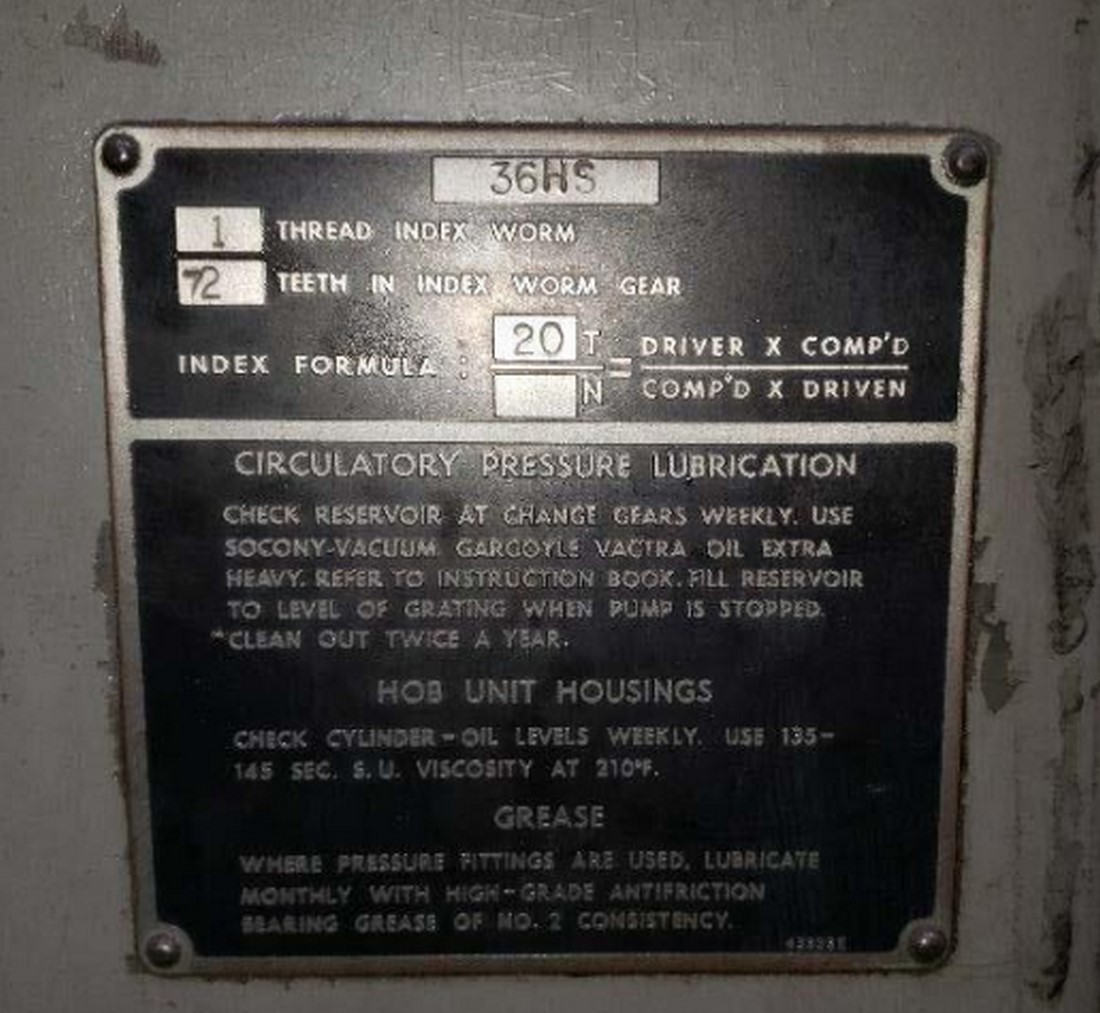

Single Thread Index |
|
Coolant System |
