Year |
2008 |
|---|---|
Make |
Accurshear |
Model |
625012 |
Description |
1/4" x 12' Hydraulic Shear |
Reference # |
8078768 |
Price |
Activate Pricing |

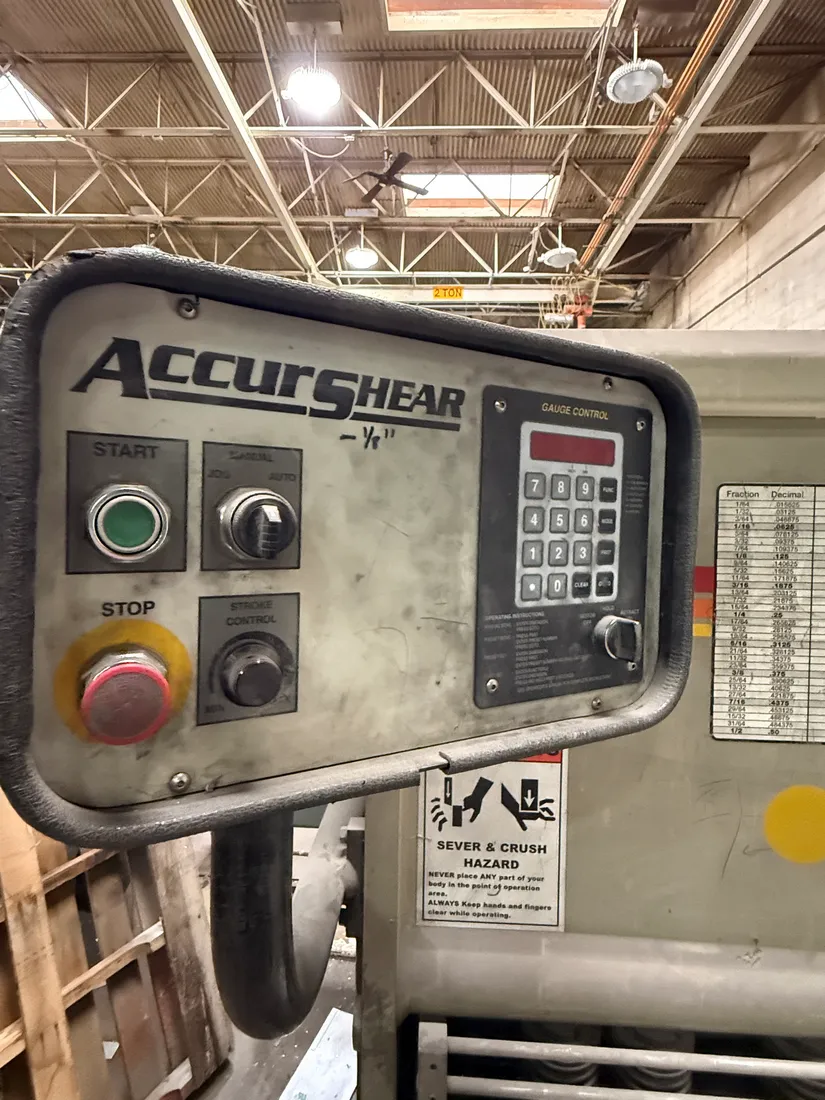

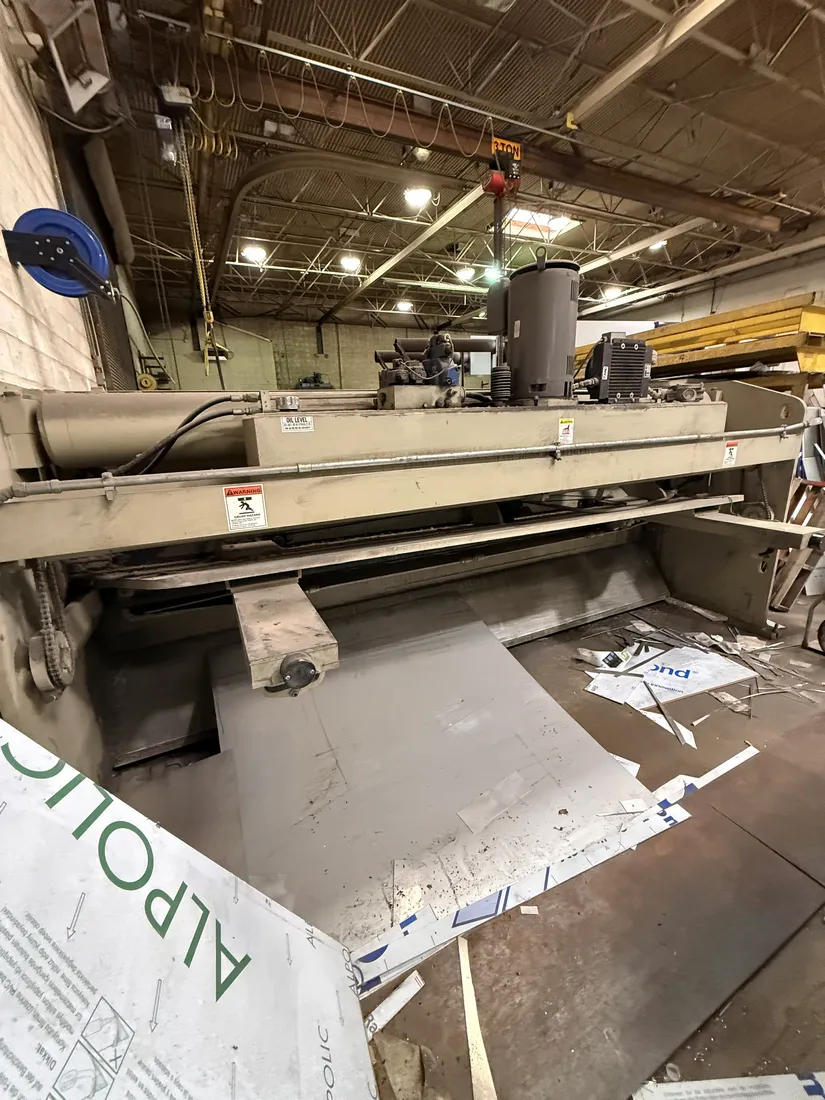

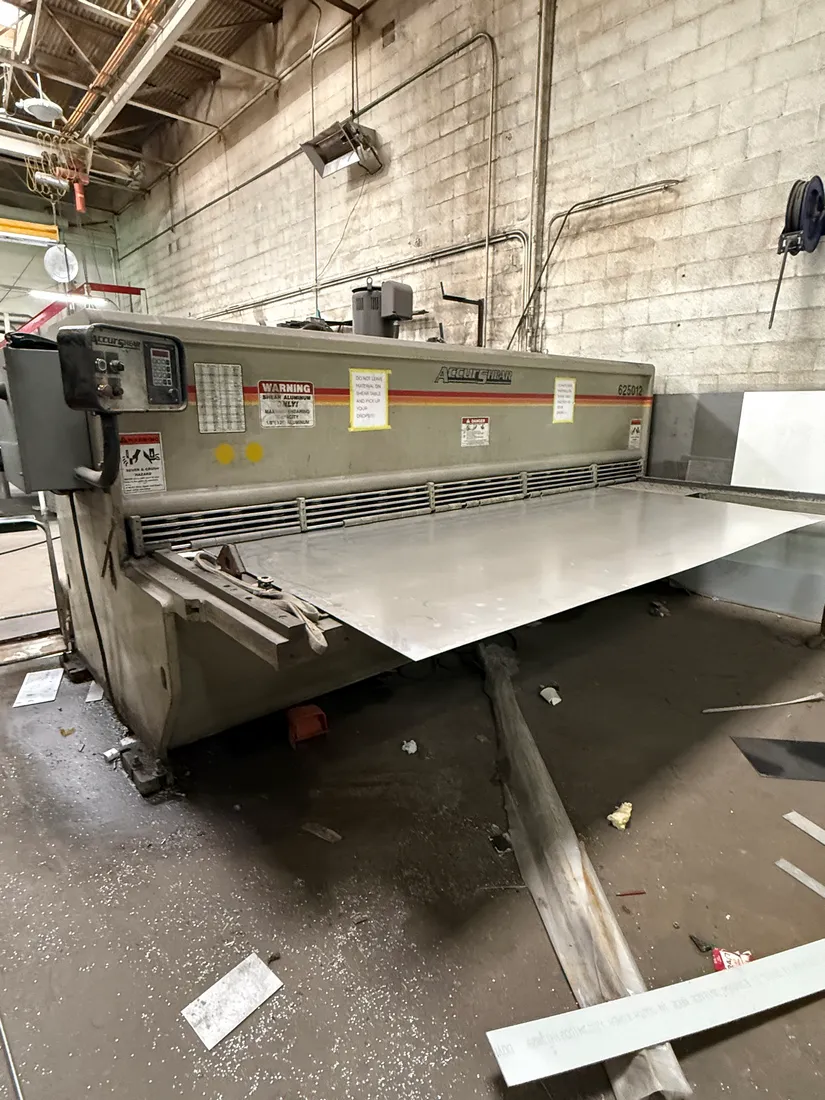

Used Accurshear 625012 (2008) Shear for Sale. This hydraulic shear has a 1/4″ capacity with a 12′ maximum shearing length, run by an Accurshear SC2 control. It includes a 36″ back gauge, a 4′ squaring arm, (19) hold downs and a hydraulic hold down. The 20 HP motor cycles at 20 CPM full stroke and 46 CPM short stroke, with a power requirement of 208/3/60. Approximate weight is 22,000 lbs and approximate dimensions are 171″ x 87″ x 83″. The machine can be seen under power for an inspection. See more used shears or browse additional Accurpress equipment in our inventory. Use Activate Pricing to view pricing on this listing, or Request a Quote and we will follow up with details.
Specifications
| Capacity |
1/4" |
|---|---|
| Max Shearing Length |
12' |
| Control |
Accurshear SC2 |
| Back Gauge |
36" |
| Squaring Arm |
4' |
| Motor |
20 HP |
| Cycles Full/Short Stroke |
20 CPM/46 CPM |

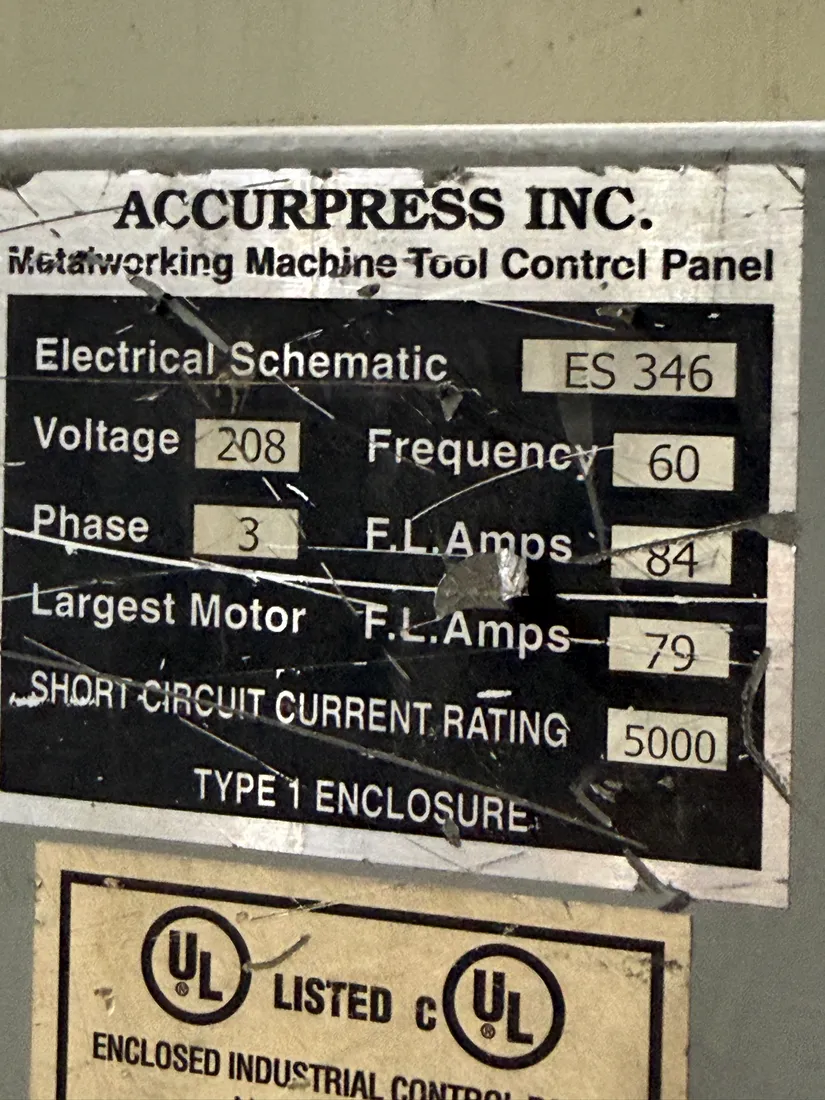

| Power Requirement |
208/3/60 |
| Approx. Weight |
22,000 Lbs |
| Approx. Dimensions |
171" x 87" x 83" |
Features
|
(19) Hold Downs |
Hydraulic Hold Down |
