Year |
2026 |
|---|---|
Make |
Glorystar |
Model |
NS-CE |
Description |
13' x 39' 40kW CNC Fiber Laser |
Reference # |
8078441 |
Price |
Activate Pricing |

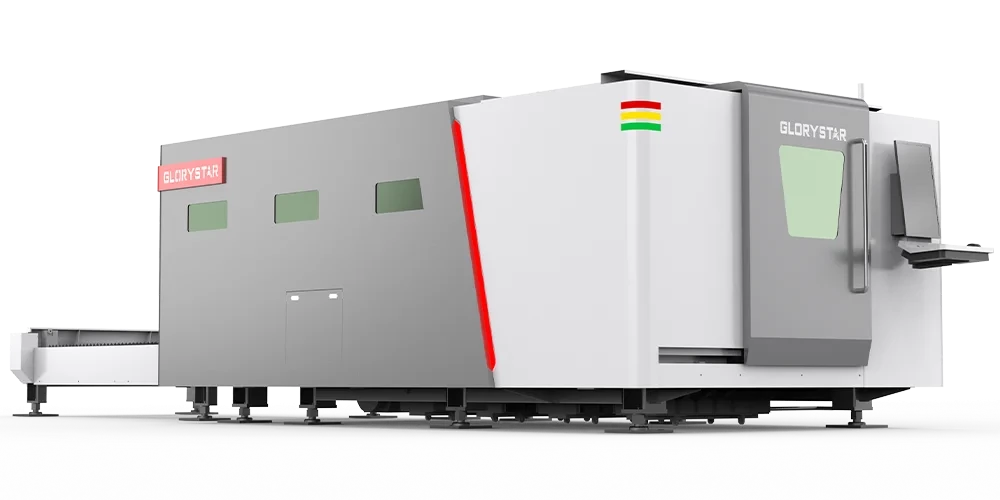

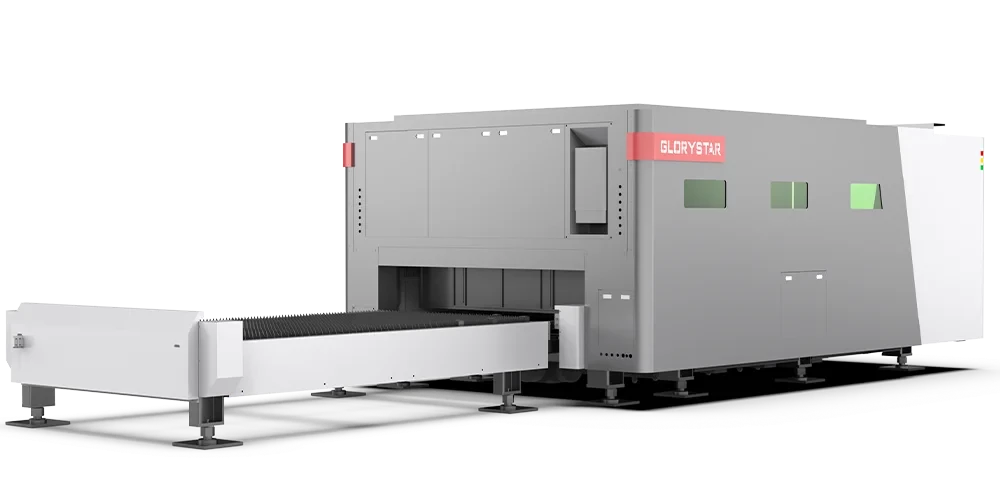

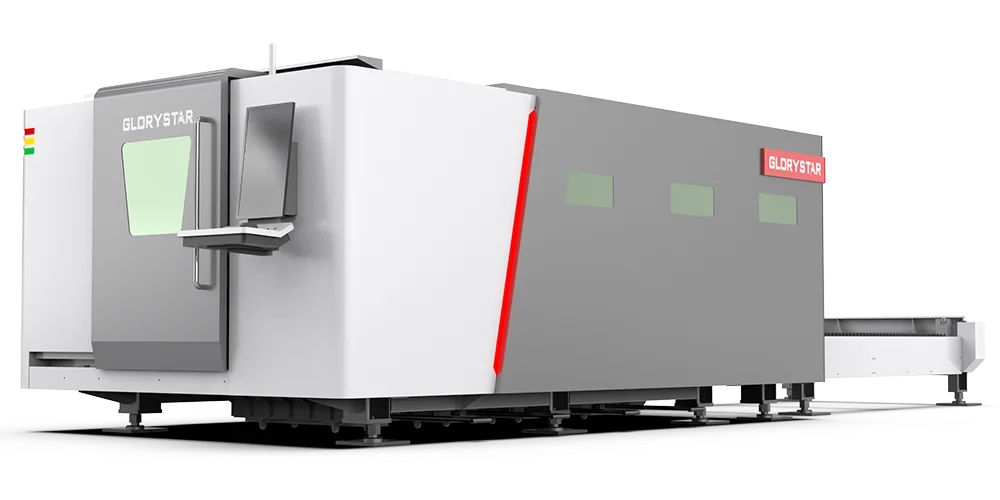

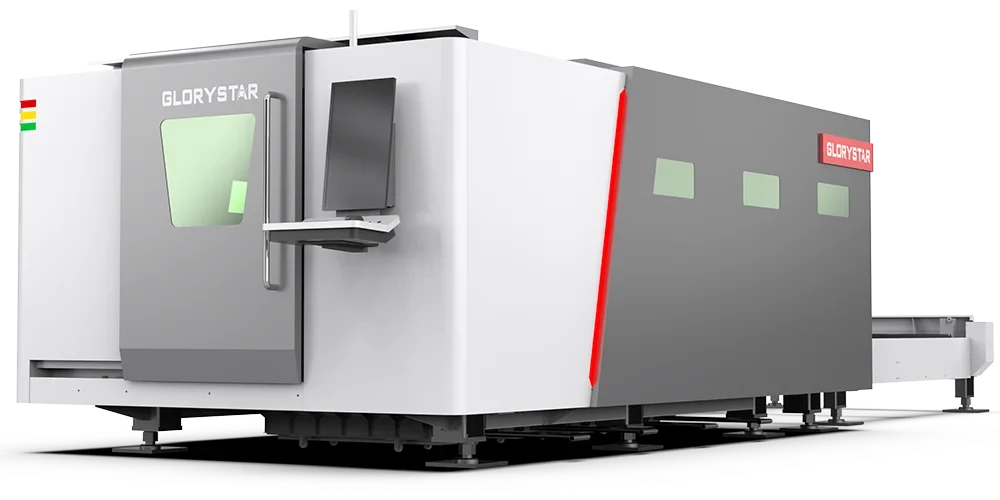

Used Glorystar NS-CE (2026) Fiber Laser for Sale. This machine is built on a heavy-duty dual-bed structure with a high-rigidity beam and rack & pinion dual drive, running a BOCHU CNC control with a servo controlled system and a 27″ LCD monitor. Table size is 13′ x 39′, with a table width range of 7′ – 13′ and length range of 8′ – 39′. Max wattage is 40,000, within a 12000 – 40000 range, and it will handle thick plate cutting up to 100mm. Max positioning speed is 624.5 FPM, positioning accuracy 0.00118″/39.4″, repeat position accuracy 0.00079″. Power requirement is 380V 3-Phase. Equipped with dust collector unit, chiller unit, dual pallet shuttle tables and IP51 protection rating. Available to be seen under power for inspection. See more fiber lasers, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
13' |
|---|---|
| Table Length |
39' |
| Table Width Range |
7' - 13' |
| Table Length Range |
8' - 39' |
| Max Wattage |
40,000 |
| Wattage Range |
12000 - 40000 |
| Control |
BOCHU CNC |
| Power Requirement |
380V 3-Phase |
| Max Positioning Speed |
624.5 FPM |
| Positioning Accuracy |
0.00118"/39.4" |
| Repeat Position Accuracy |
0.00079" |
Features
|
27" LCD Monitor |
Dust Collector Unit |
|
Heavy-Duty Dual-Bed Structure |
High-Rigidity Beam |
|
Protection Rating IP51 |
Rack & Pinion Dual Drive |
|
Servo Controlled System |
Thick Plate Cutting Up to 100mm |
|
Chiller Unit |
Dual Pallet Shuttle Tables |
