Year |
2026 |
|---|---|
Make |
Glorystar |
Model |
GS-CE Pro |
Description |
8' x 40' 40kW CNC Fiber Laser |
Reference # |
8078435 |
Price |
Activate Pricing |

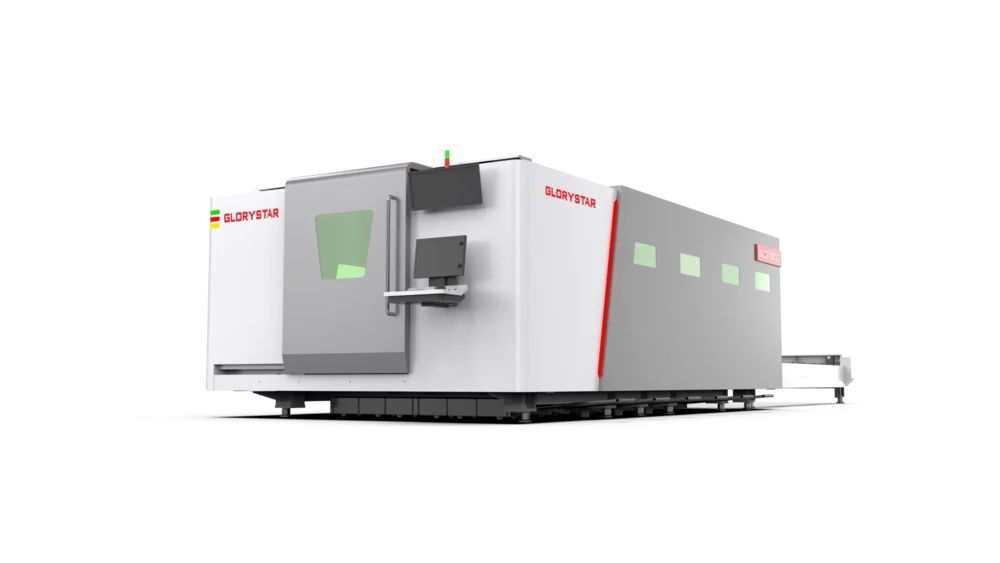

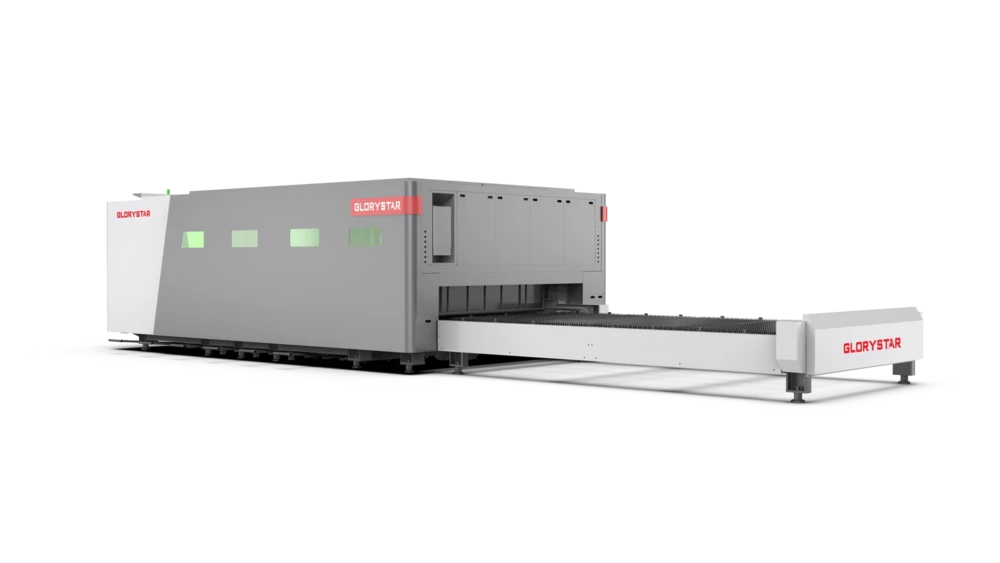

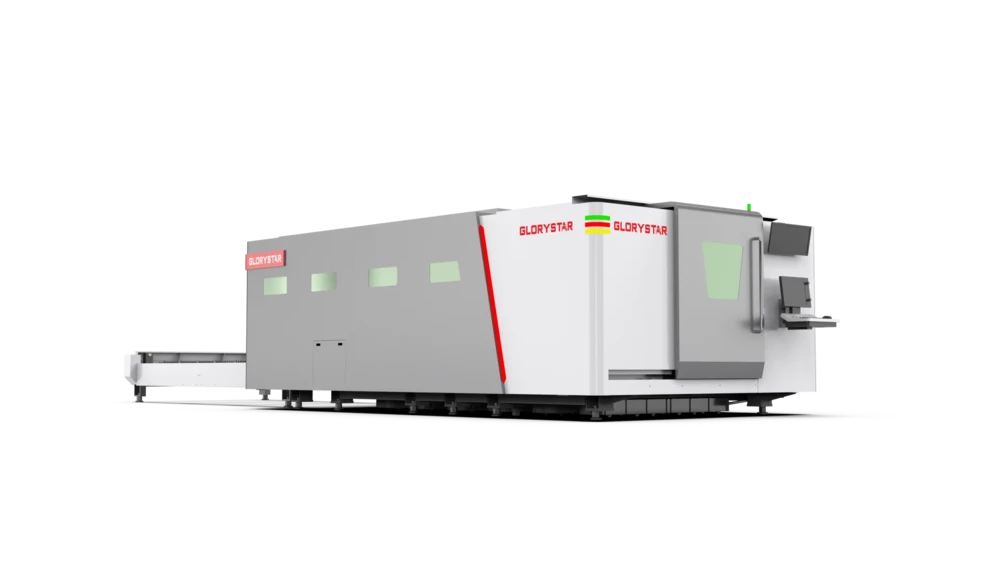

Used Glorystar GS-CE Pro (2026) Fiber Laser for Sale. This machine is built with an 8′ x 40′ table, with configurations available from 5′ to 8′ wide and 10′ to 40′ long, and a maximum output of 40,000 watts within a 12,000 to 40,000 watt range. It runs BOCHU CNC control on 380V 3-phase power, with a maximum positioning speed of 624.5 FPM, positioning accuracy of 0.00118″/39.4″ and repeat position accuracy of 0.00079″. Equipped with a 15-second shuttle exchange table, dual pallet shuttle tables, 27″ LCD monitor, aerospace aluminum beam, dual-support anti-deformation bed, rack and pinion dual drive, intelligent dust extraction system, dust collector, chiller unit and IP51 protection rating. Available to be seen under power for inspection. See more fiber lasers, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
8' |
|---|---|
| Table Length |
40' |
| Table Width Range |
5' - 8' |
| Table Length Range |
10' - 40' |
| Max Wattage |
40,000 |
| Wattage Range |
12,000 - 40,000 |
| Control |
BOCHU CNC |
| Power Requirement |
380V 3-Phase |
| Max Positioning Speed |
624.5 FPM |
| Positioning Accuracy |
0.00118"/39.4" |
| Repeat Position Accuracy |
0.00079" |
Features
|
15-Second Shuttle Exchange Table |
27" LCD Monitor |
|
Aerospace Aluminum Beam |
Dual-Support Anti-Deformation Bed |
|
Intelligent Dust Extraction System |
IP51 Protection Rating |
|
Rack & Pinion Dual Drive |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Dust Collector |
