Year |
2025 |
|---|---|
Make |
XingPack |
Model |
UTGPE-02&03 |
Description |
Floor Type Automatic Pallet Magazine/Pallet Dispenser |
Reference # |
8078867 |
Price |
Activate Pricing |

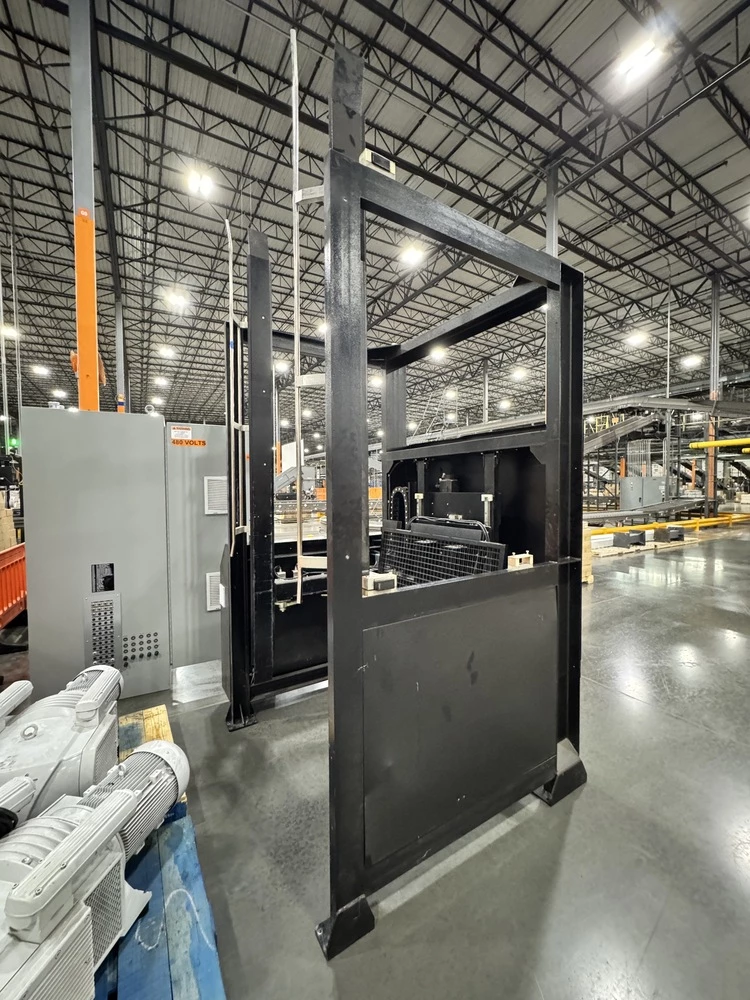

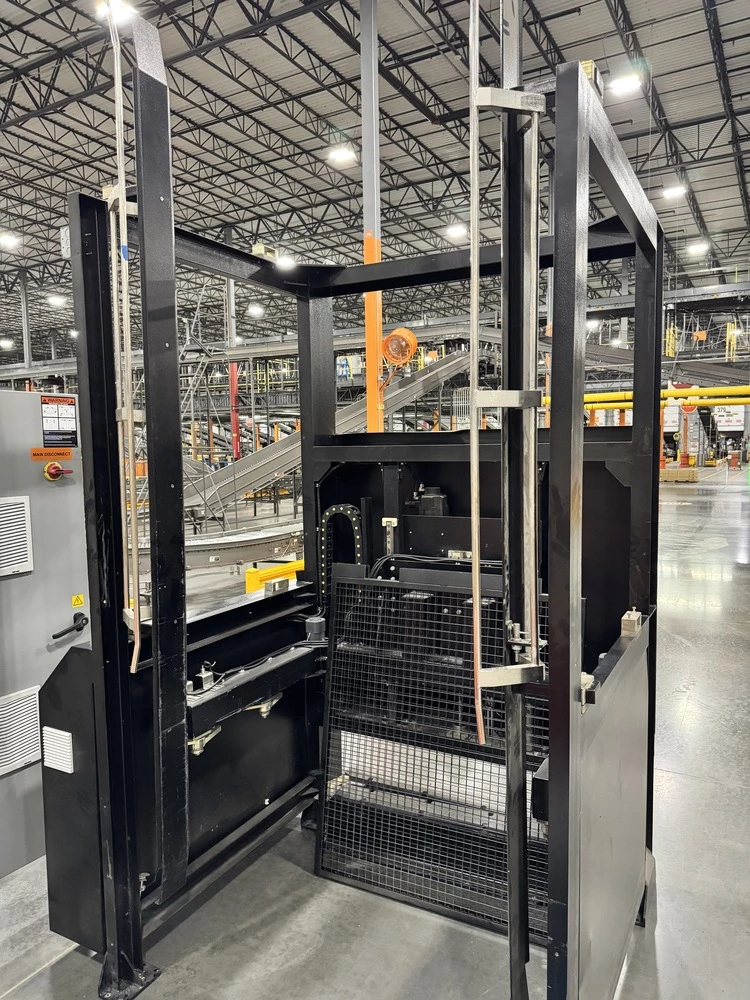

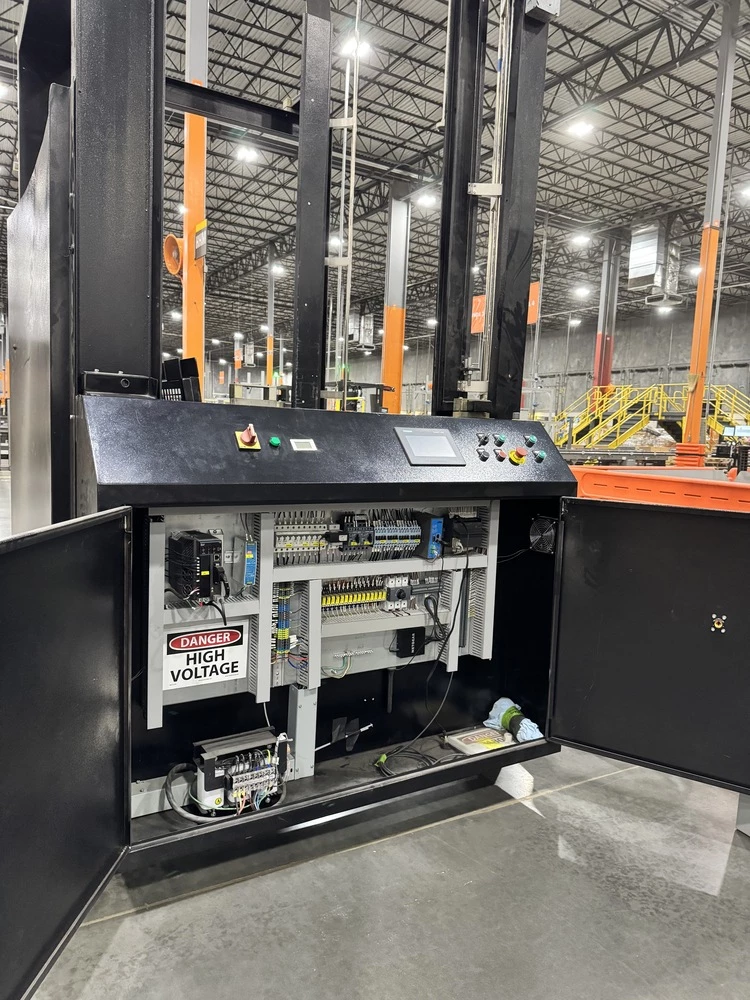

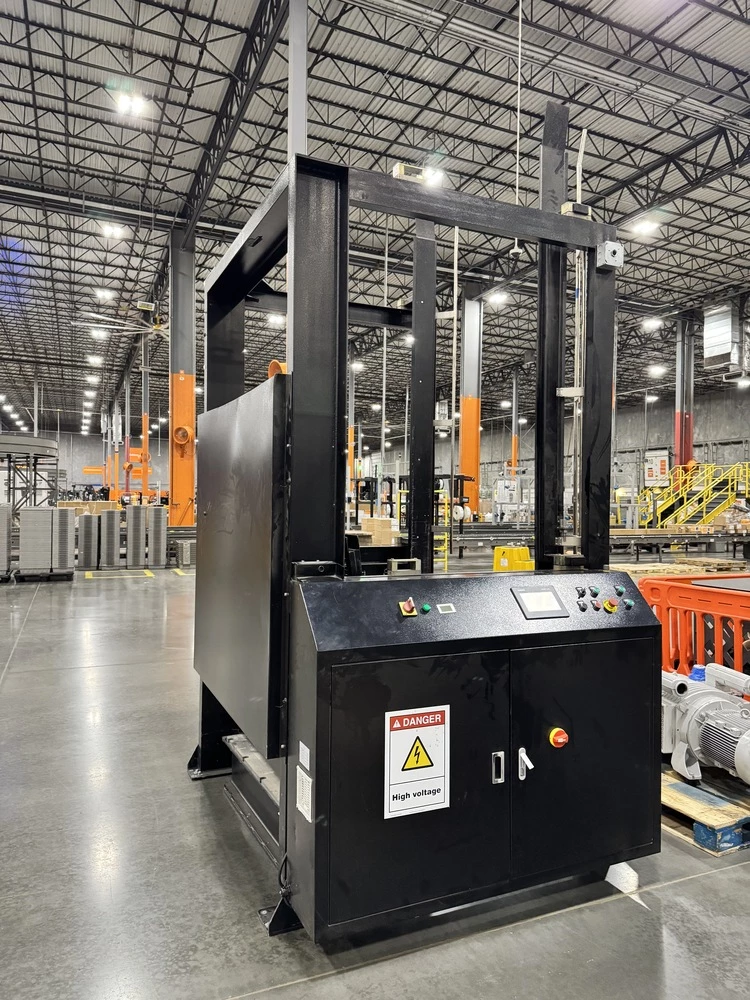

Used XingPack UTGPE-02&03 (2025) Other Equipment for Sale. This pallet handling unit holds a maximum of 10–11 pallets and accepts pallet sizes up to 1150mm x 1150mm (approximately 45″ x 45″) at roughly 15kg per pallet. Cycle time is 10 seconds per pallet, giving throughput of up to 300 pallets per hour. The lifting motor is rated 1.3 kW and the top fork motor 0.09 kW. Power requirement is 380V / 50Hz / 3-phase, or as specified by the customer. Controls use a Siemens PLC with Sick/Omron photoelectric sensors, and the unit runs on HRB bearings. The machine can be seen under power for an inspection. Request a Quote for full details and availability.
Specifications
| Pallet Capacity |
10–11 Pallets Max |
|---|---|
| Pallet Size |
Up to 1150mm x 1150mm (Approx. 45" x 45") / ~15kg per Pallet |
| Cycle Time |
10 Seconds Per Pallet |
| Throughput |
Up to 300 Pallets Per Hour |
| Lifting Motor |
1.3 kW |
| Top Fork Motor |
0.09 kW |
| Power Requirement |
380V / 50Hz / 3-Phase (Or Customer Specified) |
| PLC Controller |
Siemens |
| Photoelectric Sensors |
Sick/Omron |
| Bearings |
HRB |
