Year |
2025 |
|---|---|
Make |
Vision Miner |
Model |
22IDEX-V4 |
Description |
High-Temperature 3D Printer |
Reference # |
8078755 |
Price |
Activate Pricing |

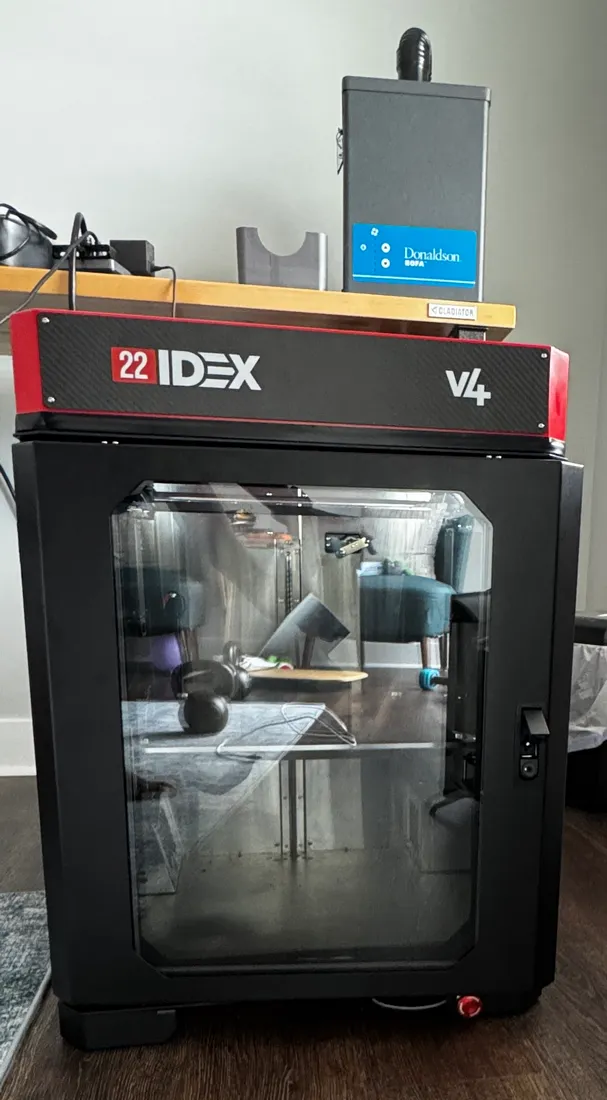

Used Vision Miner 22IDEX-V4 (2025) Other Equipment for Sale. This high-temperature industrial 3D printer offers a build area of 13.7″ x 13.7″ x 17.7″ with position accuracy of 10 μm on X/Y and 7 μm on Z, and a layer resolution of 0.005″ (125 micron). Max travel speed is 500 mm/s, with printing speeds of 30–200 mm/s. Nozzle temperature reaches 500ºC, build platform 200ºC+, and chamber 100ºC+. Equipped with convection heating, IDEX dual extruder, overheat and thermal runaway protection, PrintPRO 3 fume extractor, RGB lighting, and triple wall stainless steel insulation. It prints virtually all filaments and shows under 100 hours. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Build Area (WxDxH) |
13.7" x 13.7" x 17.7" |
|---|---|
| Position Accuracy |
X/Y- 10 μm / Z- 7 μm |
| Layer Resolution |
0.005" (125 micron) |
| Max Travel Speed |
500 mm/s |
| Printing Speeds |
30–200 mm/s |
| Nozzle Temp |
500ºC |
| Build Platform |
200ºC+ |
| Chamber |
100ºC+ |
Features
|
Convection Heating |
IDEX Dual Extruder |
|
Overheat & Thermal Runaway Protection |
PrintPRO 3 Fume Extractor |
|
Prints Virtually All Filaments |
RGB Lighting |
|
Triple Wall Stainless Steel Insulation |
Under 100 Hours |
