Year |
2025 |
|---|---|
Make |
Vision Miner |
Model |
22 IDEX V4 |
Description |
High-Temperature 3D Printer |
Reference # |
8078746 |
Price |
Activate Pricing |

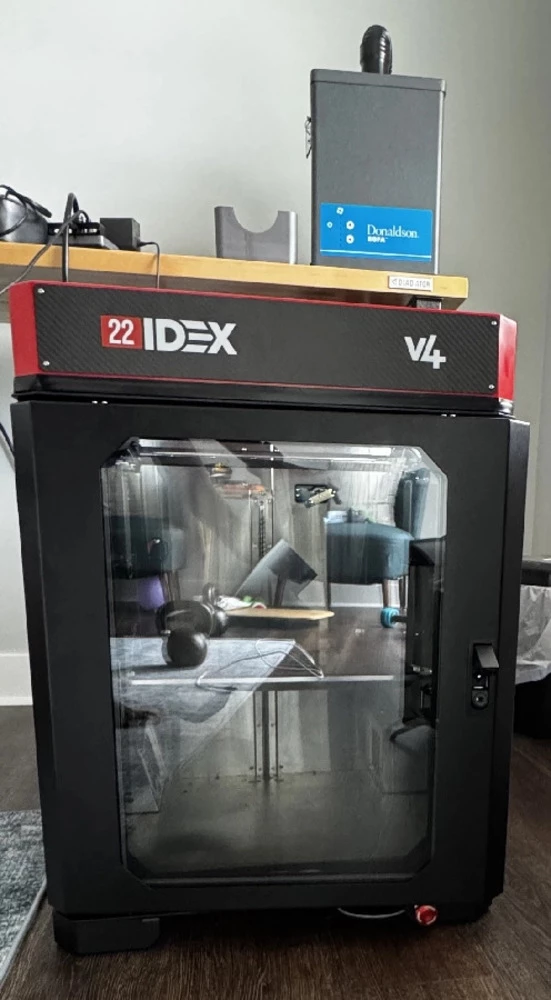

Used Vision Miner 22 IDEX V4 (2025) Other Equipment for Sale. This industrial 3D printer offers a work space of 13.7″ x 13.7″ x 17.7″ with position accuracy of 10 μm on X/Y and 7 μm on Z, and a layer resolution of 0.005″ (125 micron). Max travel speed is 500 mm/s, with printing speeds from 30 to 200 mm/s. Nozzles reach 500º C, the build platform 200º C+, and the chamber 100º C+. Equipped with convection heating, an IDEX dual extruder, overheat and thermal runaway protection, a PrintPRO 3 fume extractor, RGB lighting and triple wall stainless steel insulation. It prints virtually all filaments and has under 100 hours. The machine can be seen under power for an inspection. Request a Quote for further details.
Specifications
| Work Space |
13.7" x 13.7" x 17.7" |
|---|---|
| Position Accuracy |
(X/Y- 10 μm) (Z- 7 μm) |
| Layer Resolution |
0.005" (125 micron) |
| Max Travel Speed |
500 mm/s |
| Printing Speeds |
30–200 mm/s |
| Nozzles |
500º C |
| Build Platform |
200º C+ |
| Chamber |
100º C+ |
Features
|
Convection Heating |
IDEX Dual Extruder |
|
Overheat & Thermal Runaway Protection |
PrintPRO 3 Fume Extractor |
|
Prints Virtually All Filaments |
RGB Lighting |
|
Triple Wall Stainless Steel Insulation |
Under 100 Hours |
