Year |
2024 |
|---|---|
Make |
DN Solutions |
Model |
Puma 4100LMB |
Description |
CNC Lathe |
Reference # |
8078654 |
Price |
$229,750.00 |

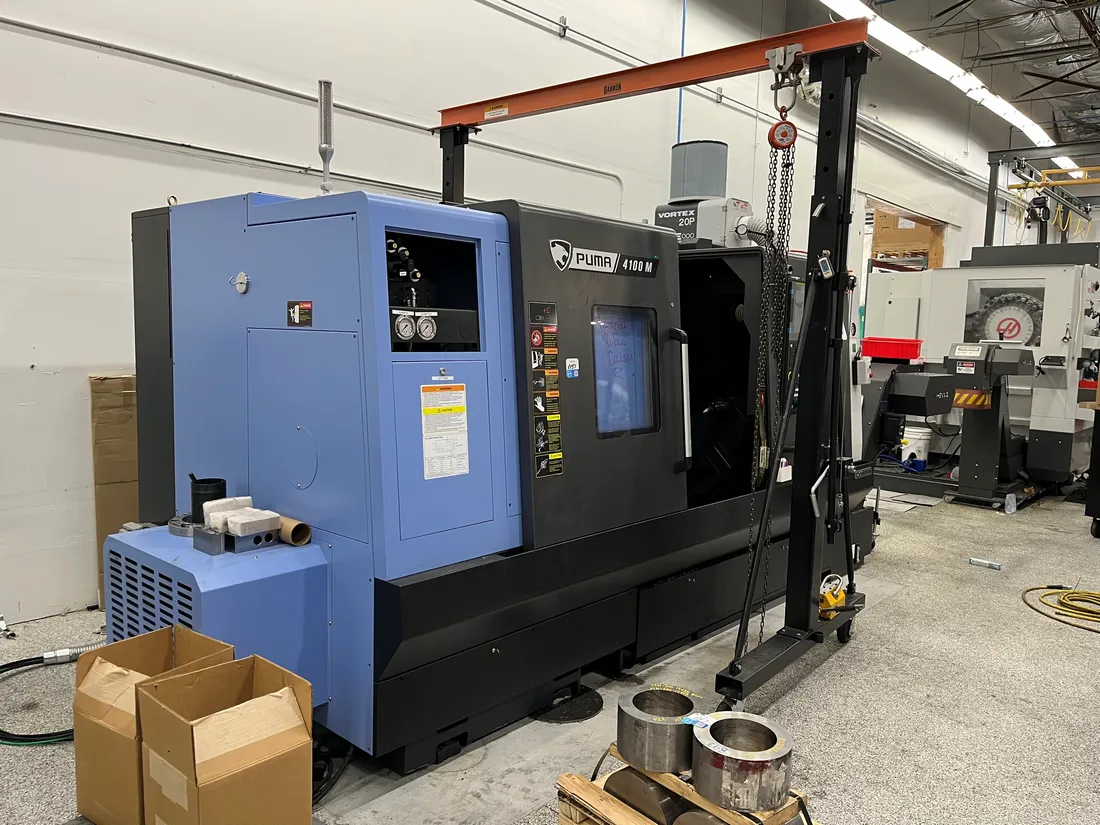

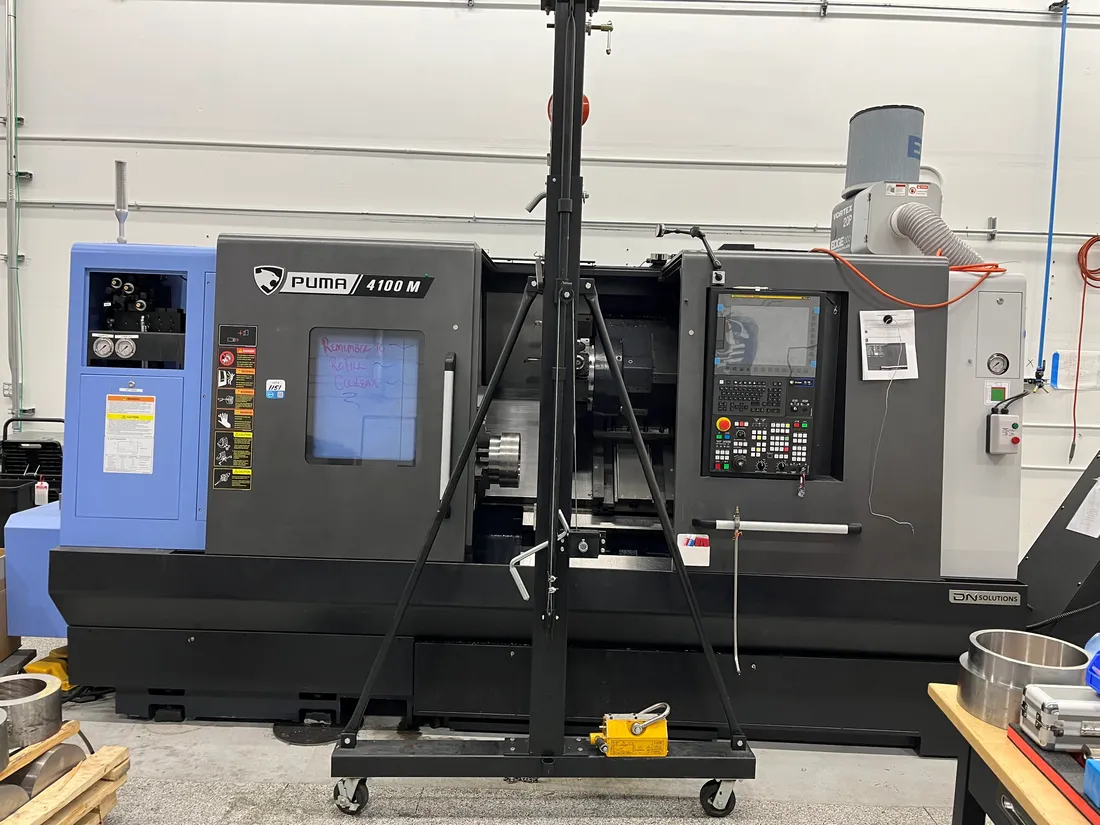

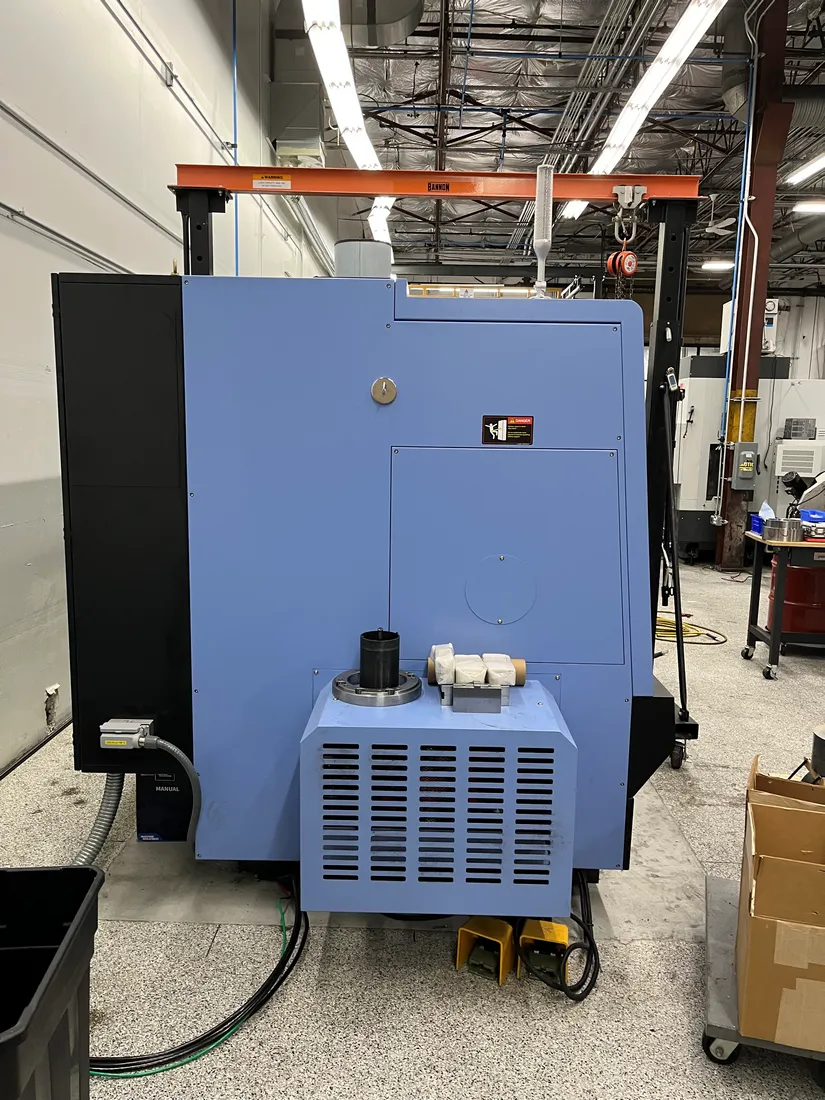

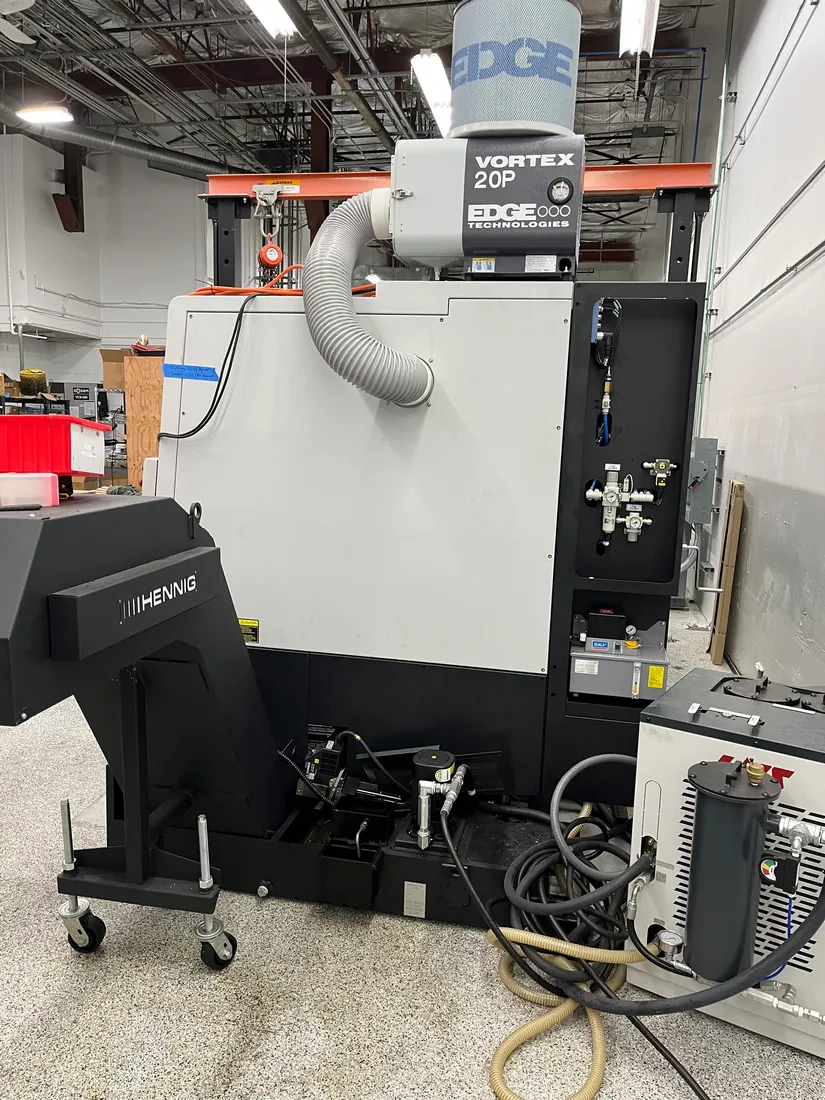

Used DN Solutions Puma 4100LMB (2024) CNC Lathe for Sale. This model carries a 20″ chuck, 4.6″ bar capacity, 31.1″ swing and 21.65″ turning diameter, with 38.5″ distance between centers. Spindle speed is 2,000 RPM under Fanuc CNC control. The machine has a 12 station turret with C-axis live tooling and a chip conveyor. Equipped with a 20″ Samchully chuck, ChipBlaster 1000 PSI high pressure coolant system, Henning side discharge conveyor with variable speed drive, auto tool presetter and tailstock. It can be seen under power for an inspection by appointment. See other used CNC lathes or browse more machines from this manufacturer. Activate Pricing to view the figure, or Request a Quote and we will follow up with details.
Specifications
| Chuck Size |
20" |
|---|---|
| Bar Capacity |
4.6" |
| Swing |
31.1" |
| Turning Diameter |
21.65" |
| Spindle Speed |
2,000 RPM |
| Control |
Fanuc CNC |
| Distance Between Centers |
38.5" |

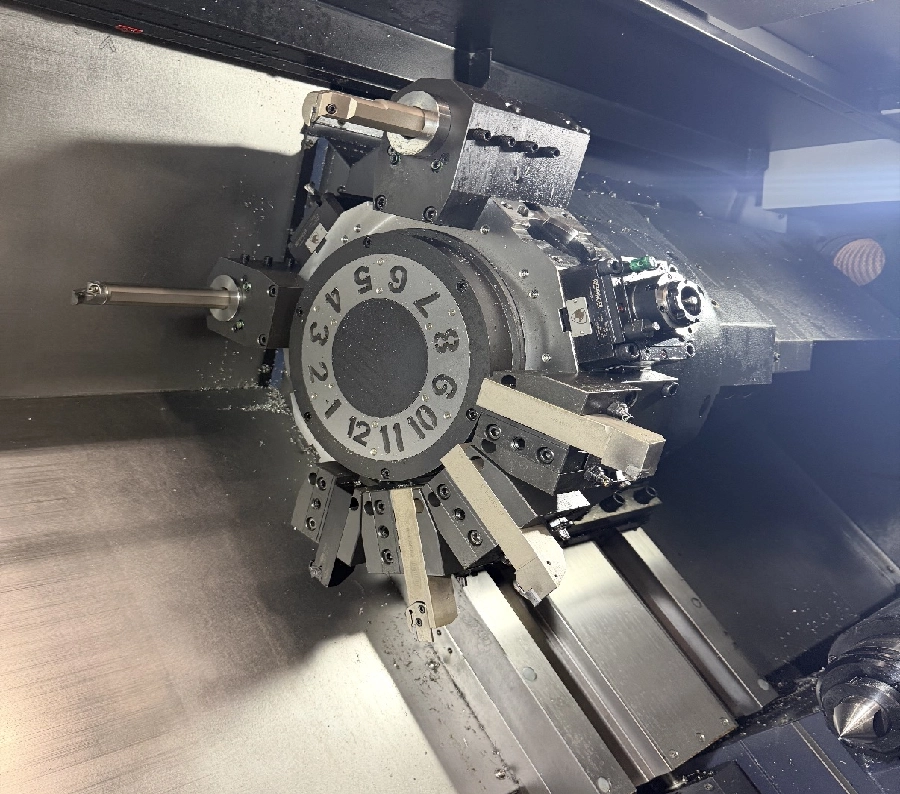

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor |
Features
|
20" Samchully Chuck |
ChipBlaster 1000 PSI High Pressure Coolant System |
|

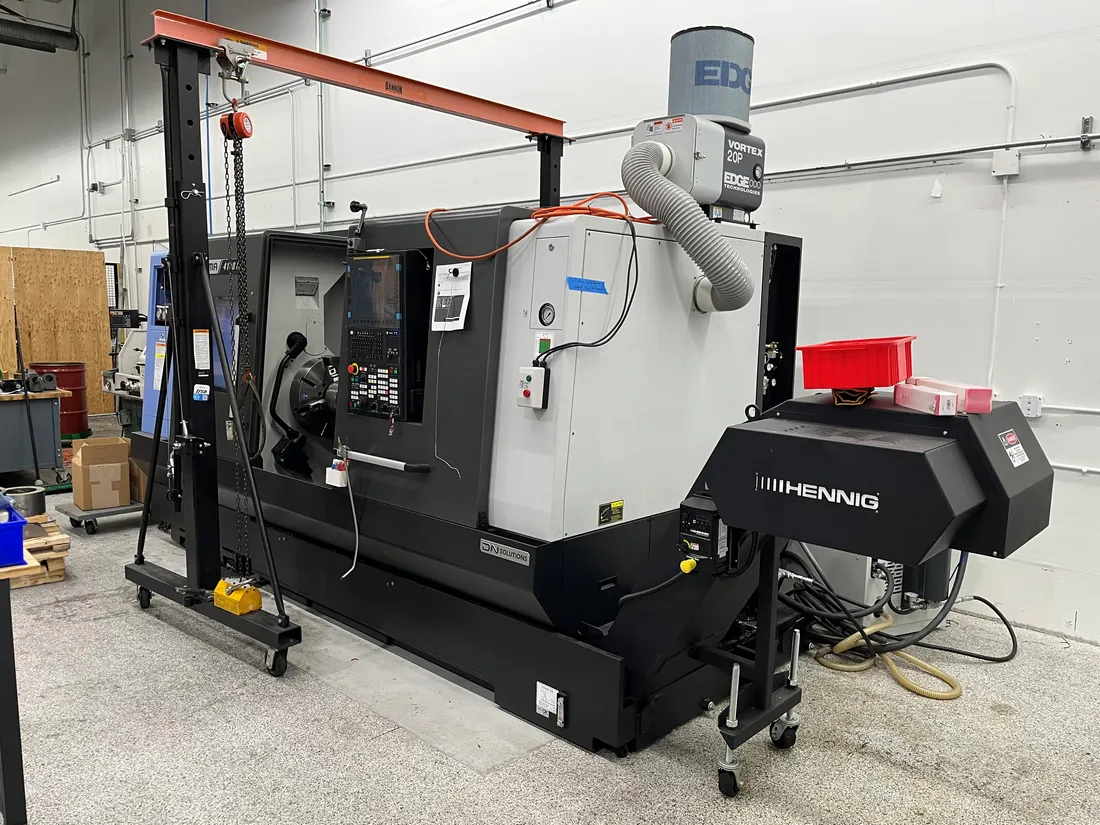

Henning Side Discharge Conveyor with Variable Speed Drive |
Tailstock |
|
Auto Tool Presetter |
