Year |
2023 |
|---|---|
Make |
Trumpf |
Model |
TruLaser Weld 1000 |
Description |
Robotic Welding Cell |
Reference # |
8079217 |
Price |
Activate Pricing |

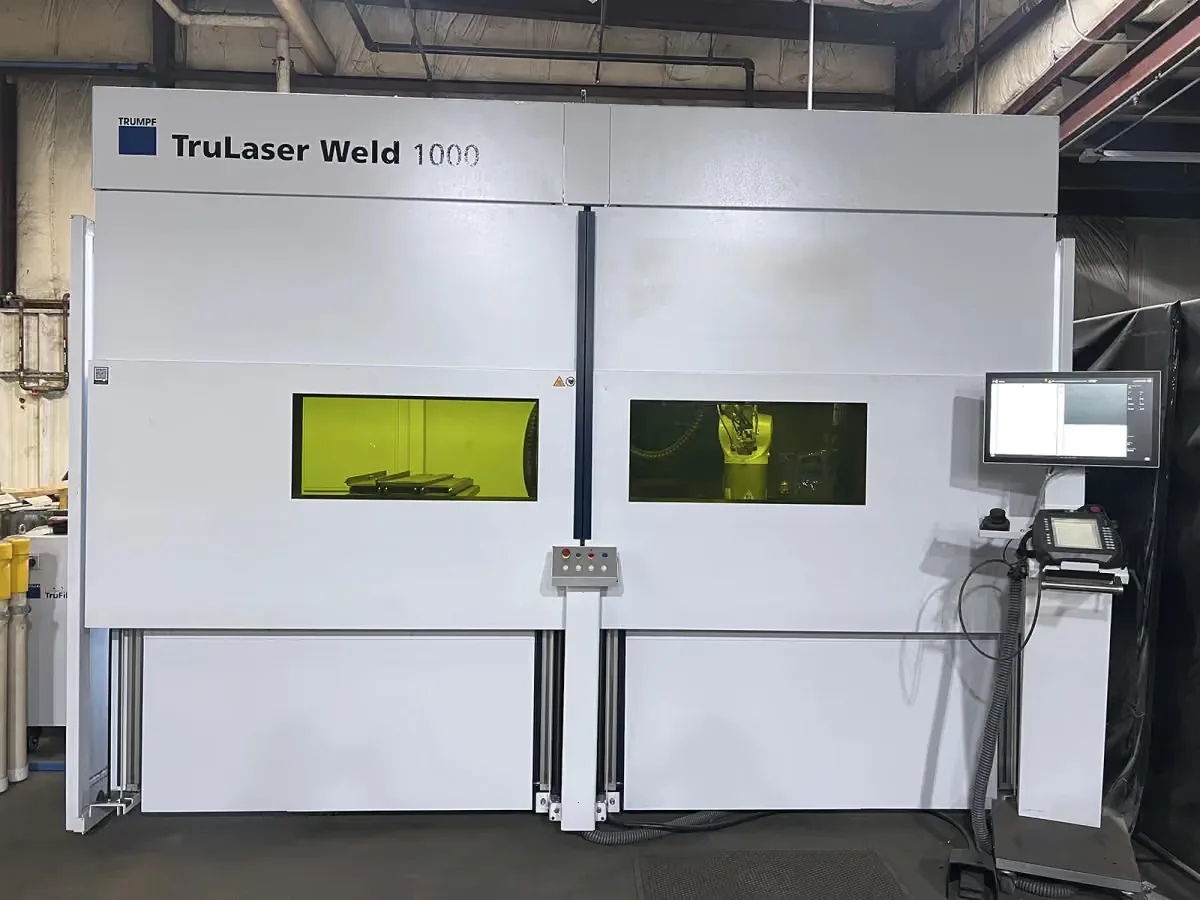

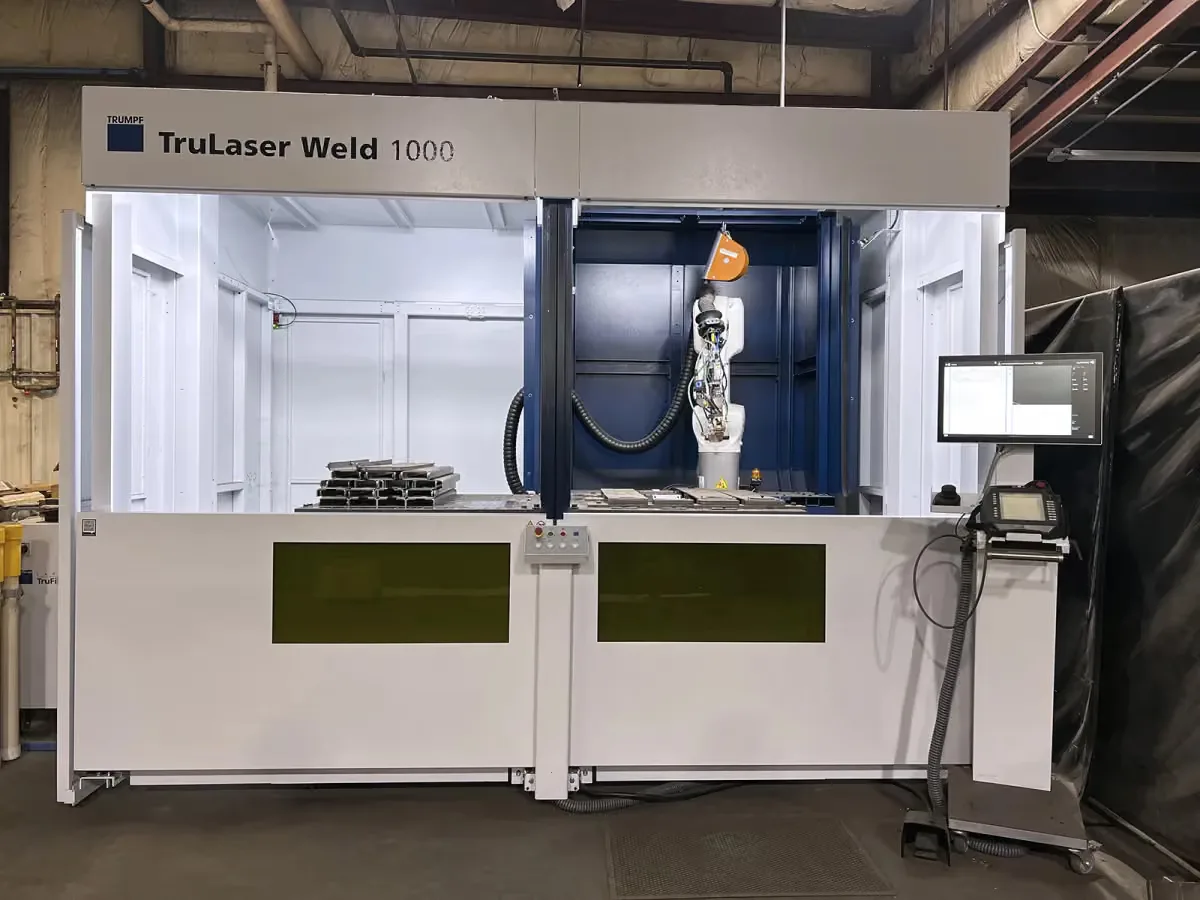

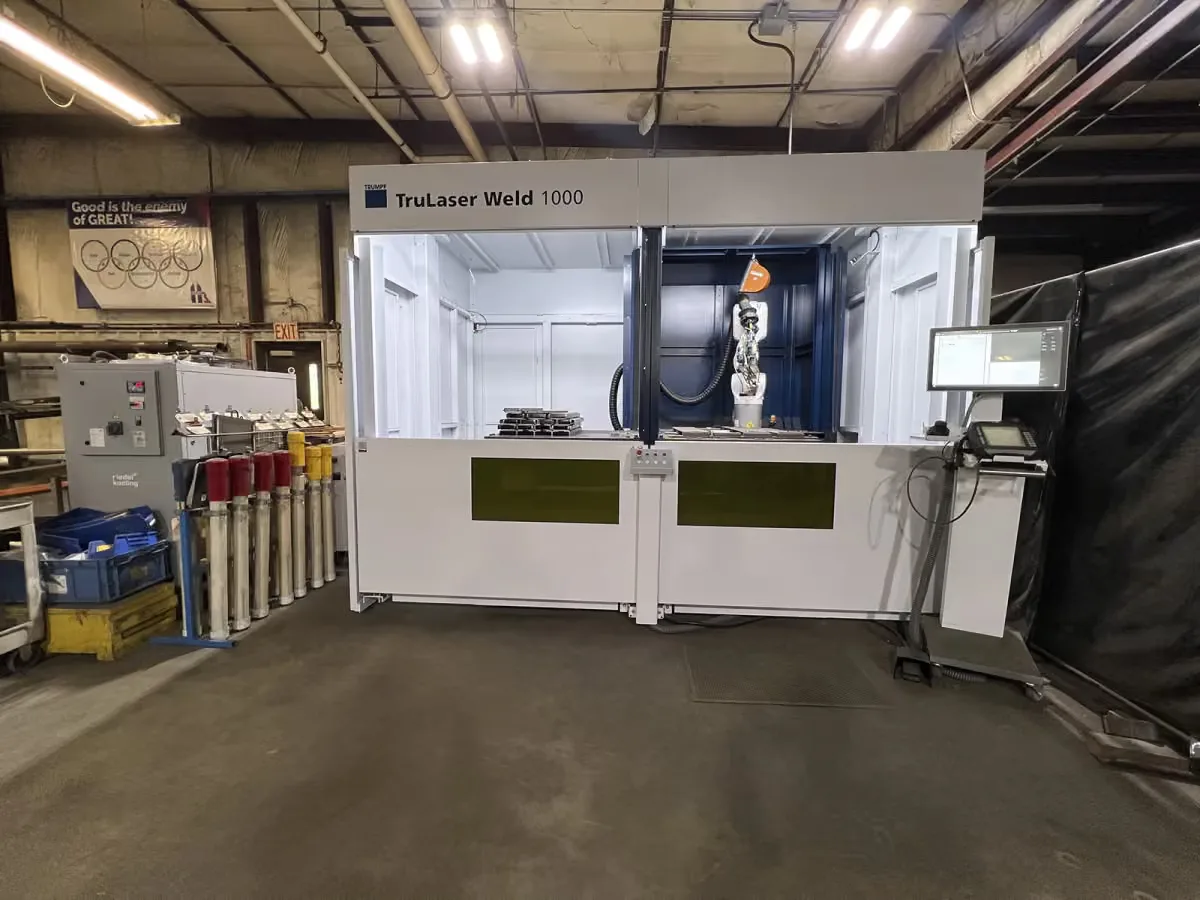

Used Trumpf TruLaser Weld 1000 (2023) Robotic Welding Cell for Sale. This cell is equipped with a Trumpf TruFiber 3002 P 3 kW fiber laser source at a 1070 nm wavelength, a TRUMPF laser welding head, Beckhoff CP3921 industrial PC with 21.5″ touchscreen HMI, and Trumpf Cell Control software on EtherCAT architecture. Motion comes from a KUKA KR 10 R11002 FLR robot with KRC5 controller pendant, offering 43.35 in (1101 mm) maximum reach and travels of +/-185 degrees on J1, +90/-61 degrees on J2, +65/-209 degrees on J3, +/-350 degrees on J4, +/-125 degrees on J5, and +/-350 degrees on J6. Also included are a servo driven rotary axis, modular welding table, Riedel RL13/0 SR chiller, and a full Class 1 laser safety enclosure with laser safe viewing windows. The machine can be seen under power for an inspection. See our other used robotic welders and used Trumpf machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Welding Fiber Laser Source Power |
3kW |
|---|---|
| Laser Wavelength |
1070 Nm (1.07 µM) |
| Maximum Reach |
43.35 in (1101 mm) |
| Axis 1 |
J1 Base Rotation Travel: ±185° |
| Axis 2 |
J2 Shoulder Travel: +90° / –61° |
| Axis 3 |
J3 Elbow Travel: +65° / –209° |
| Axis 4 |
J4 Wrist Roll Travel: ±350° |
| Axis 5 |
J5 Wrist Bend Travel: ±125° |
| Axis 6 |
J6 Wrist Rotate Travel: ±350° |
Features
|

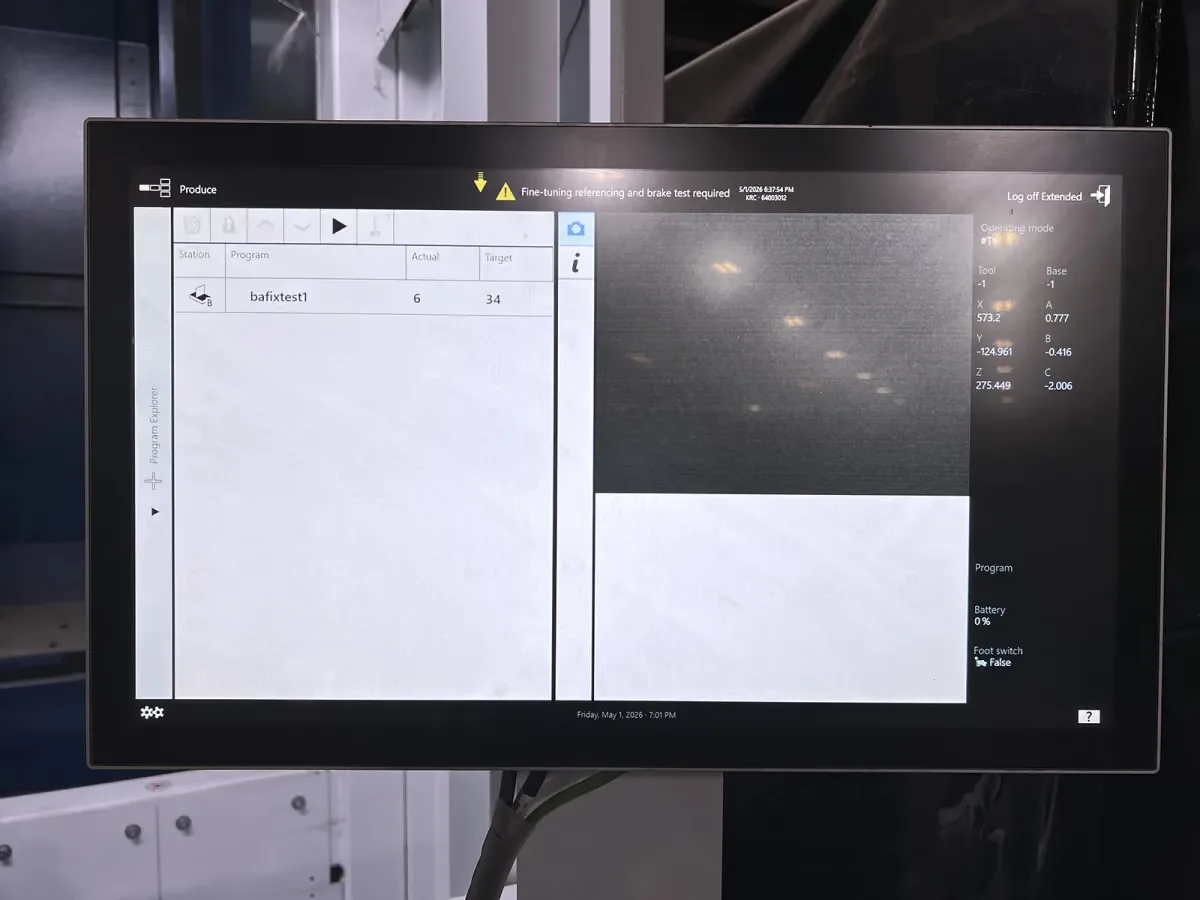

Beckhoff CP3921 Industrial PC: 21.5" Touchscreen HMI |
Full Class 1 Laser Safety Enclosure |
|

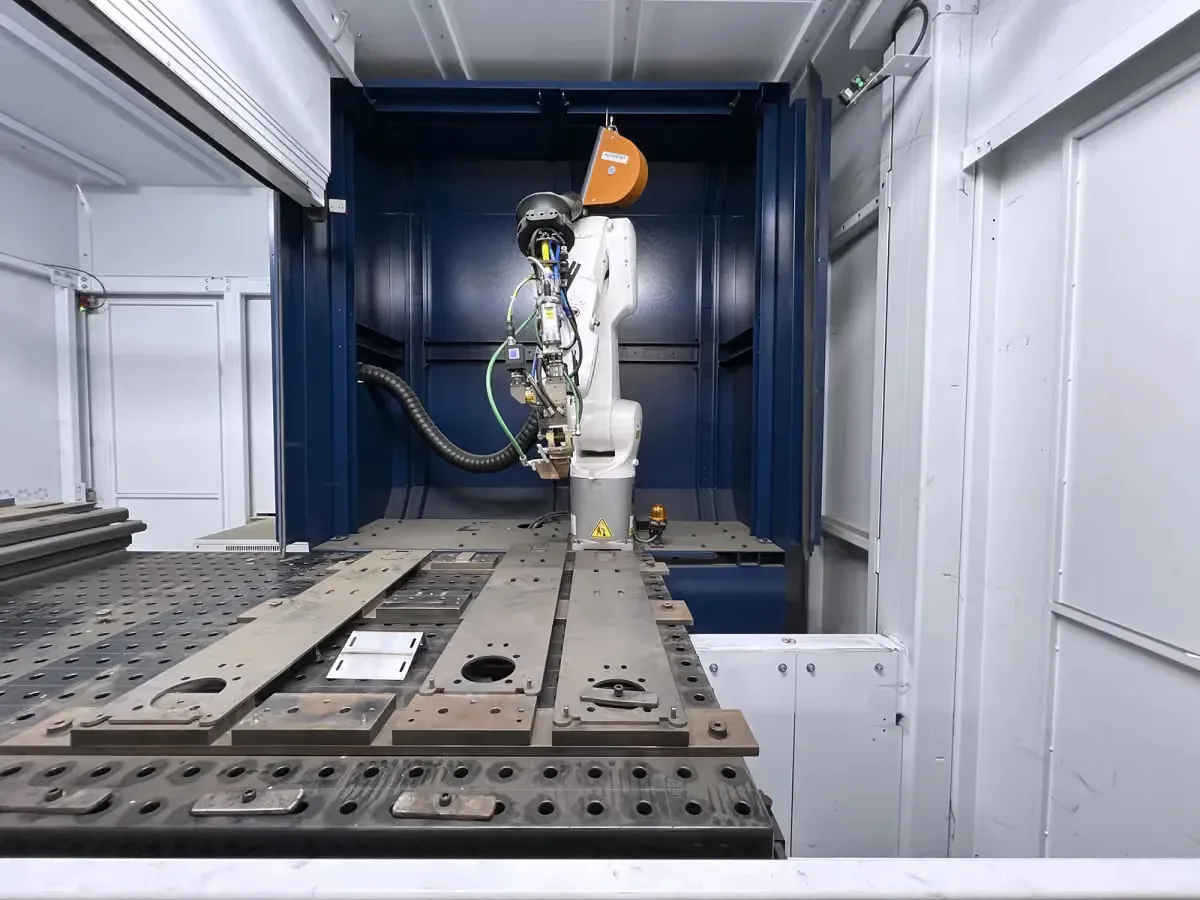

KUKA KR 10 R1100‑2 FLR Robot |

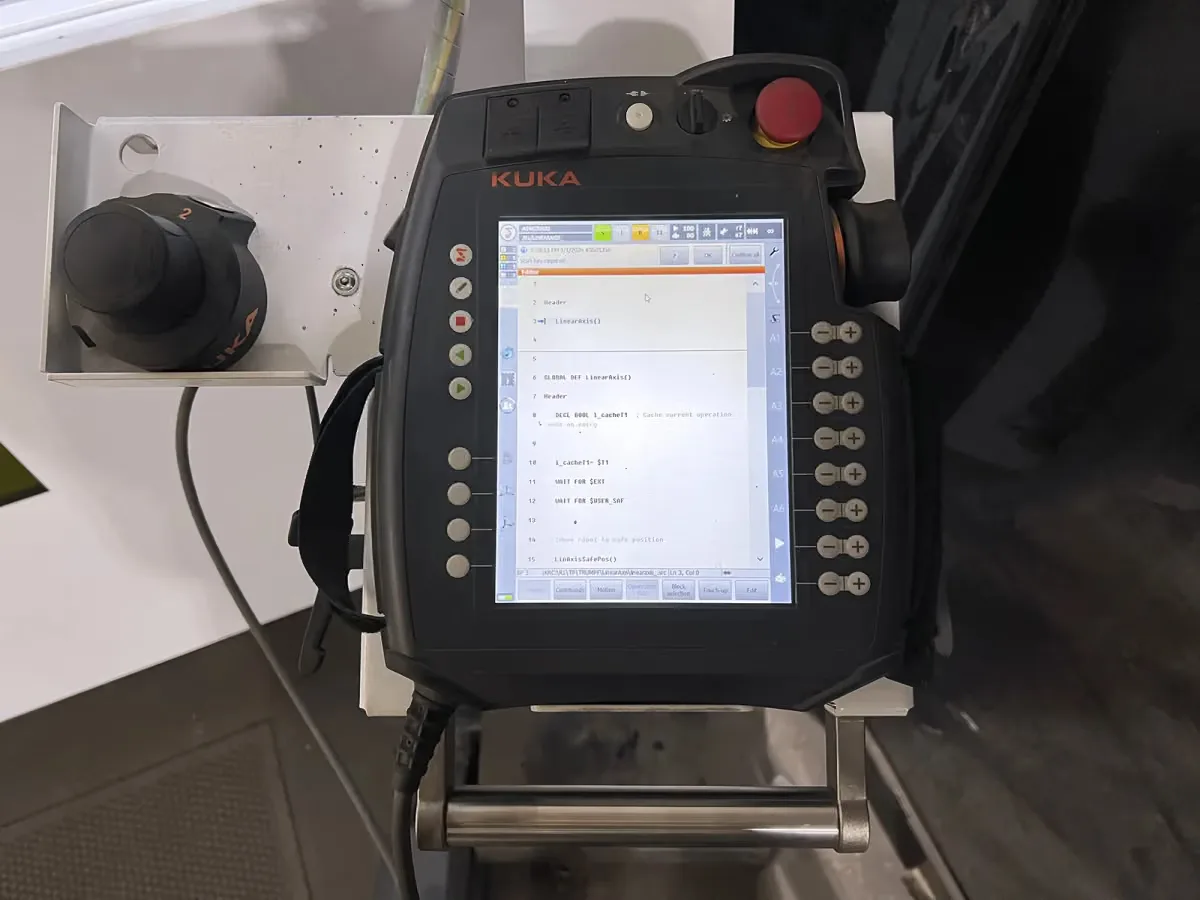

KUKA KRC5 Robot Controller Pendant |
|
Laser Safe Viewing Windows |

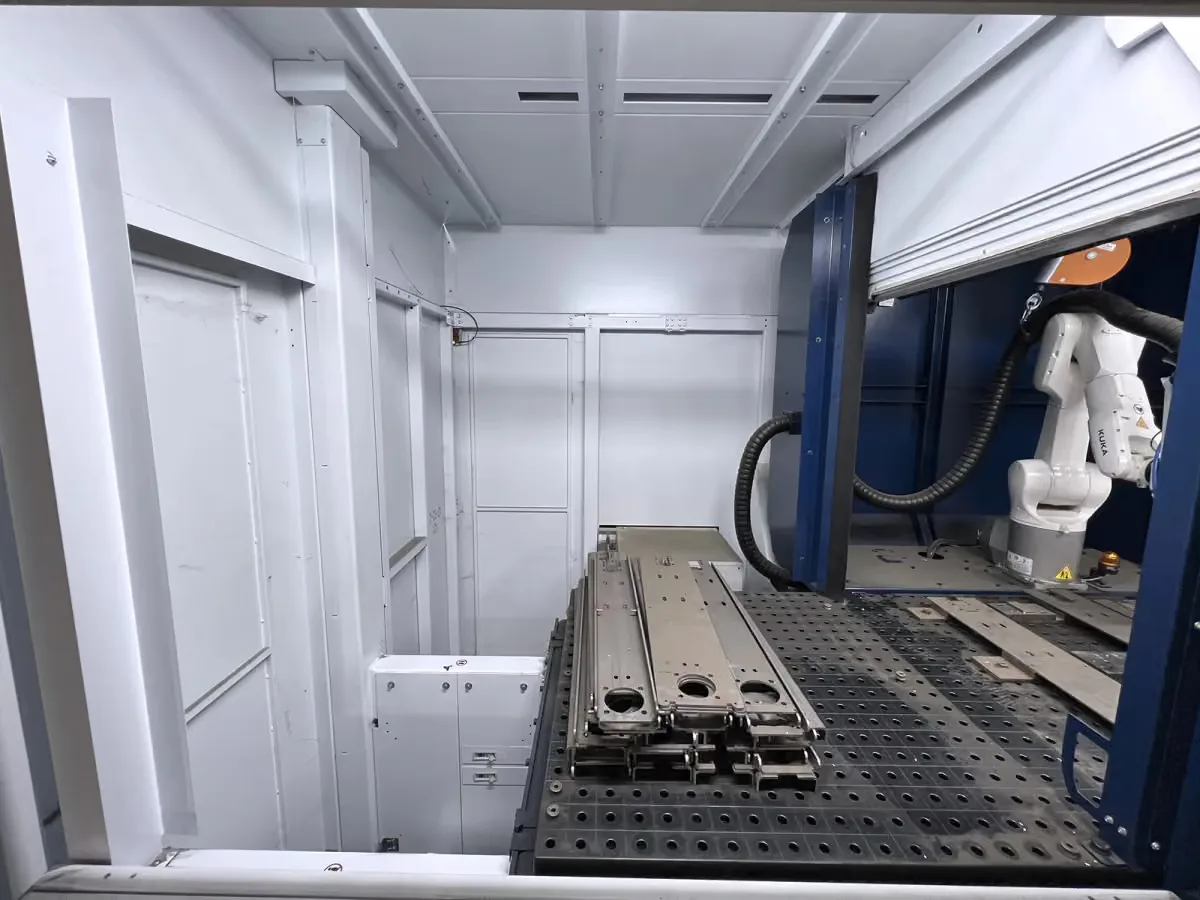

Modular Welding Table |
|

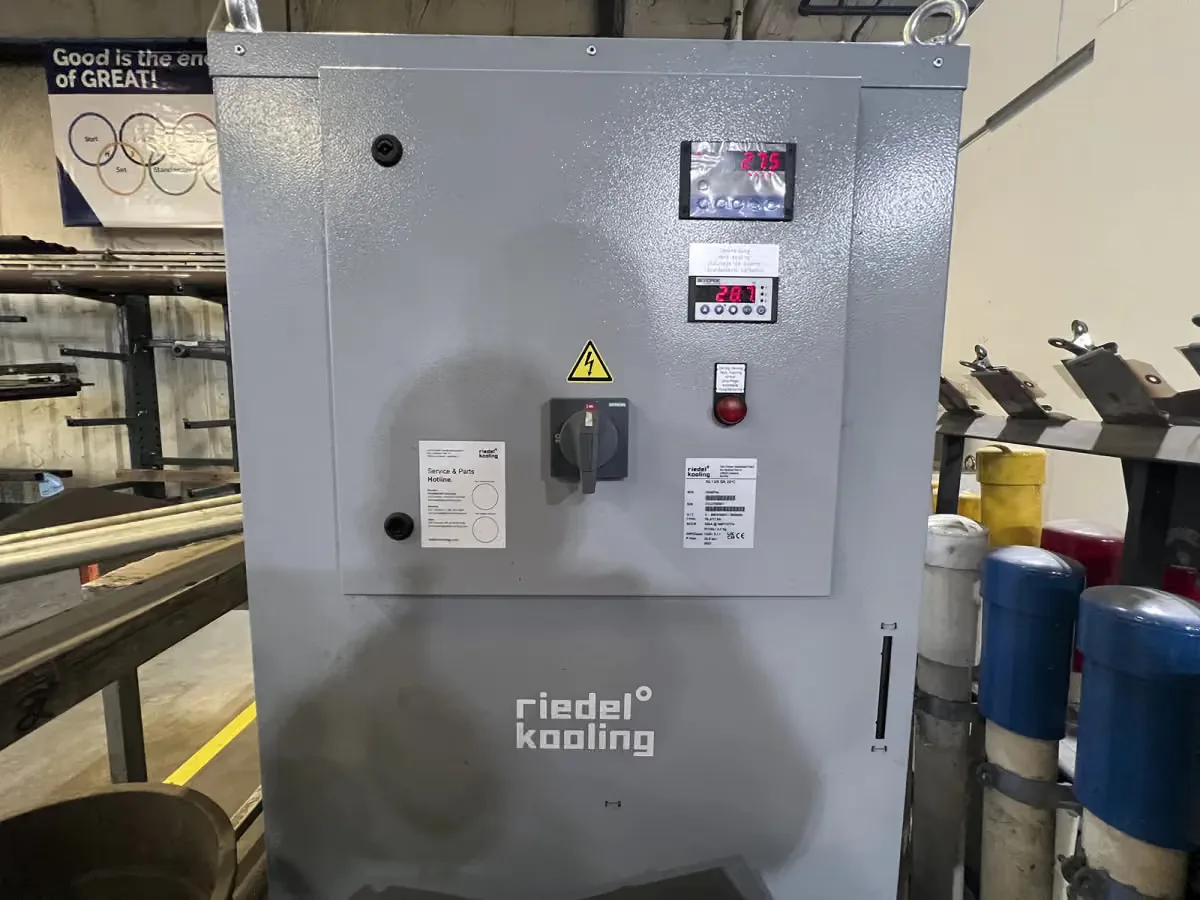

Riedel RL13/0 SR Chiller |

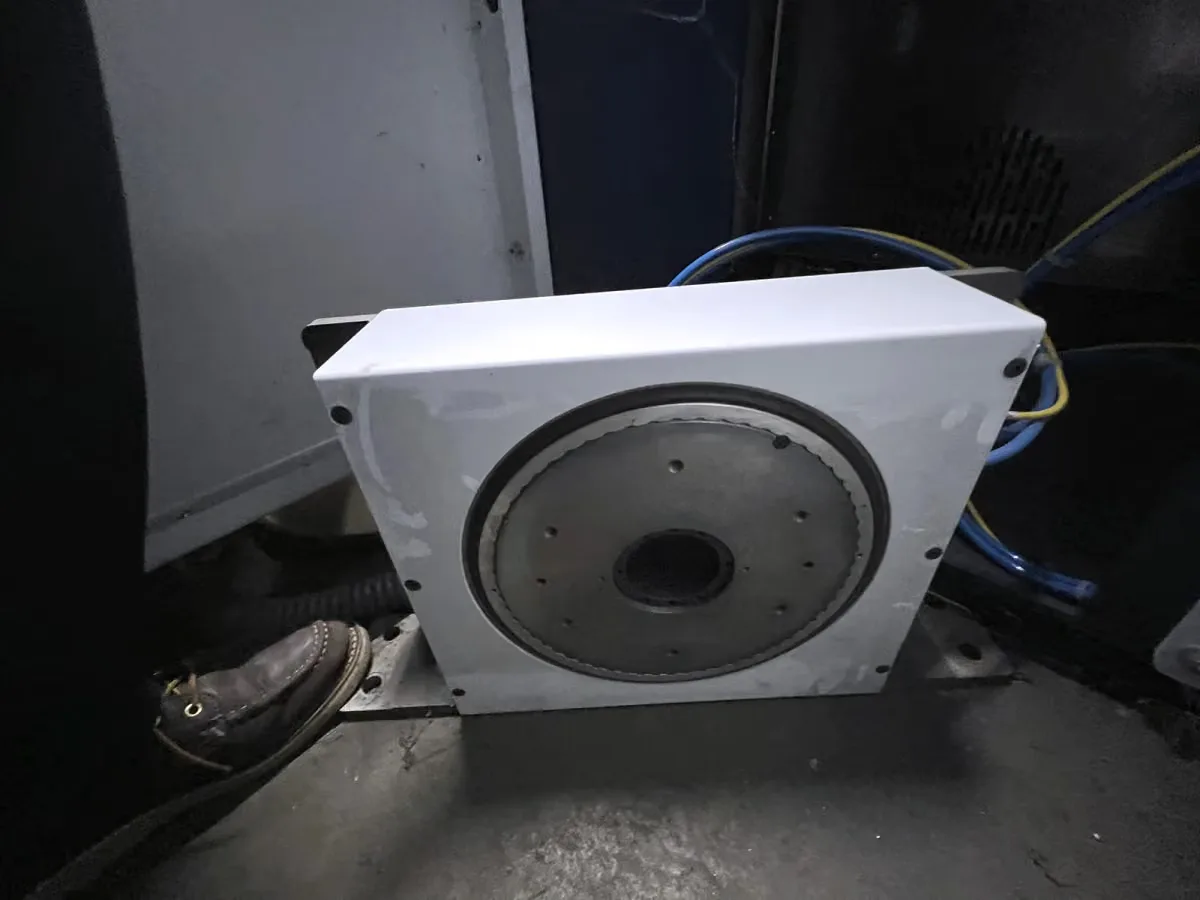

Servo Driven Rotary Axis |
|
TRUMPF Cell Control Software: EtherCAT Architecture |

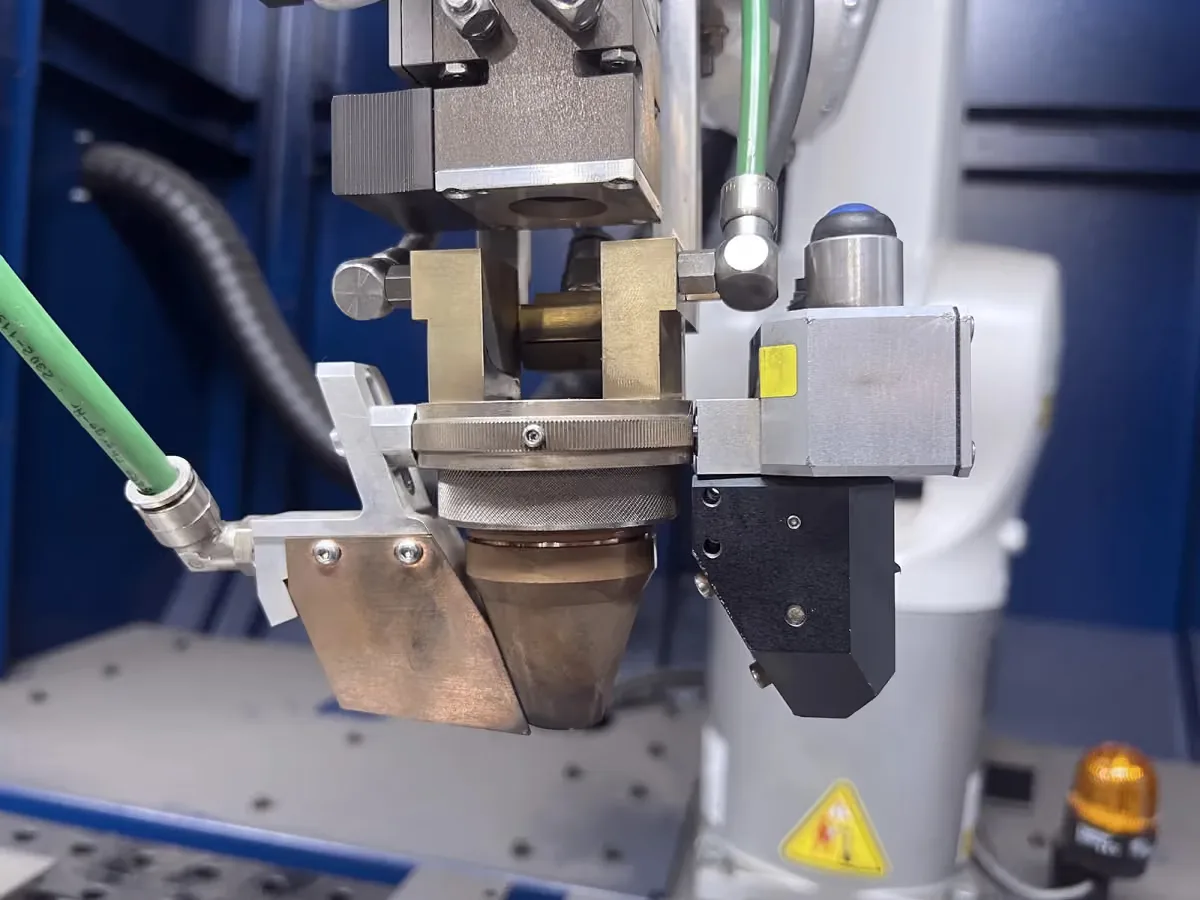

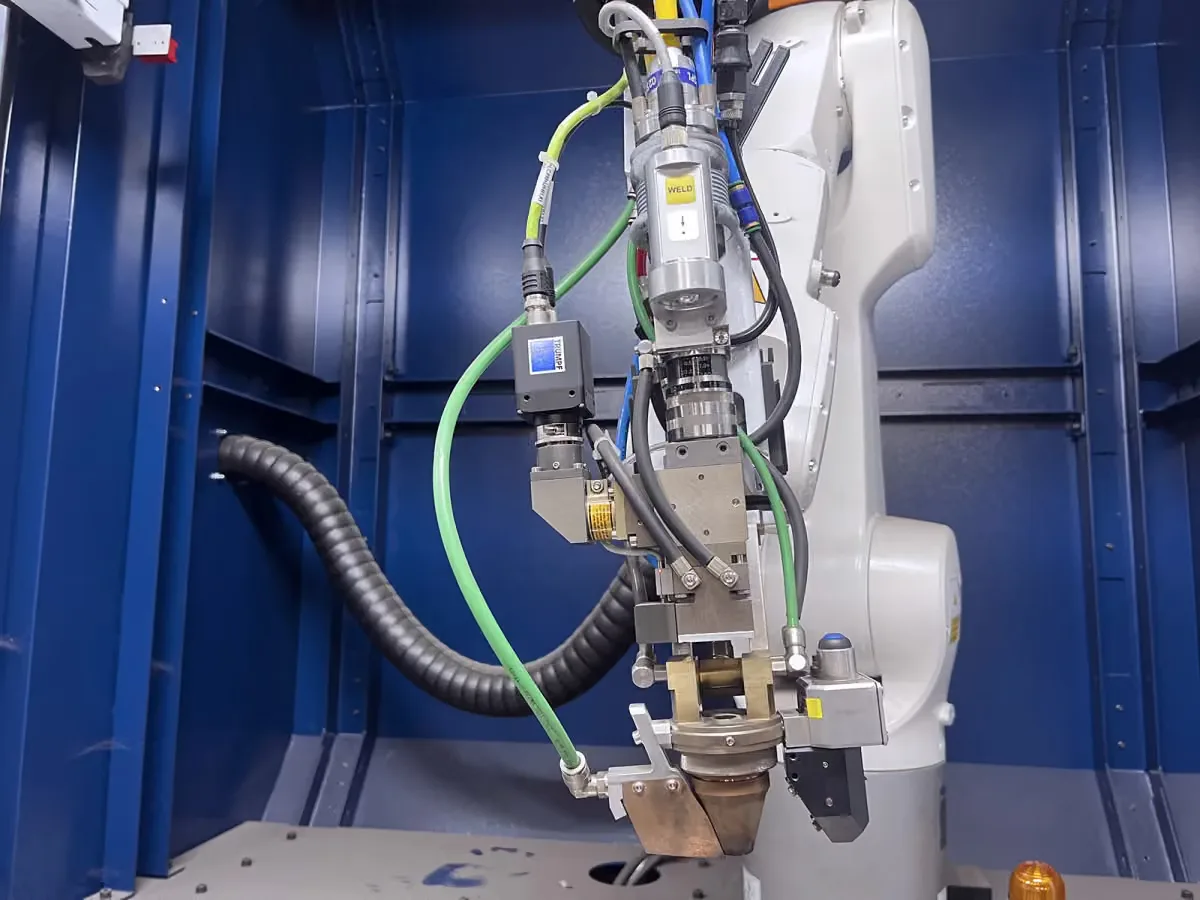

TRUMPF Laser Welding Head |
|

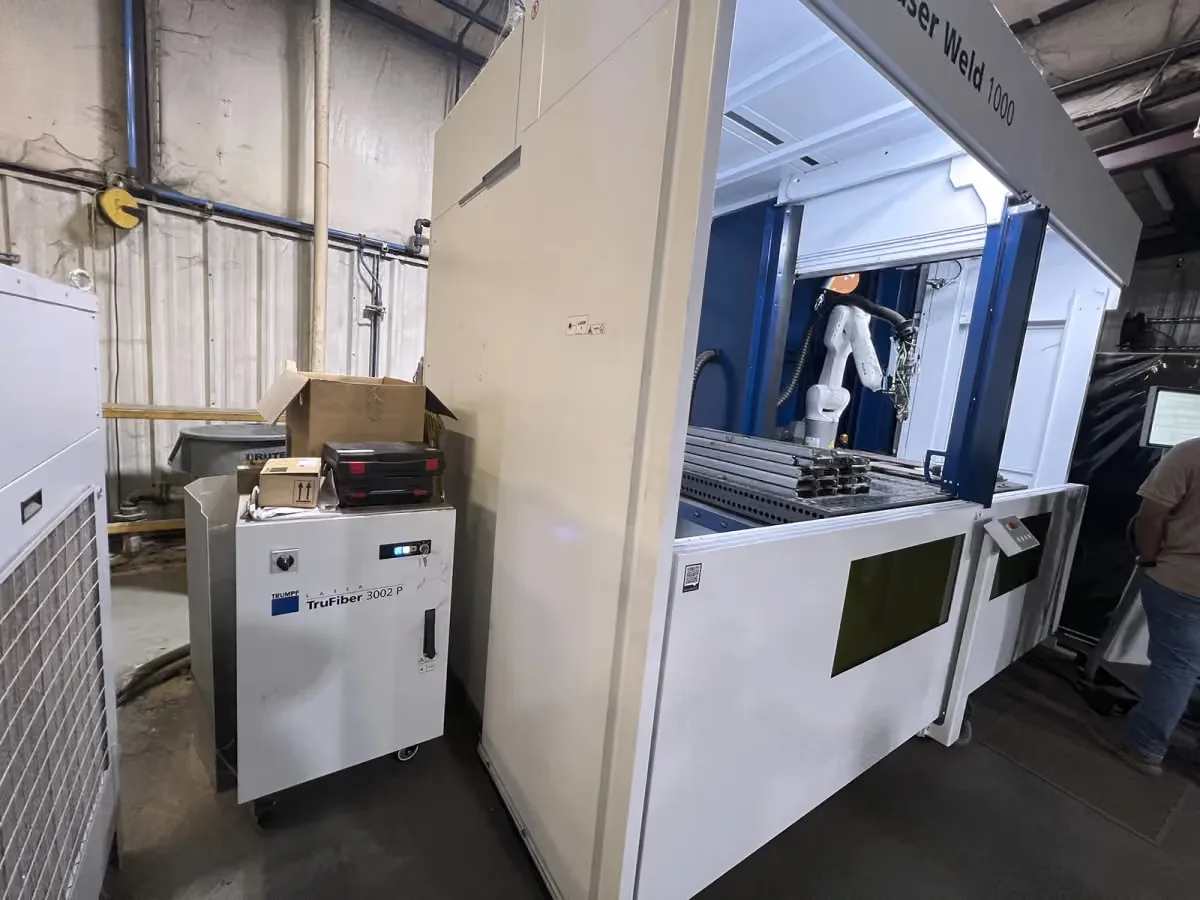

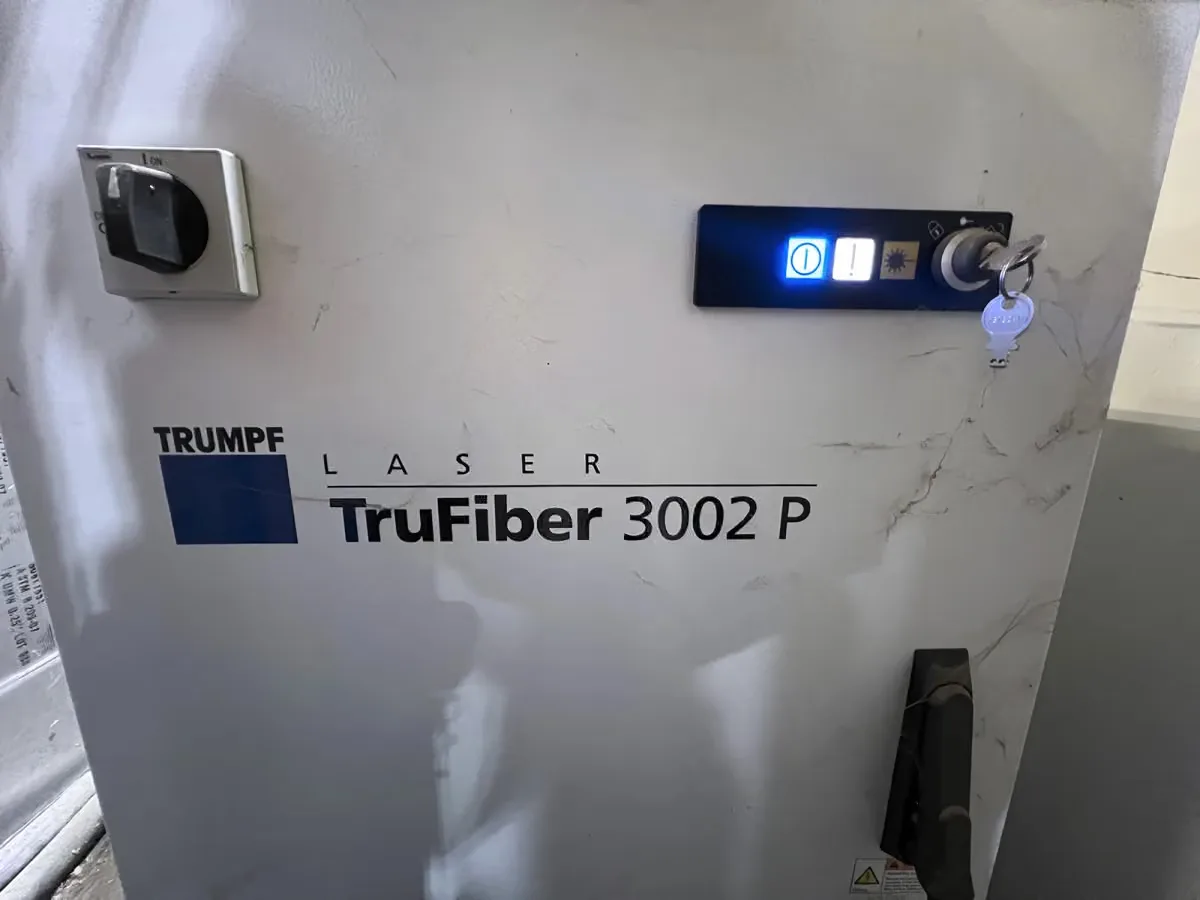

TRUMPF TruFiber 3002 P: 3 kW Fiber Laser Source |
