Year |
2023 |
|---|---|
Make |
Takisawa |
Model |
NEX-110 |
Description |
CNC Lathe |
Reference # |
8079167 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

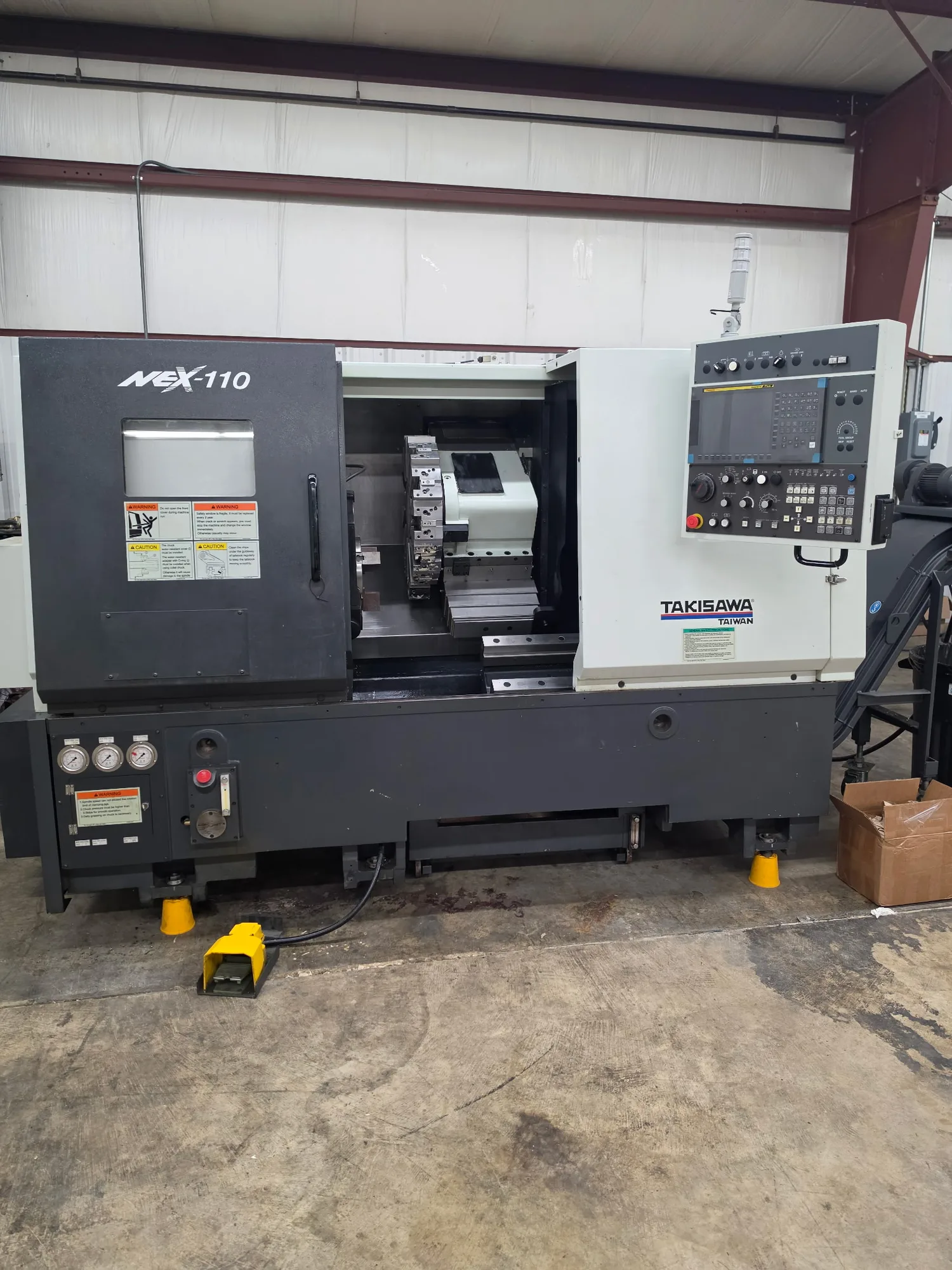

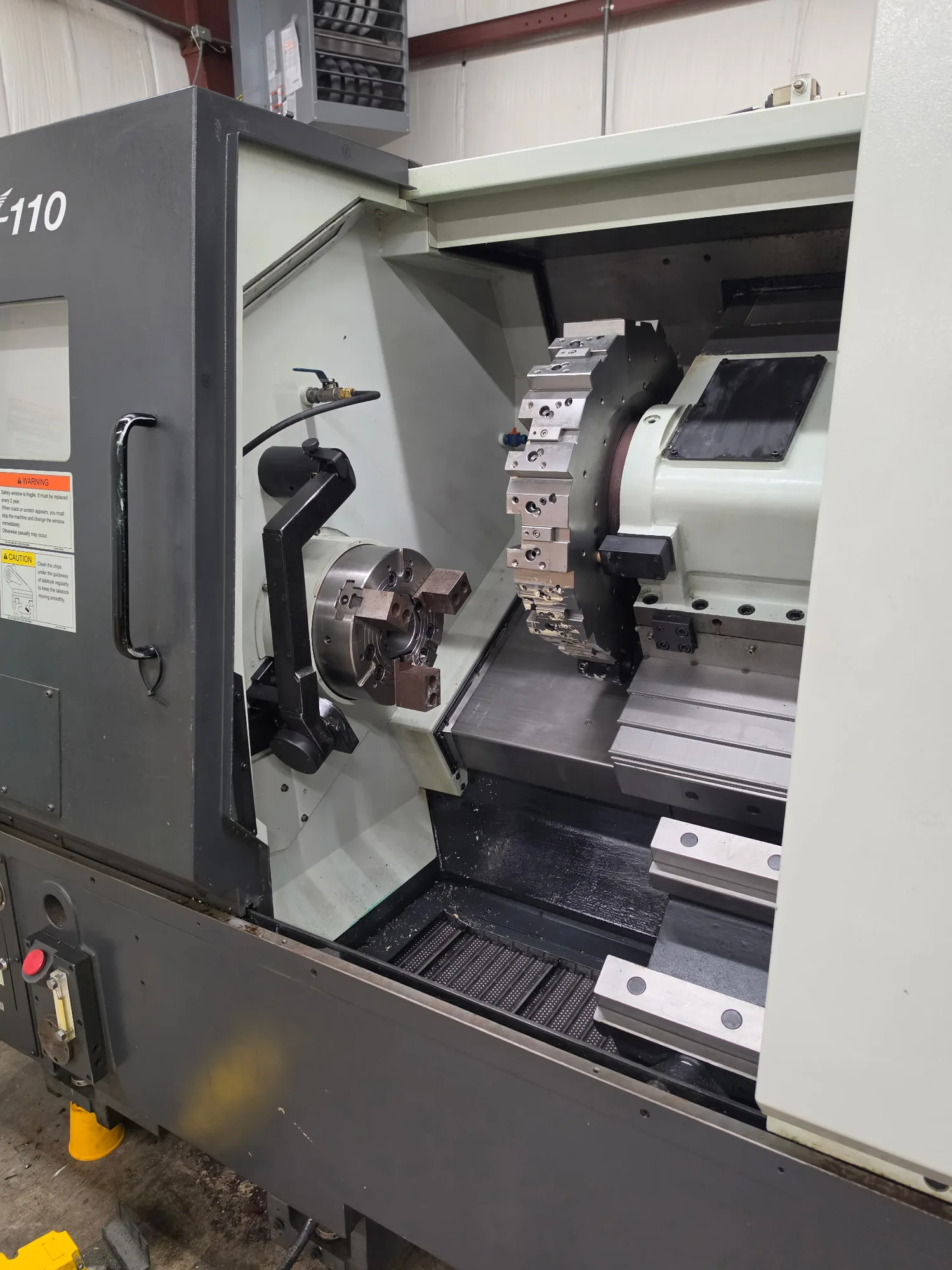

Used Takisawa NEX-110 (2023) CNC Lathe for Sale. This machine has a 10″ chuck and 3″ bar capacity, with a 19″ swing and a 15″ maximum turning diameter. Spindle speed is rated to 3,500 RPM, and the lathe is equipped with a Fanuc Oi-TF control. The NEX-110 suits shops running bar work and chucked parts within those capacities. The machine can be seen under power for an inspection, so you can run the control and check the spindle before committing. If the size class is not what you need, review the rest of our used CNC lathes for a closer match. Activate Pricing to see the figure on this Takisawa, or use the Inquire Now button and we will follow up with details.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3" |
| Swing |
19" |
| Turning Diameter |
15" |
| Control |
Fanuc Oi-TF |
| Chip Removal |
Chip Conveyor |
| Spindle Speed |
3,500 RPM |
| Dimensions |
98" x 70" x 68" |
| Weight |
7,500 Lbs |
Features
|
Tailstock |
Tool Presetter |
