Year

2023

Make

Engel

Model

elast 2000/290V US

Description

290 Ton Rubber Vertical Injection Molding Machine

Reference #

8079197

Price

$139,500

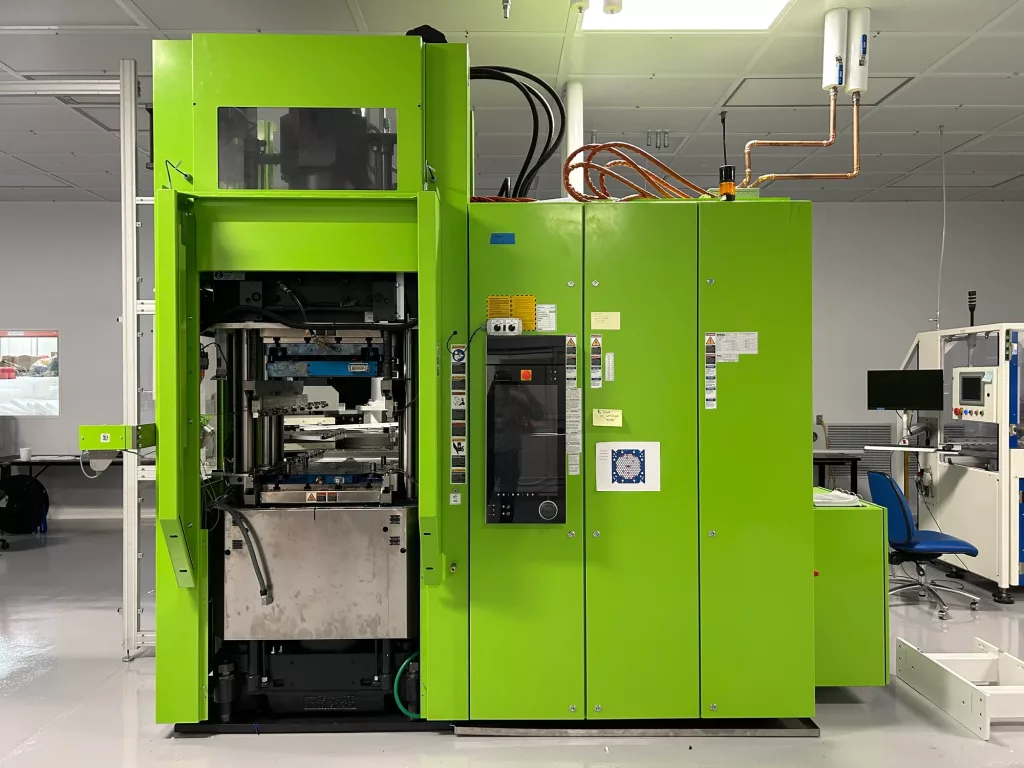

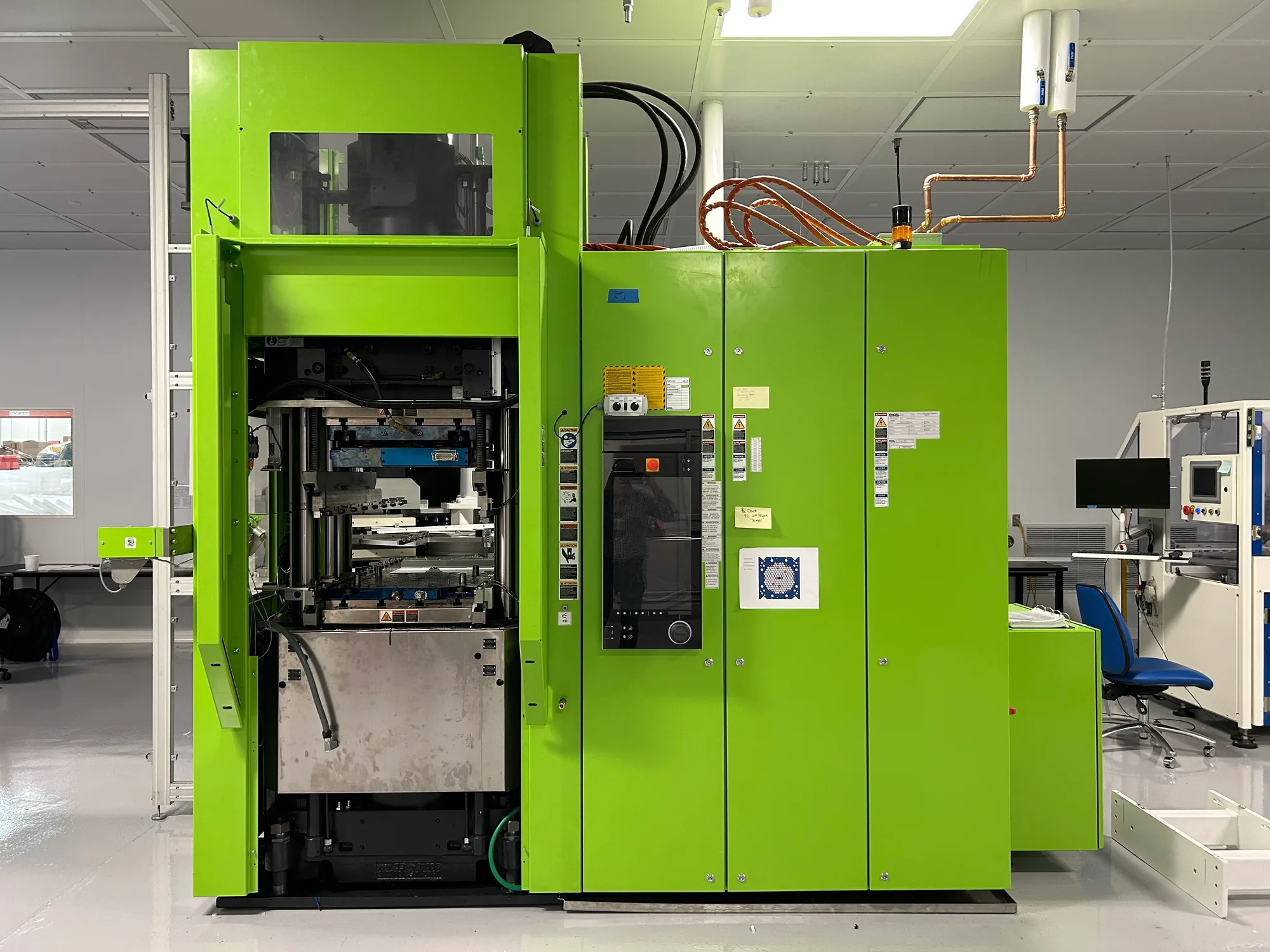

Used Engel elast 2000/290V US (2023) Injection Molding Machine for Sale. This vertical unit is rated at 290 ton capacity, with a platen size of 21.65″ x 25.59″ and tie bar spacing of 12.6″ x 25.98″. Minimum mold height is 3.94″, distance between heating plates is 25.59″, and the opening stroke measures 21.65″. The machine weighs 20,200 lbs with overall dimensions of 113″ x 48″. It can be seen under power for an inspection, so you can verify operation before committing. Browse our other used plastic injection molding machines and additional used Engel machines while you compare specifications. Activate Pricing on this listing or use the Inquire Now button to reach us with your questions.

Specifications

Capacity

290 ton

Platen Size

21.65" x 25.59"

Tie Bar Spacing

12.6" x 25.98"

Injection Volume

2,000 cm

Min Mold Height

3.94"

Distance Between Heating Plates

25.59"

Opening Stroke

21.65"

Control

CC300-A02

Weight

20,200 Lbs

Dimensions

113" x 48"

Features

Only 500 Hours

Loaded w/ Options

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
