Year |
2023 |
|---|---|
Make |
Biesse |
Model |
Jade 225A |
Description |
Edge Bander |
Reference # |
8076834 |
Price |
$29,900 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

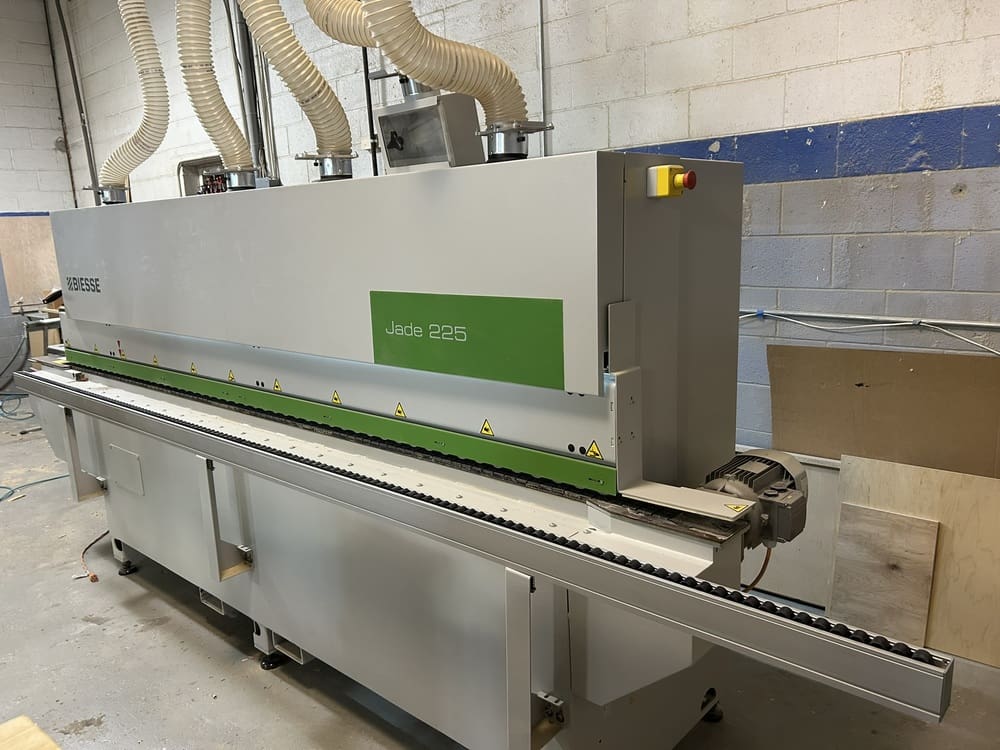

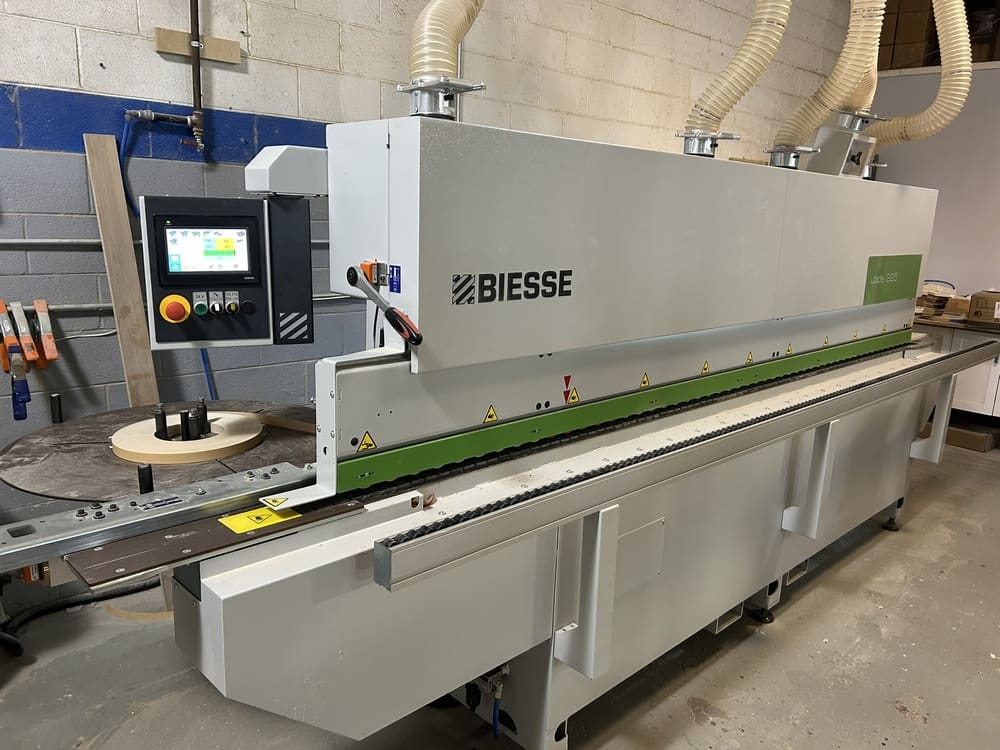

Biesse Jade 225A
Specifications
| Edge and Workpiece Capacity |
Edgebanding Thickness 0.4 -8 mm (0.01" - 0.31") / Min. Panel Width 85 mm (3.5") / Min. Length 150 mm (5.9") / Max. Panel Thickness 10 -60 mm (0.39 - 2.36") |
|---|---|
| Anti-Adhesive Unit |
The unit applies an anti-adhesive liquid on the top and bottom surface of the panel. It is positioned before the pre-milling unit. The anti-adhesive liquid is applied with precision by means of injectors controlled by the machine control. |
| Pre-Milling Unit |
(2) 2.4 HP Motors operating at 12,000 RPM / "AUTO-SET" Device ensures optimum positioning of the cutters according to the thickness of the panel being machined / Numerical Readouts / Pneumatic Exclusion when not needed. |
| Glue Unit |
Teflon coated Hot Melt Glue Pot / Digital Thermostats with Automatic Kick Down when machine is in idle mode / 4.4 Lbs Capacity / "QMS" (quick melt - approx. 10 - 12 minute heat up time) |
| End Trimming Unit |
Front & Rear End Trim Motors / 1.0 HP 12000 RPM / Motors Travel on 45° Slides and Pneumatic Tilt 0° - 15° form the Control Panel |
| Top/Bottom Trimming Unit |
Top and Bottom Flush or Bevel Trims with "Quick Change" Motors 0.8 HP / 12000 RPM / Digital Readouts for easy setup. |
| Top/Bottom Profile Scraping Unit |
Finishing unit to eliminate previous machining imperfections / Pneumatic Exclusion from the Machine Control / External Collection Box |
| Top/Bottom Buffing Station |
0.5 HP / 2800 RPM, units tilt 0° - 30° |
Features
|
32" Diameter Edgebanding Infeed Table |
Automatic Strip and Coil Feed Magazine with "HD" Shear Type 3 mm PVC Guillotine |
|
Fixed Feed Speed / 39 FPM / 2 HP Feed Drive |
Infeed Fence |
|

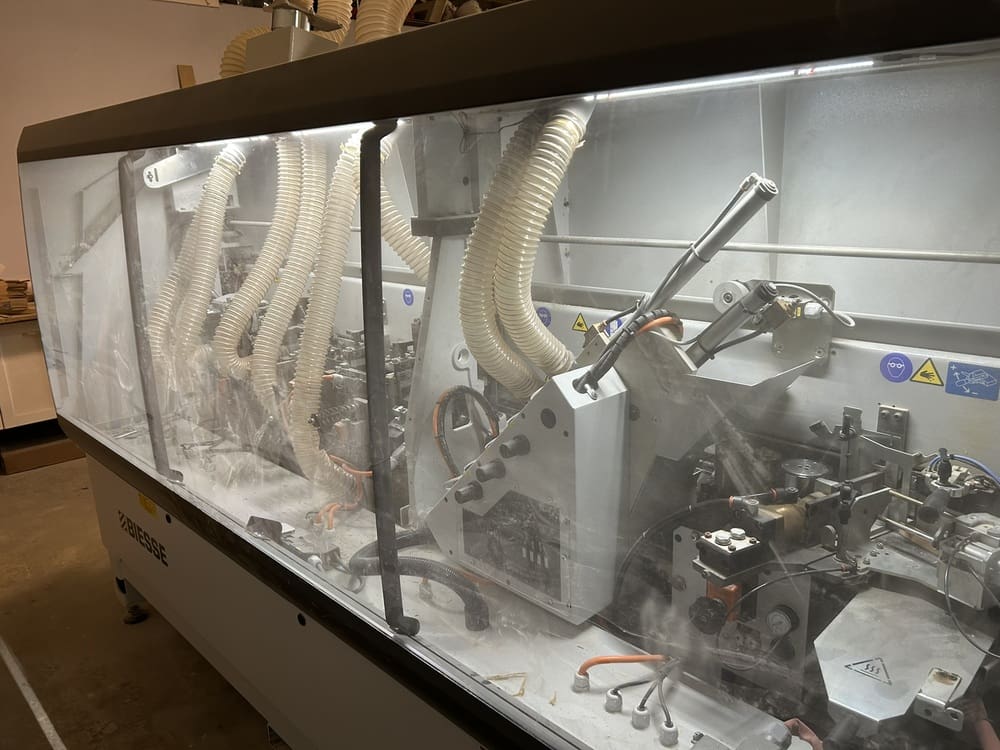

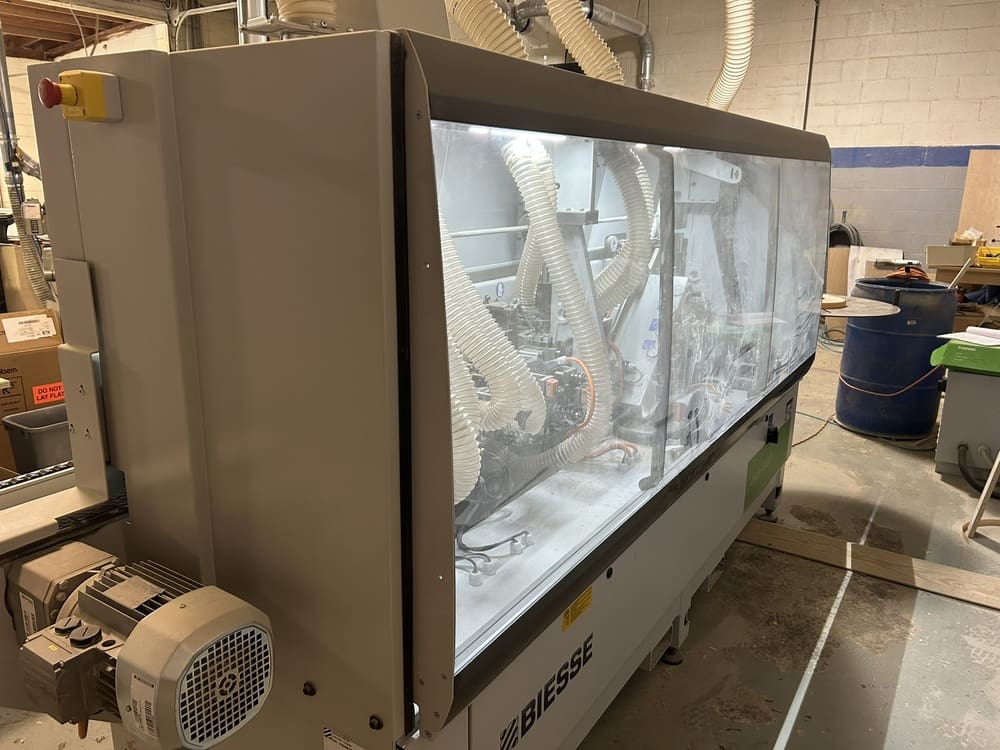

Lighted Sound Enclosure and Outboard Panel Support / Over all trimming stations / Industrial lights and viewing windows / Extendible side panel support rail |

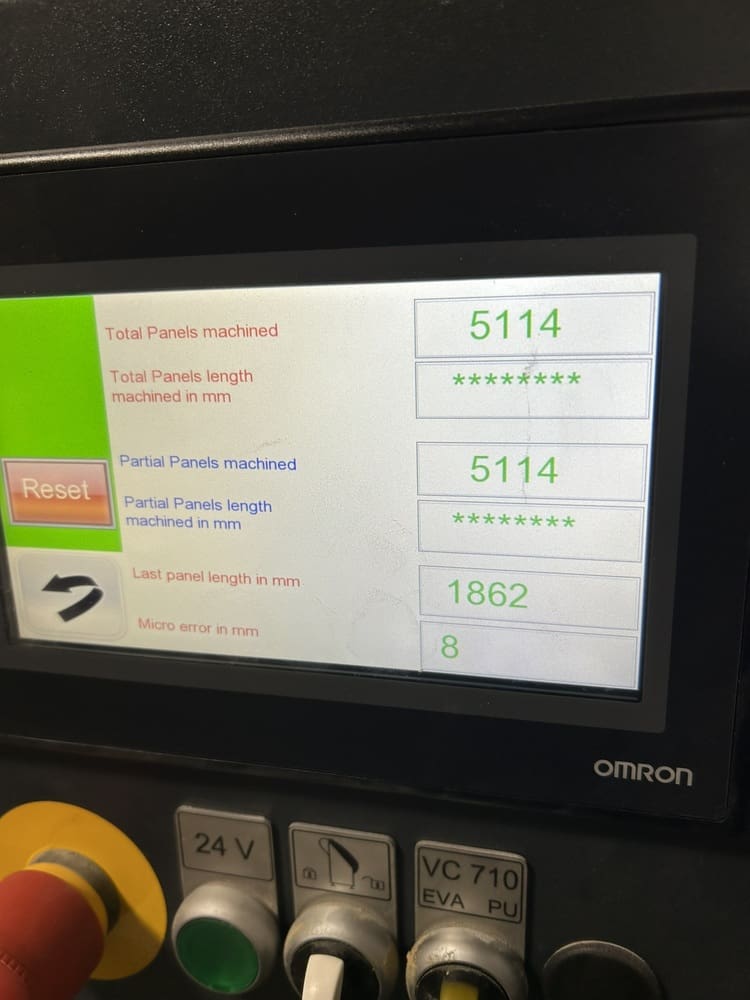

Like New Edgebander with only 5114 Total Panels Processed |
|

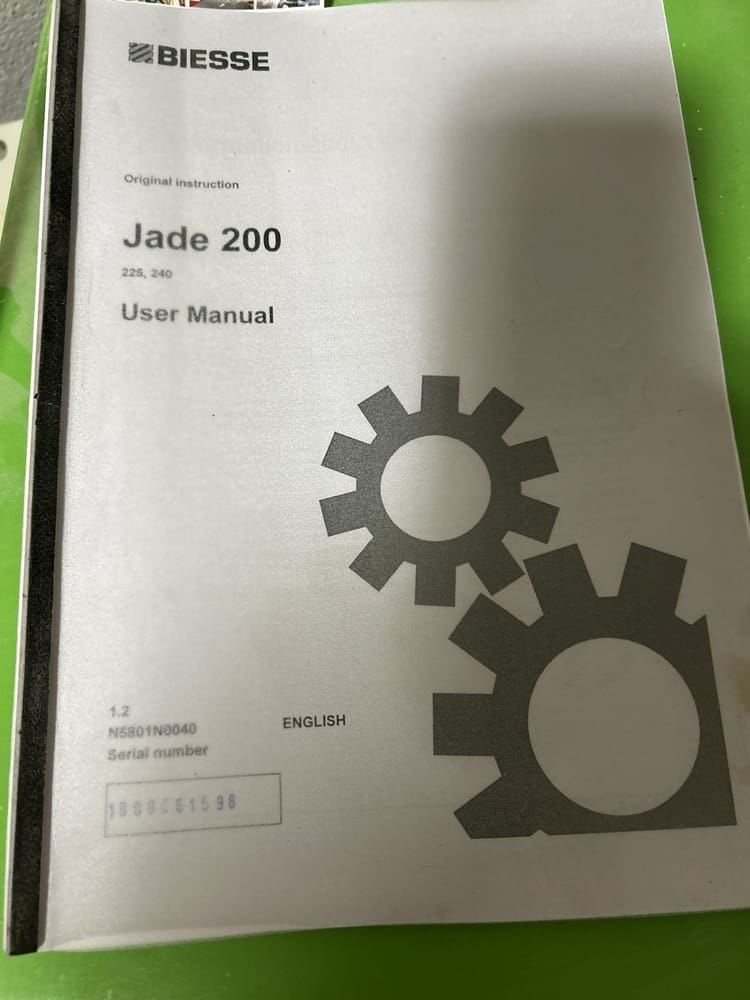

Manuals on Hand |

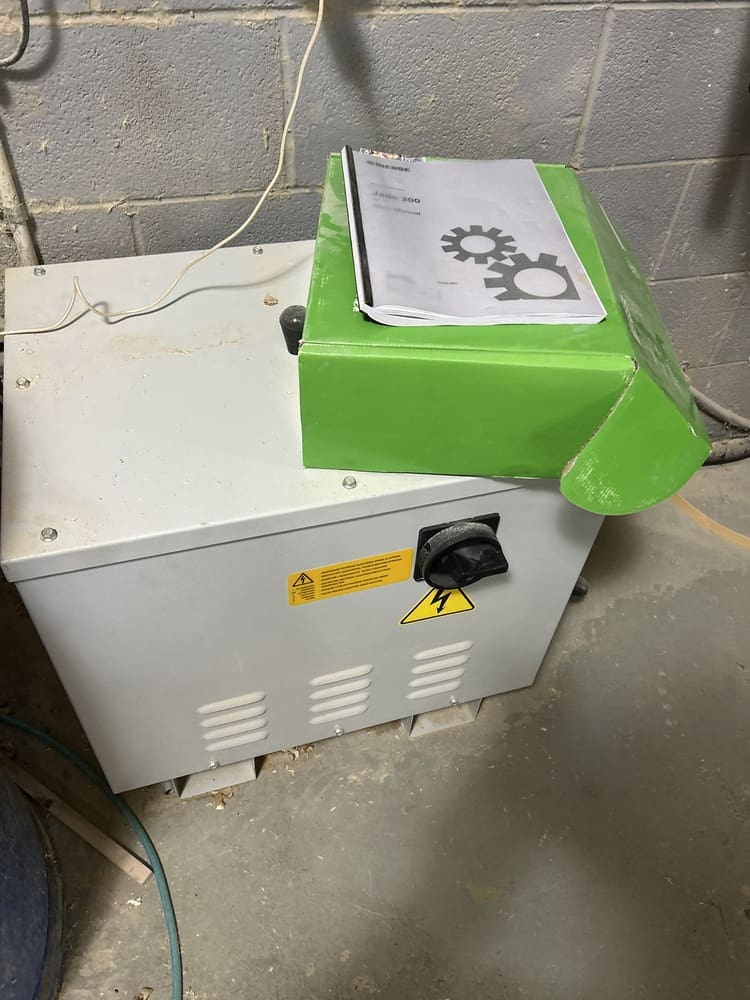

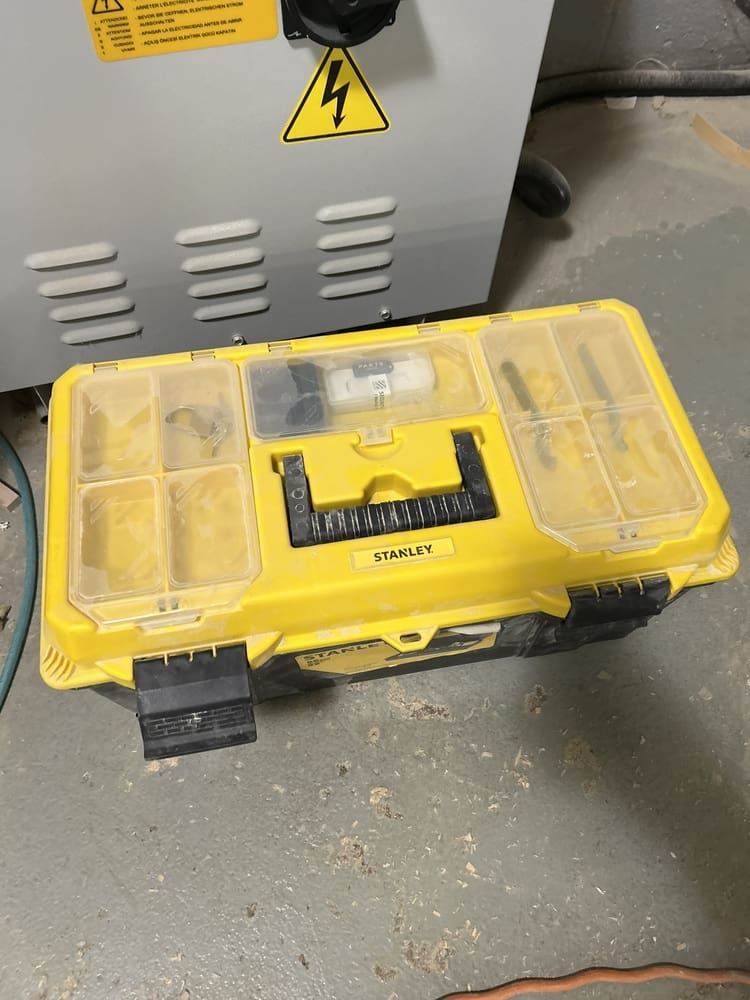

Tool Kit and Transformer Included |
|
Top Pressure Beam and Motorized Feed Track with "Anti-Slip" "Quick Change" Snap on 80 mm wide x 60 mm Long Rubber Pads / Low Friction Nylon-Graphite Self-Lubrication Chain Pads |
Touch Screen PLC / Rotating Control Panel |
