Year |
2022 |
|---|---|
Make |
Shopsabre |
Model |
IS-612 |
Description |
CNC Router |
Reference # |
8078183 |
Price |
Activate Pricing |

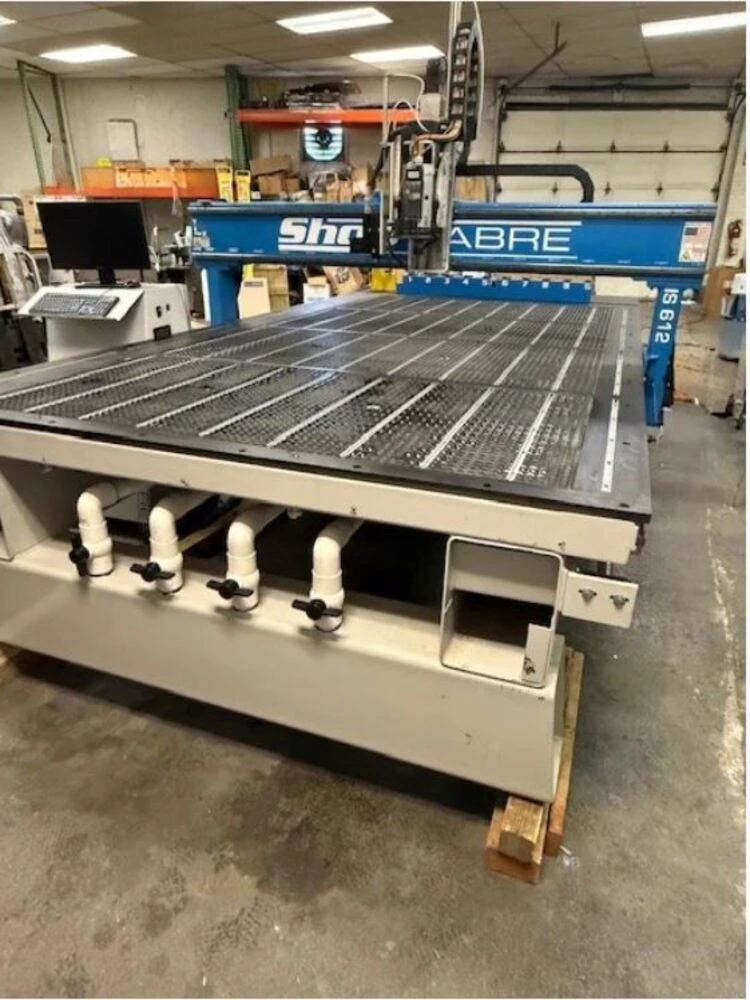

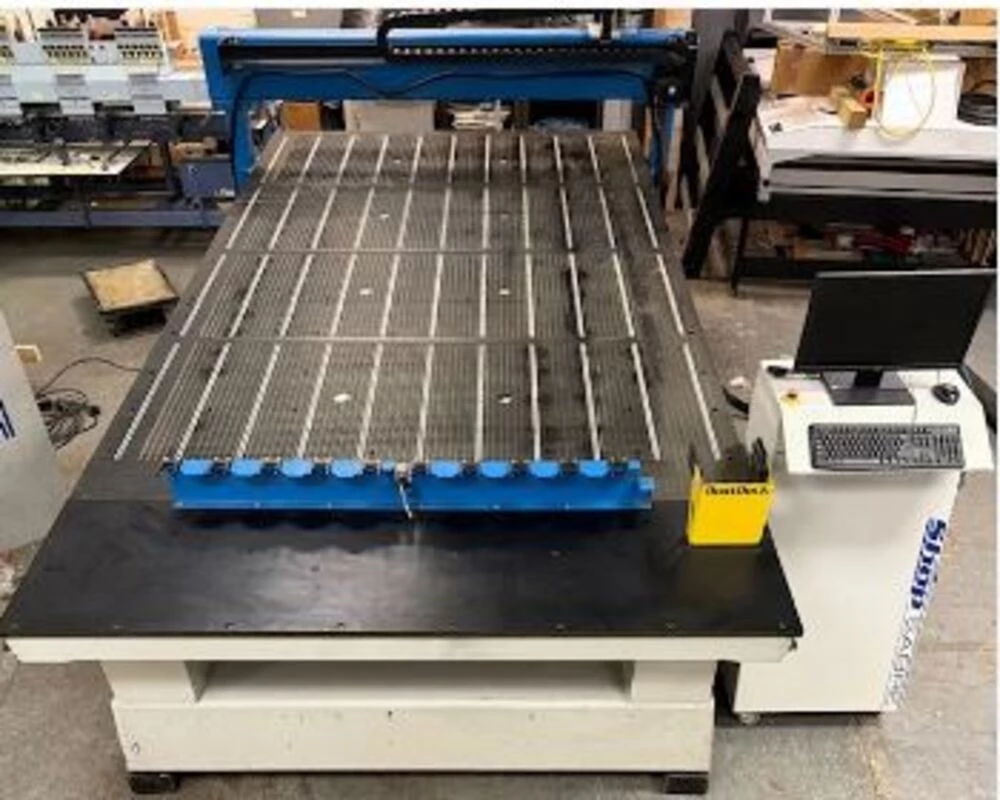

Used Shopsabre IS-612 (2022) CNC Router for Sale. This pre-owned Shopsabre cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Shopsabre CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
72" |
| Table Length |
144" |
| Cut Area |
75" x 146" |
| Table Hold Down |
Vacuum & "T" Slot Hold Down |
| Number of Vacuum Zones |
(4) Four |
| Spindle Mfg |

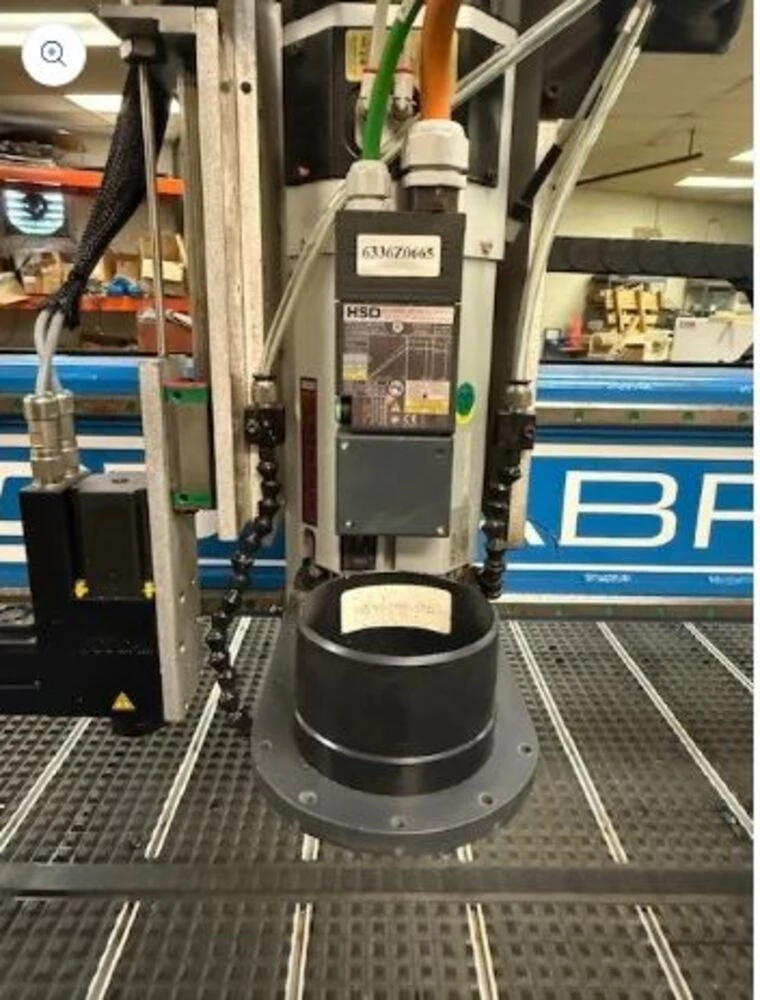

HSD Quick Release Spindle |
| Spindle Horsepower |
10 HP |
| Spindle Speed |
24,000 RPM |
| Tool Changer |
(10) Position Linear ATC Rack |
| Z - Axis Feature |
Z - Axis Brake |
| Material Height Adjustment |
Electronic Z Setter (Touch Pad) |
| Knife Features |

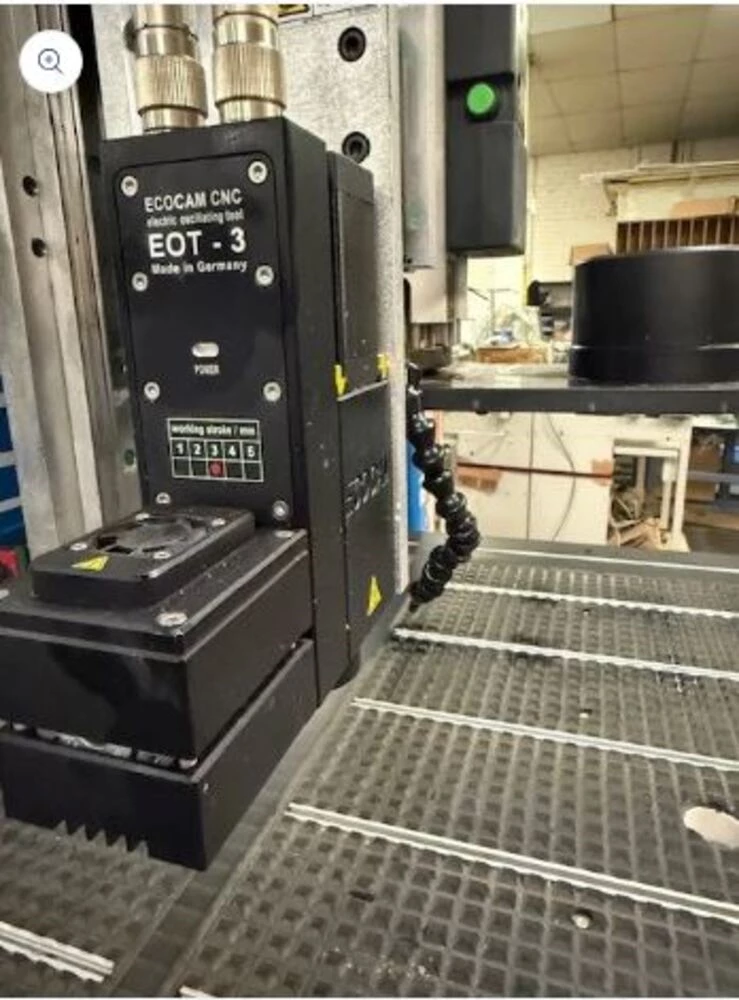

ECOCAM Tangential Oscillating Knife |
| Control |

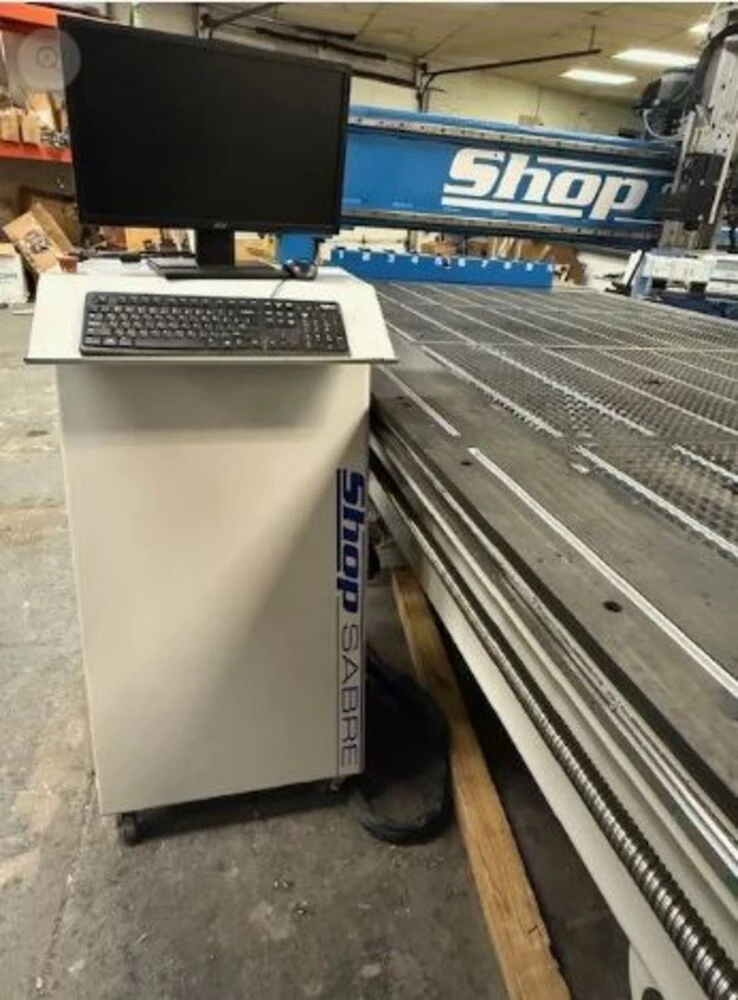

Shopsabre Controller |
| Power Requirement |
3 Phase |
| Note |
Includes a 1-Year Support Package from Shopsabre |
Features
|

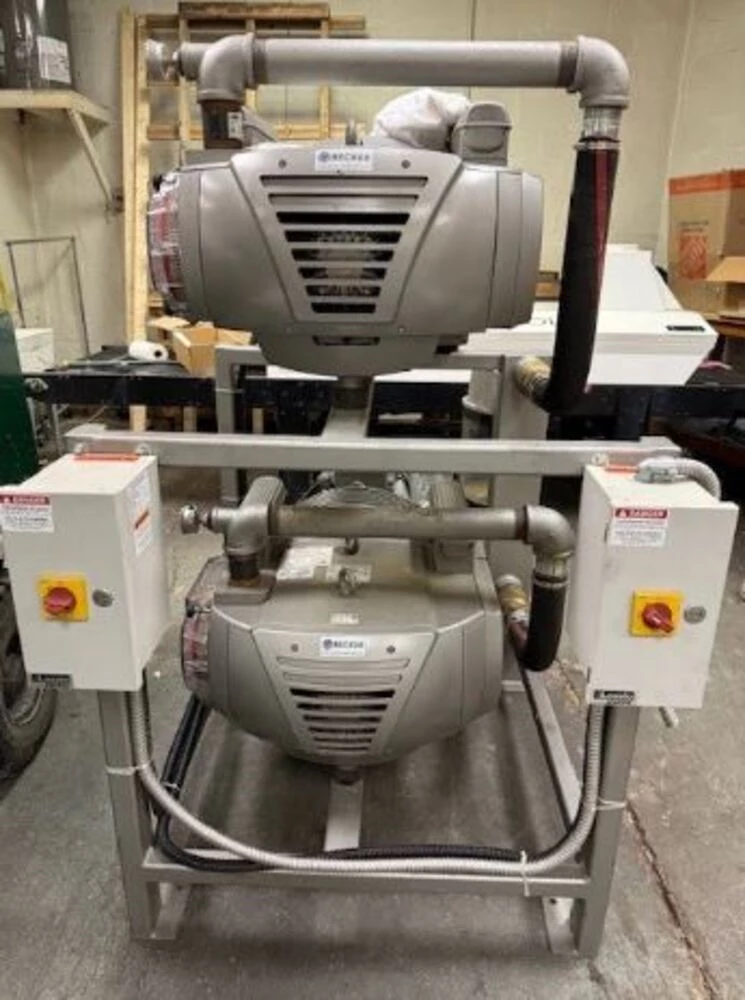

(2) Becker Vacuum Pumps/Model DS 400 W |
Digital A/C Brushless Servo Motors with Amplifiers on X / Dual Y / Z Axis |
|
Industrial 25MM Precision Linear Guide Rails & Bearings on All Axis - Y Axis Hidden Design |
Insert Dovetail Tool Kit by Vortex Tool (Square Style) |
|
Quick Release Dust Skirt - 4" Outlet for Connecting to Dust Collector |
ShopSabre Industrial Pop-Up Table Reference Pins (3 on Left Side 2 along Front) |
|
2.5 Inch Spoil Board Cutter w/ Inserts |
X |
|
Dual Drive Y |
and Z Axis Driven with Industrial Precision Anti-Backlash Ball Screw Drives |
|
Unist Coolant System for Lubricating Tooling while Cutting Aluminum |
