Year |
2022 |
|---|---|
Make |
Okuma |
Model |
Multus B250II-1SW/750 |
Description |
CNC Lathe |
Reference # |
8076841 |
Price |
Activate Pricing |

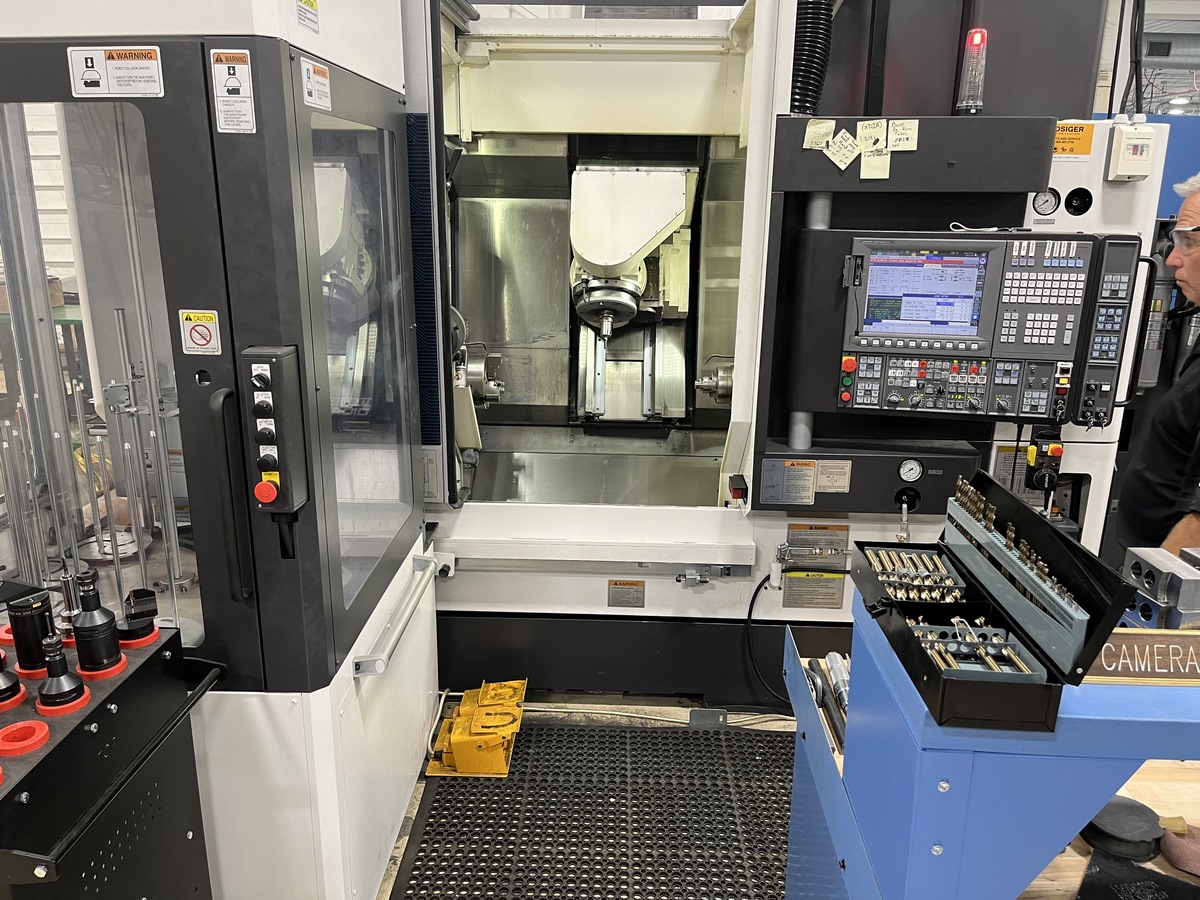

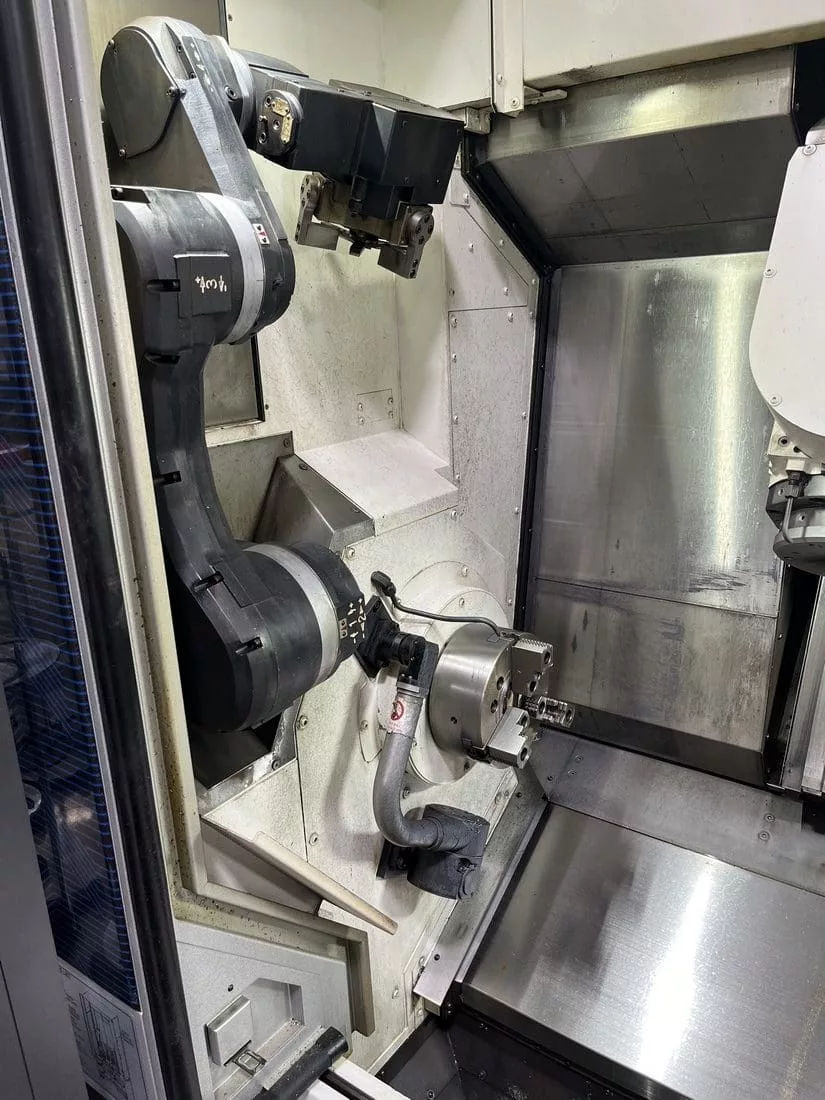

Used Okuma Multus B250II-1SW/750 (2022) CNC Lathe for Sale. This multitasking turning center runs an OSP-P300SA-H control with an 8″ chuck, 2.6″ bar capacity, 23.62″ turning diameter and 40.55″ distance between centers. The main spindle turns to 5,000 RPM on a 30/20 HP motor with an A2-6 spindle nose, while the sub-spindle runs to 6,000 RPM with a 6″ chuck and 15/10 HP motor. C-axis live tooling and Y-axis are included, with travels of 19.69″ X, 31.5″ Z, 7.87″ Y and 31.89″ W. Equipped with an Armroid A201 robot, six station work stocker lift-up type, auto tool presetter, 60 ATC and chip conveyor. The machine can be seen under power for an inspection. See more CNC lathes and Okuma machines, Activate Pricing, or Request a Quote.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.6" |
| Turning Diameter |
23.62" |
| Spindle Speed |
5,000 RPM |
| Control |

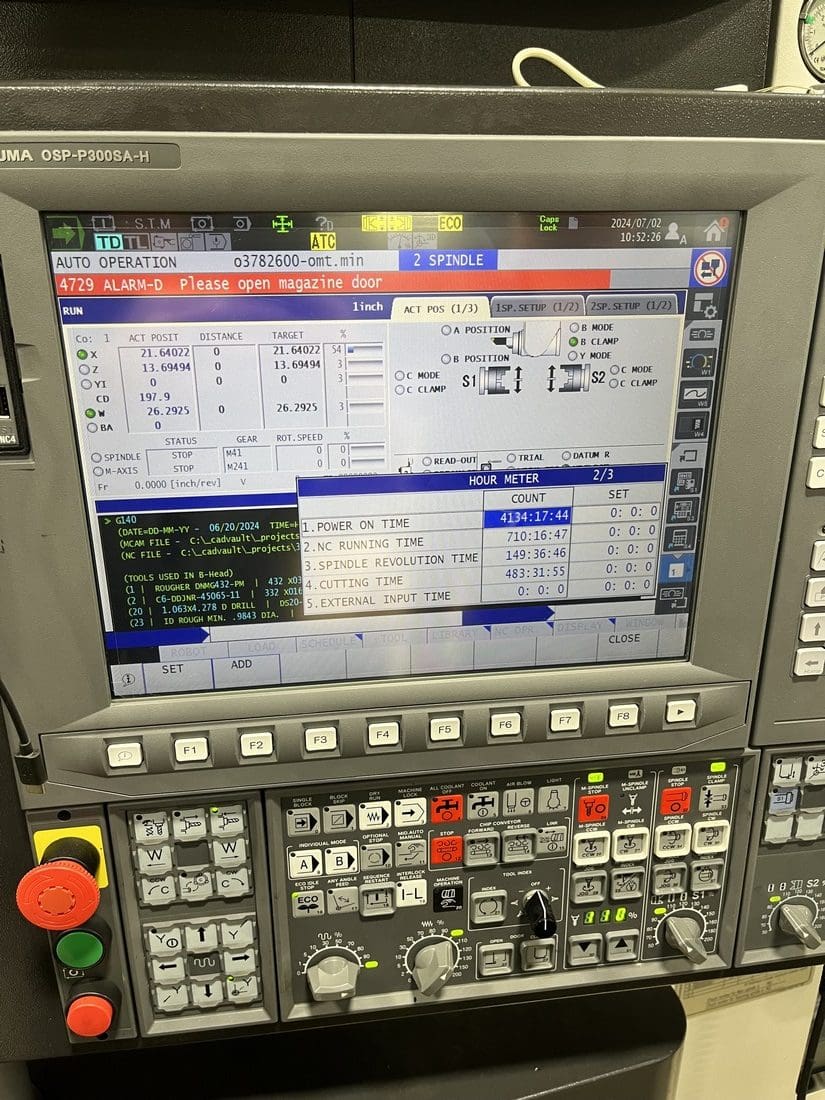

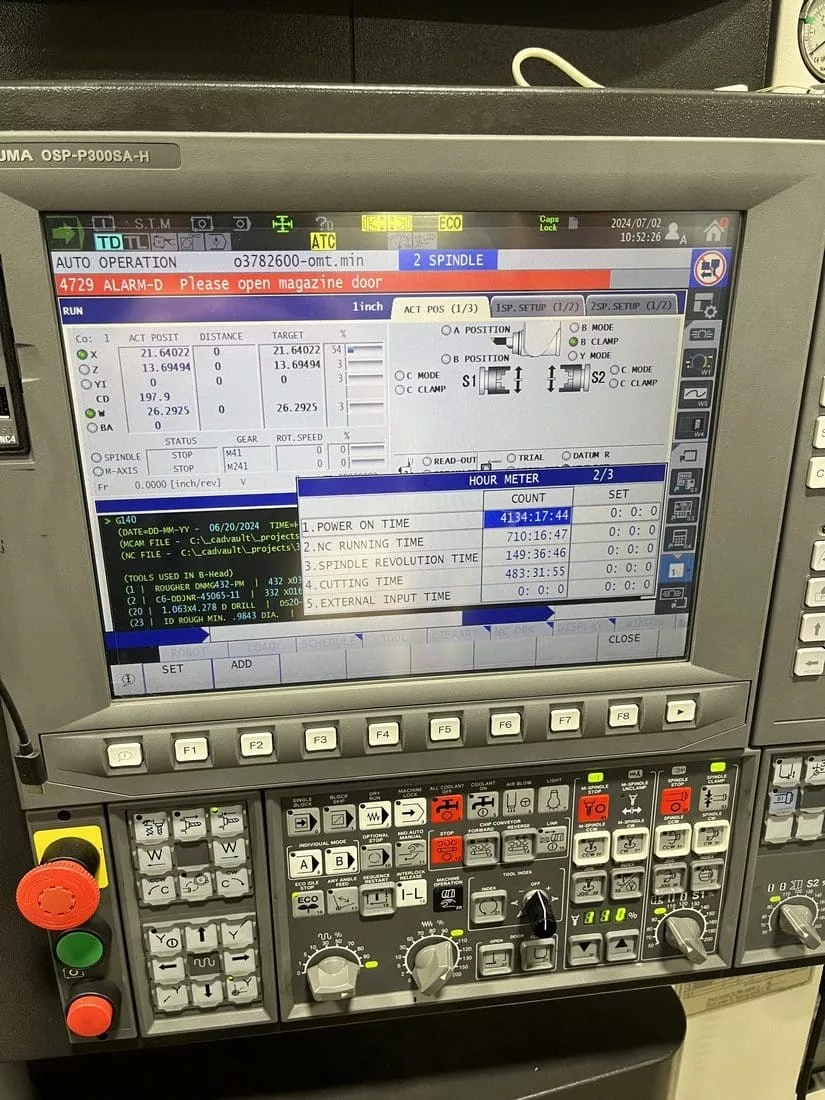

OSP-P300SA-H |
| Distance Between Centers |
40.55" |
| Live Tooling |

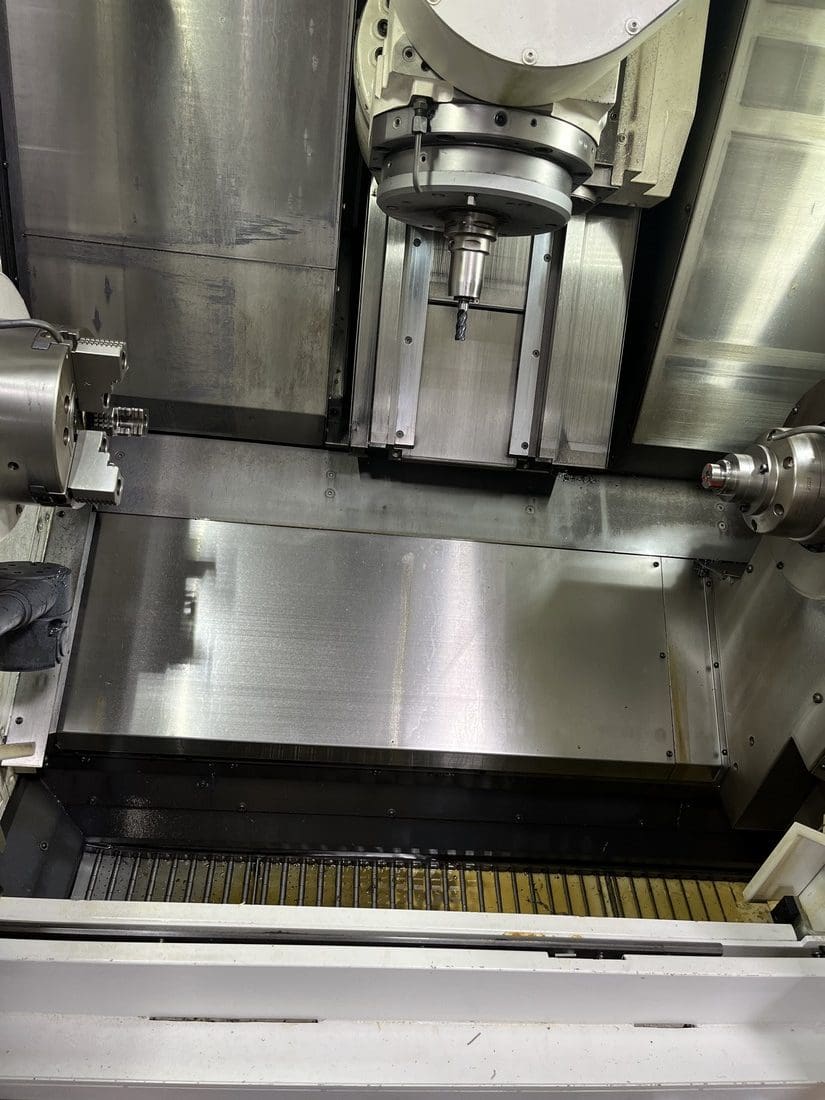

C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |

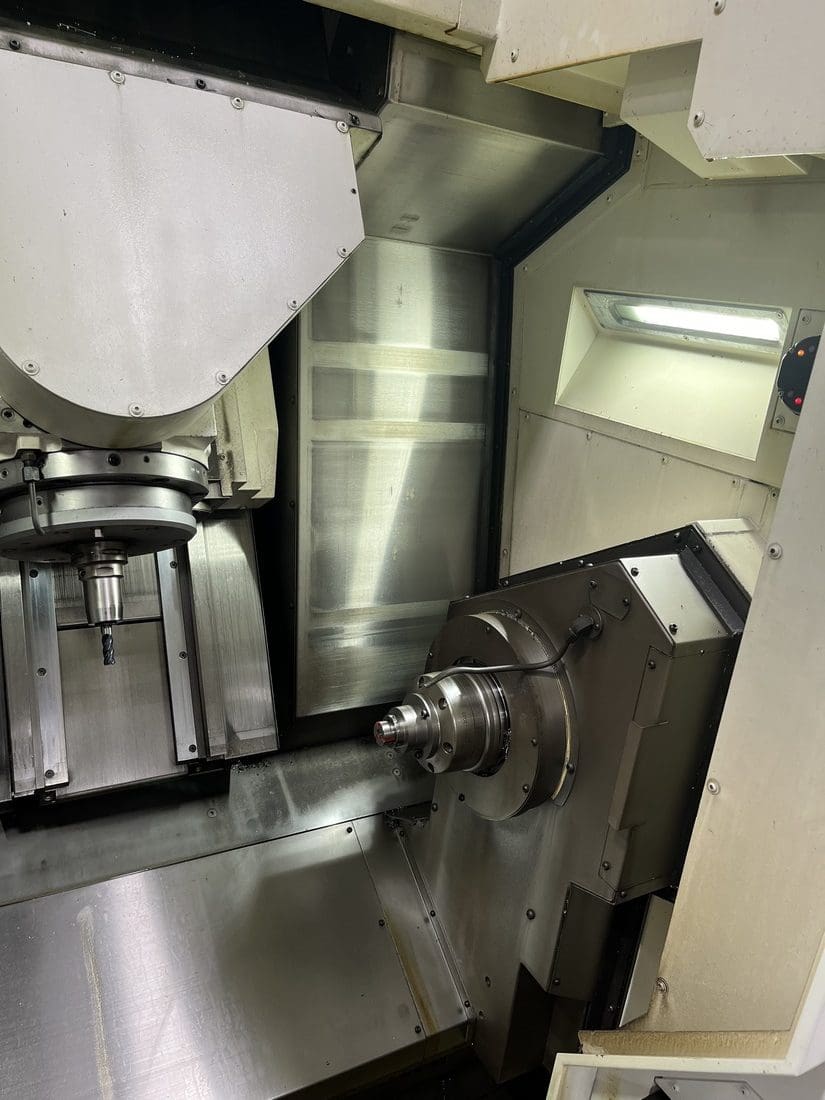

6,000 RPM, 6" Chuck |
| Chip Removal |

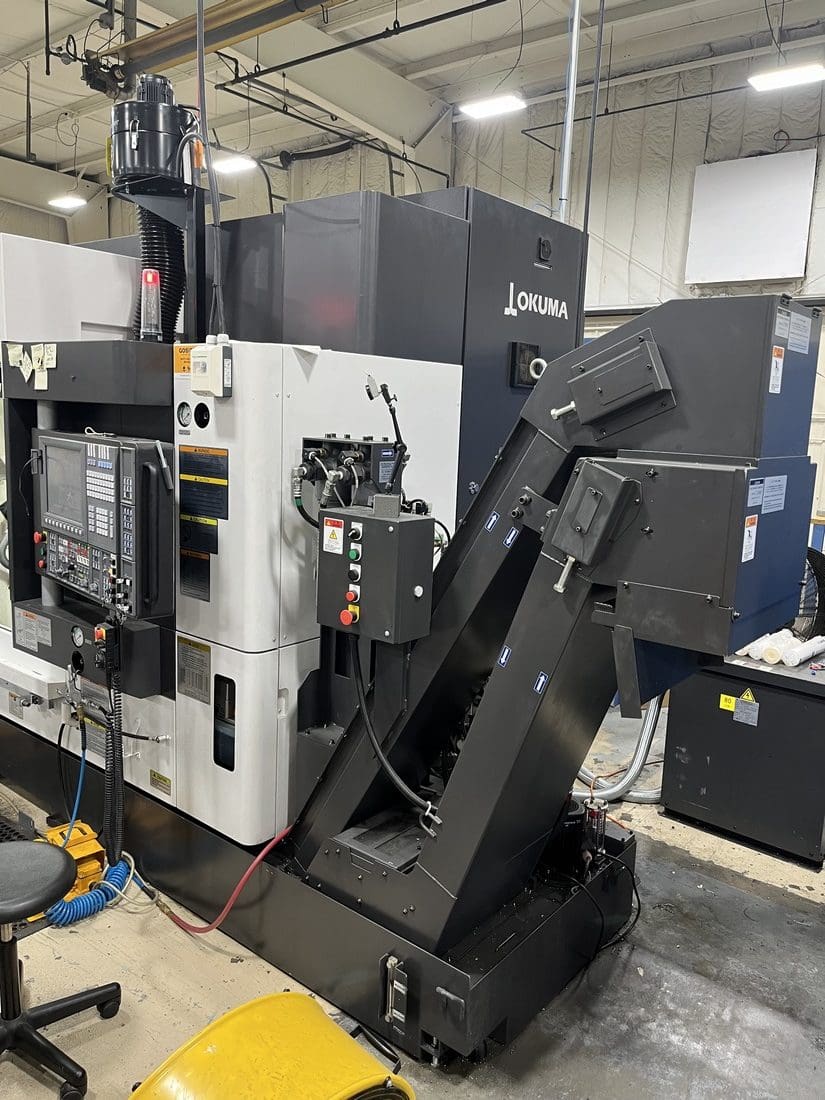

Chip Conveyor |
| Spindle Motor |
30/20 HP |
| Sub Spindle Motor |
15/10 HP |
| X-Axis Travel |
19.69" |
| Z-Axis Travel |
31.5" |
| Y-Axis |
7.87" |
| W-Axis Travel |
31.89" |
Features
|

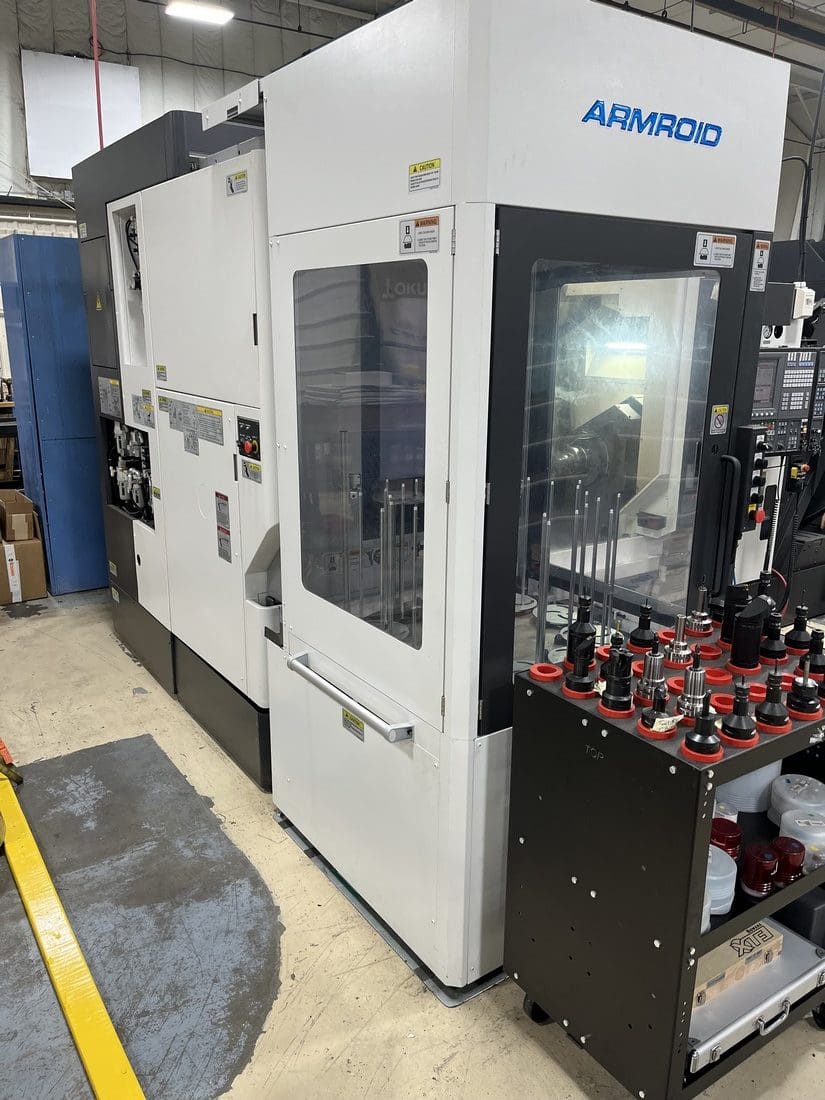

Armroid A201 Robot |
Six Station Work Stocker Lift-Up Type |
|
Auto Tool Presetter |
60 ATC |
|
A2-6 Spindle Nose |
