Year |
2022 |
|---|---|
Make |
Fryer |
Model |
ET-18 |
Description |
CNC Vertical Turret Lathe |
Reference # |
8078741 |
Price |
Activate Pricing |

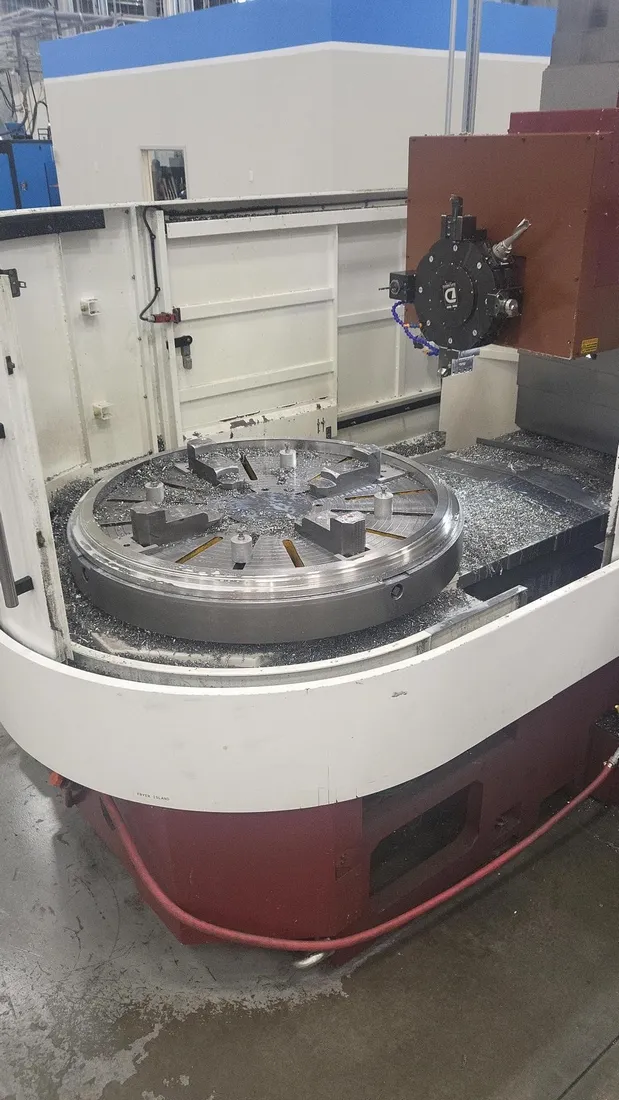

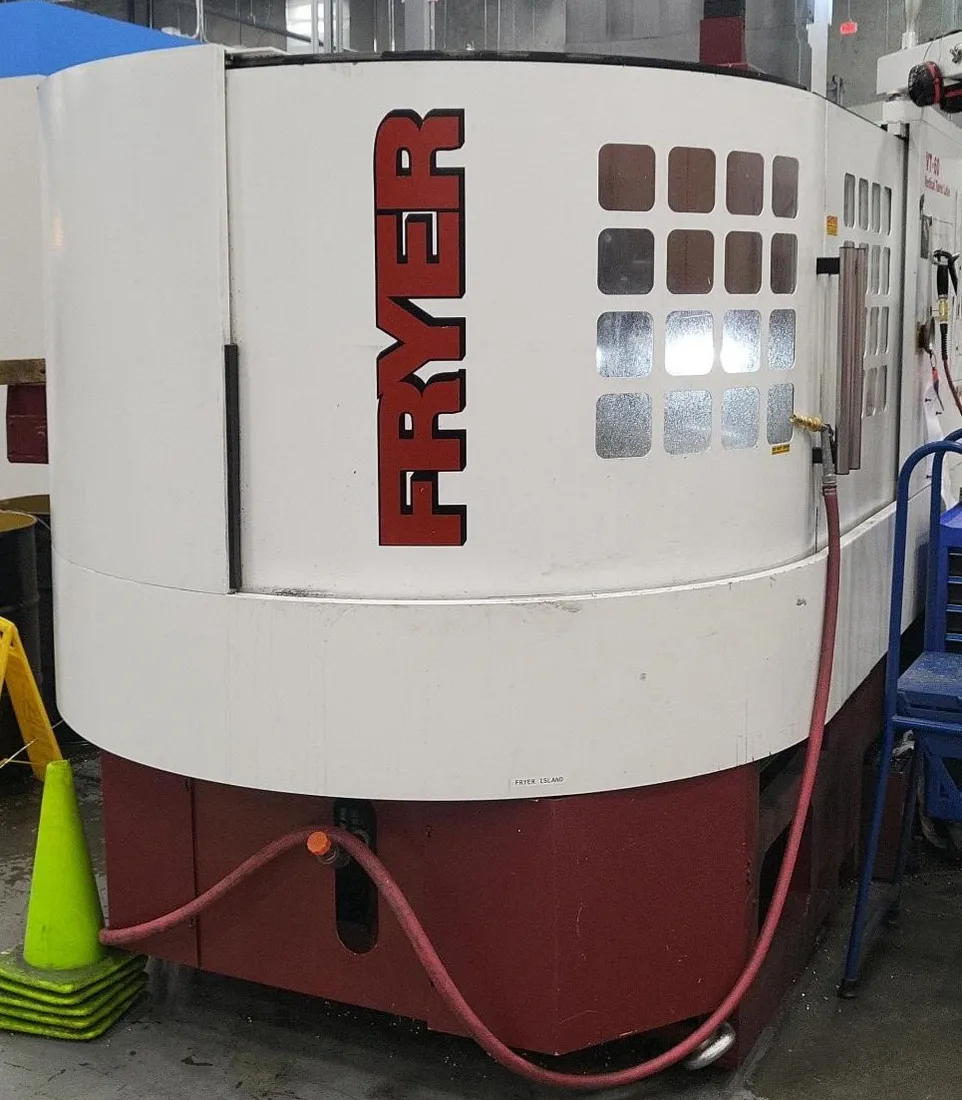

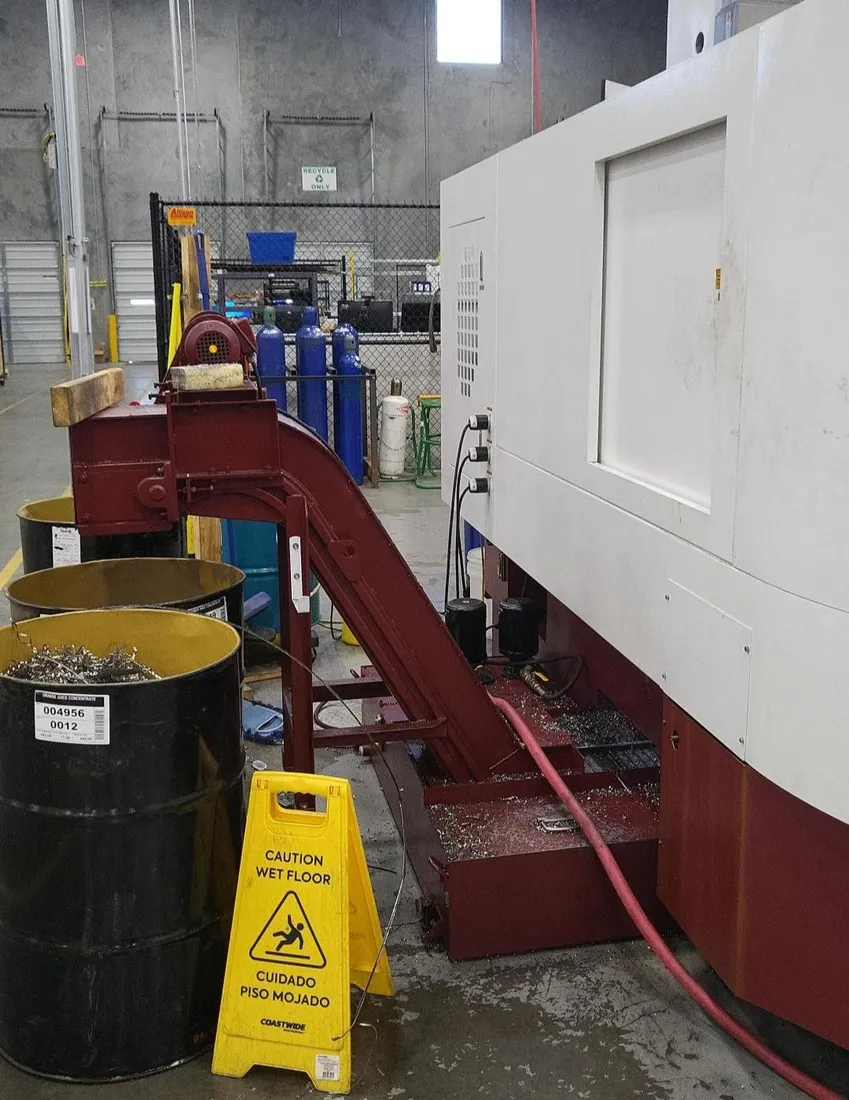

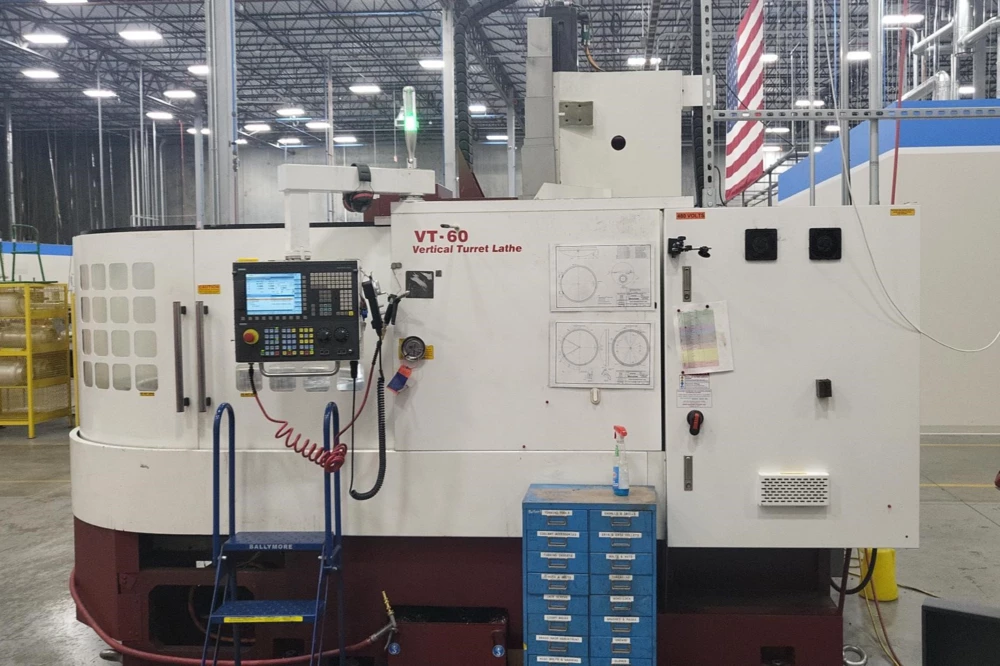

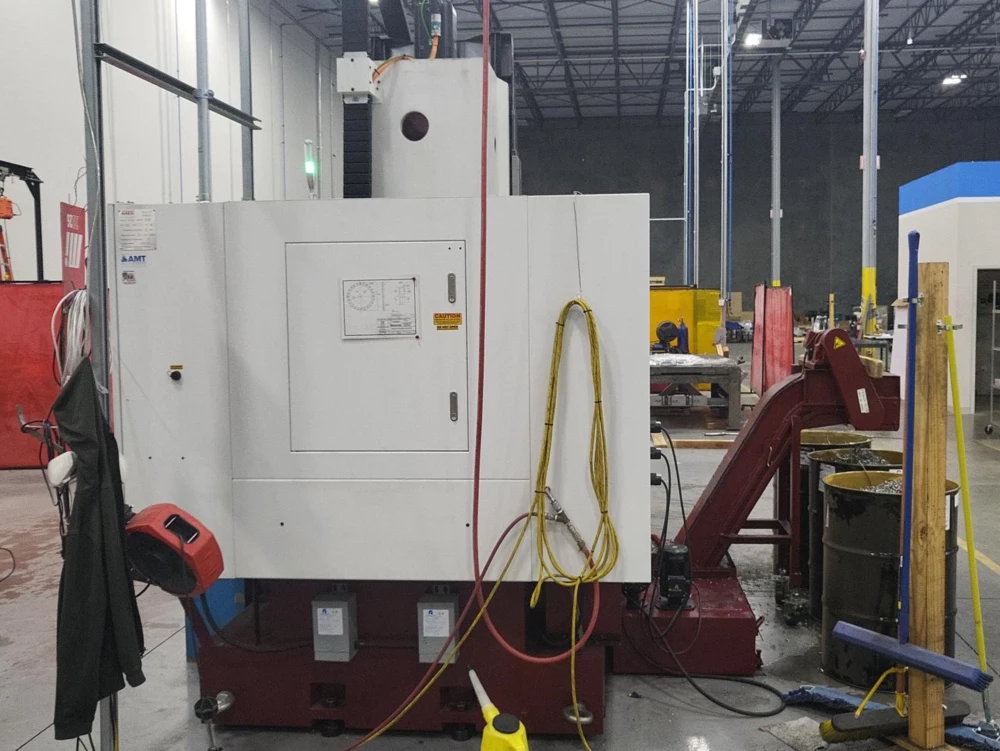

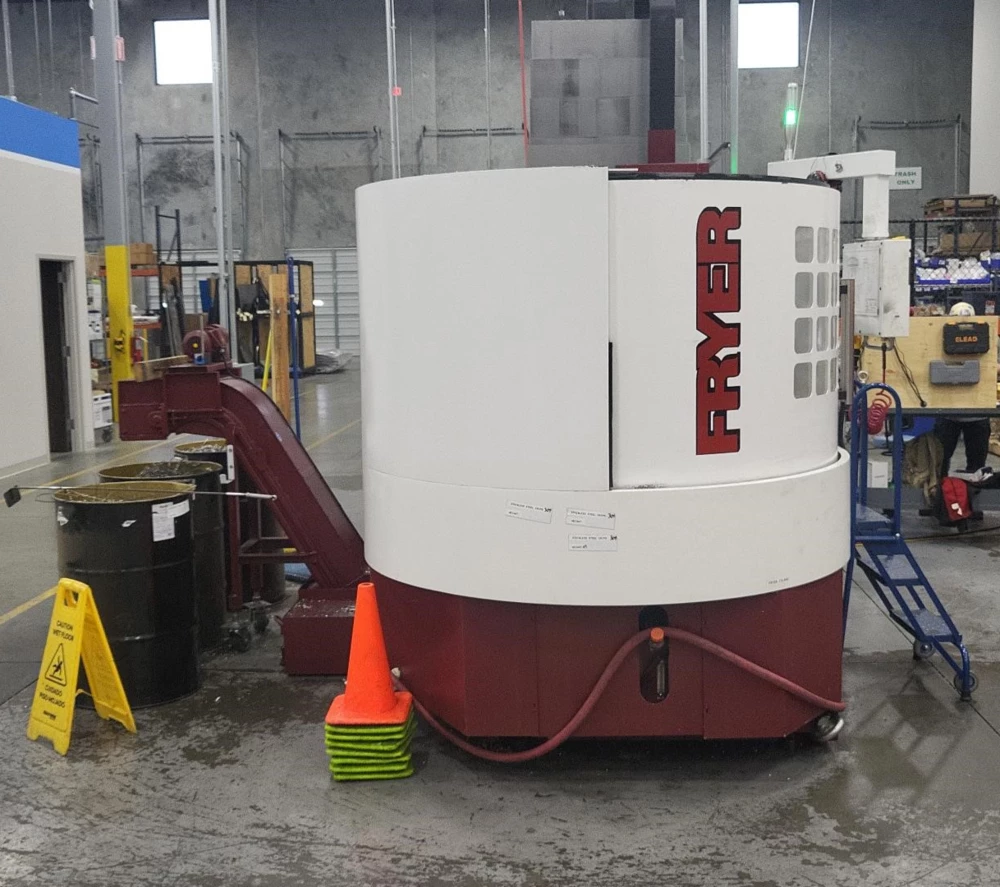

Used Fryer ET-18 (2022) CNC Lathe for Sale. This lathe carries a 50″ chuck with 2.6″ bar capacity, 500 RPM spindle speed, and 32″ distance between centers. Travels measure 34″ on the X-axis column and 32″ on the Z-axis, with a cutting diameter range of 0 – 60″. The 8 position turret runs BMT-65 turret tooling and live tooling, with turret face to spindle center at -3″ – 31″ and turret face to spindle nose at 8″ – 40″. Power comes from a 75 HP spindle motor and a 10 HP live tooling spindle rated 10 – 40,000 RPM, on an A2-15 spindle nose. Max part weight is 10,000 lbs, and a chip conveyor is fitted. Dimensions are 162″ x 79″ x 148″ at 32,000 lbs. Available to view under power for inspection. See more used CNC lathes, use Activate Pricing, or Request a Quote.
Specifications
| Chuck Size |
50" |
|---|---|
| Bar Capacity |
2.6" |
| Spindle Speed |
500 RPM |
| Distance Between Centers |
32" |
| X-Axis Column Travel |
34" |
| Z-Axis Travel |
32" |
| Cutting Diameter Range |
0 - 60" |
| Turret |
8 Position |
| Turret Face to Spindle Center |
-3" - 31" |
| Turret Face to Spindle Nose |
8" - 40" |
| Spindle Motor |
75 HP |
| Live Tooling Spindle Motor/Speed |
10 HP / 10 - 40,000 RPM |
| Max Part Weight |
10,000 Lbs |
| Chip Removal |
Chip Conveyor |
| Dimensions |
162" x 79" x 148" |
| Weight |
32,000 Lbs |
Features
|
BMT-65 Turret Tooling |
Live Tooling |
|
A2-15 Spindle Nose |
