Year |
2022 |
|---|---|
Make |
Flow |
Model |
Mach 100 3020 |
Description |
6.6' x 10' CNC Waterjet |
Reference # |
8078423 |
Price |
Activate Pricing |

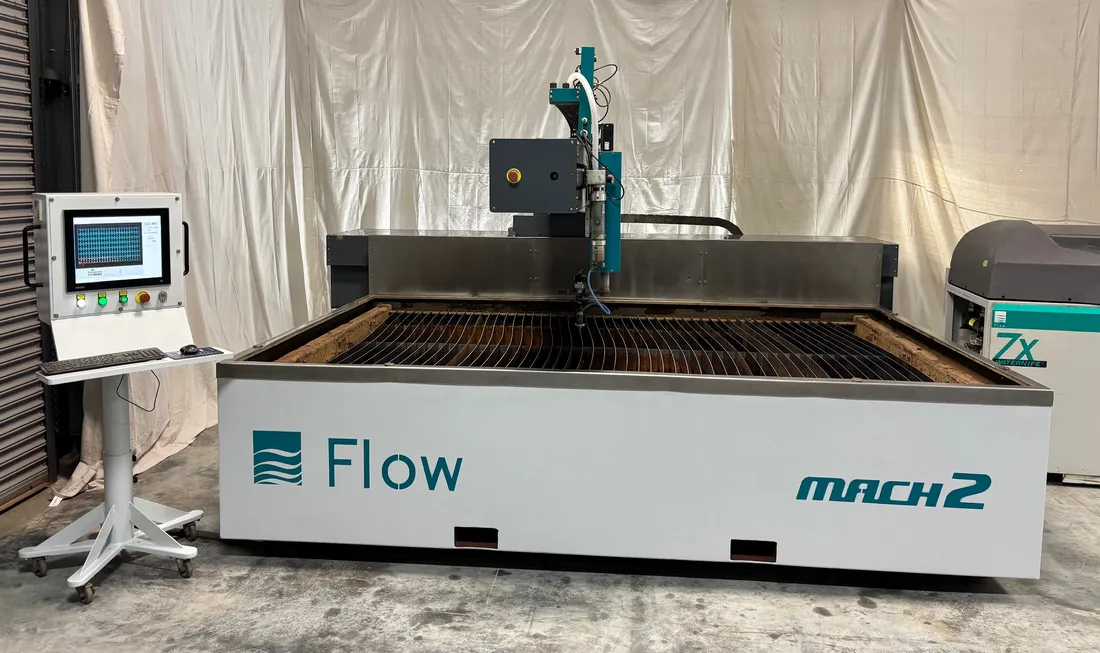

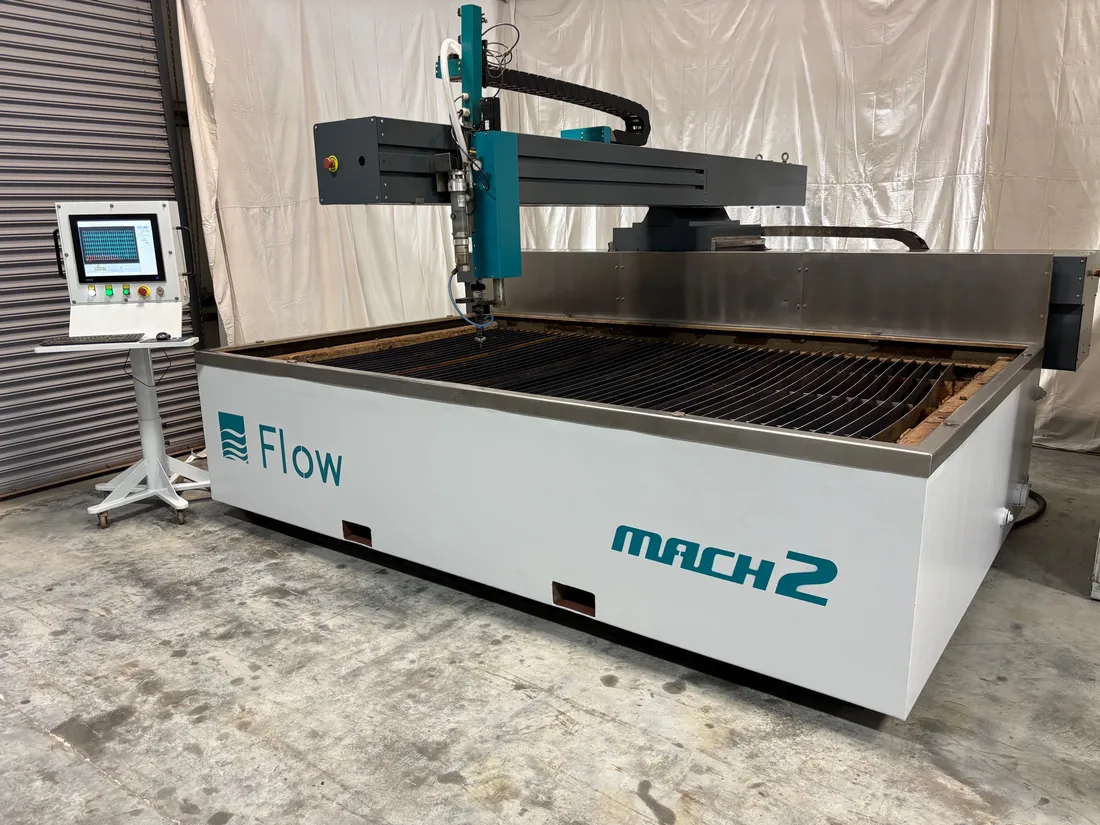

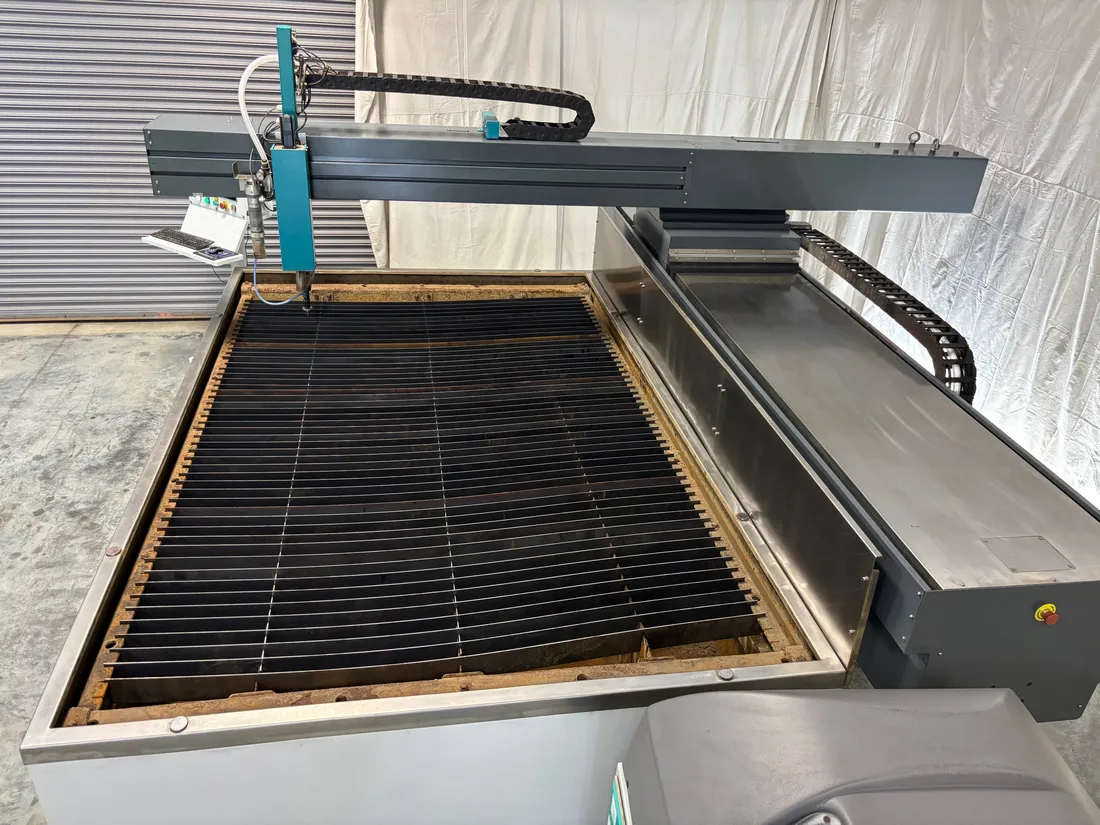

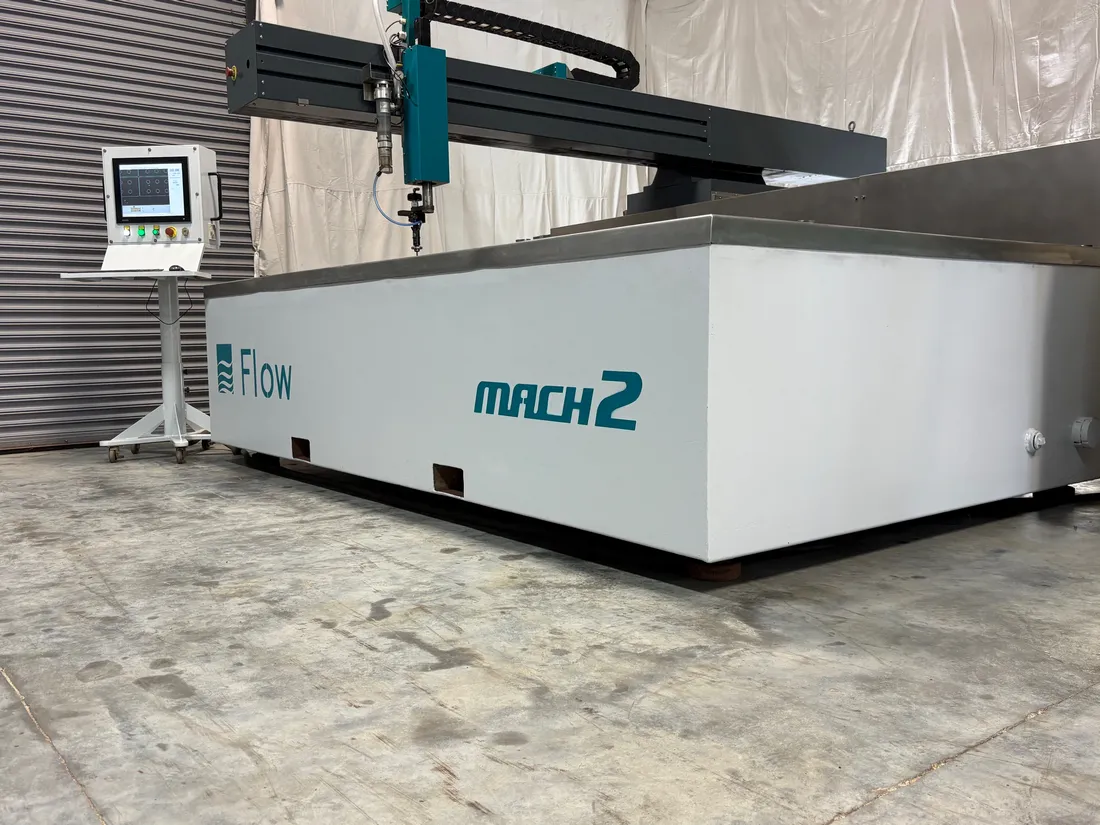

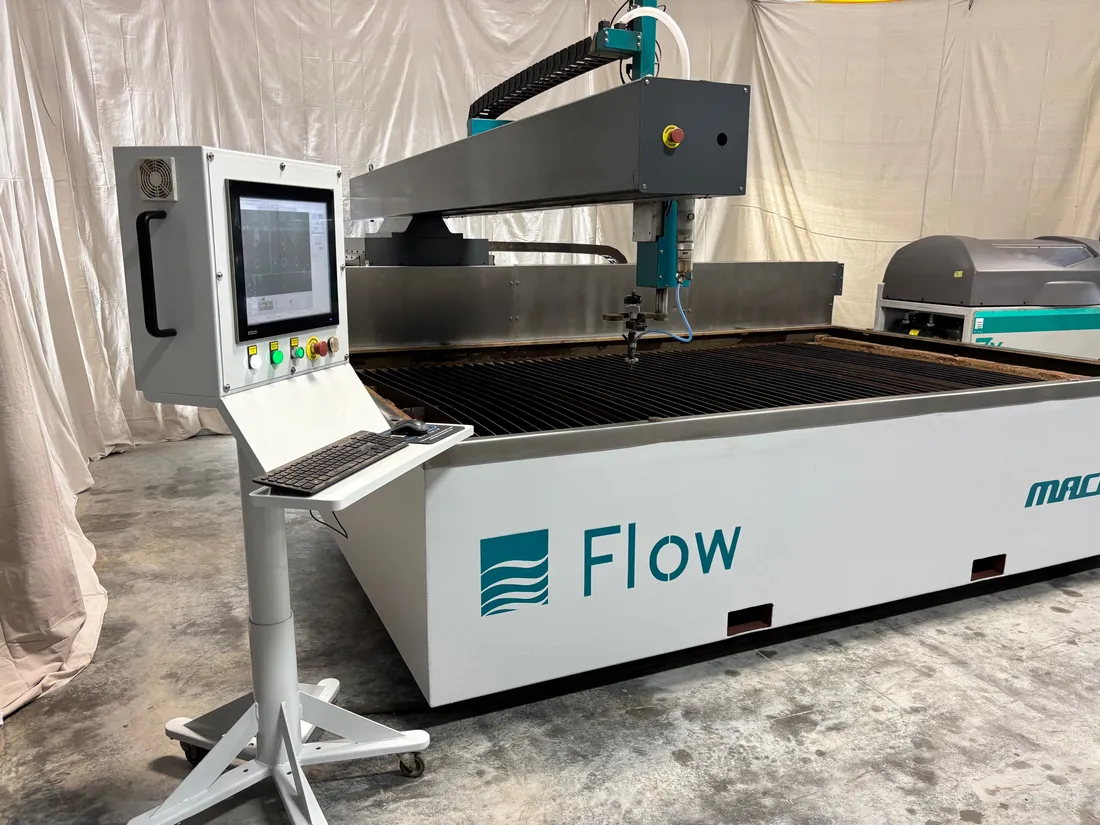

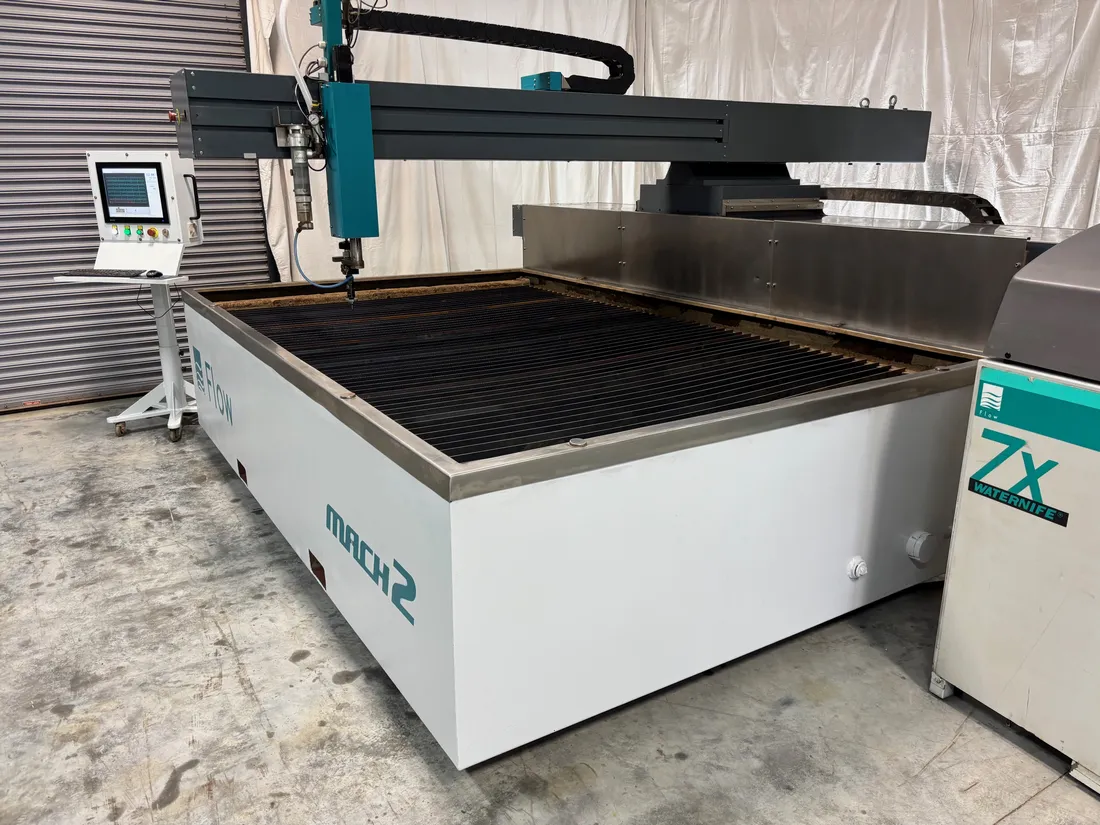

Used Flow Mach 100 3020 (2022) Waterjet for Sale. This machine has a 6.6′ x 10′ table with a 7′ x 10.2′ tank and a base range of 4.3′ to 13′. Control is Flowmaster with a roll-around touch screen control console. The 50 HP 7x Waterknife pump delivers a maximum cutting pressure of 60,000 PSI. Rapid traverse maximum is 400 IPM, repeatability is 0.0025″, and linear straightness accuracy is .005″ per 3 feet. Equipped with a 7″ fully programmable servo driven Z-axis, ball screw and digital drive system, 500 lb abrasive hopper, Paser 4 cutting head, auto-lube system, weir settling tank, and 3-sided access. Low hours. Power requirement is 460-480/3/60. Available to see under power for inspection. See more used waterjets and other Flow equipment, Activate Pricing, or Request a Quote. This machine is located in Texas.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
10' |
| Control |
Flowmaster |
| Pump |
50 HP |
| Max Cutting Pressure |
60,000 PSI |
| Linear Straightness Accuracy |
.005" Per 3 Feet |
| Rapid Traverse Maximum |
400 IPM |
| Repeatability |
0.0025" |
| Power Requirement |
460-480/3/60 |
| Base |
4.3' - 13' |
| Tank |
7' x 10.2' |
Features
|

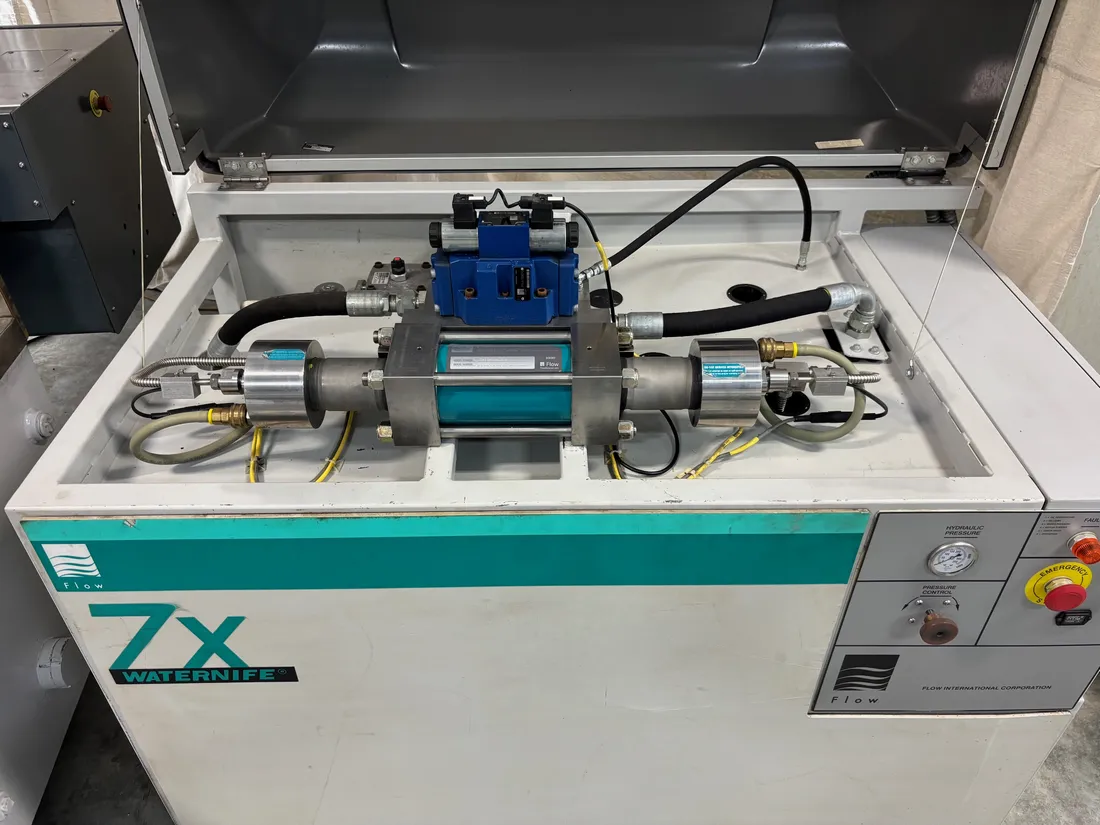

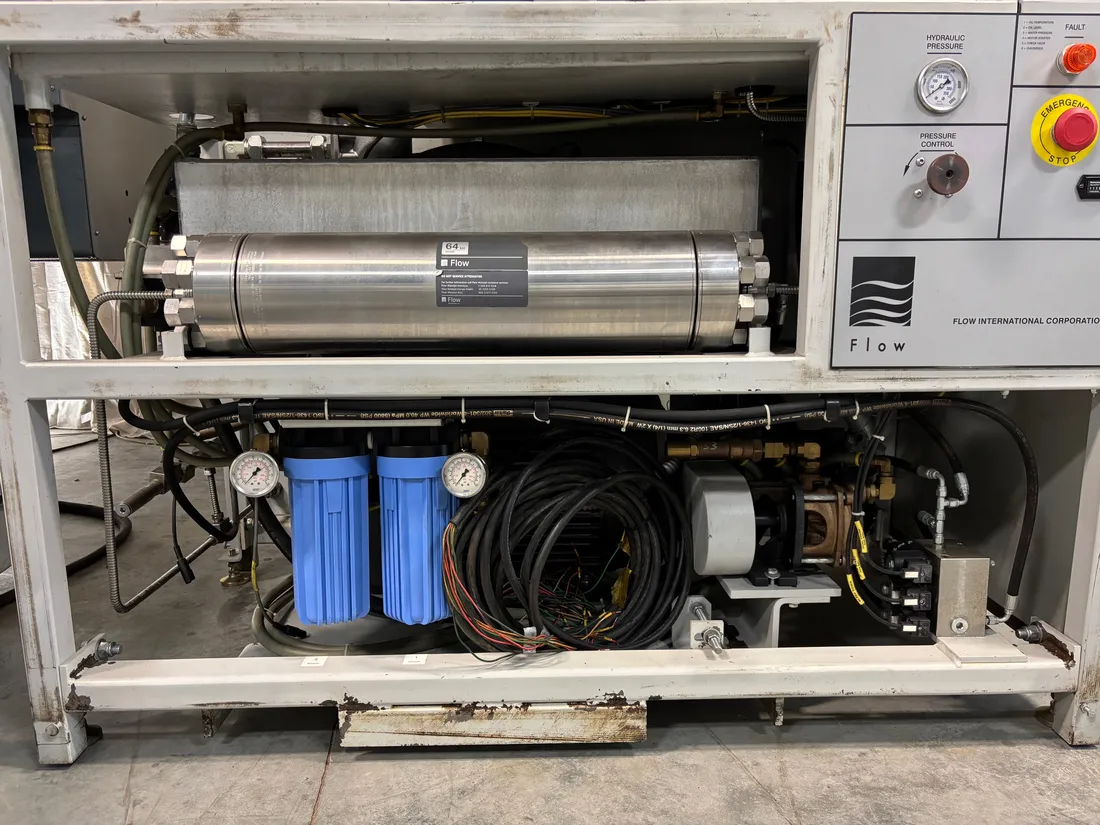

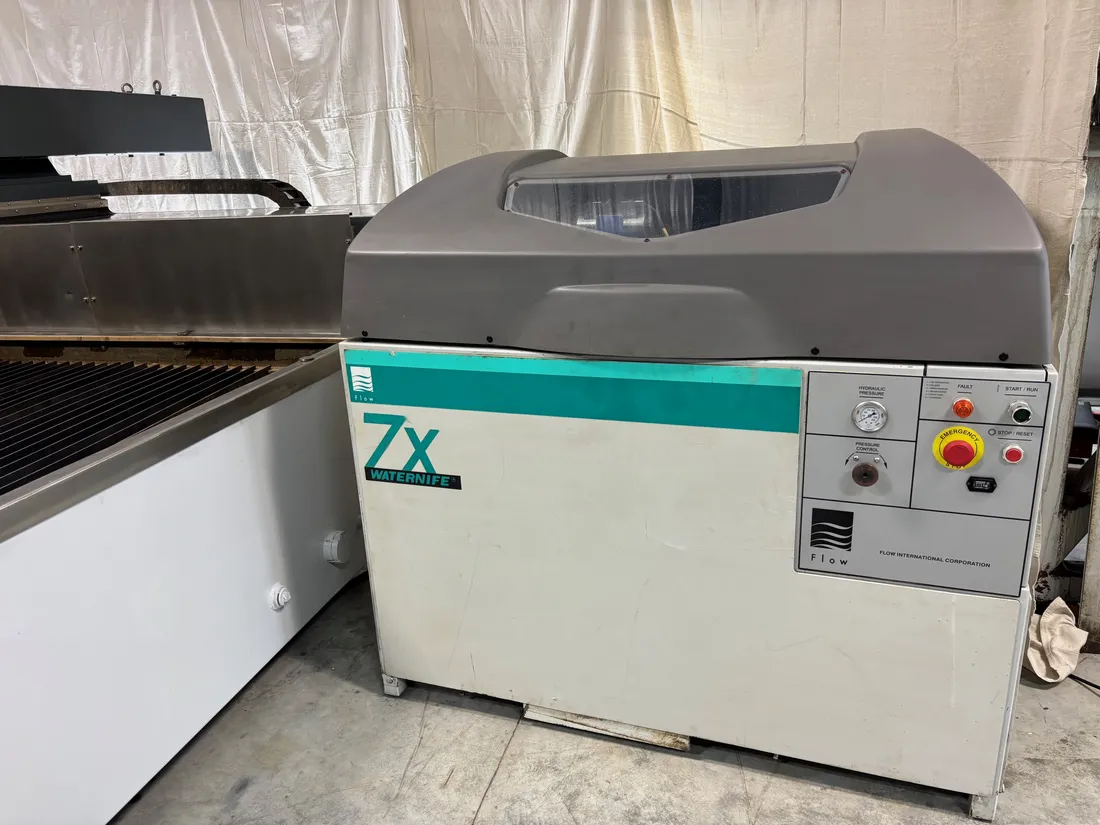

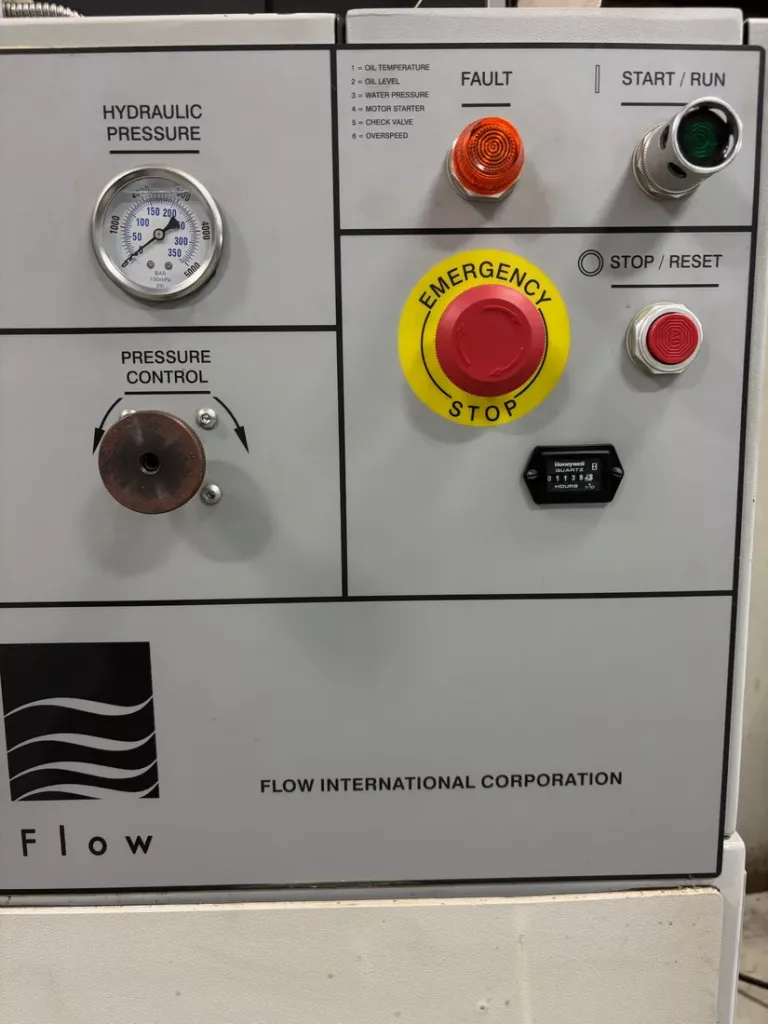

50 HP 7x Waternife Pump |
3-Sided Access Easy Loading and Unloading of Materials |
|
7” Fully Programmable Servo Driven Z-Axis |
High-End Ball Screw and Digital Drive System for Premium Accuracy |
|
Lift the Z-Axis Up Between Traverse Movements to Clear Any Potentially Remaining Slugs |
500 Lb Abrasive Hopper |
|

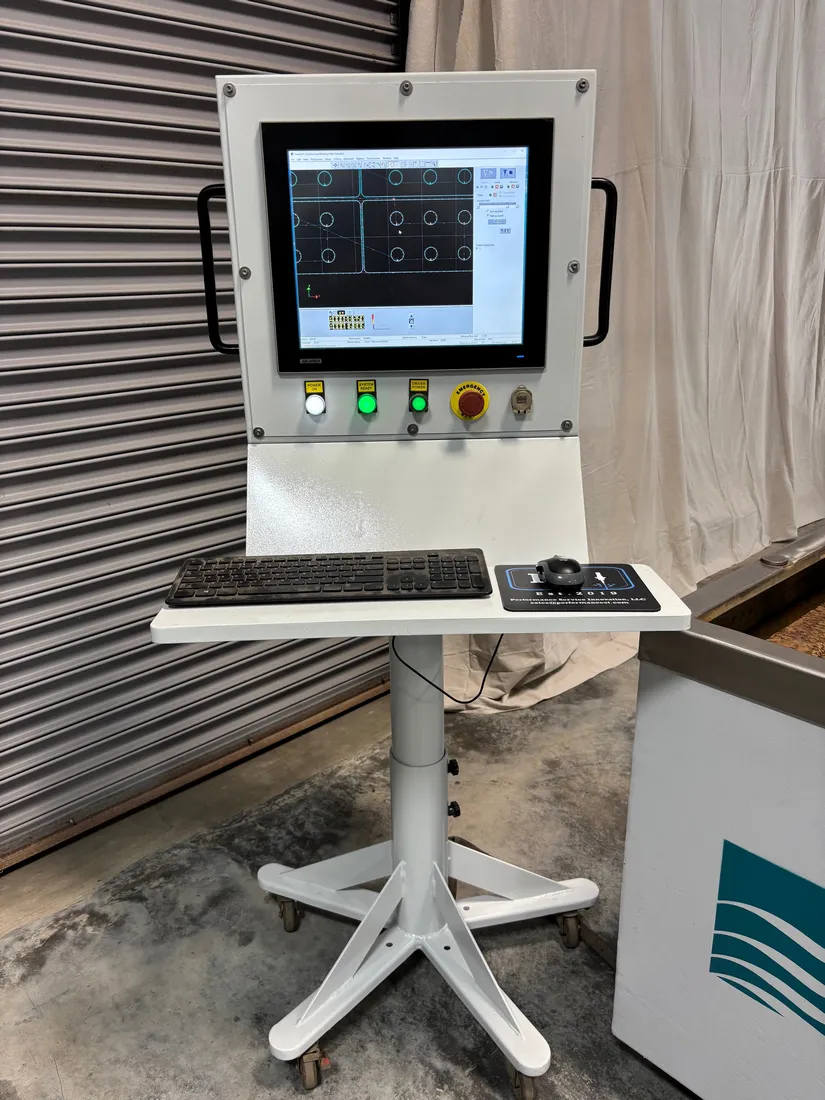

Roll-Around Control with Touch Screen Control Console |

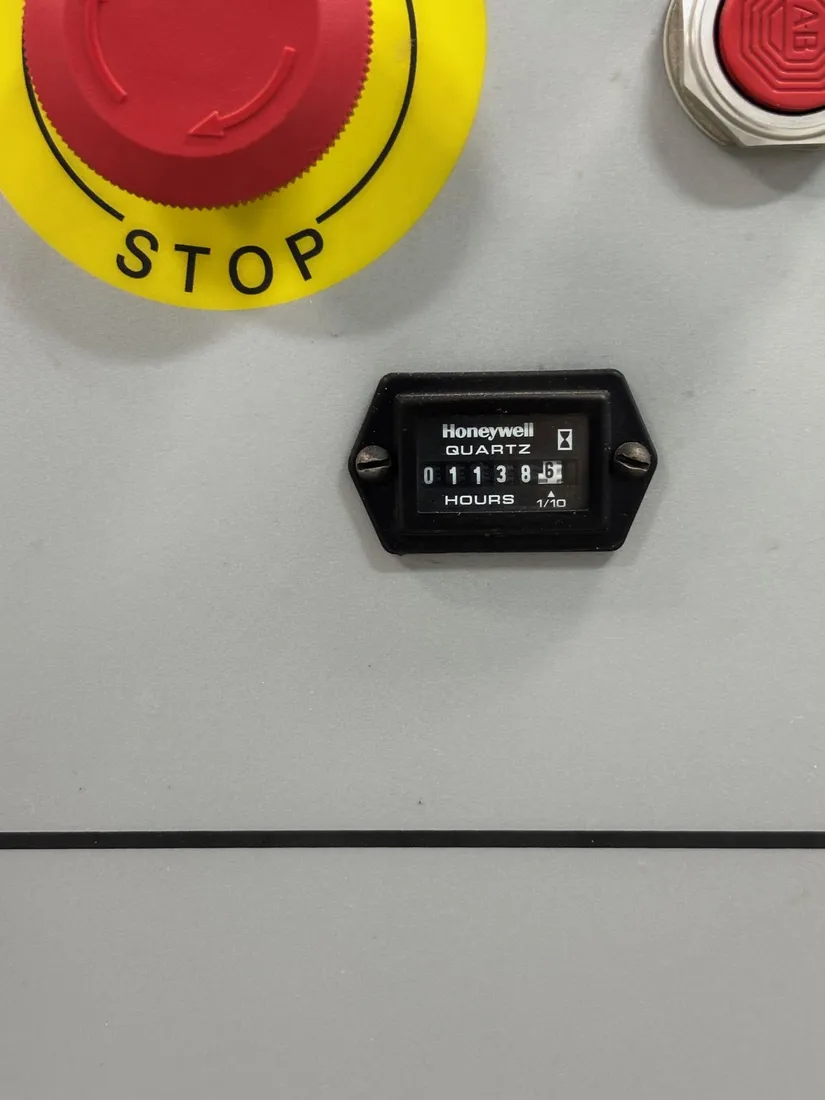

Low Hours |
|
Auto-Lube System Automatically Lubricates The Precision Motion Components |

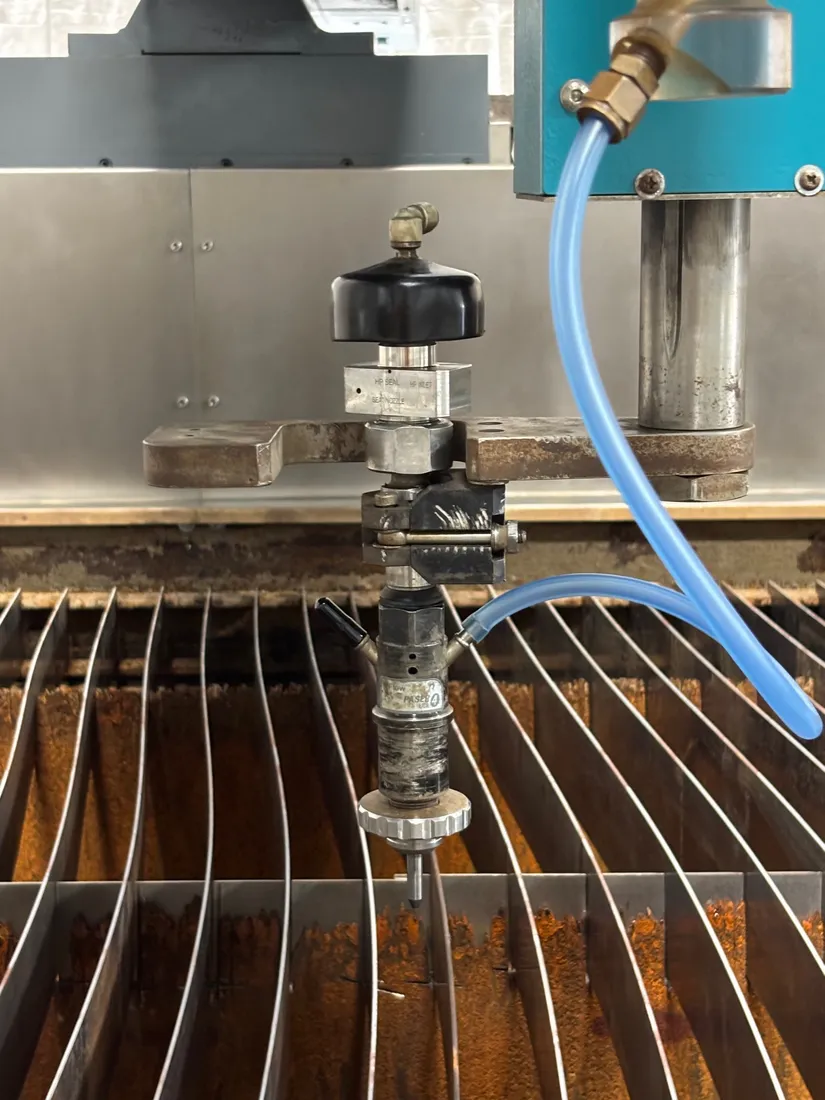

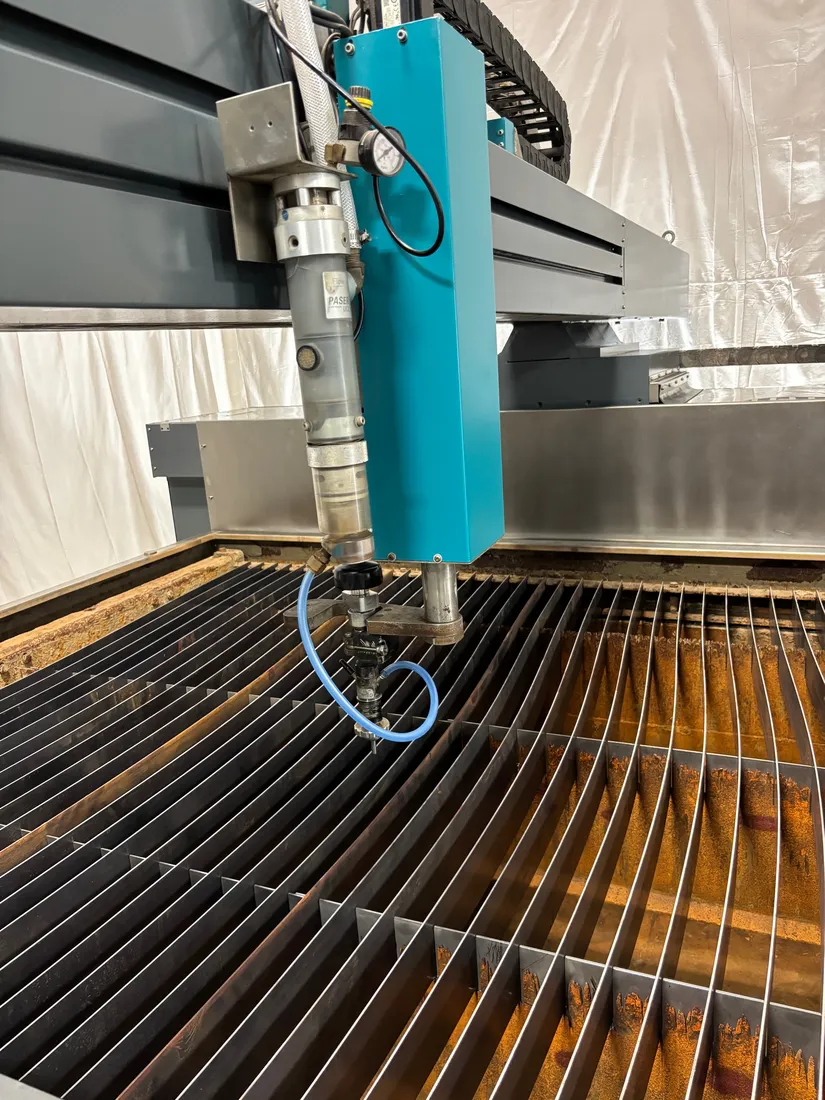

Paser 4 Cutting Head |
|
Wier Settling Tank |
