Year |
2022 |
|---|---|
Make |
Davi |
Model |
MCA 2020 |
Description |
4-Roll Plate Roll |
Reference # |
8078771 |
Price |
Activate Pricing |

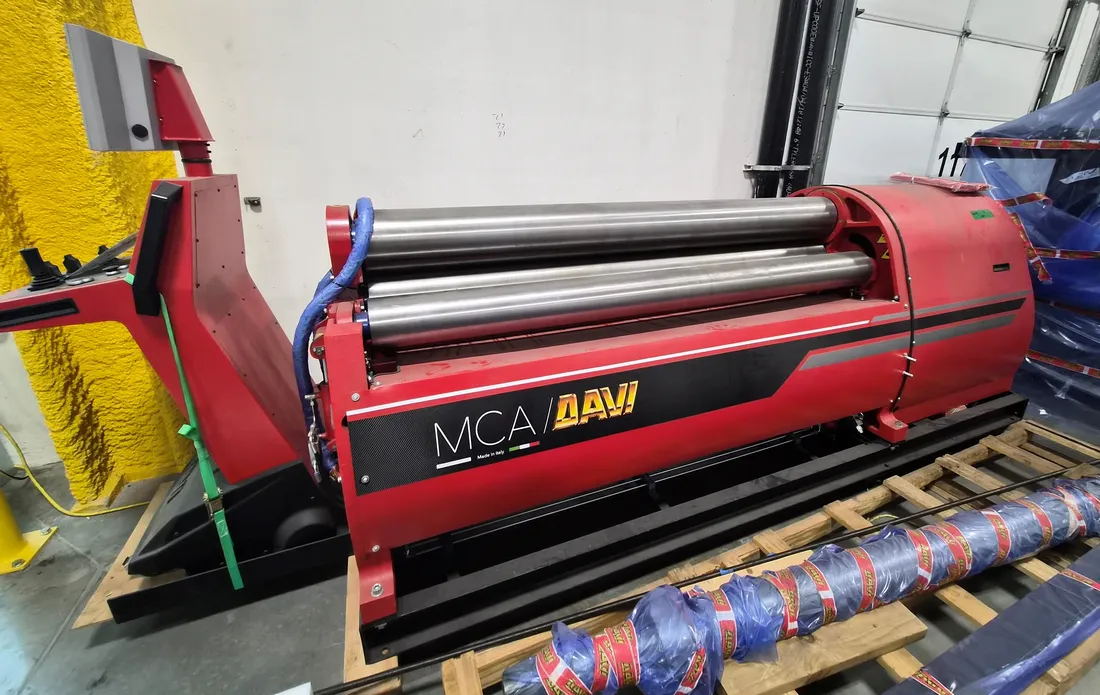

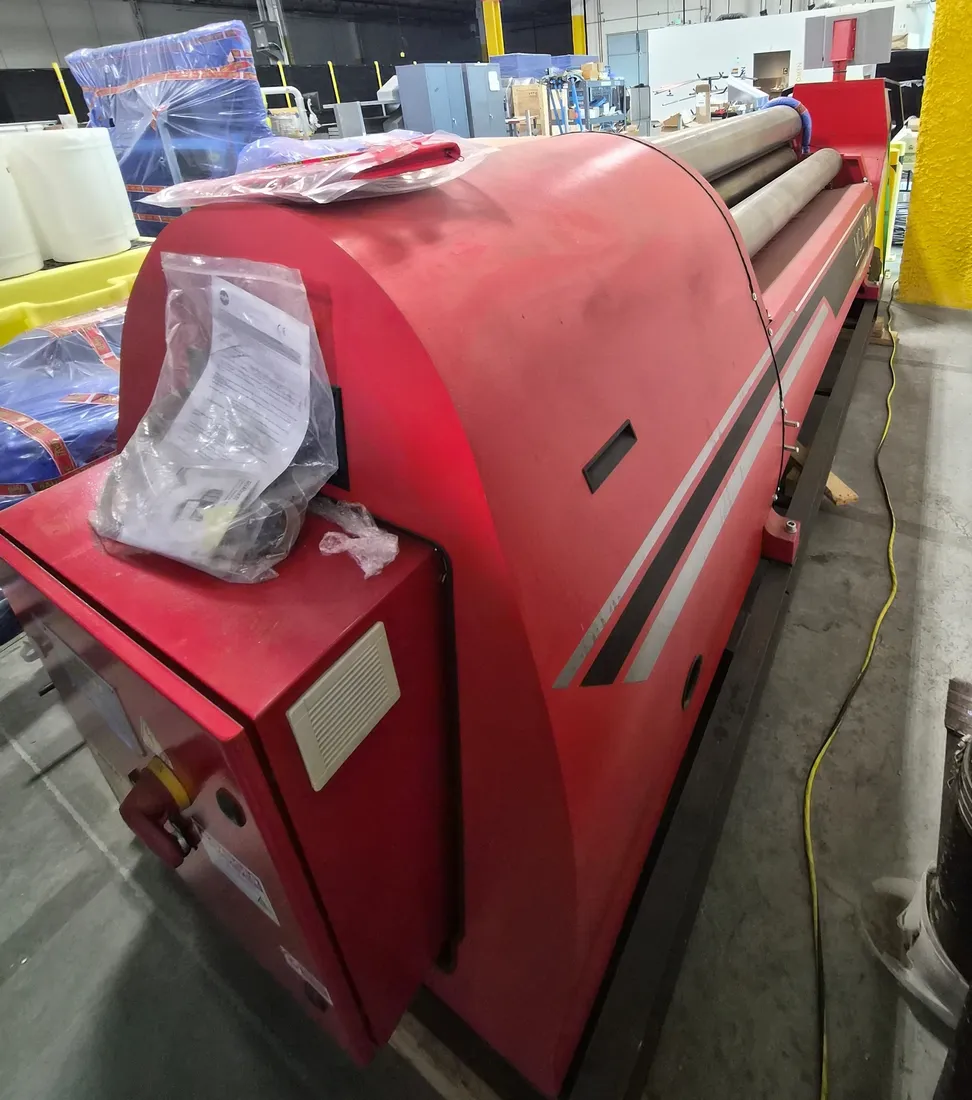

Used Davi MCA 2020 (2022) Plate Roll for Sale. This four-roll CNC plate roll has an overall roll length of 78″ with a maximum rolling length of 72″, pre-bending thickness of 5/16″ and maximum rolling thickness of 7/16″ at 40″ internal diameter, based on 40,000 PSI yield / 65,000 PSI UTS material. Top and bottom rolls measure 8″ and 7.5″, side rolls 6.5″, with a smallest possible diameter of 8.8″ and rolls positioning accuracy of +/- 0.004″. Maximum rolling speed is 20 FPM on 12 HP installed power, 460/3/60, approximately 11,000 lbs. Equipped with Davi CNC control, 13′ powered infeed conveyor, powered squaring bar, hydraulic plate clamping, driven clamping rolls, cone rolling package, rolls crowning and guiding, light curtain set and mechanical barriers. Available to be seen under power for inspection. See more plate rolls, [Activate Pricing](#activate-pricing) or Request a Quote.

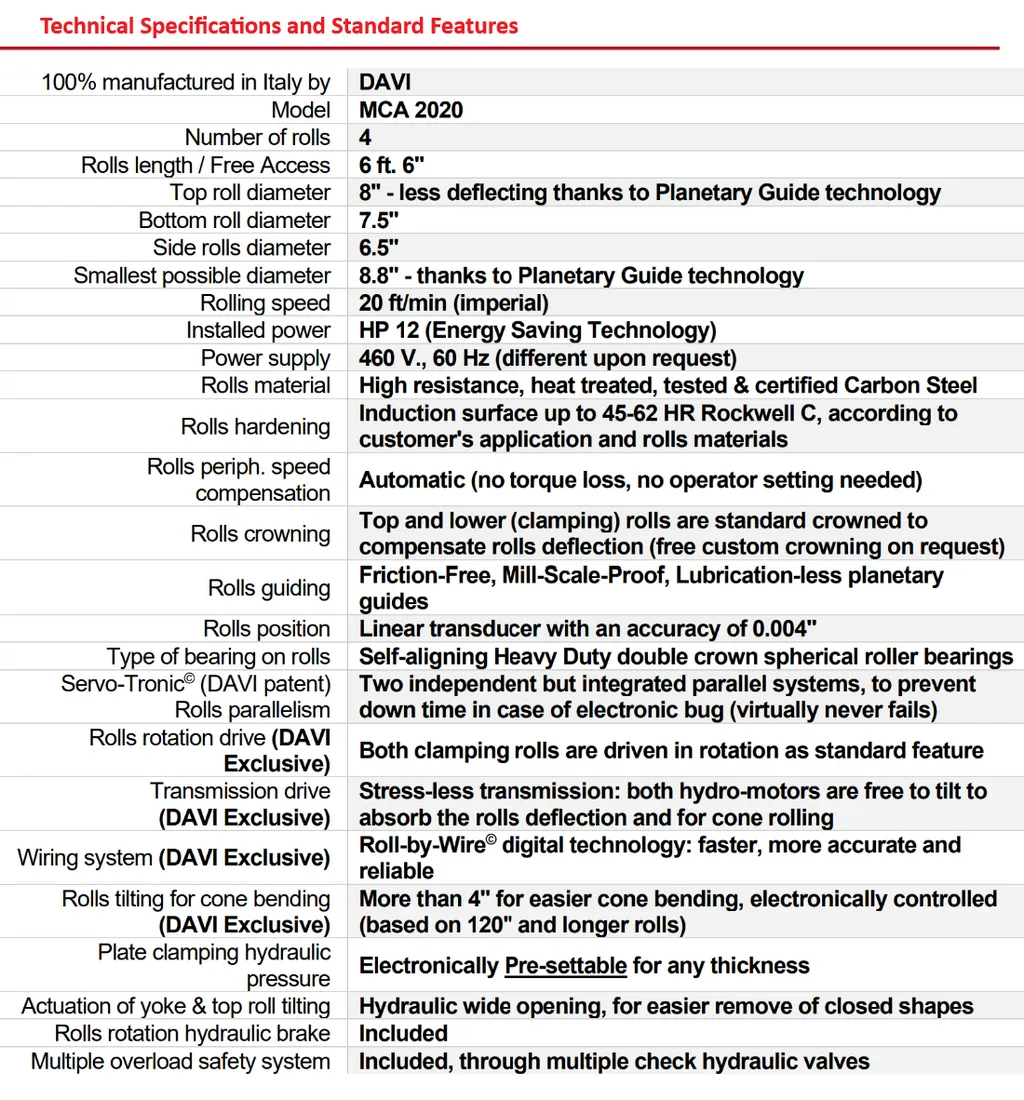

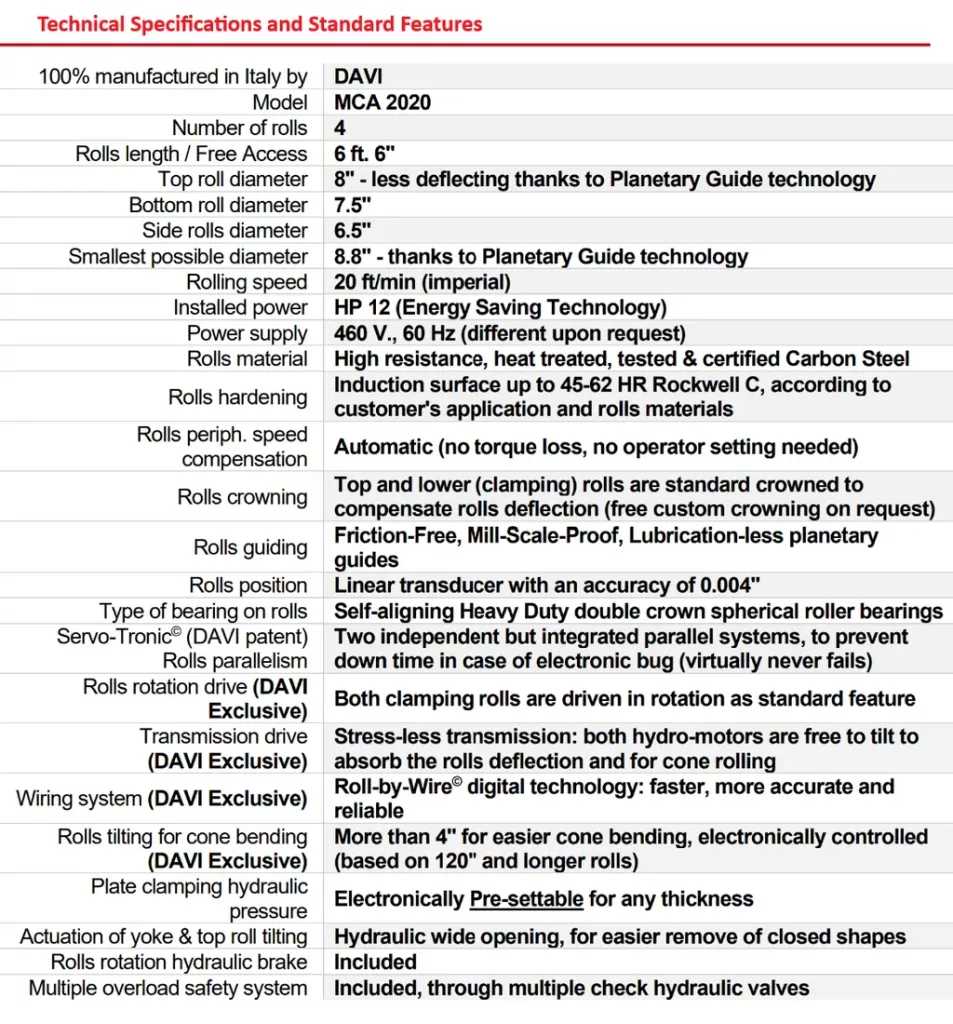

Specifications
| Overall Length of Rolls |
78" |
|---|---|
| Pre-Bending Thickness |
5/16" |
| Max Rolling Length |
72" |
| Max Rolling Thickness |
7/16" |
| Internal Diameter |
40" |
| Yield/UTS |
40,000 PSI / 65,000 PSI |
| Top/Bottom Roll Diameter |
8" / 7.5" |
| Side Roll Diameter |
6.5" |
| Smallest Possible Diameter |
8.8" |
| Max Rolling Speed |
20 FPM |
| Installed Power |
12 HP |
| Rolls Positioning Accuracy |
+/- 0.004" |
| ITR with Special Crowing |
0.040" T X 5' W @ 10.45" IR |

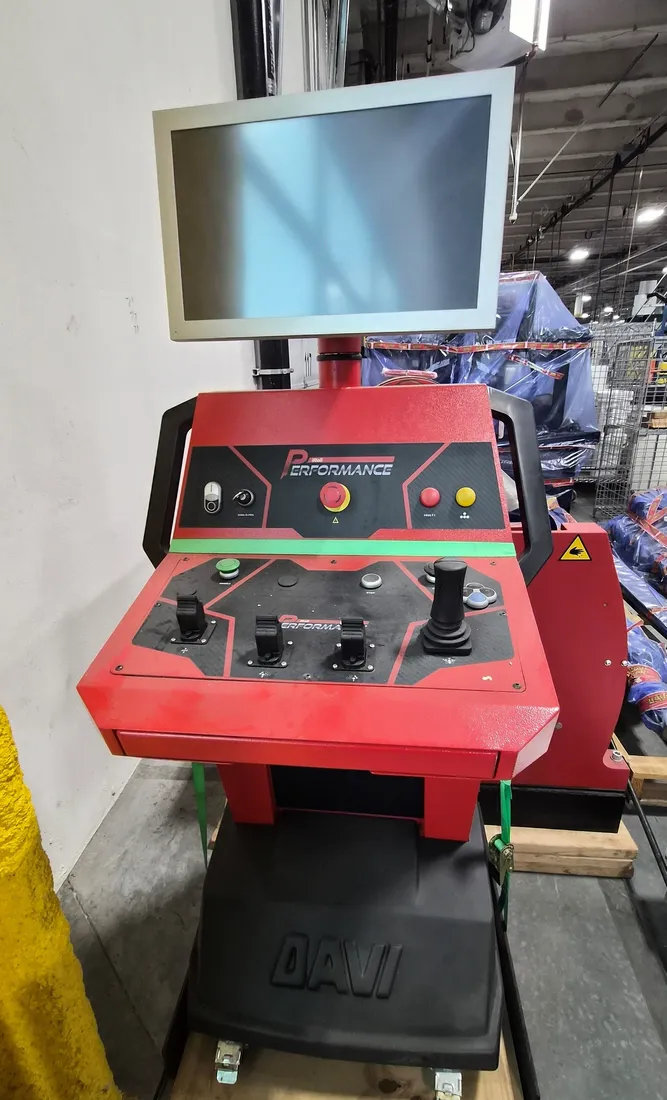

| Control |
Davi CNC |
| Power Requirement |
460/3/60 |
| Approx Weight |
11,000 Lbs |

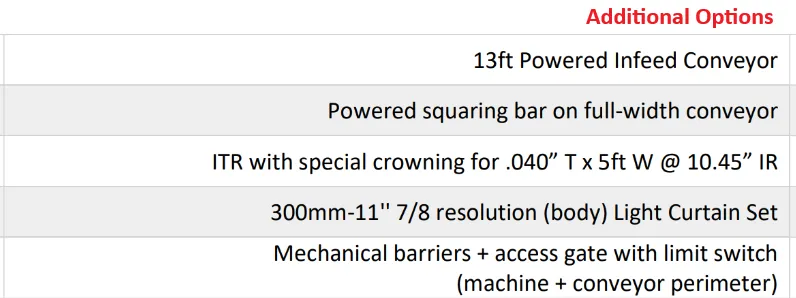

Features
|
13' Powered Infeed Conveyor |
7/8" Resolution (Body) Light Curtain Set |
|
Cone Rolling Package |
Driven Clamping Rolls |
|
Hydraulic Plate Clamping |
Mechanical Barriers + Access Gate with Limit Switch (Machine + Conveyor Perimeter) |
|
Multiple Overload Safety System |
Permanent Lubrication Technology |
|
Planetary Guide Technology |
Powered Squaring Bar on Full Width of Conveyor |
|
Roll-By-Wire Digital Technology |
Rolls Crowning |
|
Rolls Guiding |
Servo-Tronic Rolls Parallelism |
|
Stress-Less Transmission Drive System |
Hardened Rolls |
