Make |
American Rotary |
|---|---|
Model |
ADX Micro Smart |
Description |
50 HP Digital Rotary Phase Converter |
Reference # |
8072253 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used American Rotary ADX Micro Smart Other Equipment for Sale. This rotary phase converter package carries a 25 KVA power requirement, draws approximately 6.2 idle amps, and runs at greater than 98% efficiency at a power factor of .9, with an MTBF operating reliability rating of 50,000. The idler runs at 750 RPM with Class F insulation and measures 22.5″ x 21″ x 16″ (LxDxH), while the panel measures 24″ x 18″ x 8″ (HxWxD). Total weight is 476 lbs. Equipped with an 80-104 amp enclosed contactor per machine, Smart Controlled Extreme Duty, ADX Micro, and a Nema 1 / Type 1 indoor panel style. Two machines are available and pricing is per machine. The unit can be seen under power for an inspection. Request a Quote for further details.

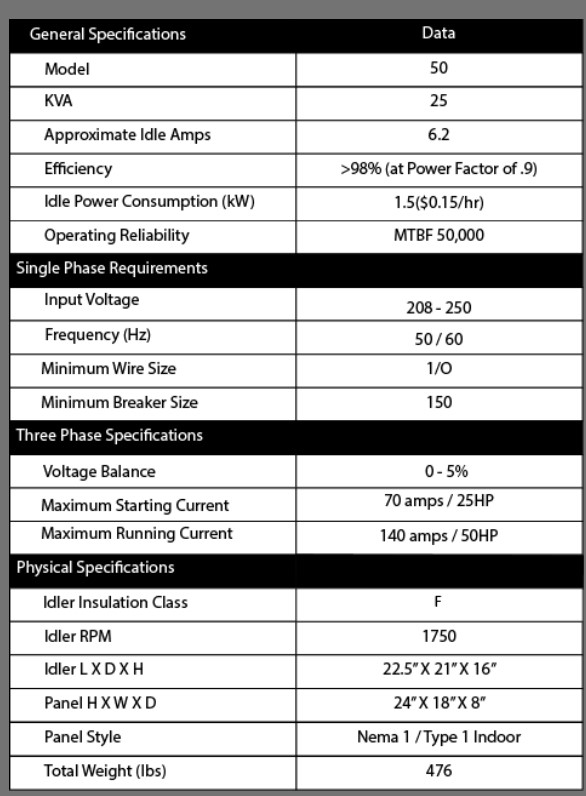

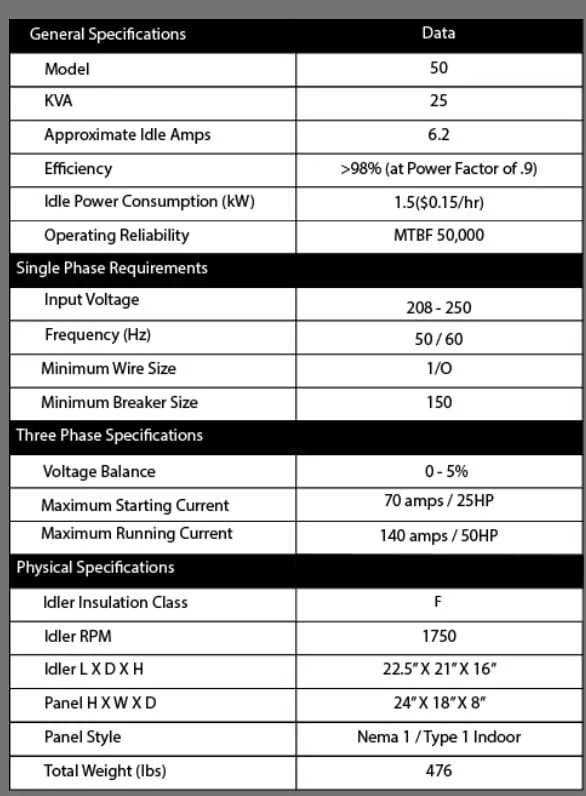

Specifications
| Approximate Idle Amps |
6.2 |
|---|---|
| Efficiency |
>98% (@ Power Factor .9) |
| Operating Reliability |
MTBF 50,000 |
| Power Requirement |
25 KVA |
| Idler Insulation Class |
F |
| Idler Speed |
750 RPM |
| Idler Dimensions |
22.5" x 21" x 16" (LxDxH) |
| Panel Dimensions |
24" x 18" x 8" (HxWxD) |
| Total Weight |
476 Lbs |
| Note |
(2) Machines Available - Pricing is per Machine |
Features
|
80-104 Amp Enclosed Contactor (per Machine) |
Smart Controlled Extreme Duty |
|
ADX Micro |
Nema 1 / Type 1 Indoor Panel Styler |
