Year |
2021 |
|---|---|
Make |
O'Brien |
Model |
1 Ton |
Description |
Jib Crane |
Reference # |
8079013 |
Price |
Activate Pricing |

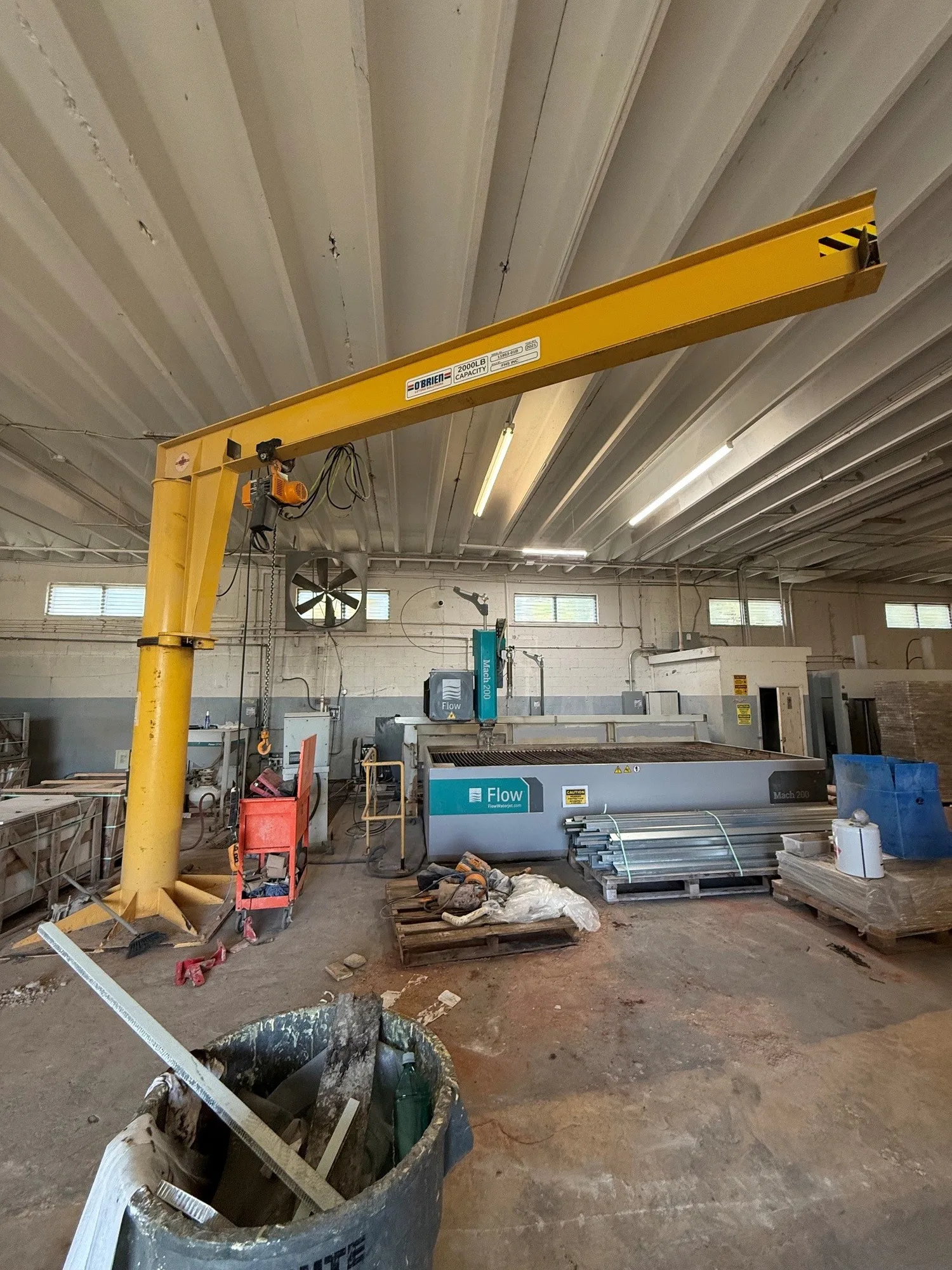

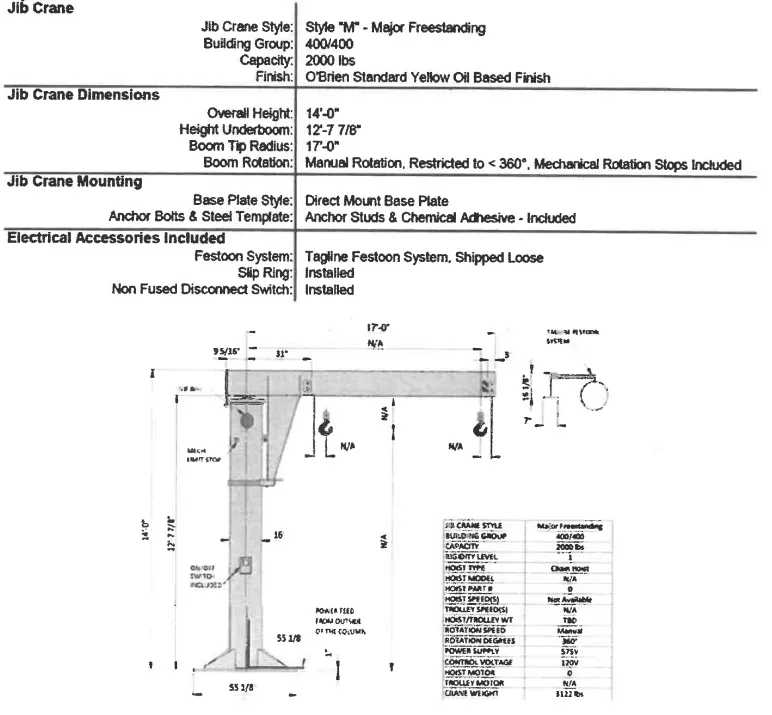

Used O’Brien 1 Ton (2021) Crane for Sale. This Style “M” major freestanding jib crane is rated for a maximum load capacity of 1 ton (2,000 lbs) and comes equipped with an electric chain hoist with chain container. Overall height is 14′, with 12′ 7-7/8″ under the boom and a 17′ boom tip radius. Boom rotation and trolley are manual. Mounting is a direct mount base plate with anchor studs and chemical adhesive, building group 400/400, crane weight 3,122 lbs. Lifting speed is 17/4 FPM dual speed with a 15′ hoist lift height and 11 ft. pendant. Hoist rating is 120V / 1 Ph / 60 HZ, crane power supply 575V, control voltage 120V, and a tagline festoon system is included. The pump motor is a 3-phase induction motor, 5 HP (3.7 kW), 60 Hz, 4 poles, 240/415V. Available to see under power for inspection. Browse more used other equipment, then Activate Pricing or use the Inquire Now button.
Specifications
| Max Load Capacity |
1 ton (2,000 lbs) |
|---|---|
| Pendant Length |
11 ft |
| Lifting Speed |
17/4 FPM (Dual Speed) |
| Hoist Lift Height |
15 ft |
| Boom Tip Radius |
17 ft |
| Height Under Boom |
12' 7-7/8" |
| Pump Motor |
3 Phase Induction |
| Crane Power Supply |
575V |
| Hoist Electrical Rating |
120V/1ph/60Hz |
| Control Voltage |
120V |
| Building Group |
400/400 |
| Crane Weight |
3,122 Lbs |
| Overall Height |
14 ft |
Features
|
4 Poles |
5 HP (3.7 kW) |
|
Boom Rotation: Manual Rotation |
Electric Chain Hoist |
|
Hoist Type: Electric Chain Hoist With Chain Container |
Includes Tageline Festoon System |
|
Mounting Style: Direct Mount Base Plate With Anchor Studs & Chemical Adhesive |
Style "M" - Major Freestanding |
|
Manual Trolley |
