Year |
2021 |
|---|---|
Make |
Haitian |
Model |
ZEIII 4500/2250 |
Description |
506 Ton 39.75 oz Shot Size Electric Injection Molding Machine |
Reference # |
8076995 |
Price |
Activate Pricing |

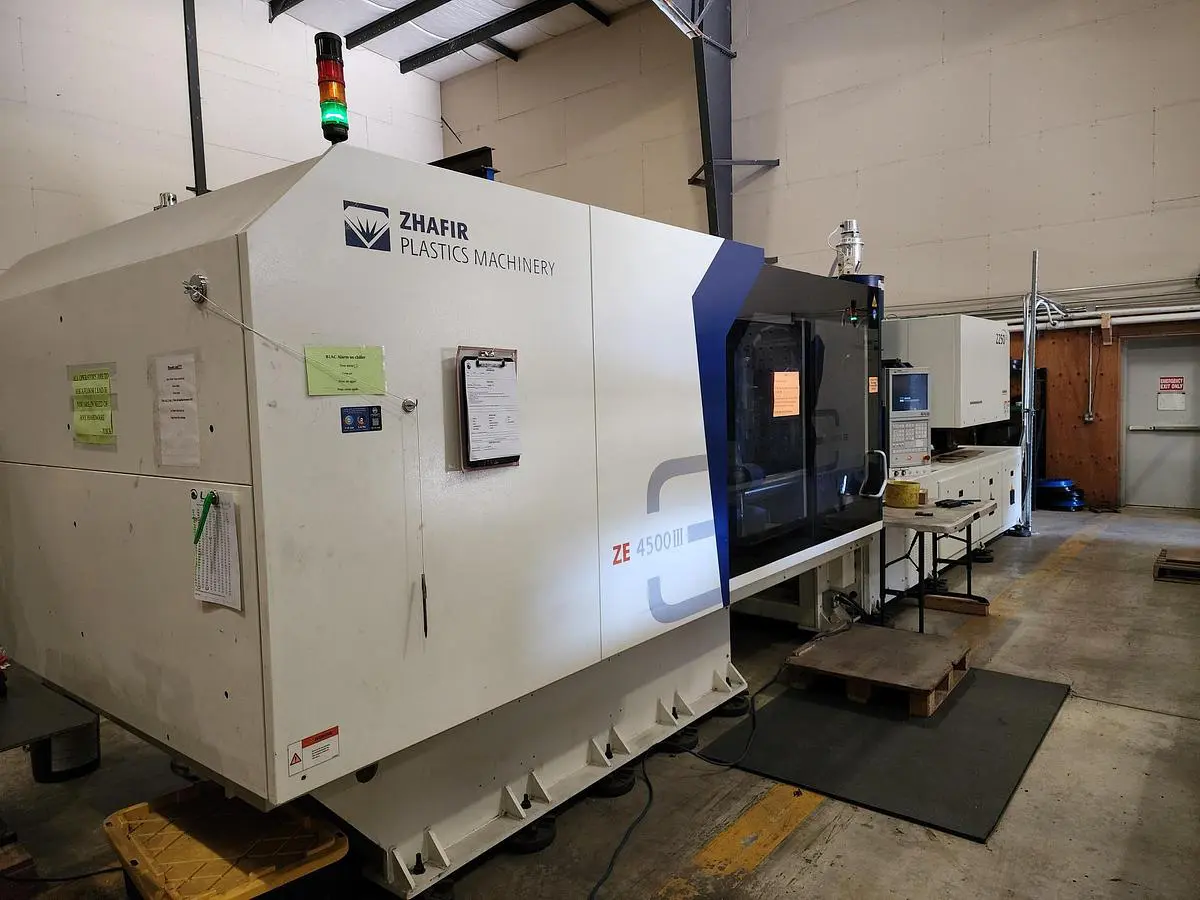

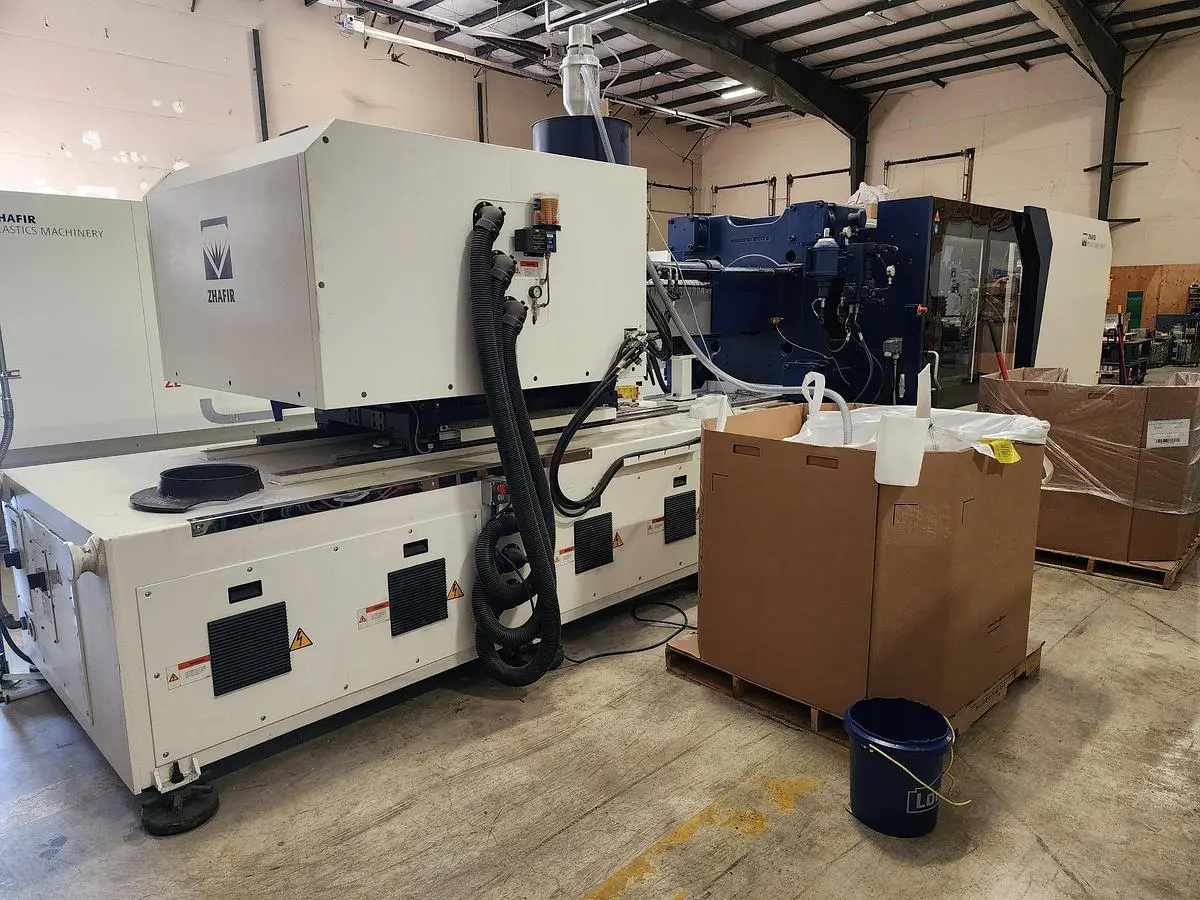

Used Haitian ZEIII 4500/2250 (2021) Injection Molding Machine for Sale. This 506 ton press offers a 39.75 oz shot size, tie bar spacing of 35.83″ x 35.83″, and platen size of 51.18″ x 51.18″. Max daylight is 63.39″, with minimum and maximum mold height of 13.78″ and 31.89″, and a 7.09″ ejector stroke. Machine control is Sigmatek and power requirement is 460/3/60. The clamp assembly measures 188″ x 90″ x 90″ at 42,330 lbs and the injection unit measures 186″ x 74″ x 90″ at 18,200 lbs. Equipped with core pull, air blast, and robot interface. The press is under power and can be seen running during an inspection. See more used plastic injection molding machines or Request a Quote on this unit.
Specifications
| Capacity |
506 Ton |
|---|---|
| Shot Size |
39.75 oz |
| Tie Bar Spacing |
35.83" x 35.83" |
| Platen Size |
51.18" x 51.18" |
| Max Daylight |
63.39" |
| Min /Max Mold Height |
13.78" / 31.89" |
| Ejector Stroke |
7.09" |

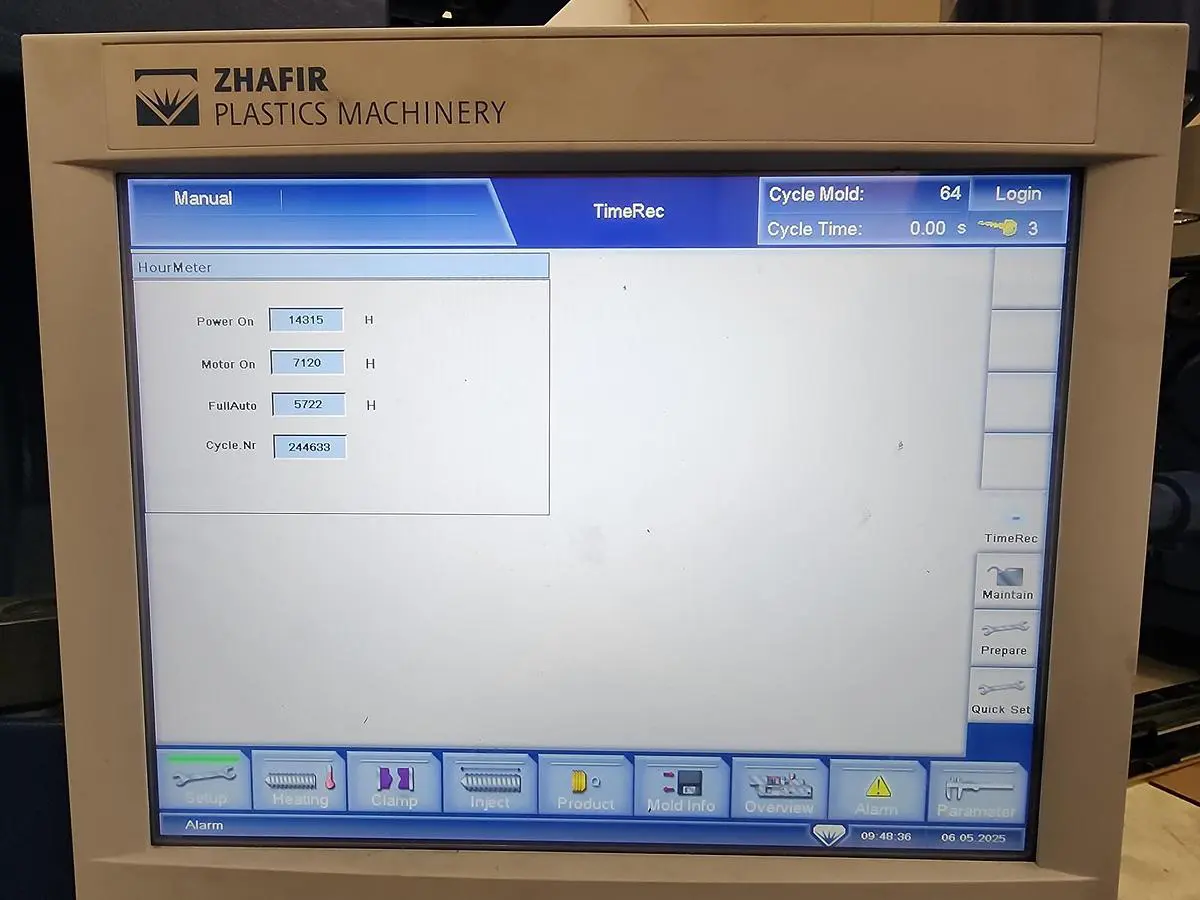

| Control |
Sigmatek |
| Power Requirement |
460/3/60 |
| Clamp Assembly |
188” x 90” x 90” 42,330 lbs. |
| Injection Unit |
186” x 74” x 90” 18,200 lbs. |
Features
|
Core Pull |
Air Blast |
|
Robot Interface |
Under Power |
