Year |
2021 |
|---|---|
Make |
Fanuc |
Model |
Robodrill a-D21MiB5adv |
Description |
CNC Vertical Machining Center |
Reference # |
8078649 |
Price |
Activate Pricing |

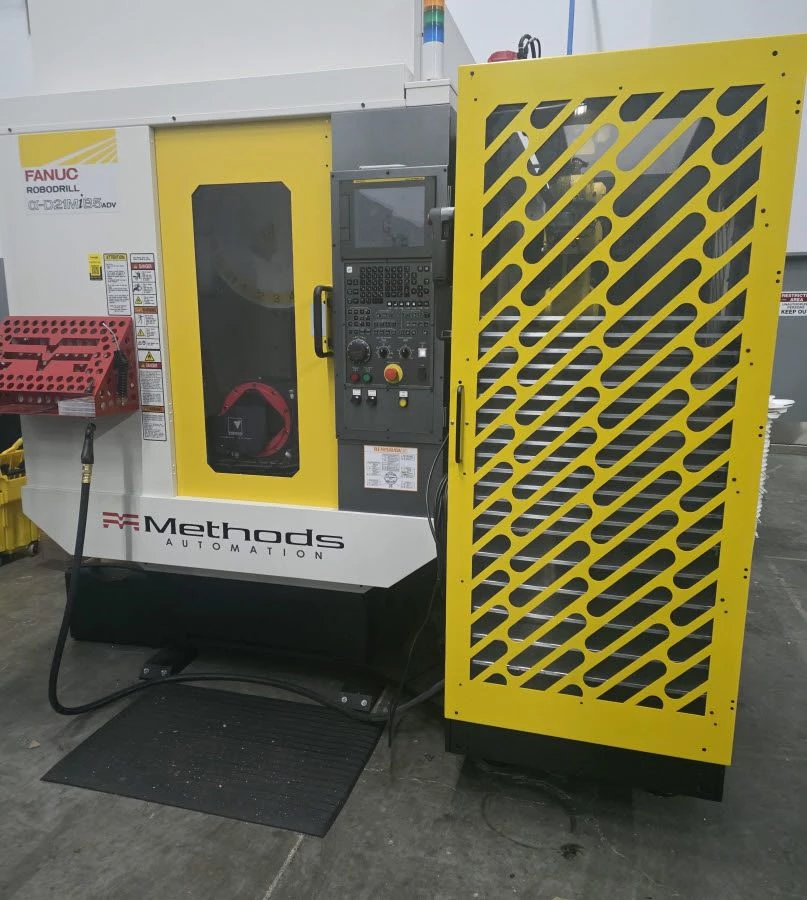

Used Fanuc Robodrill a-D21MiB5adv (2021) CNC Vertical Machining Center for Sale. This machine offers 19.69″ of X-axis travel, 15.75″ in Y, and 15.75″ in Z, with a 24,000 RPM BT 30 spindle and a 21-tool ATC. Rapid traverse is 2125 IPM on all axes, with programmable cutting feed to 1181 IPM. Max tool length is 9.84″, max tool diameter 3.93″, and max table load 880 lbs. Machine weight is 4000 lbs. Control is Fanuc 31iB5, 5th axis ready, with 1,000 PSI high pressure coolant. Equipped with Base Pallet Plus-E (15), CC Scraper LH+ Tank, DTTiB Double Torque 5 Axis Table, Fanuc Package B – High Speed 5 Axis DiB5, Plus-E Accessories Kit Prepped, RMP400 + RTS HSS DiB5 Combo Probes, and Robot Ready 100mm. Available to see under power for inspection. See more CNC vertical machining centers or other Fanuc equipment, Activate Pricing, and Request a Quote.
Specifications
| X-Axis Travel |
19.69" |
|---|---|
| Y-Axis Travel |
15.75" |
| Z-Axis Travel |
15.75" |
| Spindle Speed |
24,000 RPM |
| Spindle Taper |
BT 30 |
| Tool Magazine Capacity |
21 ATC |

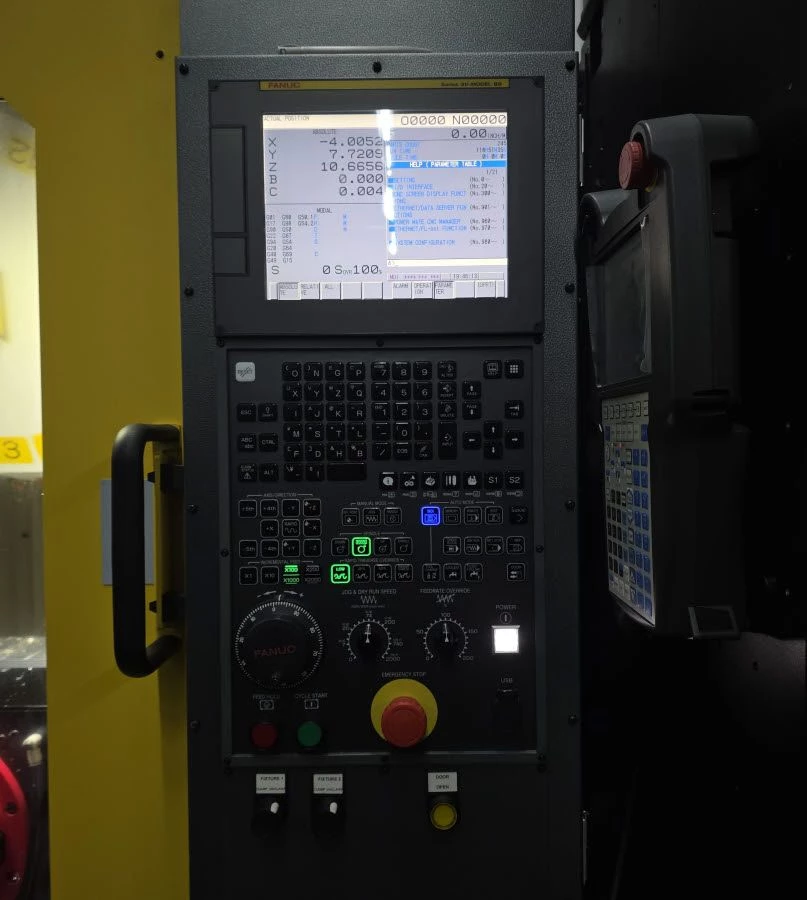

| Control |
Fanuc 31iB5 |
| Additional Axis |
5th Axis Ready |
| Coolant |
1,000 PSI High Pressure Coolant |
| Rapid Traverse All Axes |
2125 IPM |
| Cutting Feed (Programmable) |
1181 IPM |
| Max Tool Length |
9.84" |
| Max Tool Diameter |
3.93" |
| Max Table Load |
880 Lbs |
| Machine Weight |
4000 Lbs |
Features
|

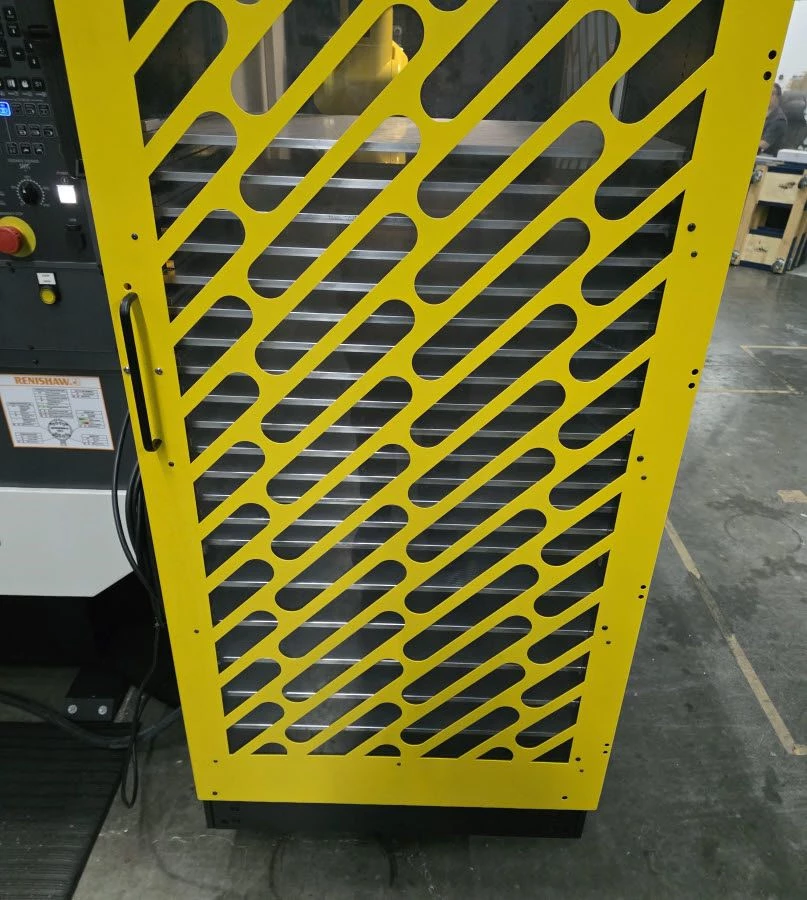

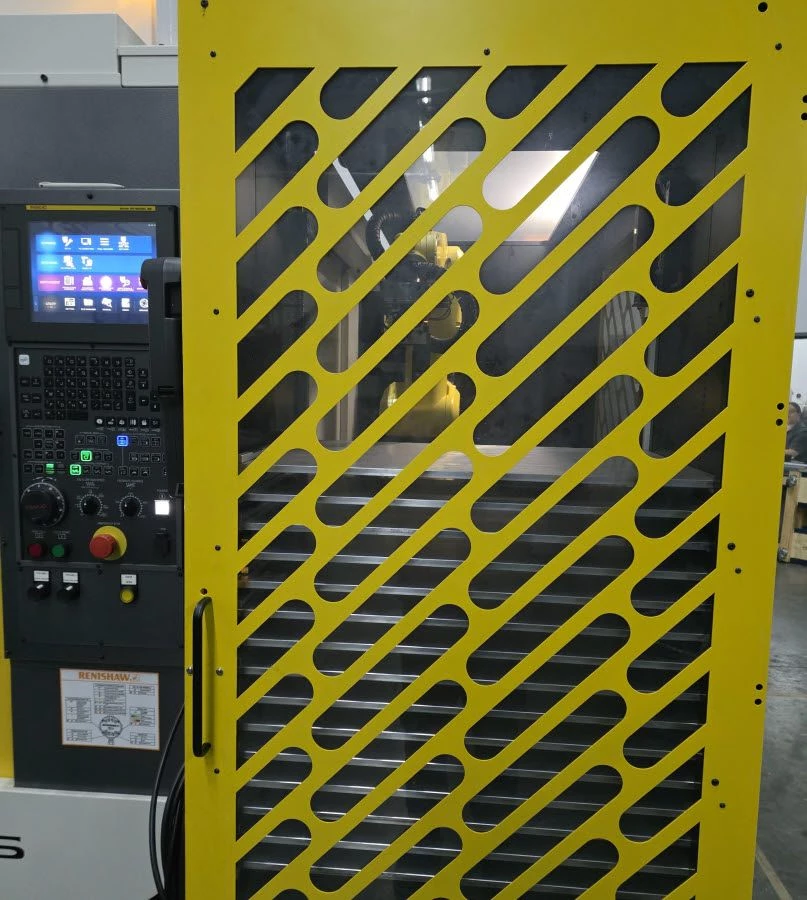

Base Pallet Plus-E (15) |
CC Scraper LH+ Tank |
|

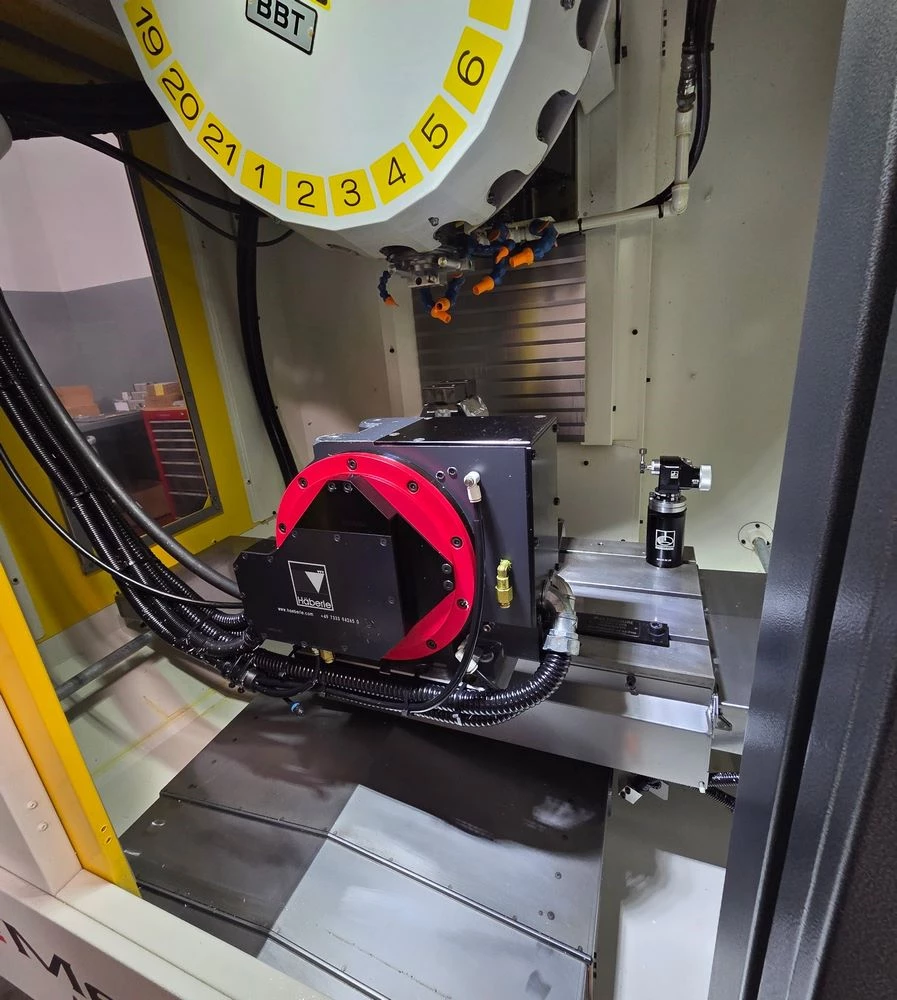

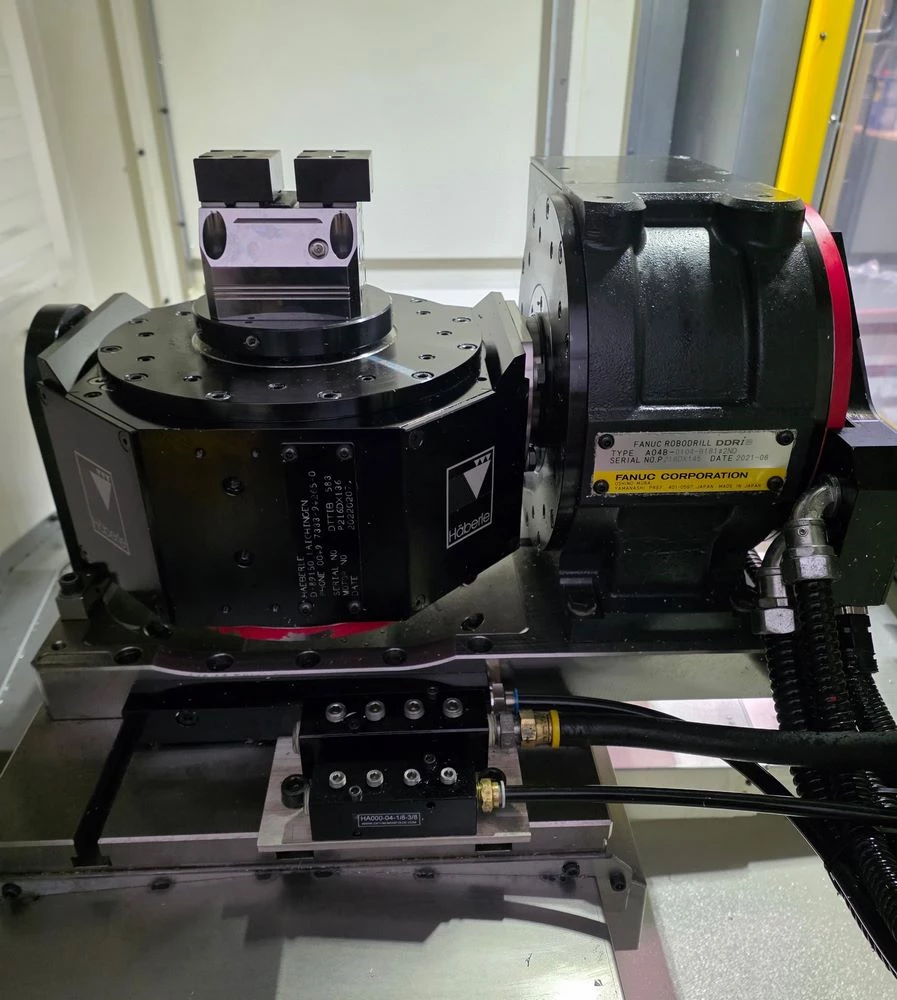

DTTiB Double Torque 5 Axis Table |
Fanuc Package B – High Speed 5 Axis DiB5 |
|
Plus-E Accessories Kit Prepped |
RMP400 + RTS HSS DiB5 Combo Probes |
|

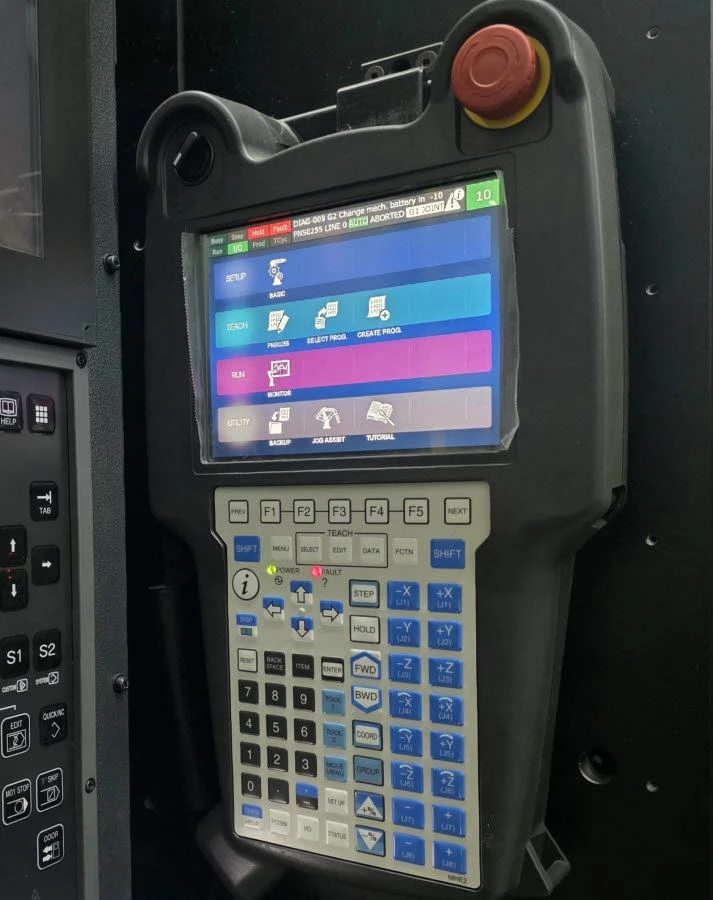

Robot Ready 100mm |
