Year |
2021 |
|---|---|
Make |
Arburg |
Model |
Allrounder 275V 250-70 Thermoset |
Description |
28 Ton 0.7 oz Shot Size Injection Molding Machine |
Reference # |
8079009 |
Price |
Activate Pricing |

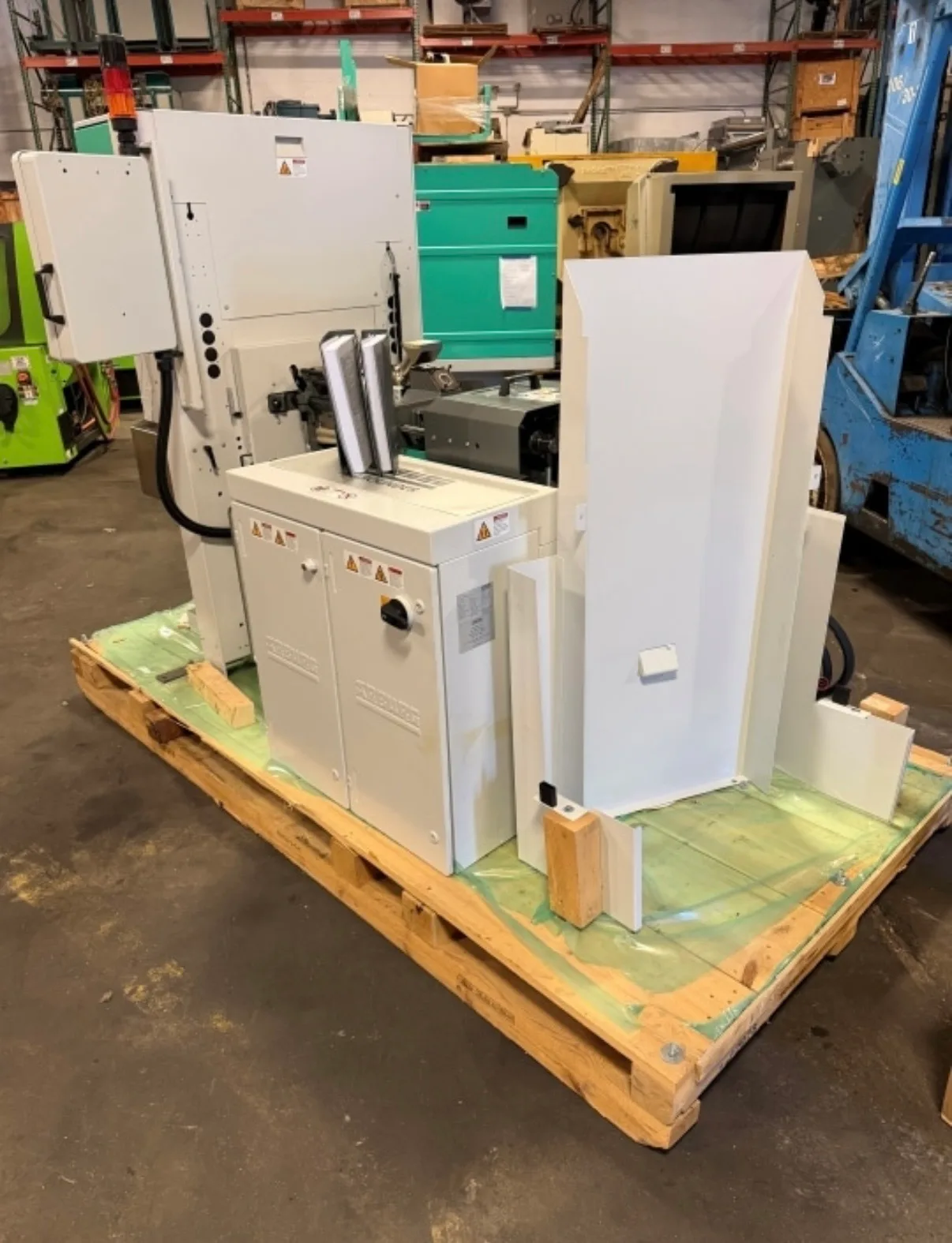

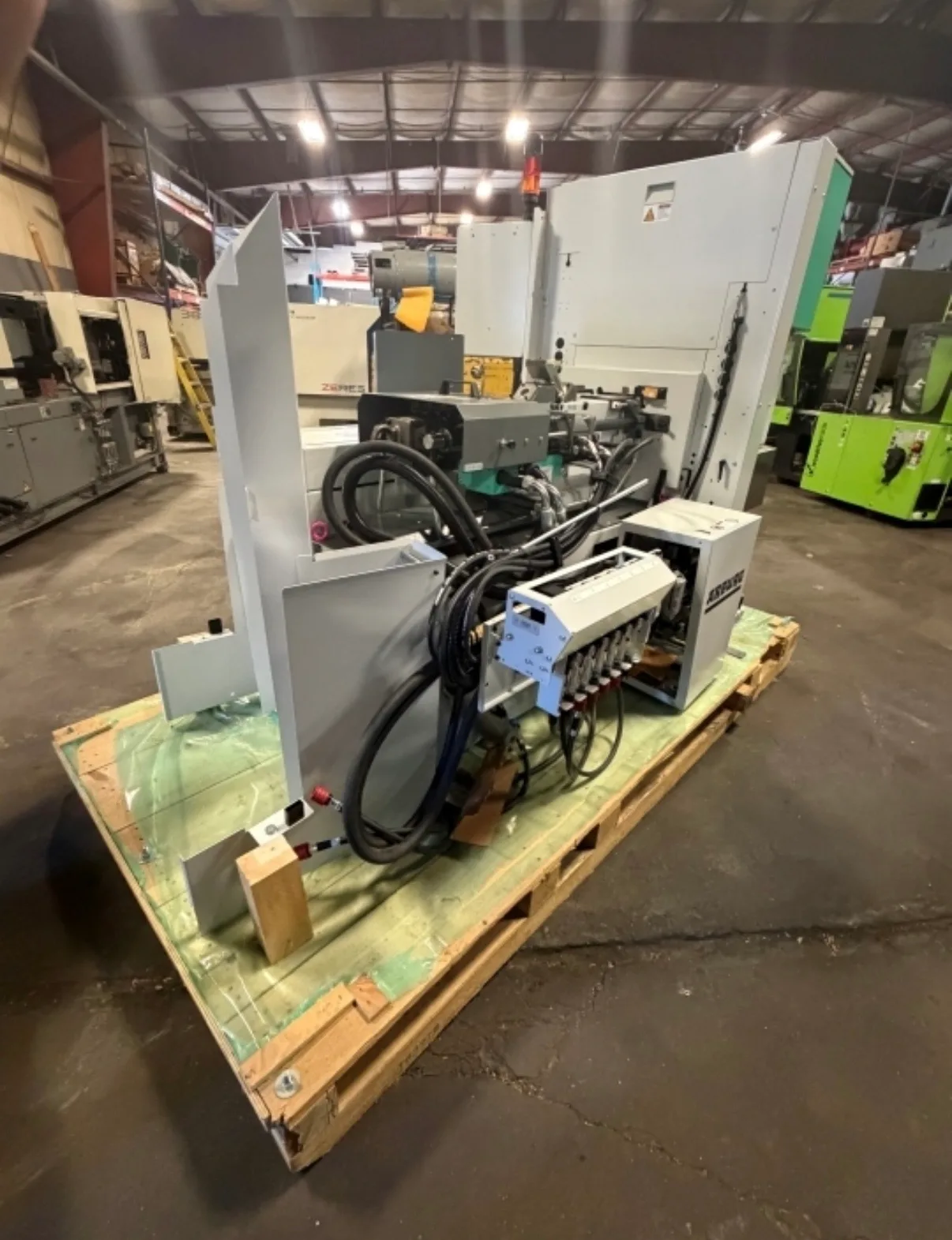

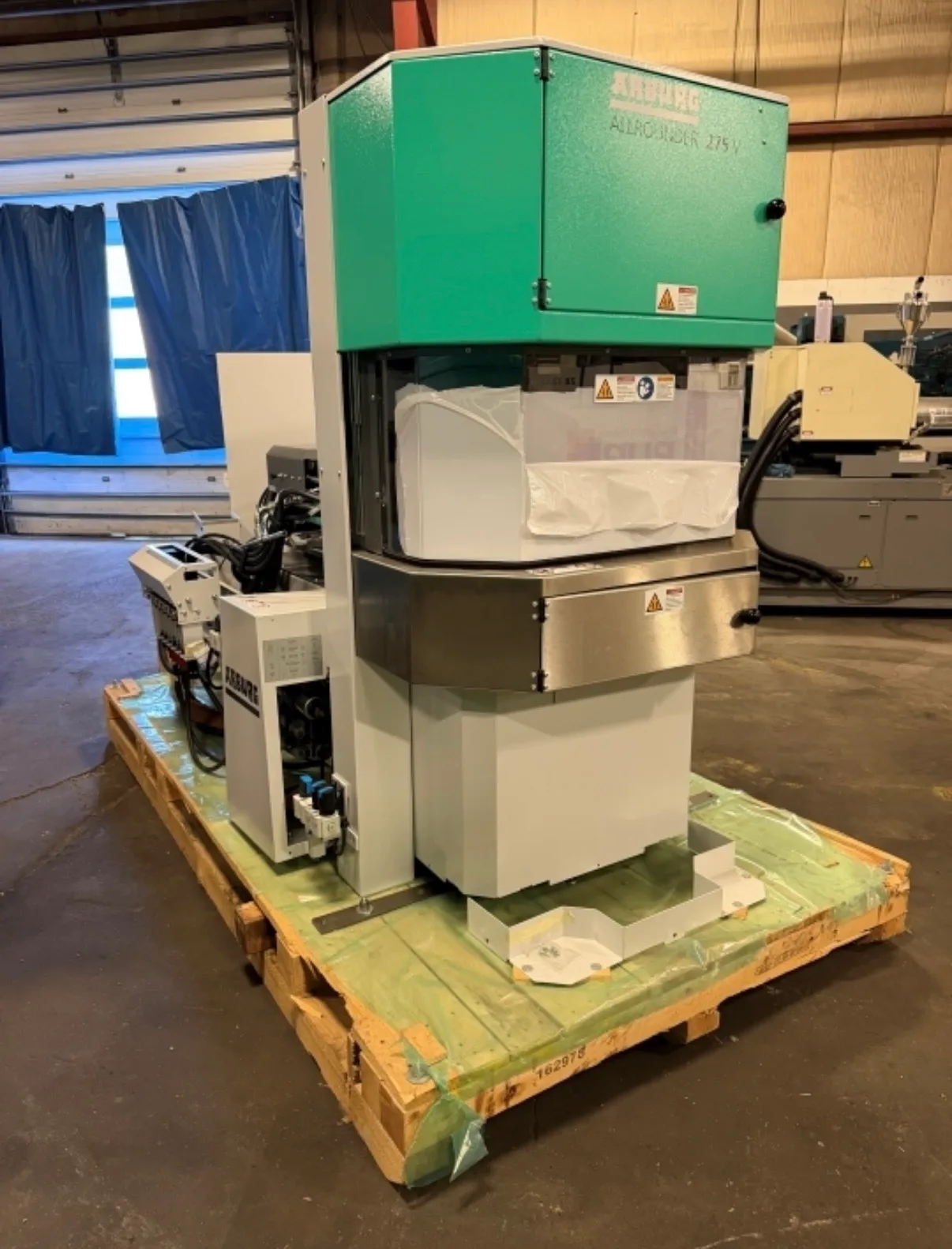

Used Arburg Allrounder 275V 250-70 Thermoset (2021) Injection Molding Machine for Sale. This 28 ton press carries a 0.7 oz shot size and an 18mm highly wear resistant screw and barrel, with a spare thermoset 18mm screw and nozzle included. Platen size is 14.76″ x 18.7″, minimum and maximum mold height 5.9″ to 9.84″, with an 8.86″ open stroke. Control is Selogica, and power requirement is 460V/230V. Equipped with an adjustable lifting table, controller extension with free programmable inputs/outputs, (6) electric heat control circuits, (1) interface for mold temperature control, and stainless covers. The machine can be seen under power for an inspection. See our other used plastic injection molding machines and used Arburg machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Capacity |
28 Ton |
|---|---|
| Shot Size |
0.7 oz |

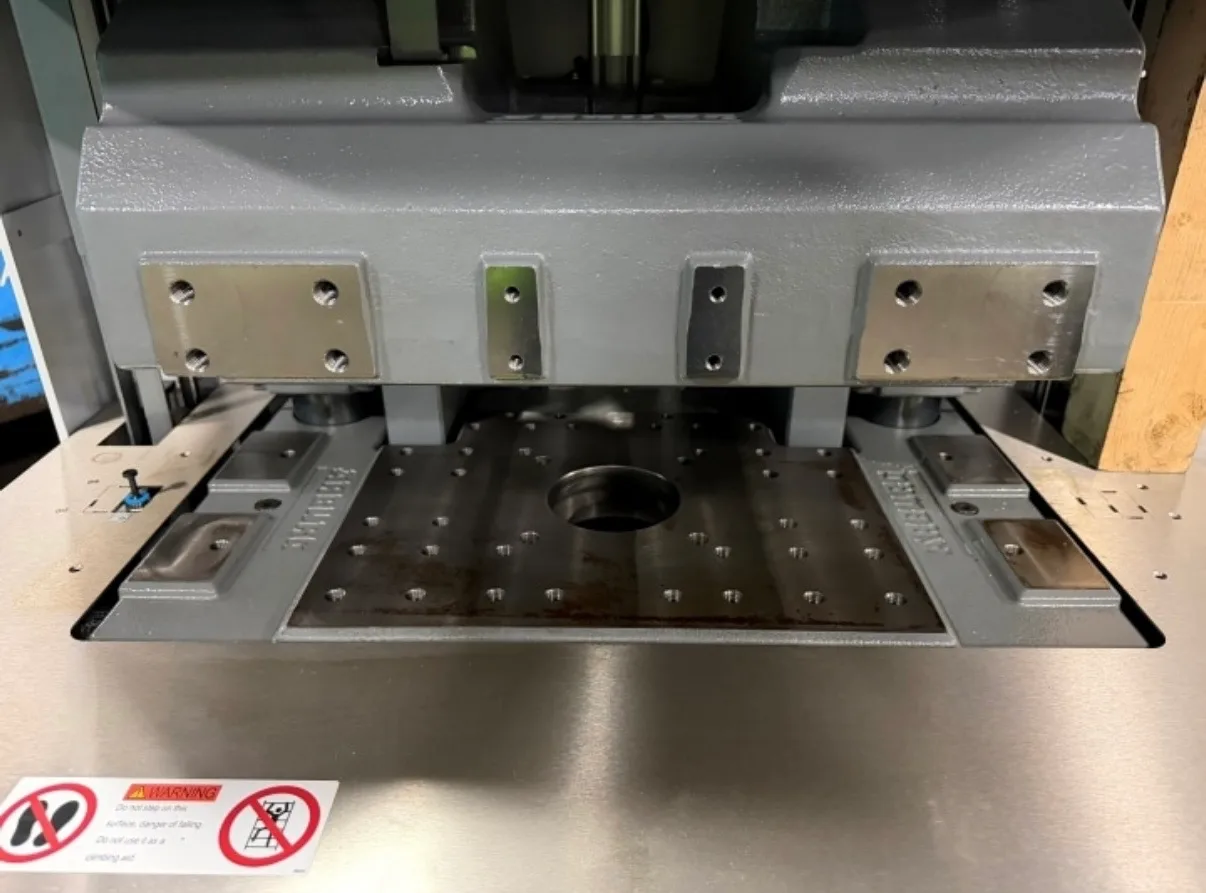

| Platen Size |
14.76" x 18.7" |
| Min /Max Mold Height |
5.9"/9.84" |
| Open Stroke |
8.86" |
| Screw and Barrel |
18mm |
| Control |
Selogica |
| Power Requirement |
460V/230V |
Features
|
(1) Interface For Mold Temperature Control |
(6) Electric Heat Control Circuits |
|
18mm Highly Wear Resistant Screw And Barrel |
Adjustable Lifting Table |
|

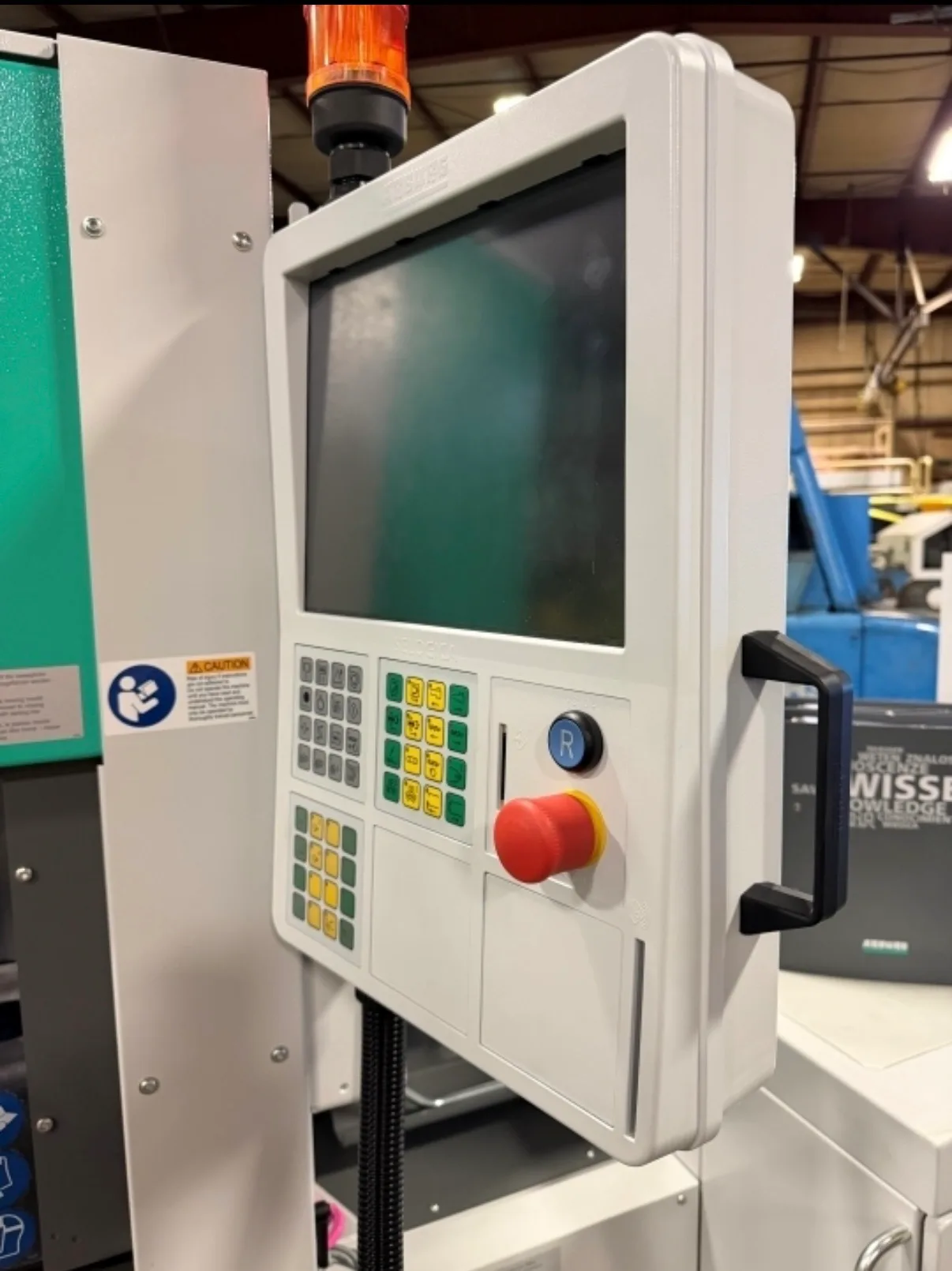

Controller Extension And Free Programmable Inputs/Out |
Spare Thermoset Screw 18mm And Nozzle |
|
Stainless Covers |
Under Power |
