Year

2020

Make

Ermak

Model

Speed-Bend 3760-220

Description

242 Ton x 12.3' Hydraulic Press Brake

Reference #

8074904

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

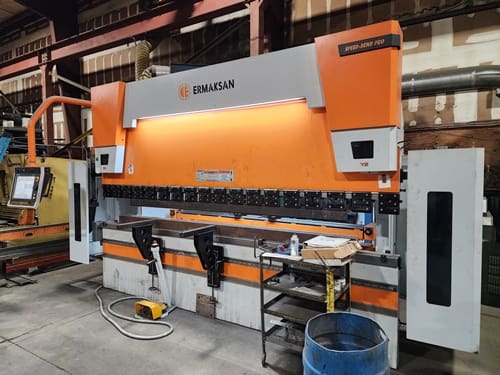

Used Ermak Speed-Bend 3760-220 (2020) CNC Press Brake for Sale.  This pre-owned Ermak CNC press brake is located in The United States.  If you have any questions regarding this Ermak Press Brake, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Capacity

242 Ton

Overall Length of Bed

12.3'

Control

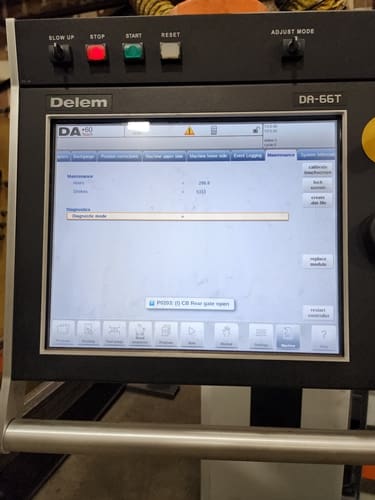

Delem 66 T 2D/3D Graphical Control

Distance Between Housings

128"

6-Axis Press Brake

Y1, Y2, X, R, Z1, Z2

Stroke

10.8"

Throat Depth

16.1"

Open Height

21.6"

Table Height x Width

35.4" x 6.3"

X-Axis Stroke

31.5"

R-Axis Stroke

9.8"

Bending Speed

24 IPM

Approach Speed

425 IPM

Return Speed

24 IPM

Back Gauge Travel (X Axis)

39.37"

Back Gauge Travel (R Axis)

9.8"

Motor Horsepower

25 hp

Power Requirements

230 / 460v - 3ph (AC) - 60hz

Machine Dims / Weight

201”L x 89”W x 114”H @ 30,870 lbs.

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
