Year |
2019 |
|---|---|
Make |
Doosan |
Model |
Puma 2600Y |
Description |
CNC Lathe |
Reference # |
8078766 |
Price |
Activate Pricing |

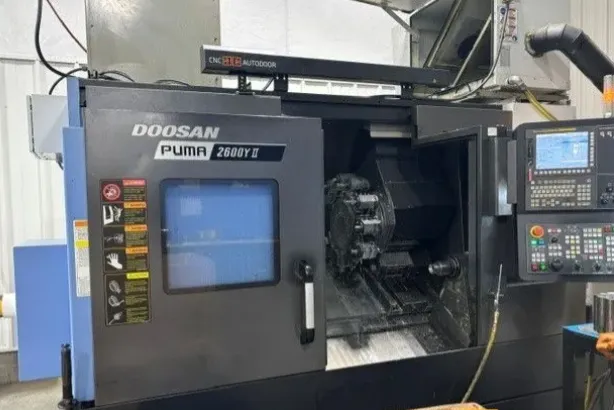

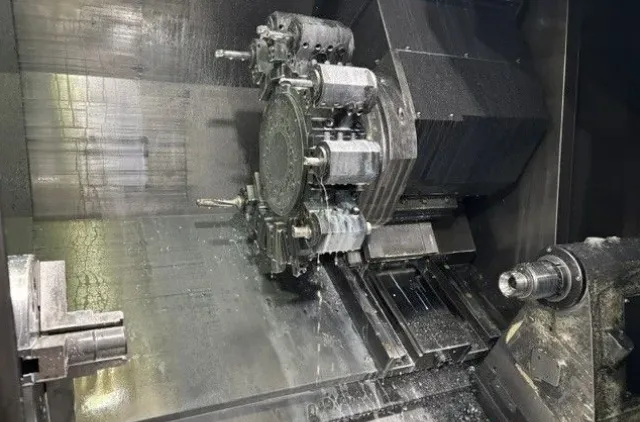

Used Doosan Puma 2600Y (2019) CNC Lathe for Sale. This machine has a 10″ chuck, 3″ bar capacity, 30″ swing and 14″ turning diameter, with 29″ between centers. The spindle is driven by a 30 HP motor with speeds to 3,500 RPM and is run by a Fanuc control. It carries a 12 station turret with C-axis live tooling and a Y-axis, and is equipped with (3) live tool holders, a tailstock and all static holders. A chip conveyor is included. The lathe can be seen under power for an inspection before purchase. See our other used CNC lathes or browse more Doosan equipment. Activate Pricing to view the figure, or Request a Quote and we will follow up with details.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3" |
| Swing |
30" |
| Turning Diameter |
14" |
| Spindle Speed |
3,500 RPM |
| Control |
Fanuc |
| Distance Between Centers |
29" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Spindle Motor |
30 HP |
| Chip Removal |
Chip Conveyor |
Features
|
Tailstock |
(3) Live Tool Holders |
|
All Static Holders Included |
