Year |
2019 |
|---|---|
Make |
Bystronic |
Model |
Xact Smart 225/4100 |
Description |

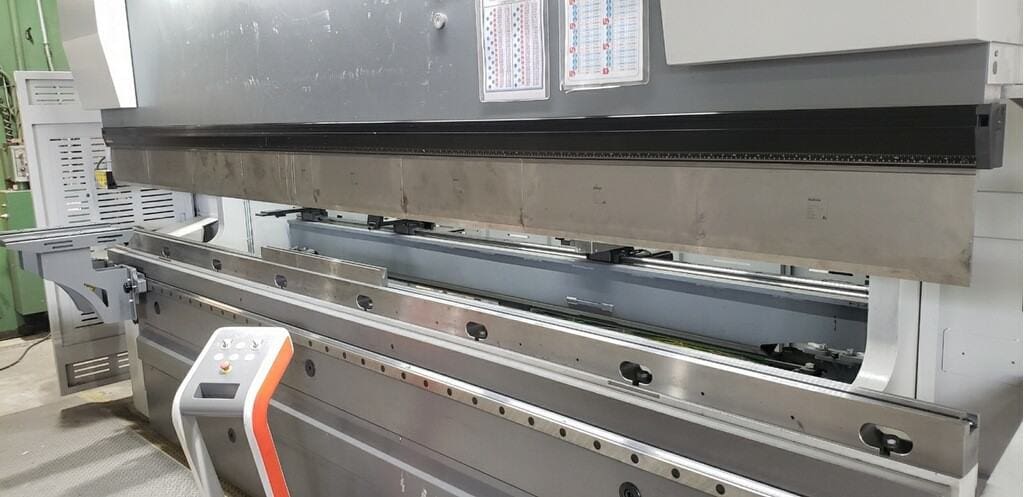

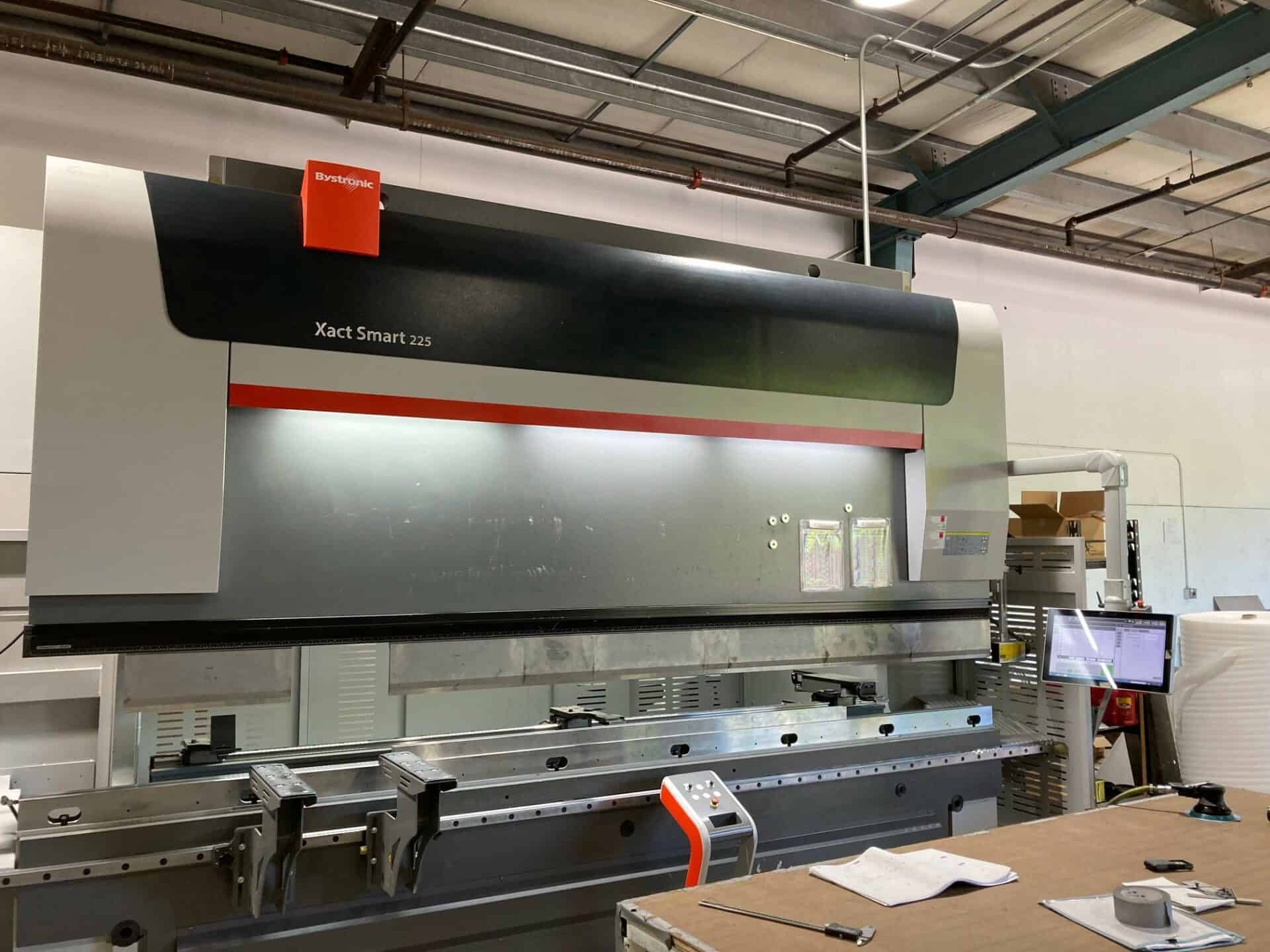

248 Ton x 13.4' Hydraulic Press Brake |
Reference # |
8070220 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Length |
13.4' |
|---|---|
| Table Width |
2.37" |
| Max Wattage |
N/A |
| X-Axis Travel |
23.7" |
| Control |
Bystronic Byvision |
| Power Requirement |
480/3/60 |
| Distance Between Housings |
134.7" |

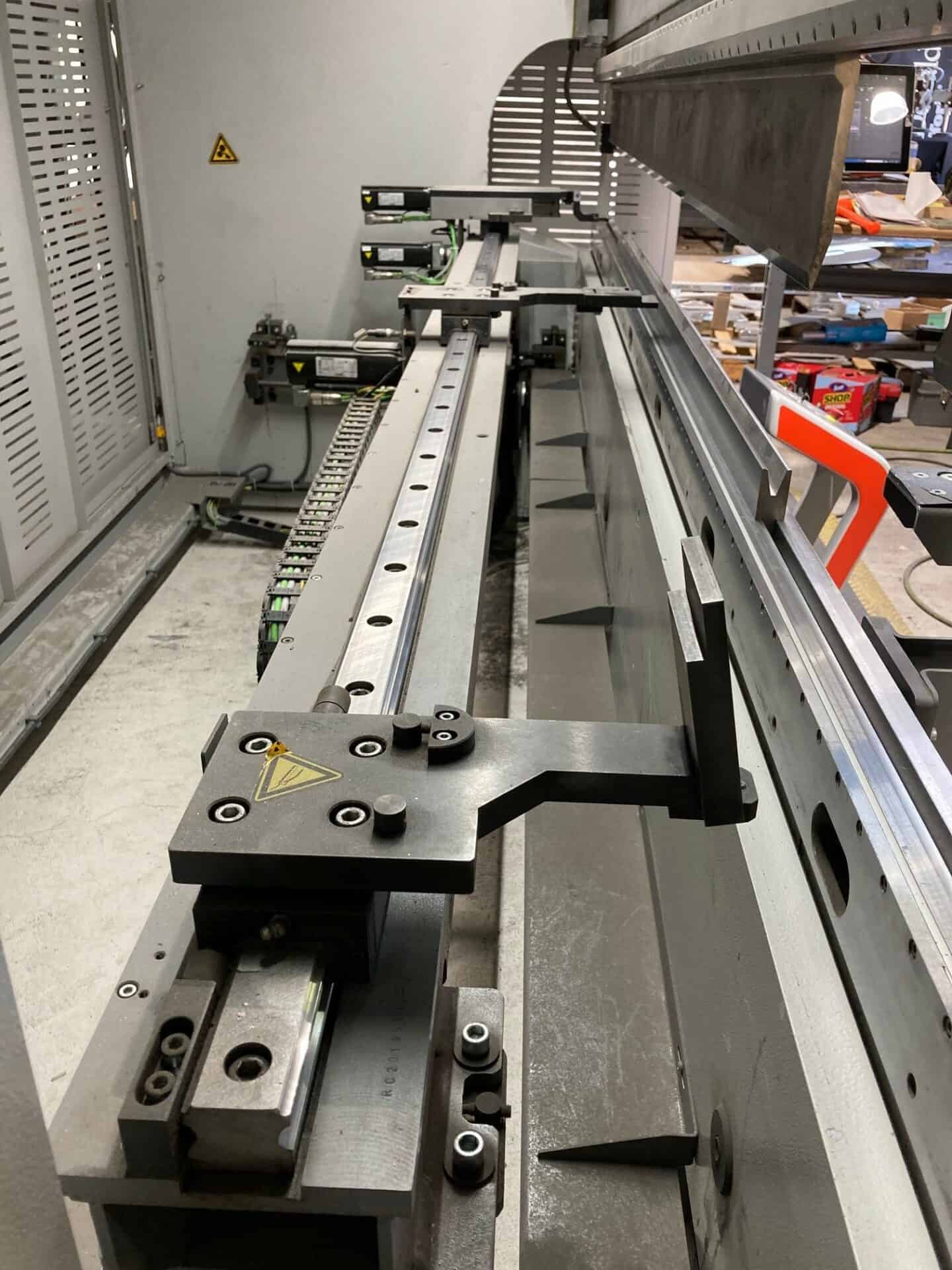

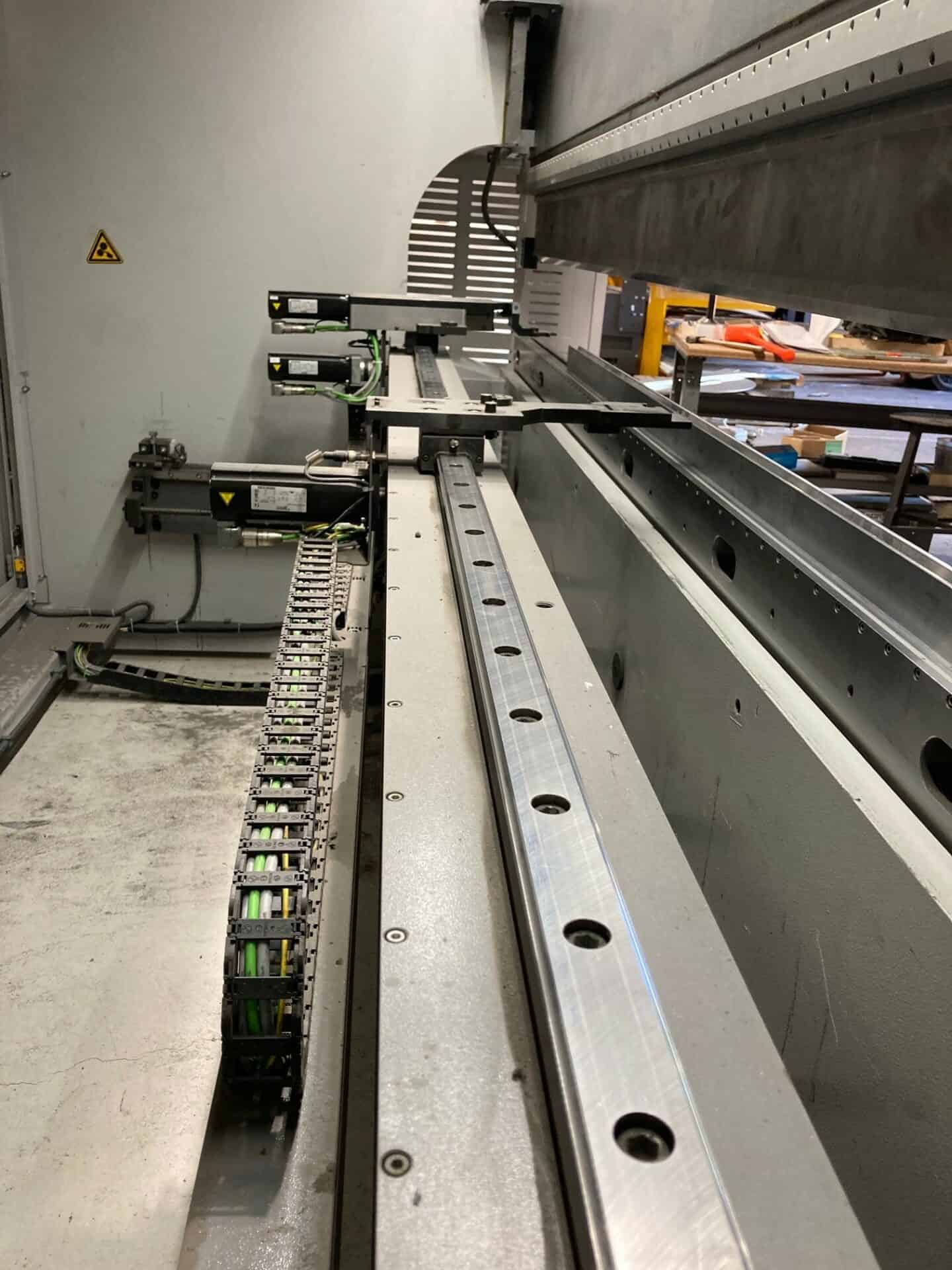

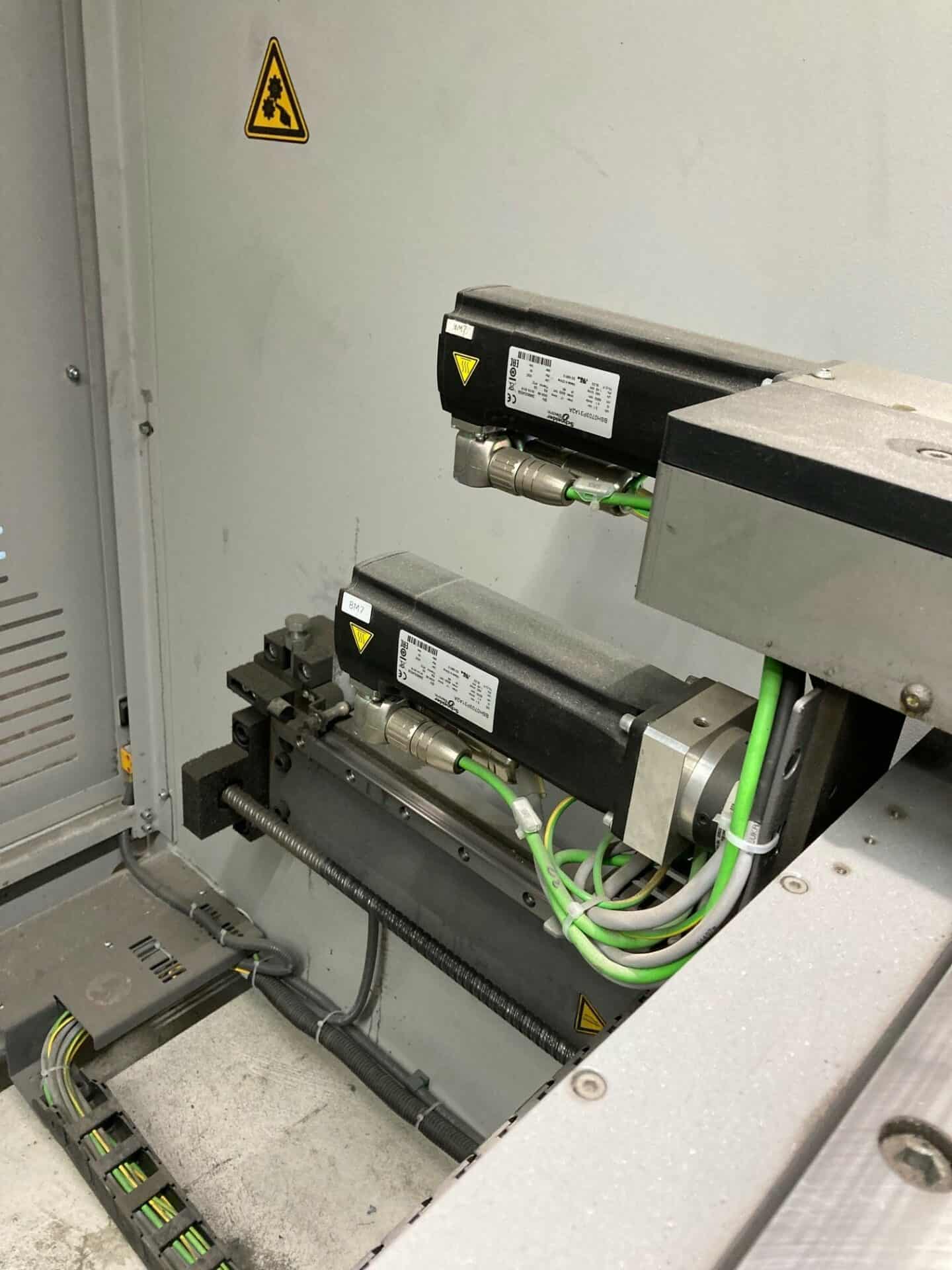

| Back Gauge |
5-Axis X, R, Z1, Z2, Additional Axis X-Prime |
| Throat |
15.8" |
| Open Height |
18.4" |
| Bend Length |
161.4" |
| Stroke |
7.9" |
| Max. Back Gauge Range X-Axis |
36.5" |
| Distance Between Sideframes |
134.7" |
| X-Axis Speed |
945"/Min |
| X-Axis Position Accuracy |
0.0019" |
| R-Axis Travel |
6" |
| R-Axis Speed |
237"/Min |
Features
|

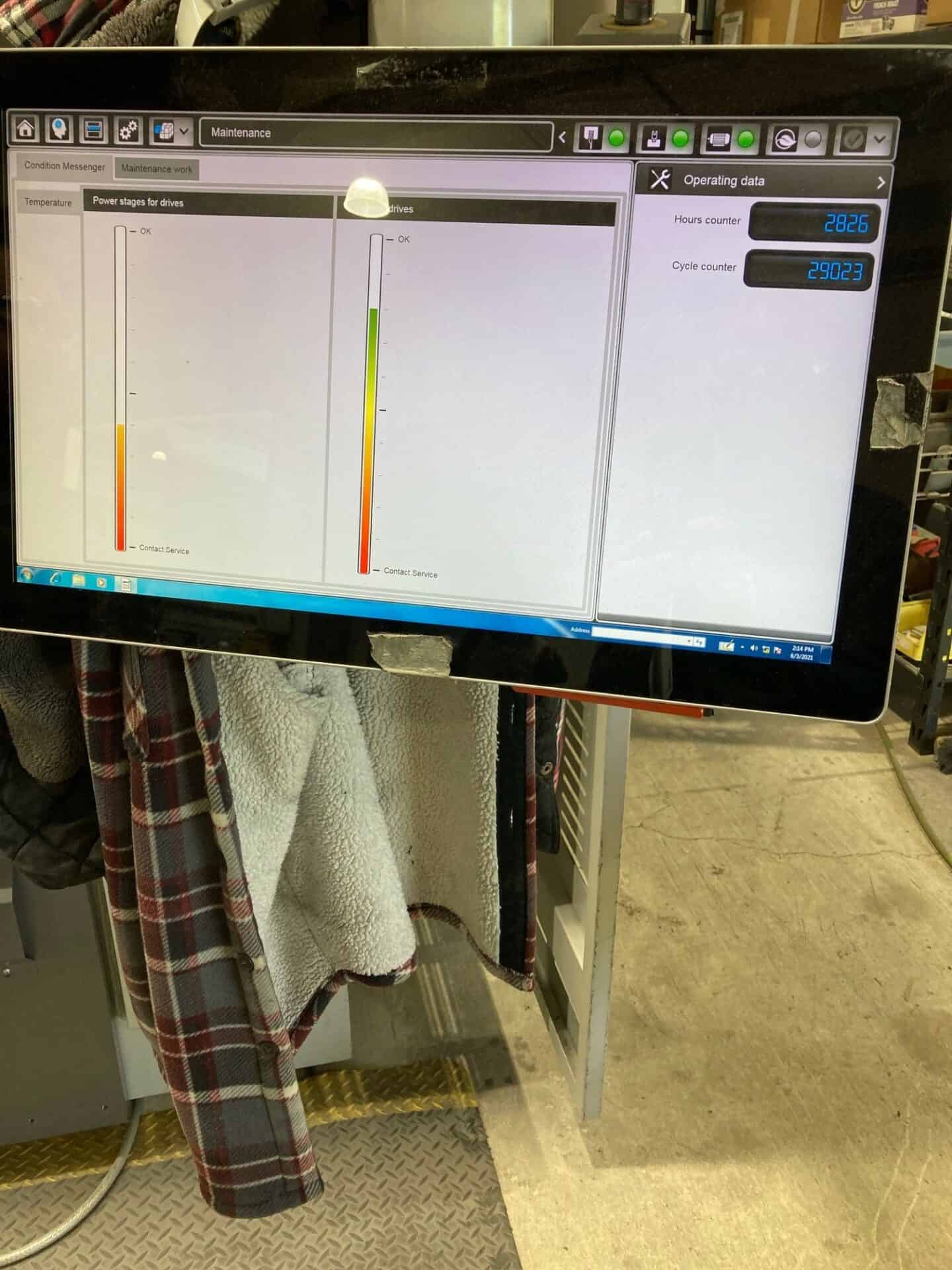

22' Full HD Display and Touch Technology |

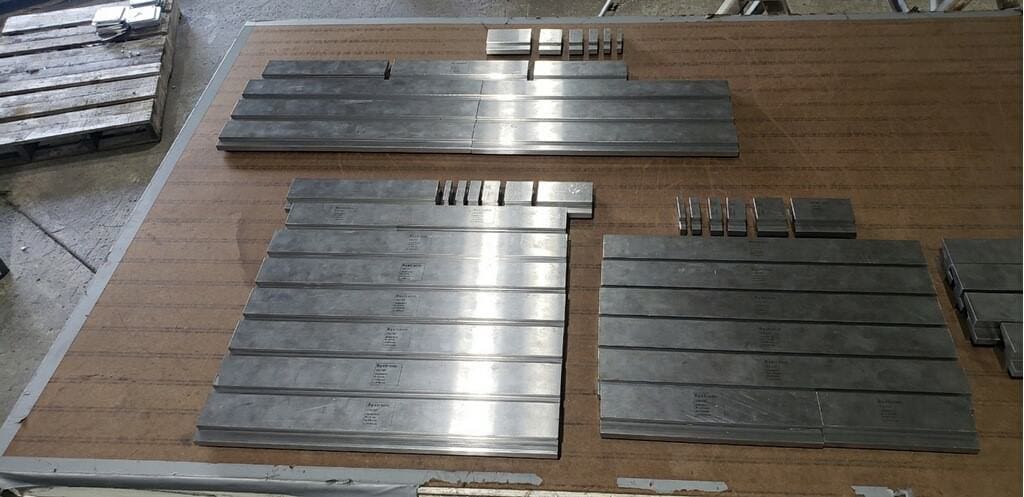

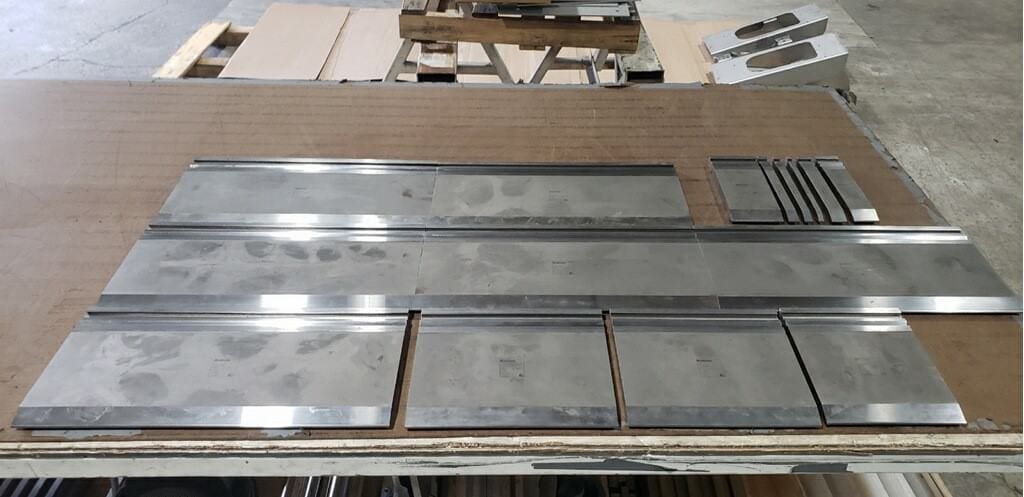

Approximately $40K of Tooling |
|

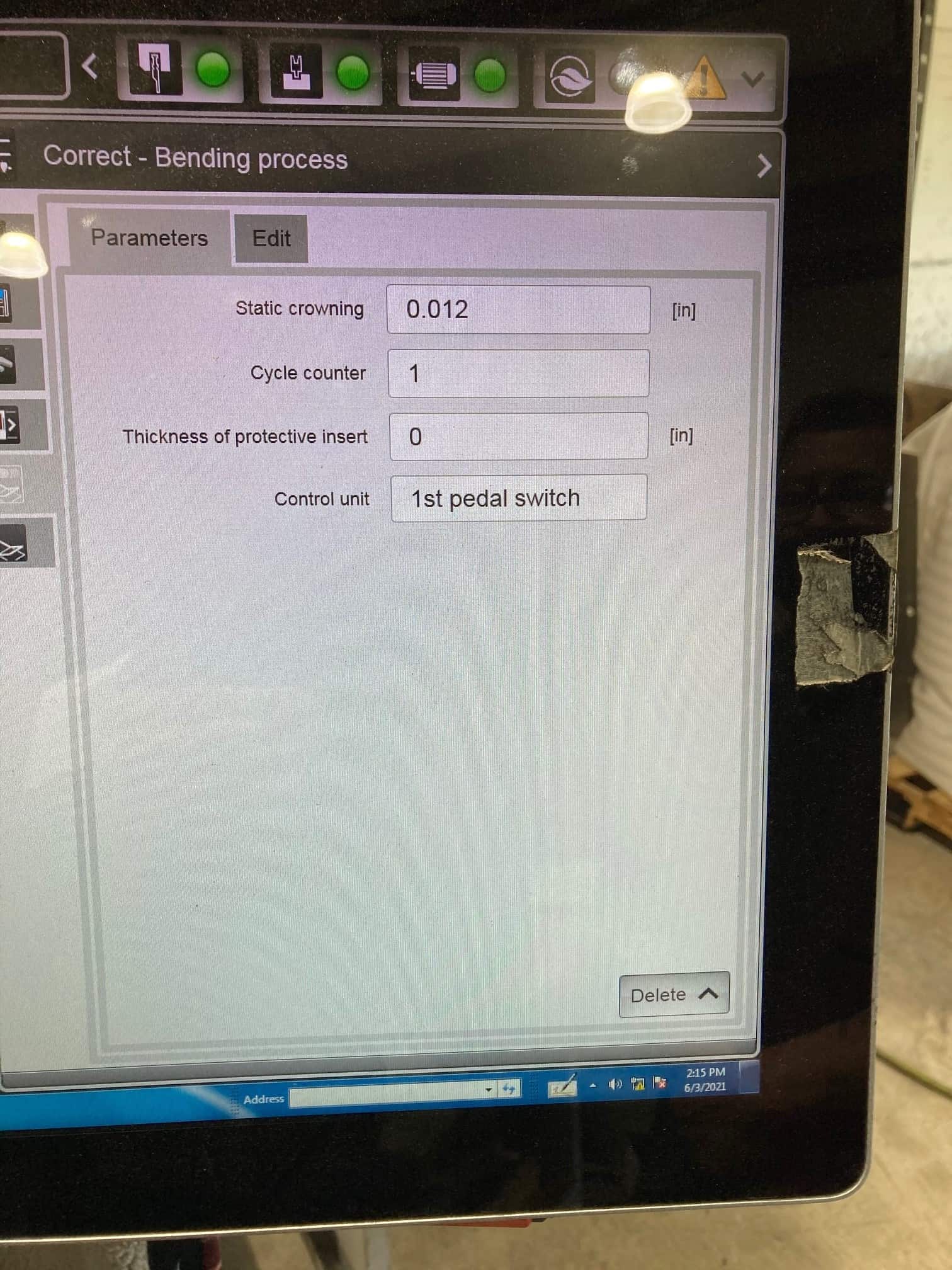

DNC Crowning |

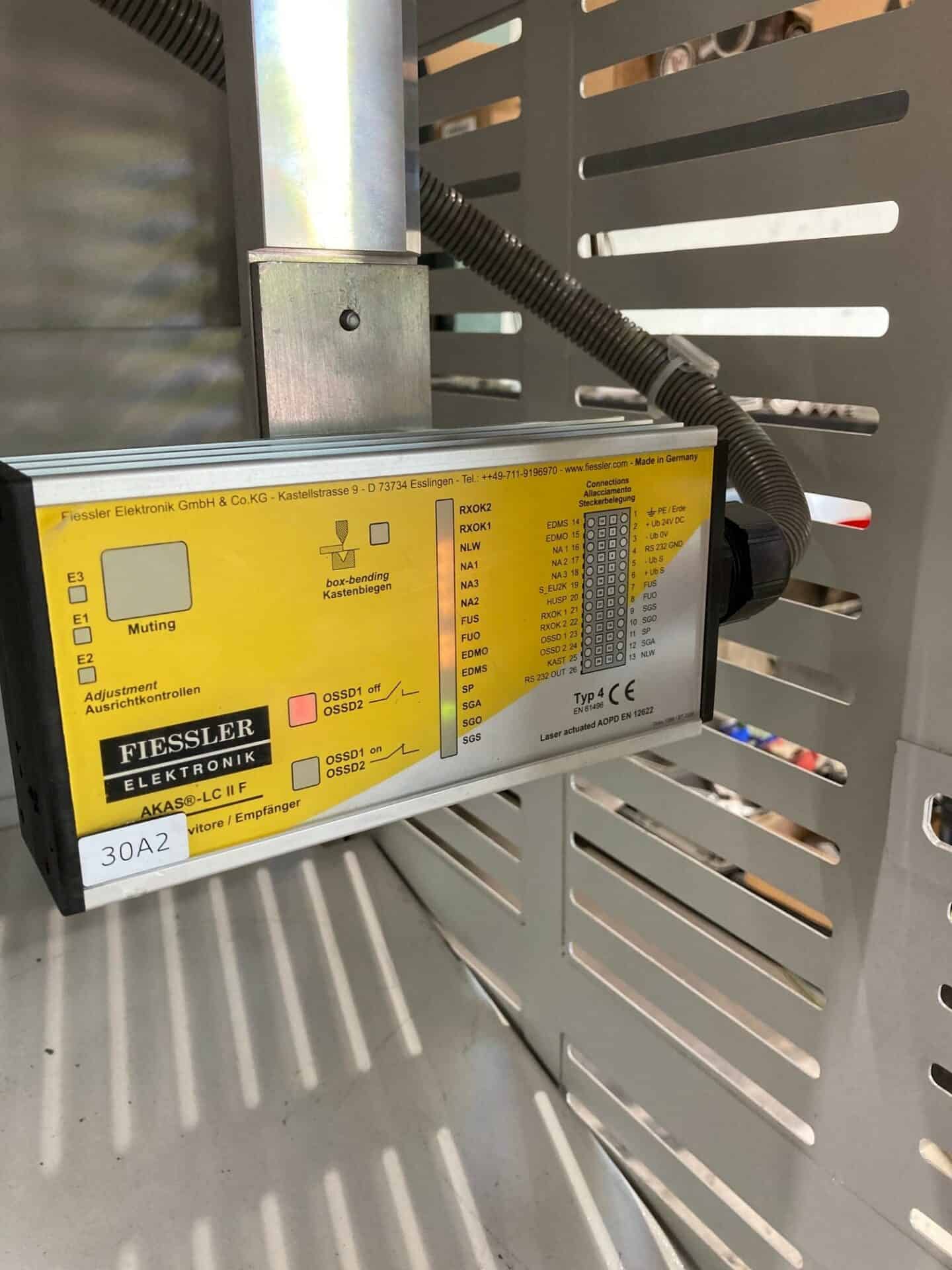

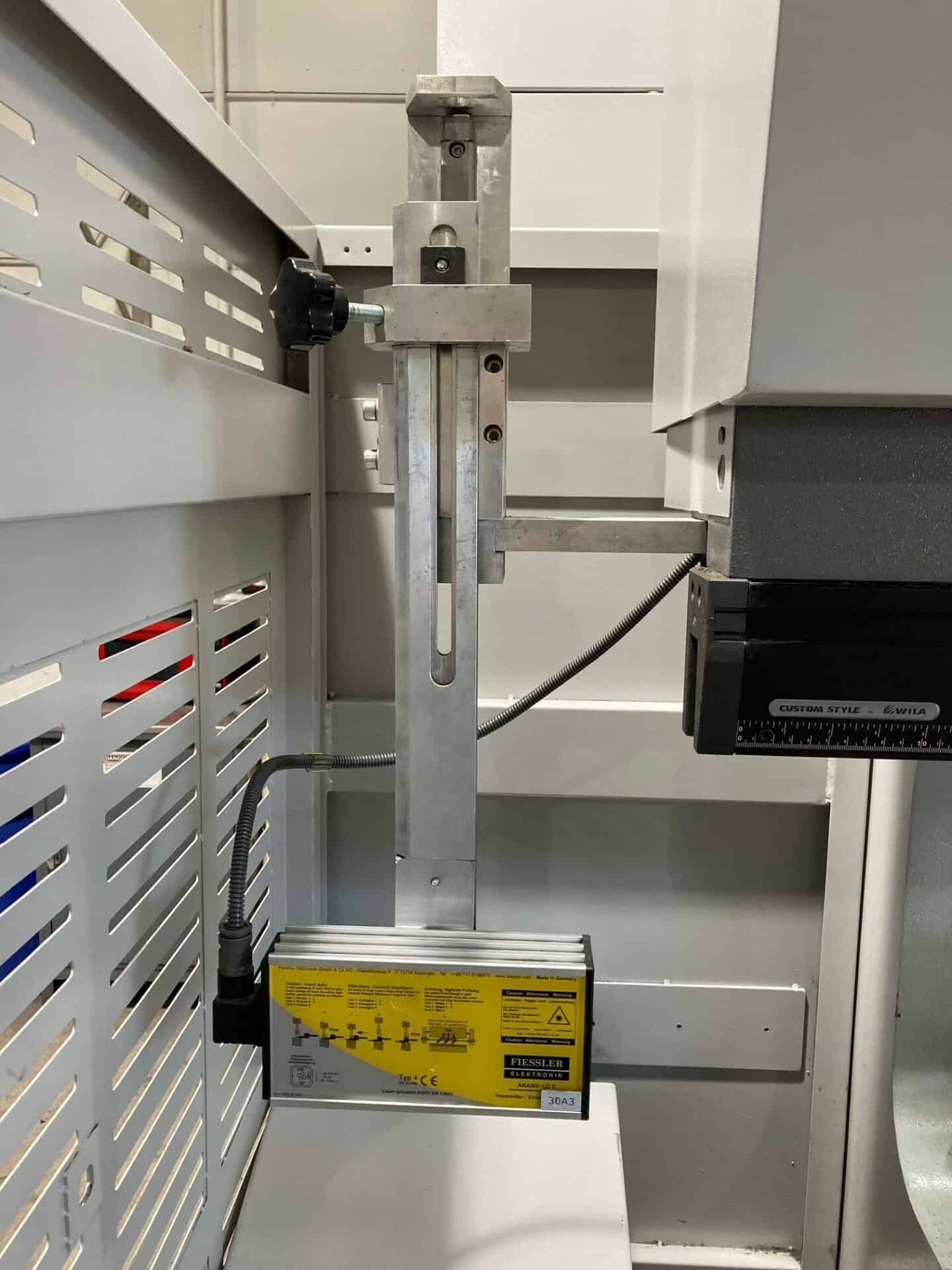

Fiessler Laser Curtains |
*
