Year |
2018 |
|---|---|
Make |
Kitamura |
Model |
HX400iG/500 |
Description |
CNC Horizontal Machining Center |
Reference # |
8076096 |
Price |
Activate Pricing |

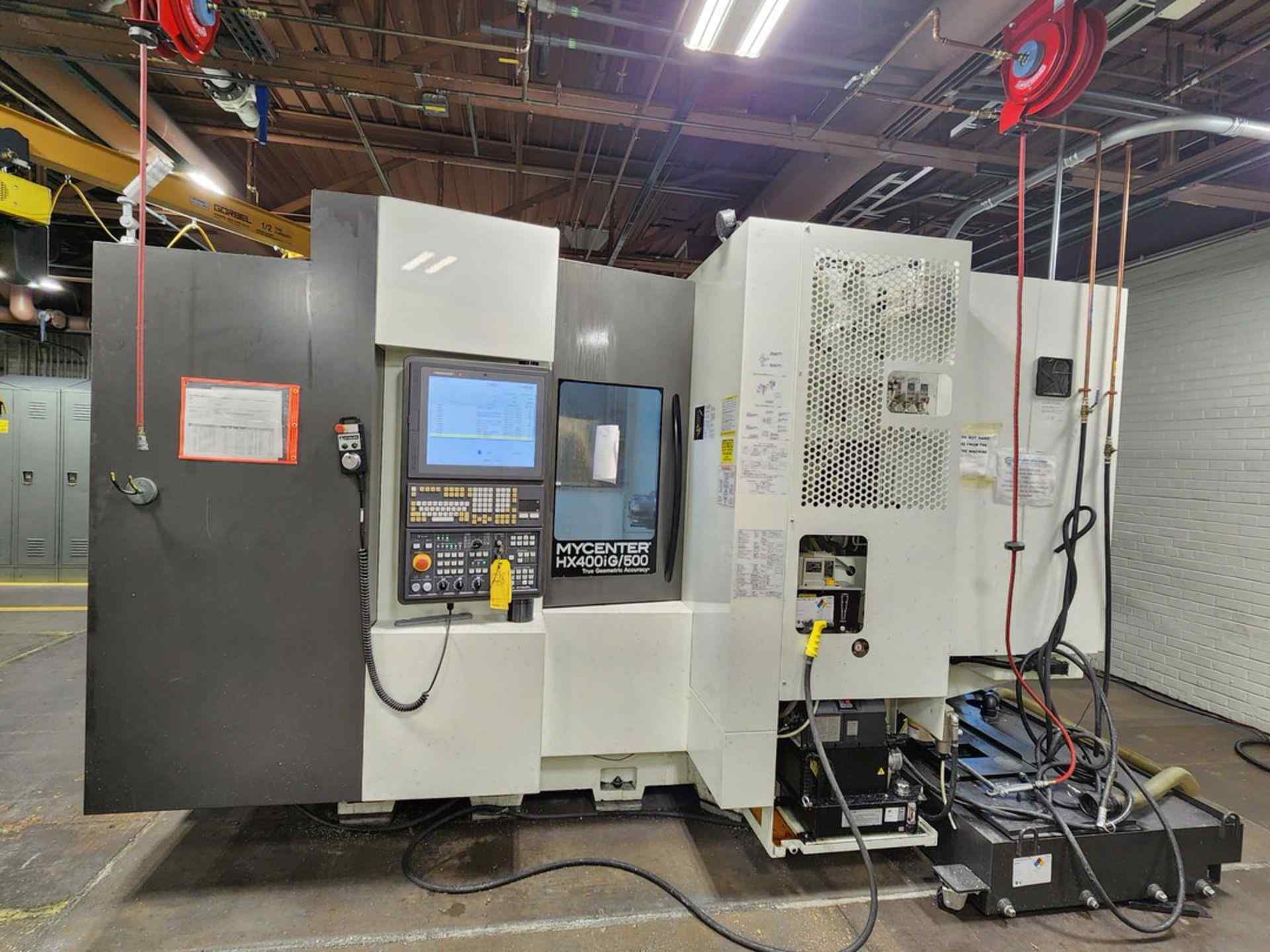

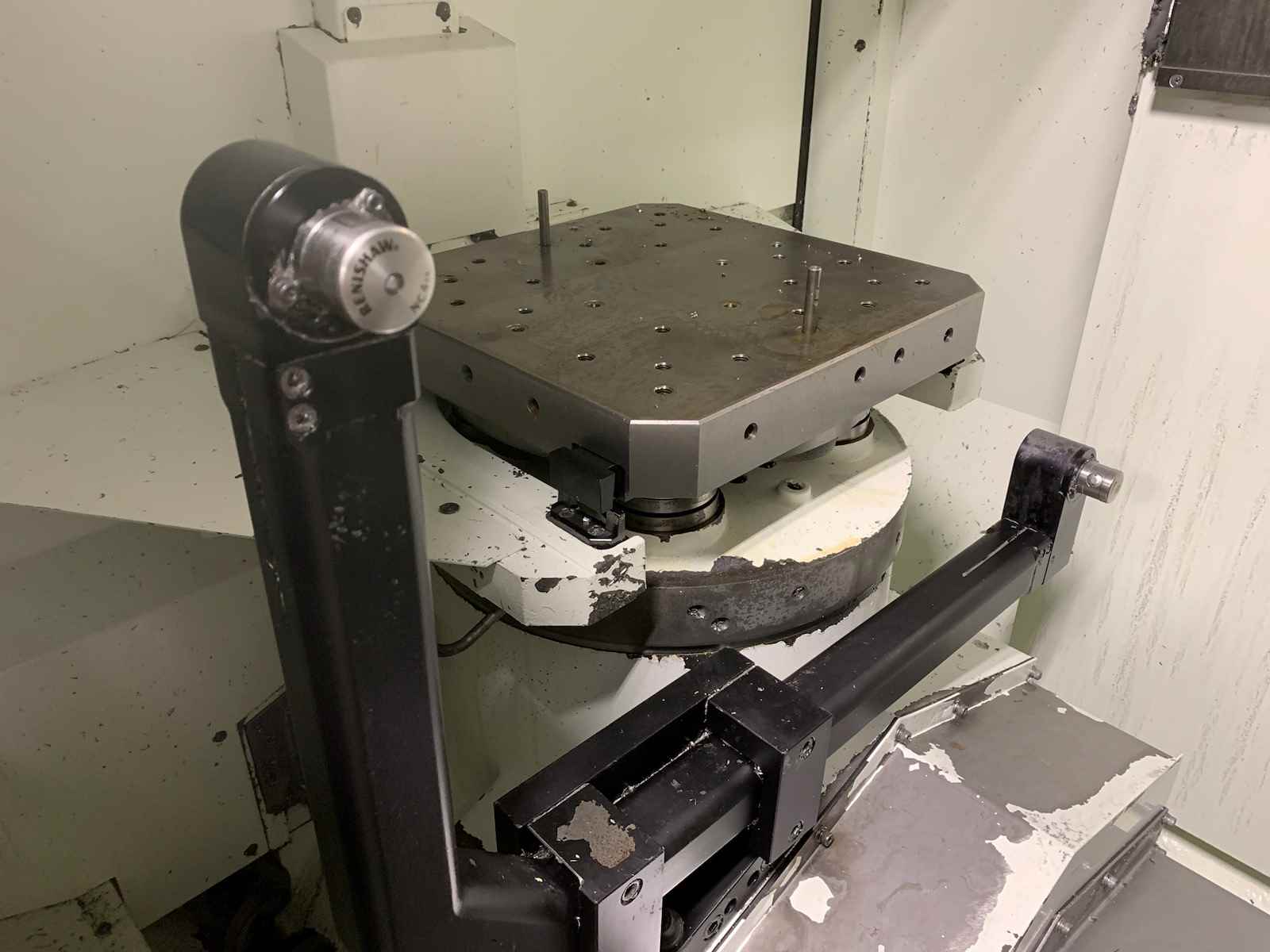

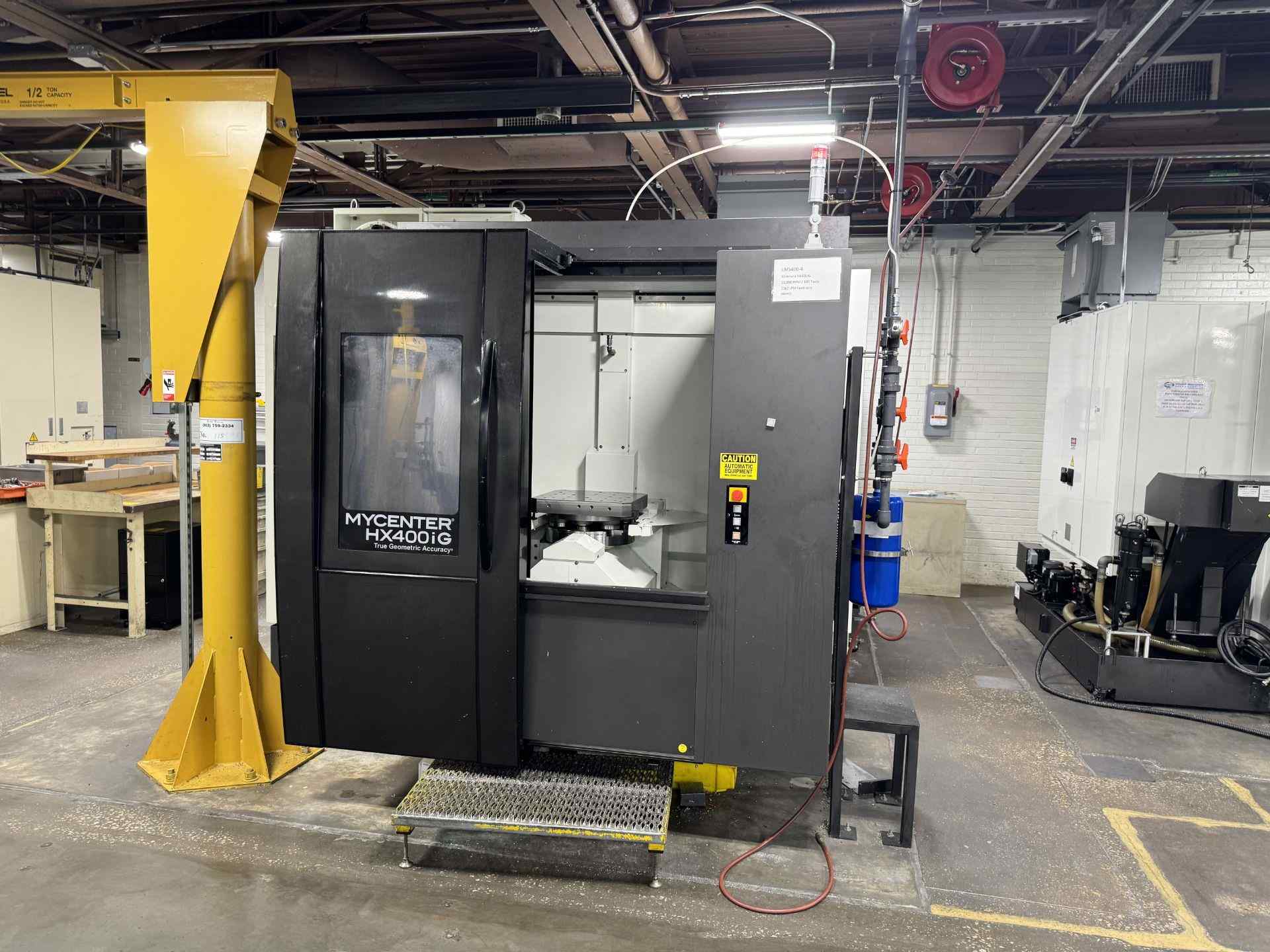

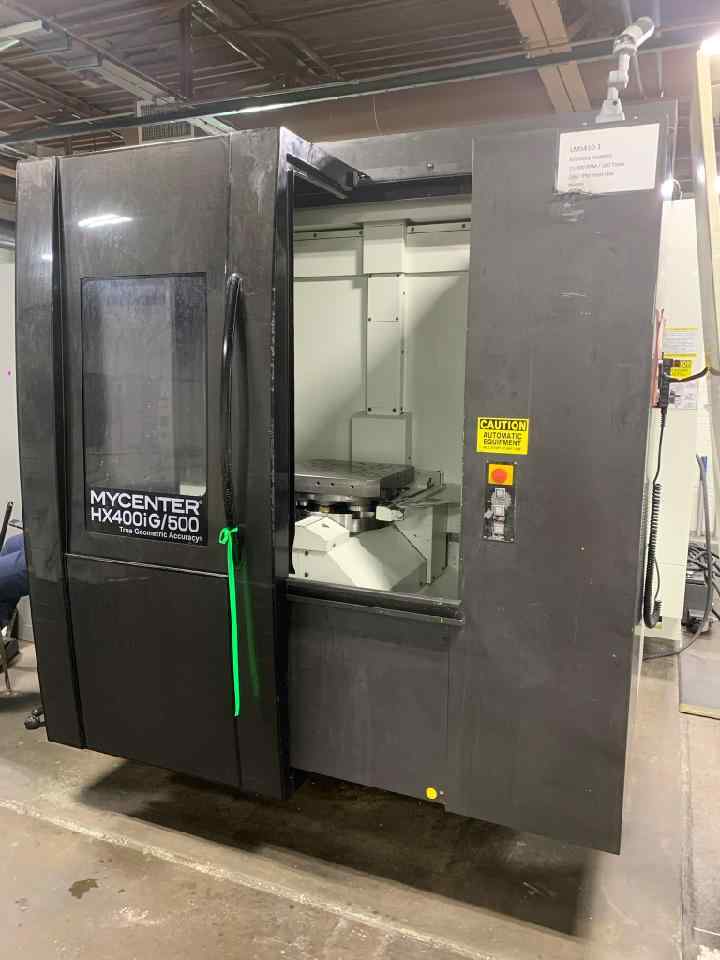

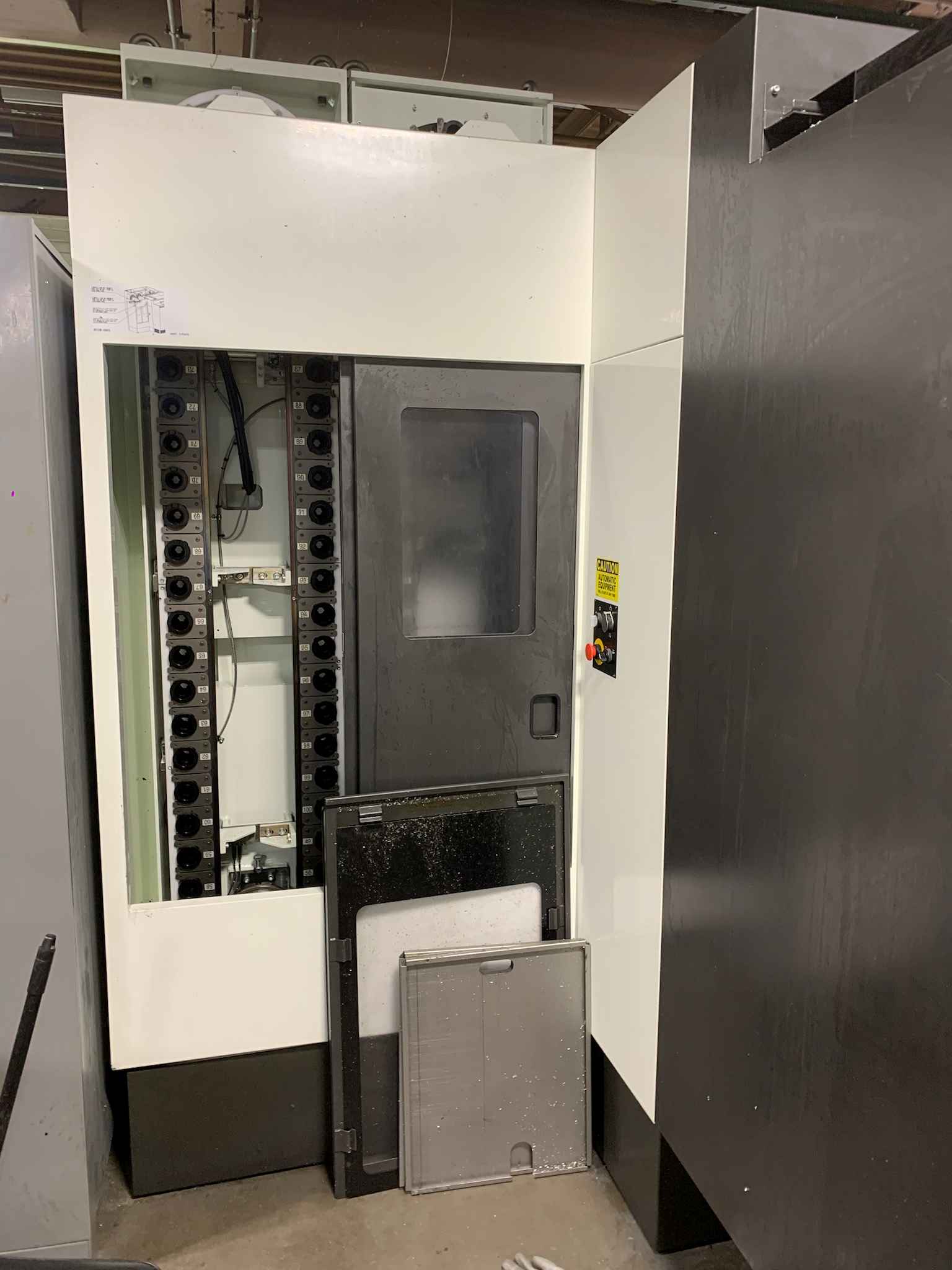

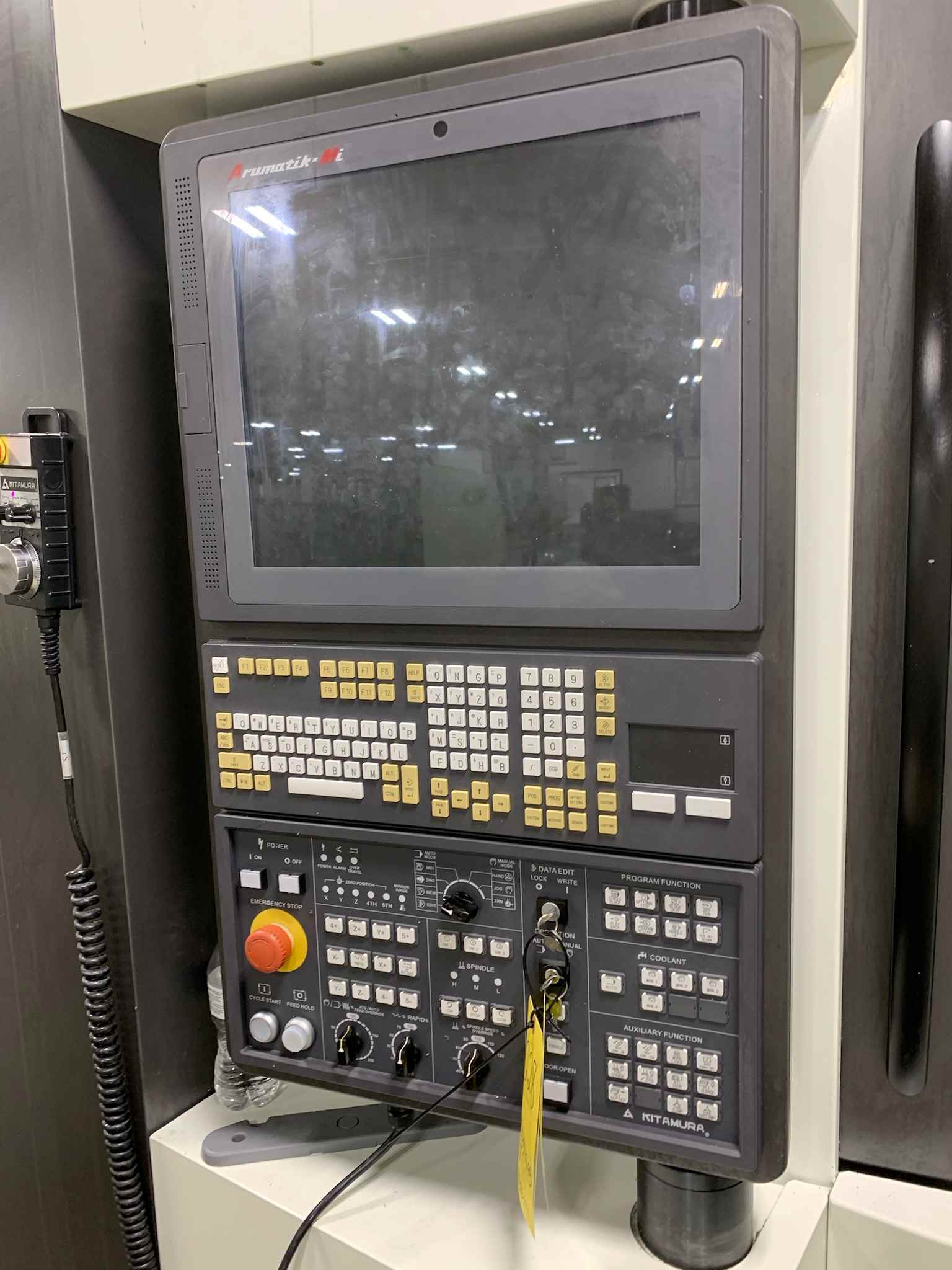

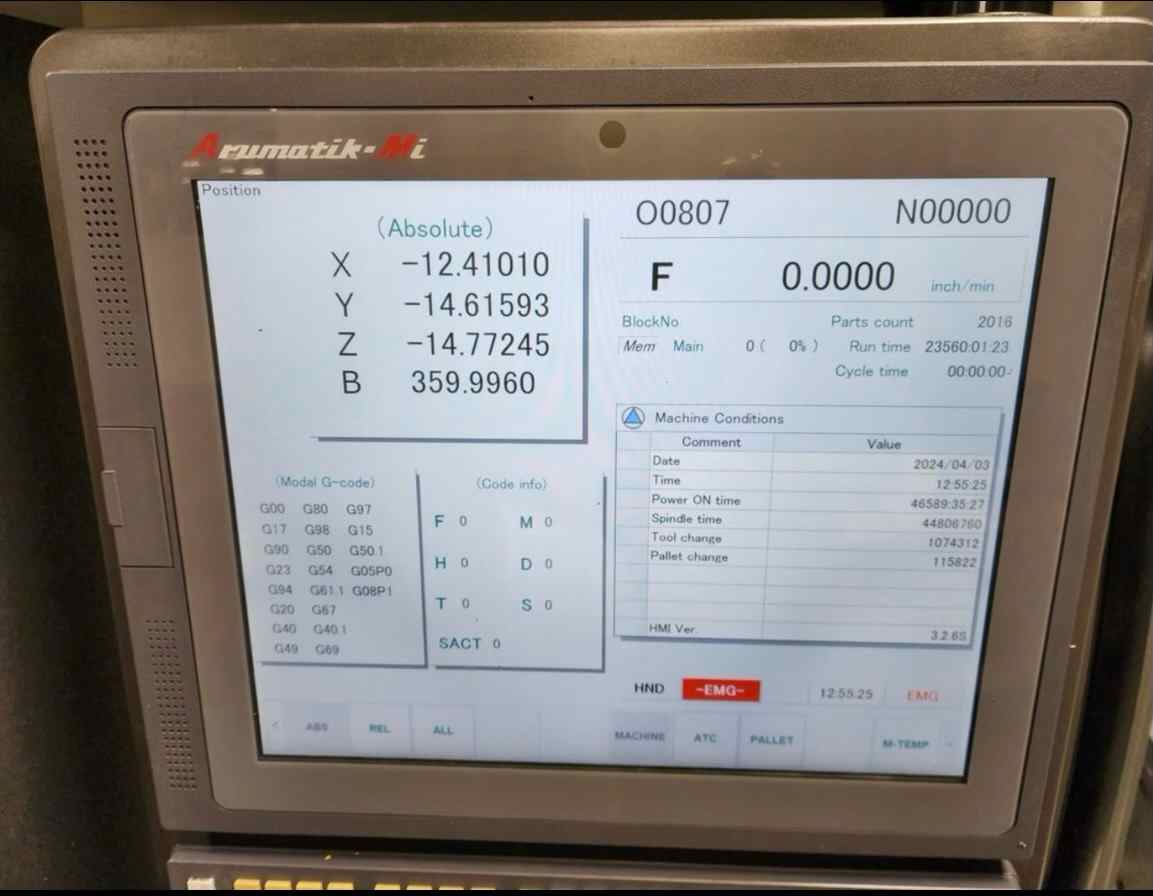

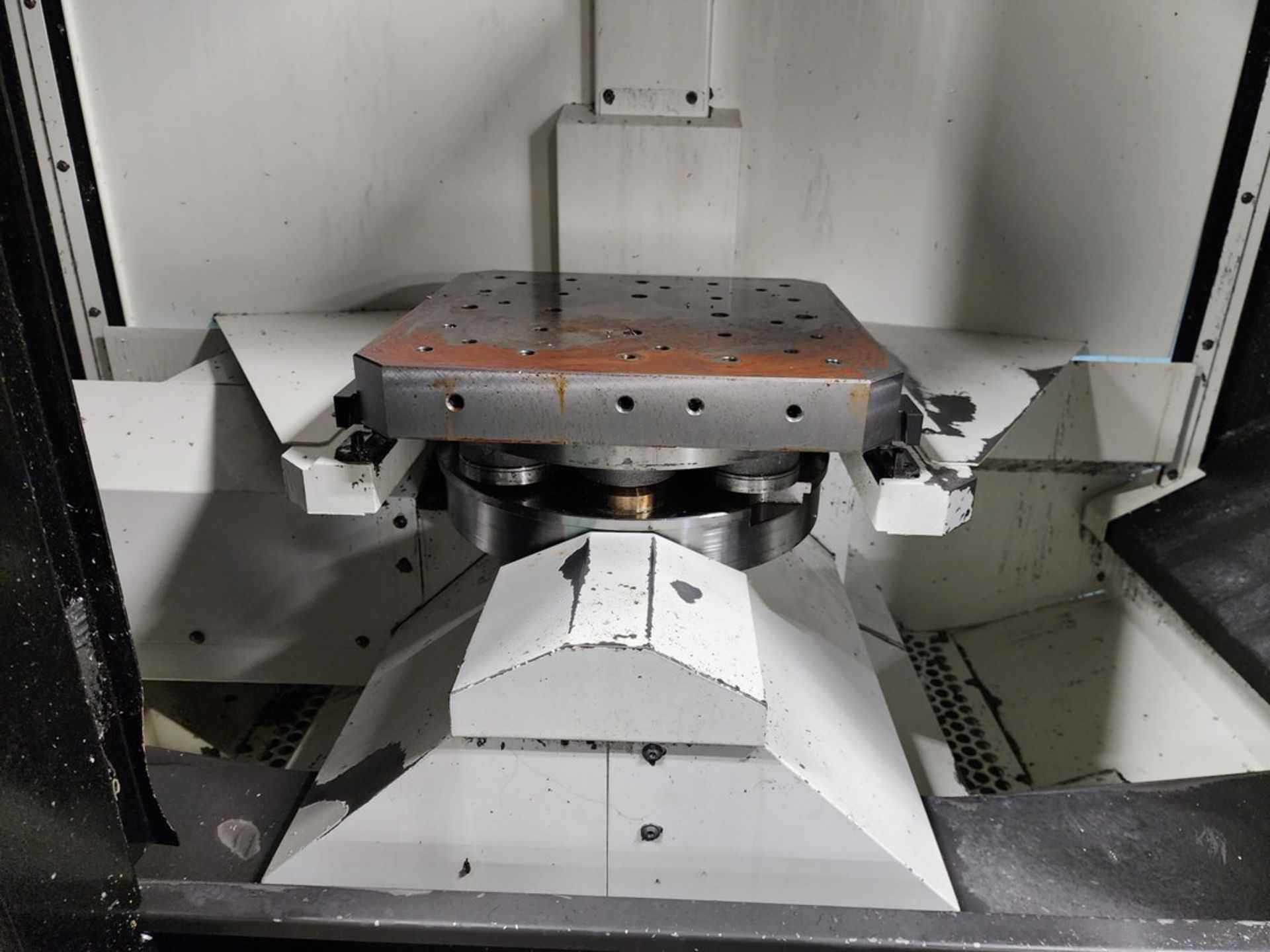

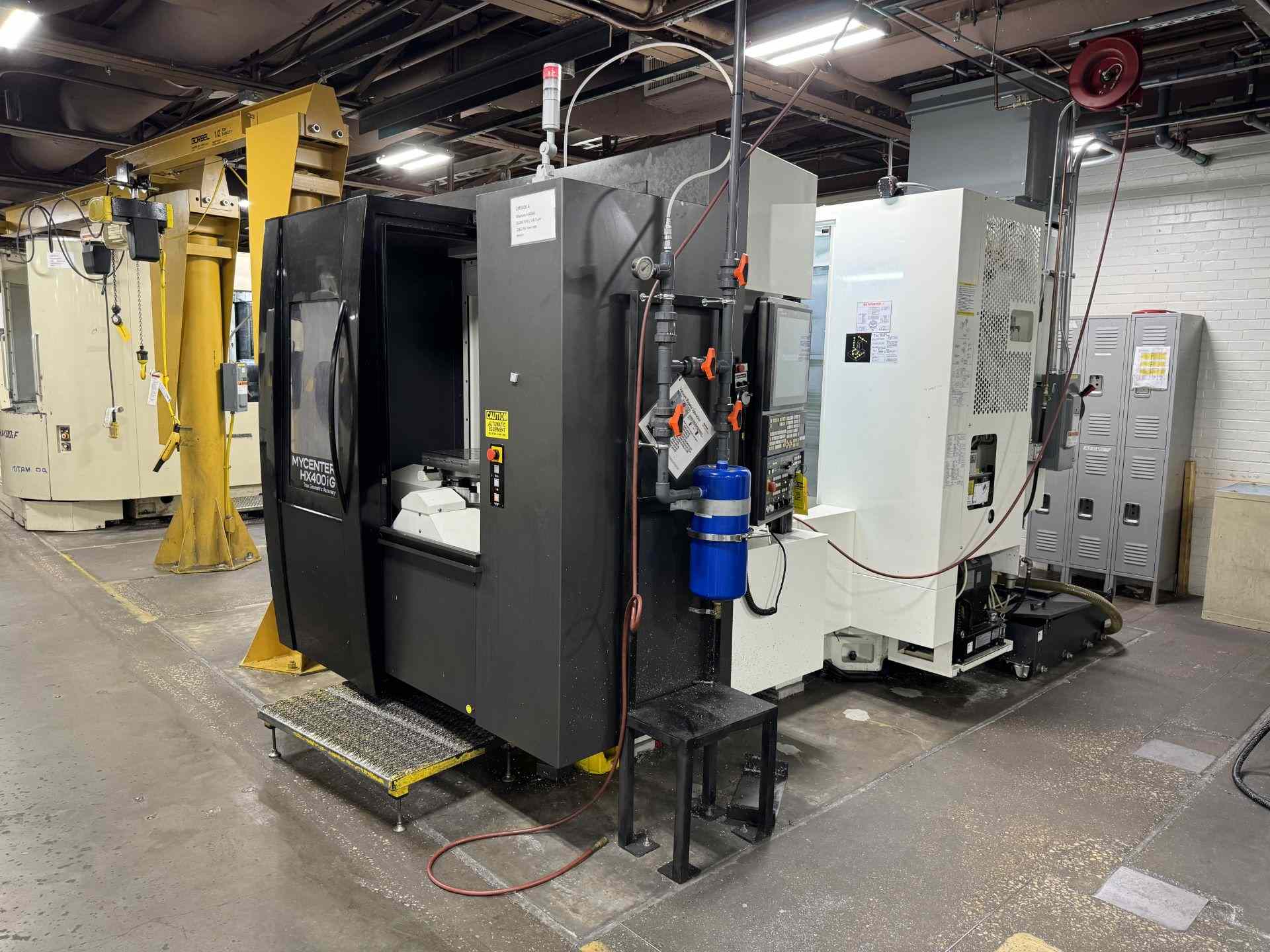

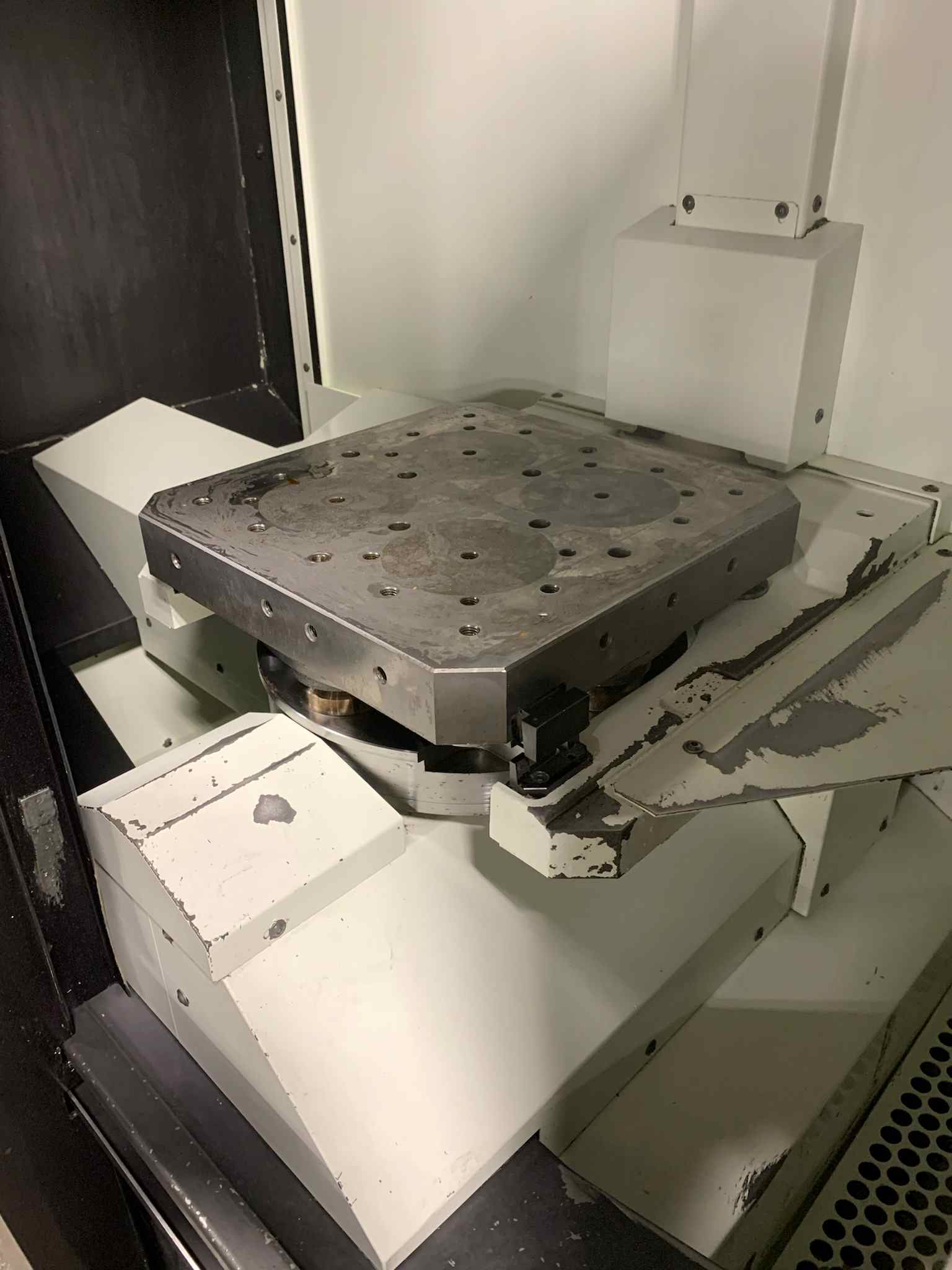

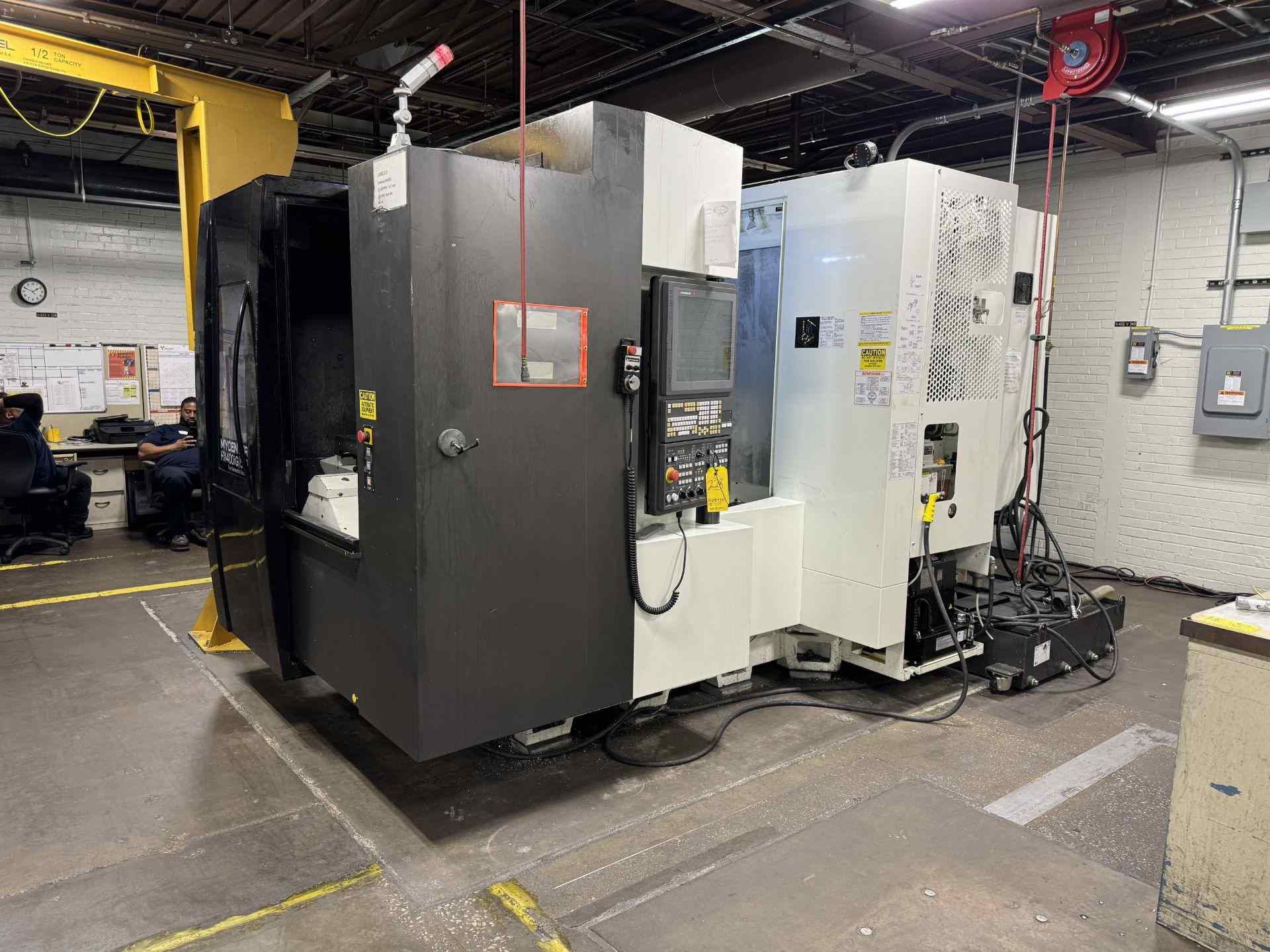

Used Kitamura HX400iG/500 (2018) CNC Horizontal Machining Center for Sale. This machine runs a 400 mm pallet measuring 15.75″ x 15.75″ with full 4th axis pallet indexing, and offers 24″ of travel in X, Y and Z. The 15,000 RPM spindle uses a CAT 40 taper and is supported by a spindle chiller and thru-spindle coolant at 1000 PSI. Tool storage is a 100-position ATC, rapid traverse is 2,362 IPM on X/Y/Z, and a chip conveyor handles chip removal. Renishaw gauging is included. Control is Arumatik Mi. See more CNC horizontal machining centers or additional Kitamura equipment. This machine can be seen under power for an inspection. Activate Pricing or Request a Quote for details.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.75" x 15.75" |
| X-Axis Travel |
24" |
| Y-Axis Travel |
24" |
| Z-Axis Travel |
24" |
| Tool Magazine Capacity |
100 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |

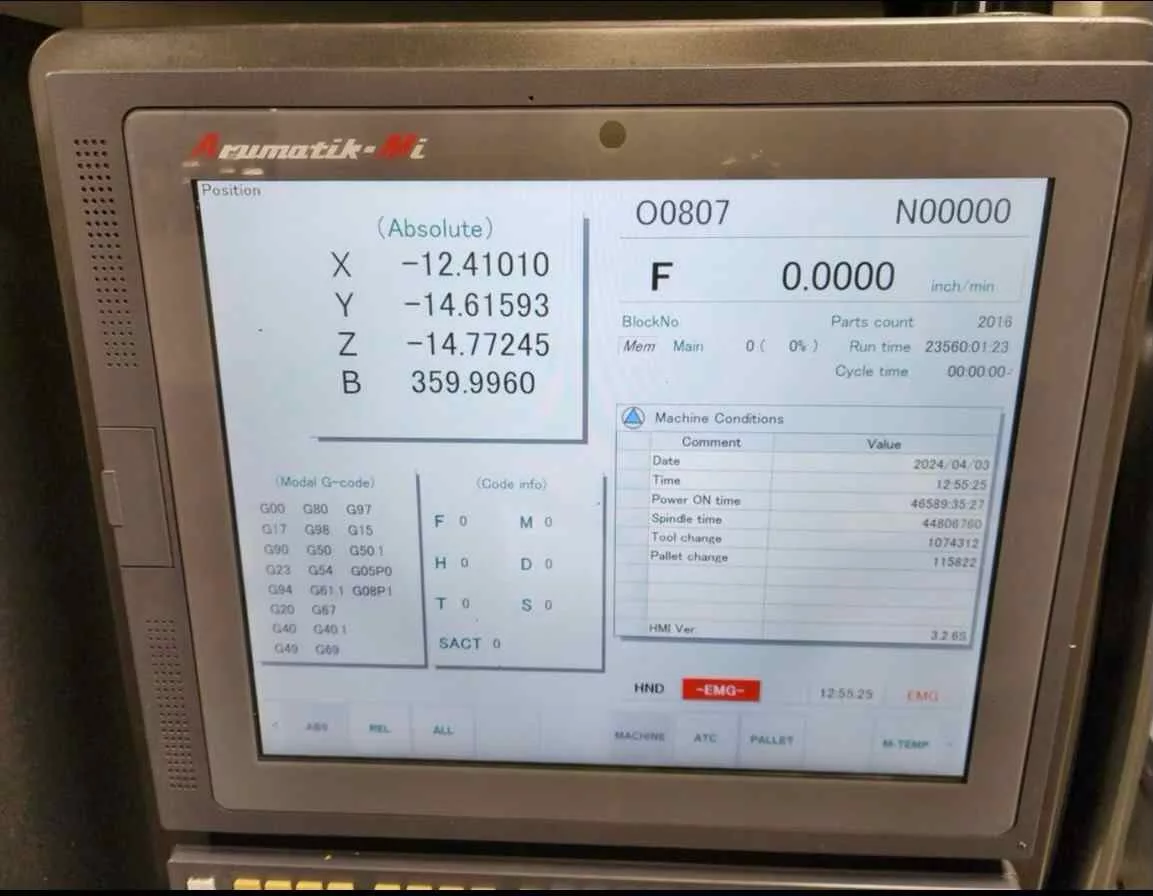

| Control |
Arumatik Mi |
| Pallet Indexing |
Full 4th Axis |
| Rapid Speed X/Y/Z |
2,362 IPM |
| Chip Removal |
Chip Conveyor |
| Coolant |
Thru Spindle (1000 PSI) |
Features
|
Renishaw Gauging |
Spindle Chiller |
